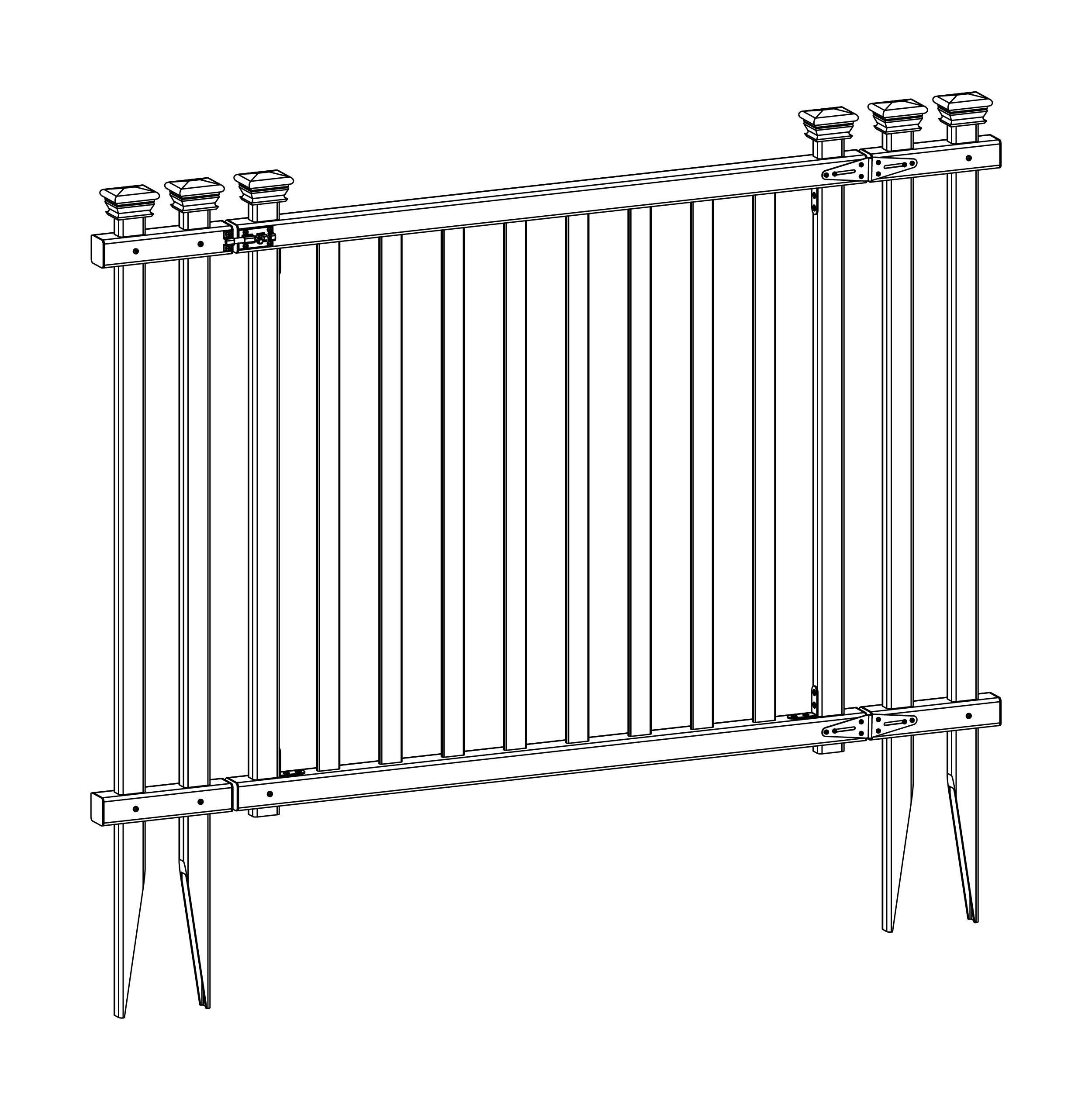

Baskenridge Vinyl Gate Kit w/ Fence Wings

Important Safety Notes:

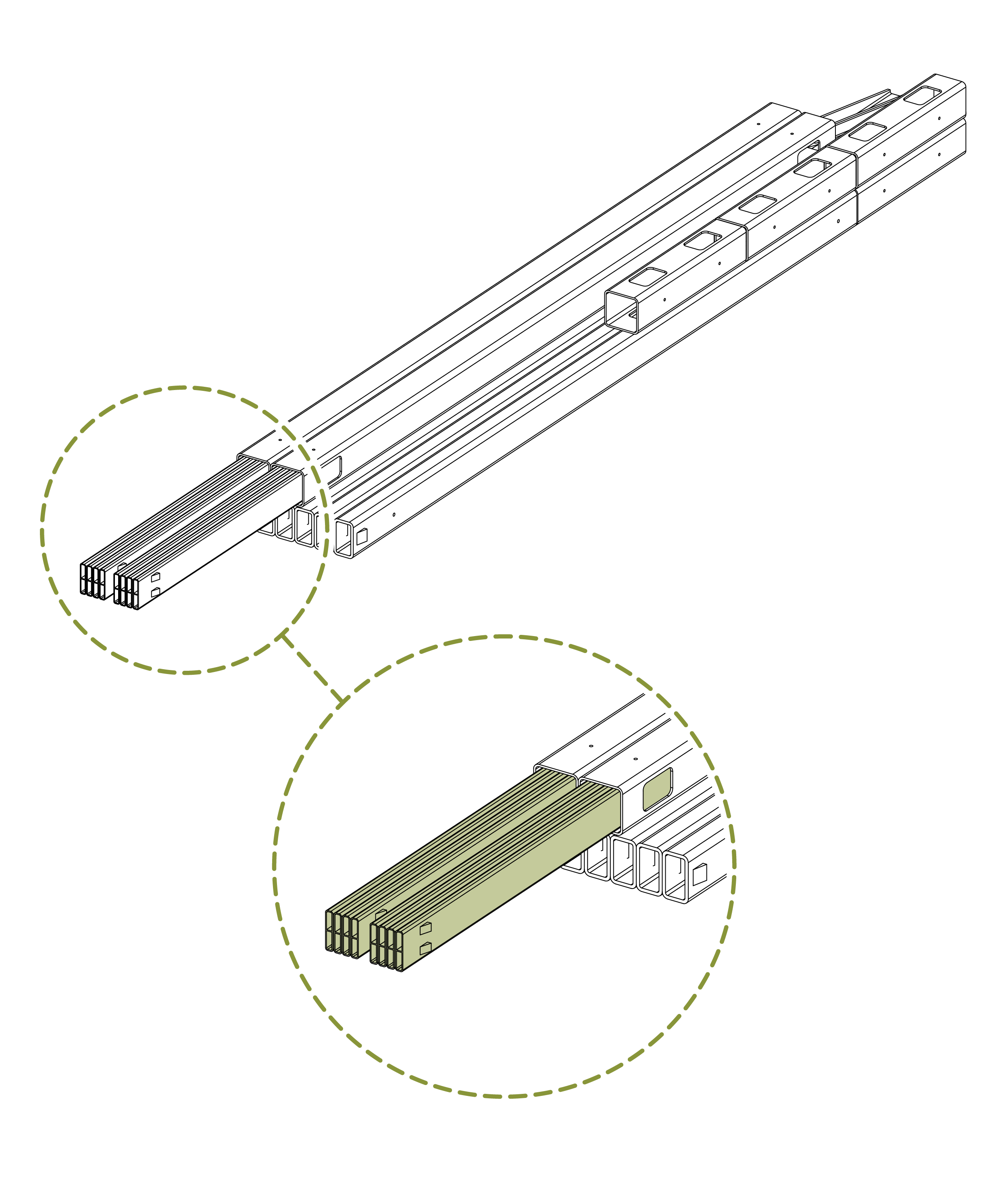

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface approx 5ft x 8ft (i.e. shipping box) to avoid scratching.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday. Leave a voicemail if outside of business hours and it will be returned within 1 business day.

For Quick Assistance:

• Have reference item number ZP19038
• Provide the specific part name (see list here)
• Include the batch lot number (stamped on the end of the box)

1. Review fence instructions first

Your gate will perform best when installed with a full understanding of your fence system.

2. Pre-assemble the gate frame (dry run)

Do not screw the frame together initially. Temporarily assemble first to ensure:

• All parts are present
• Proper assembly order
• Correct fit and function

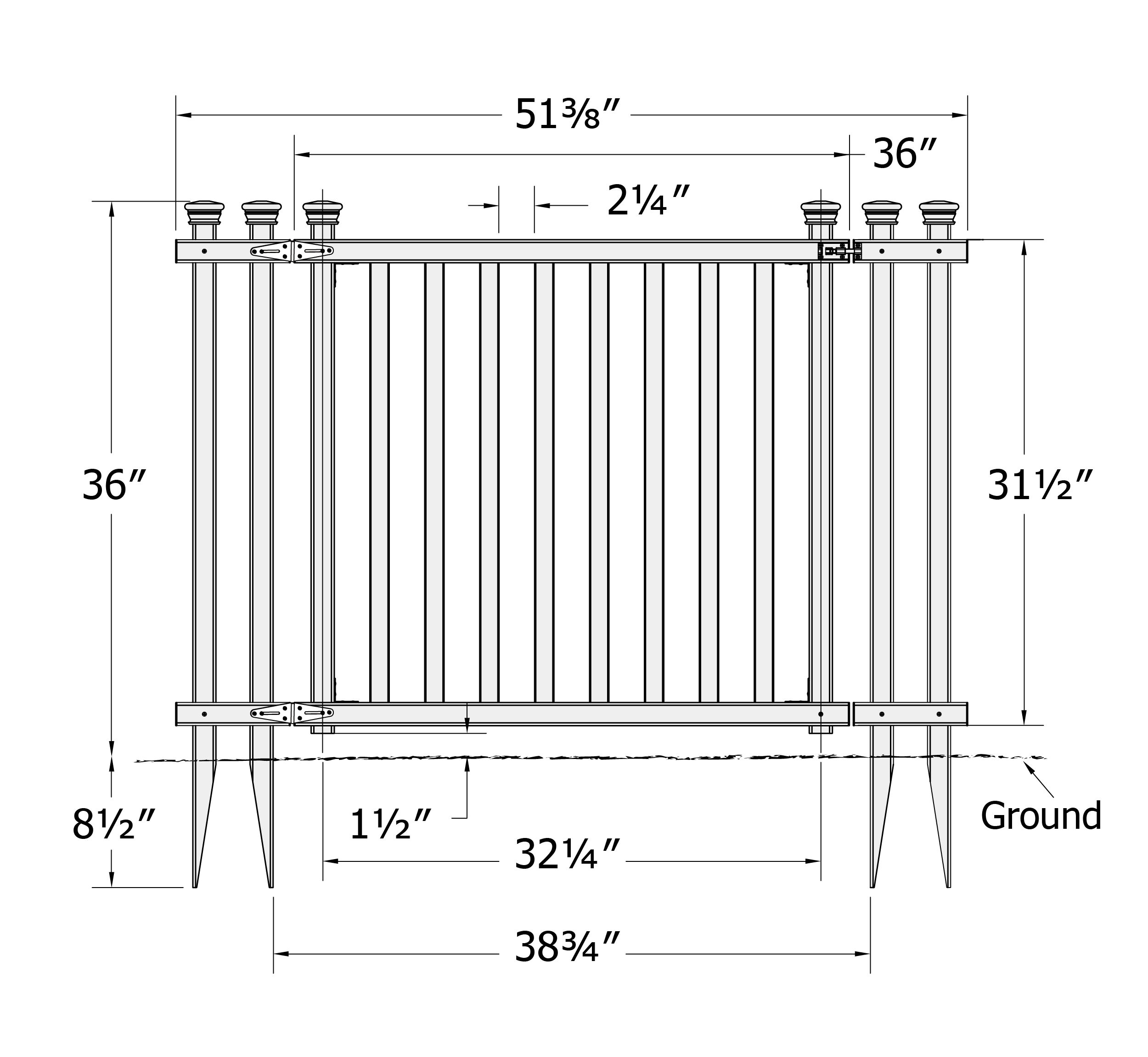

• Dimensions match line drawings above

Once confirmed, disassemble as needed and reassemble using the provided self-drilling stainless steel screws.

3. Install gate posts before fence posts

Fence panels allow more flexibility. Set your gate posts first for proper alignment.

4. Do not hang the gate from a single unsupported post

For best performance, attach the hinge post to a fence panel connected to a second post. Installing panels on both sides of the gate is ideal. If space is limited, contact us for alternatives.

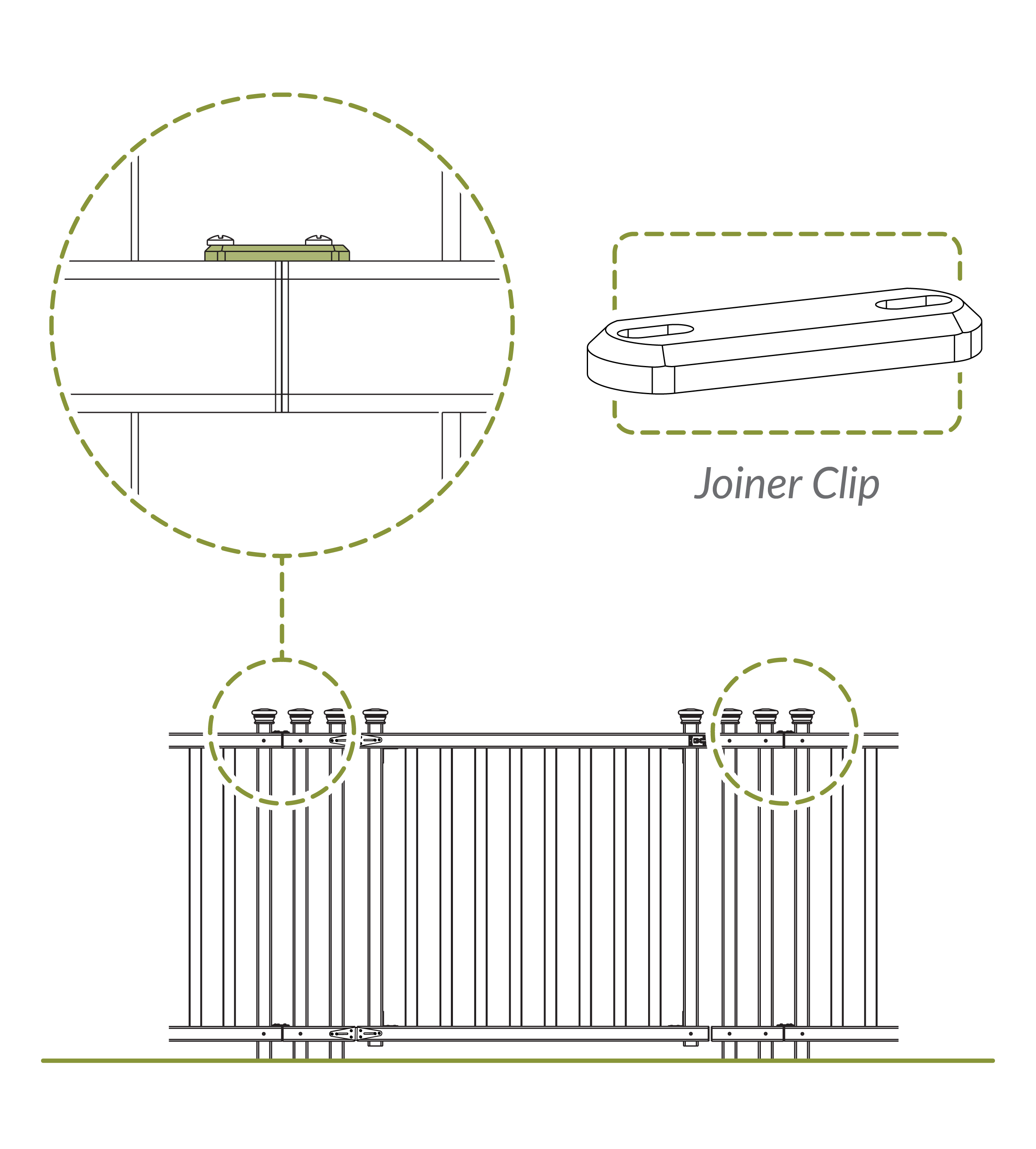

• Use joiner clips (included with ZP19037- sold separately) to attach the gate to the fence panels. Gate must be attached to a panel for proper function and stability.

Tools required for Best Experience:

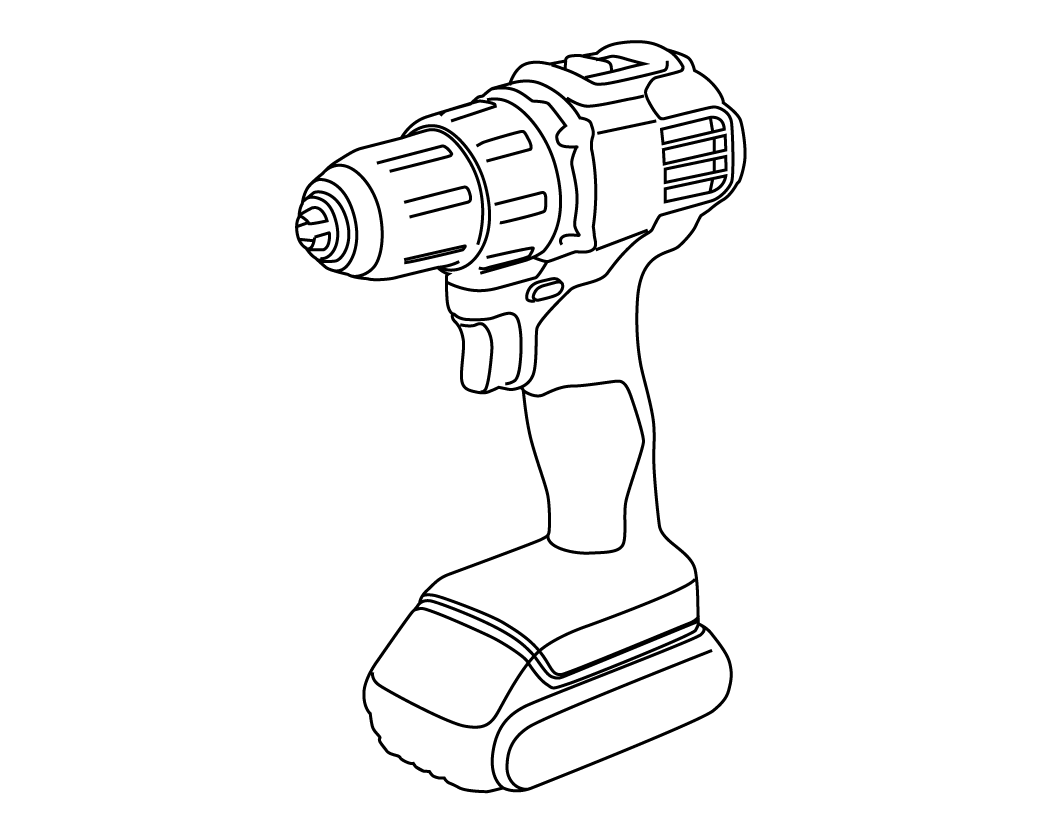

Drill

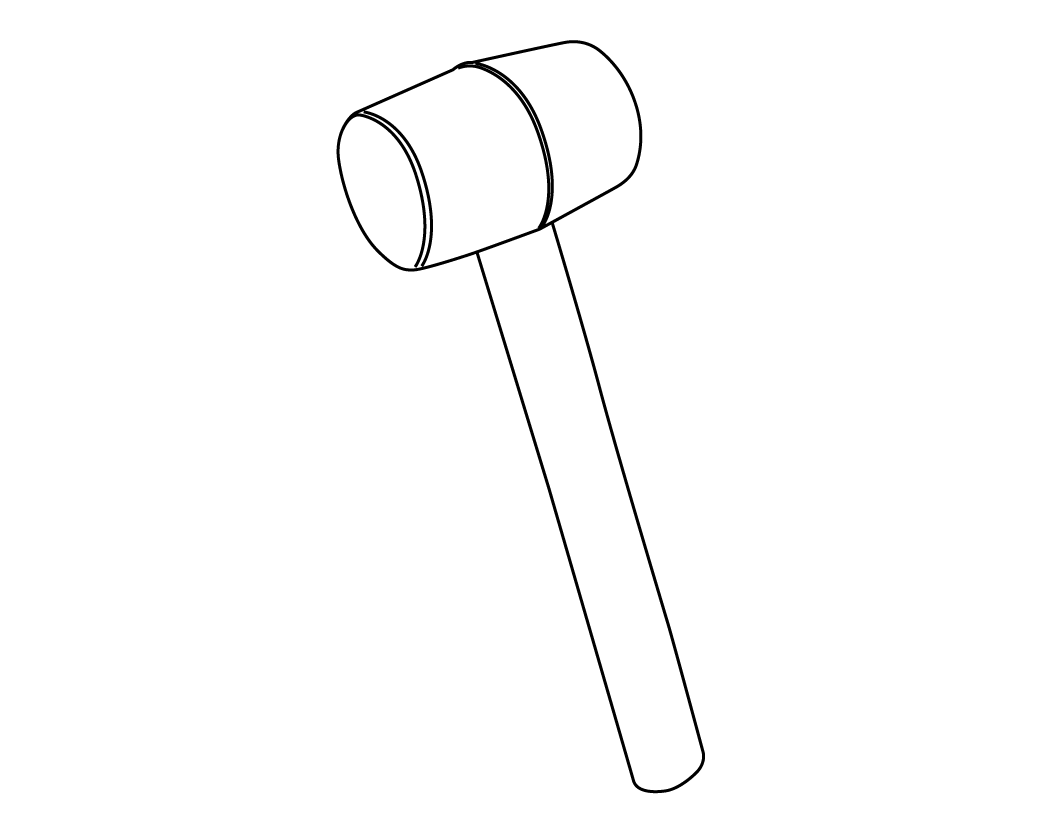

Mallet

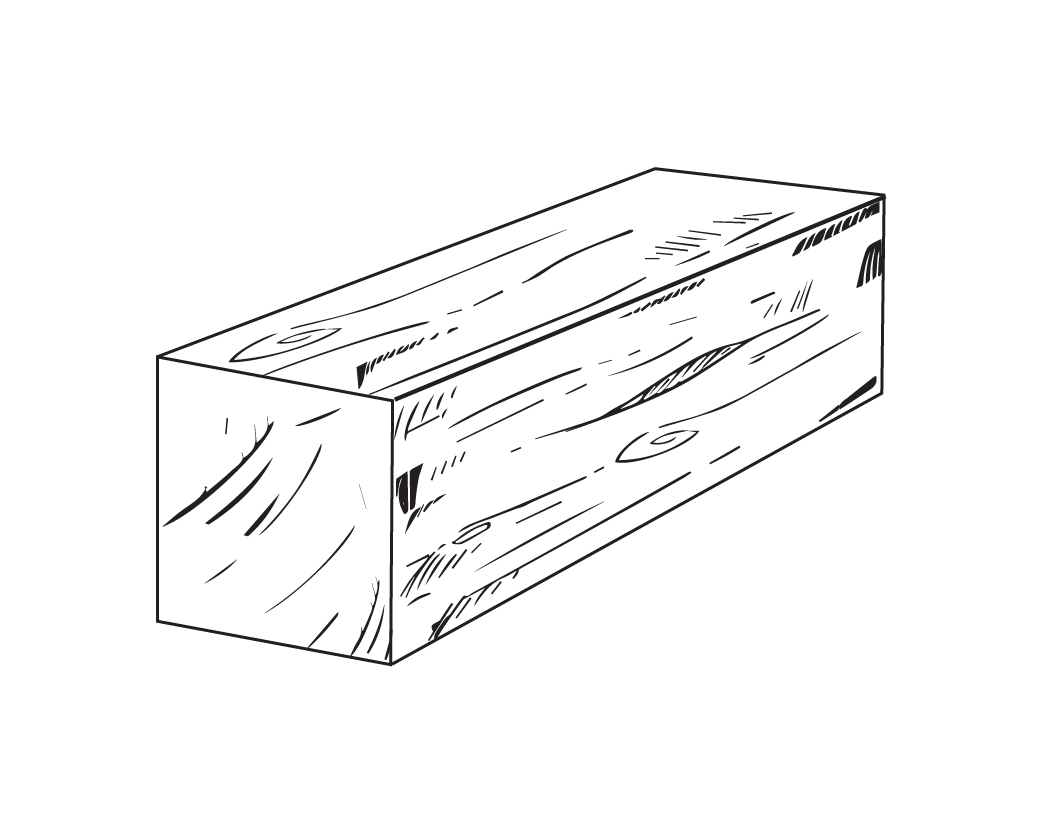

Wood Block

Optional Tools:

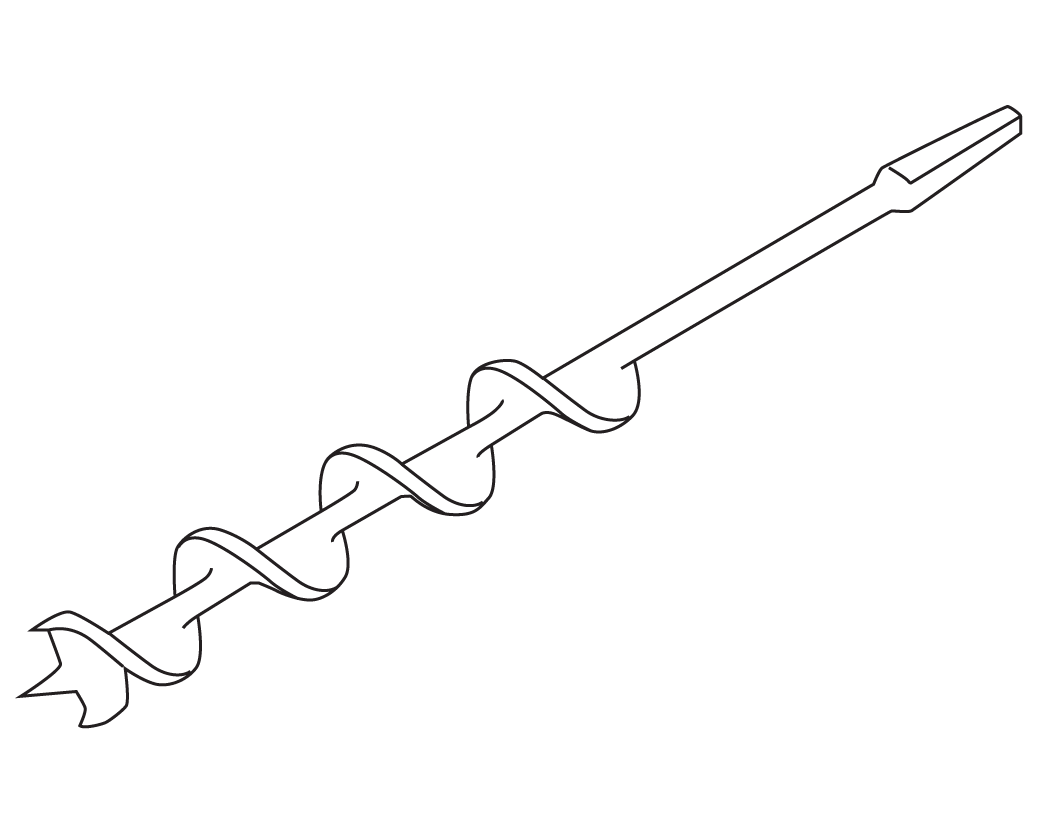

Tulip Bulb Auger

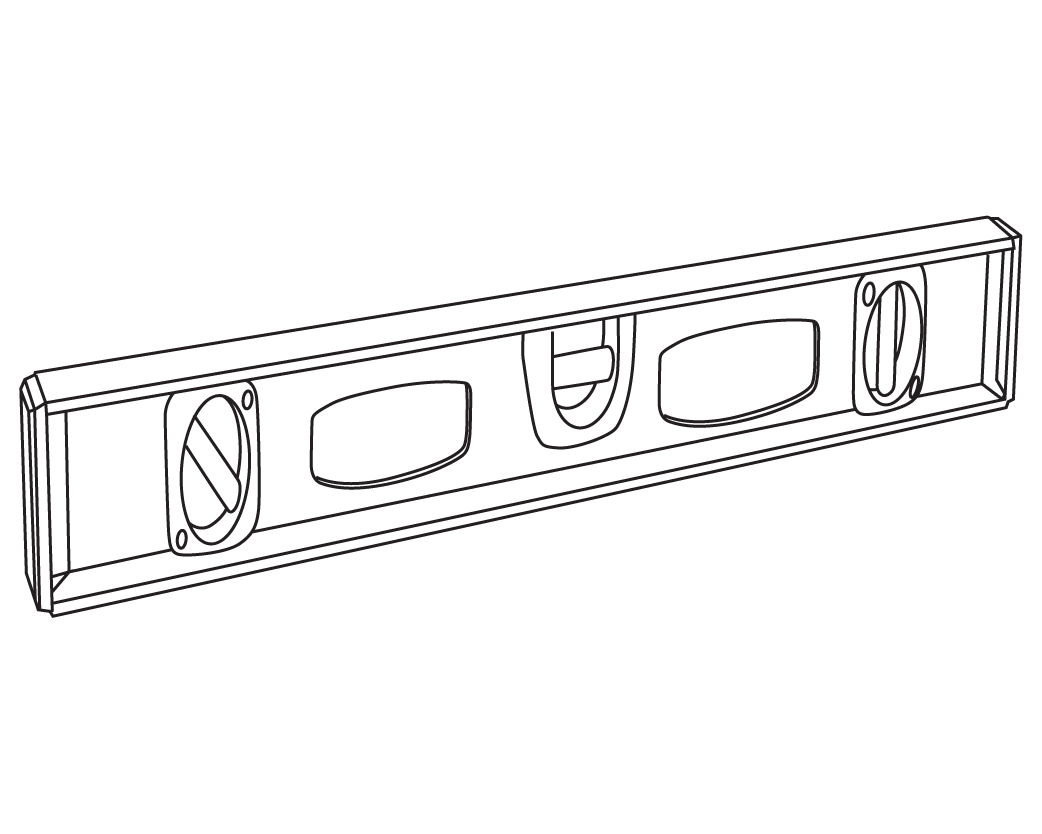

Level

• Check the inside of larger pieces in your box for other materials packed inside.
• We recommend 2 people for a smoother installation.

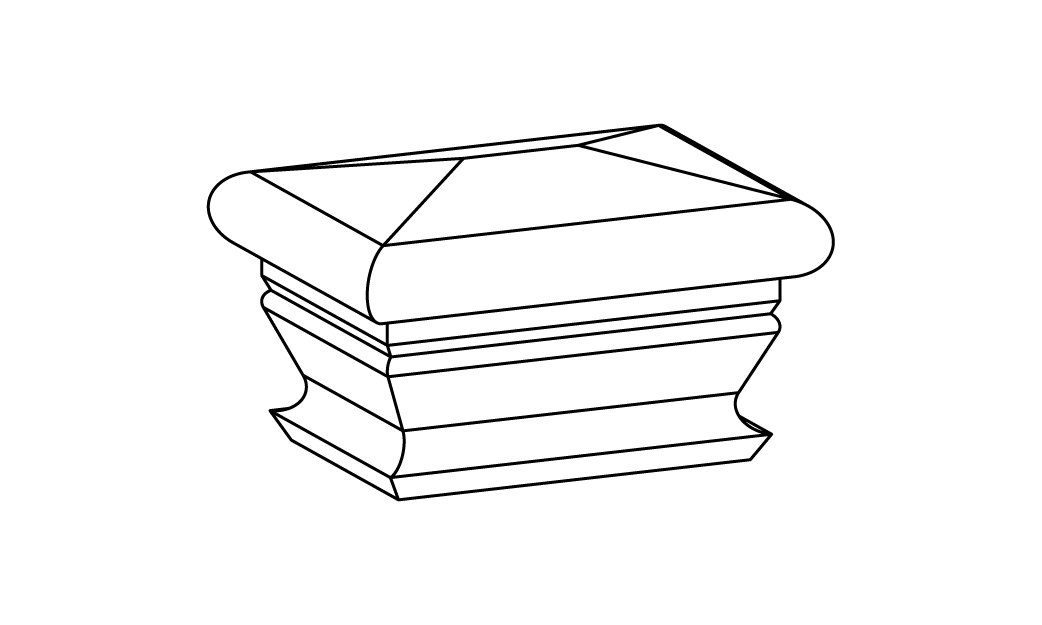

A. Post Cap (6)

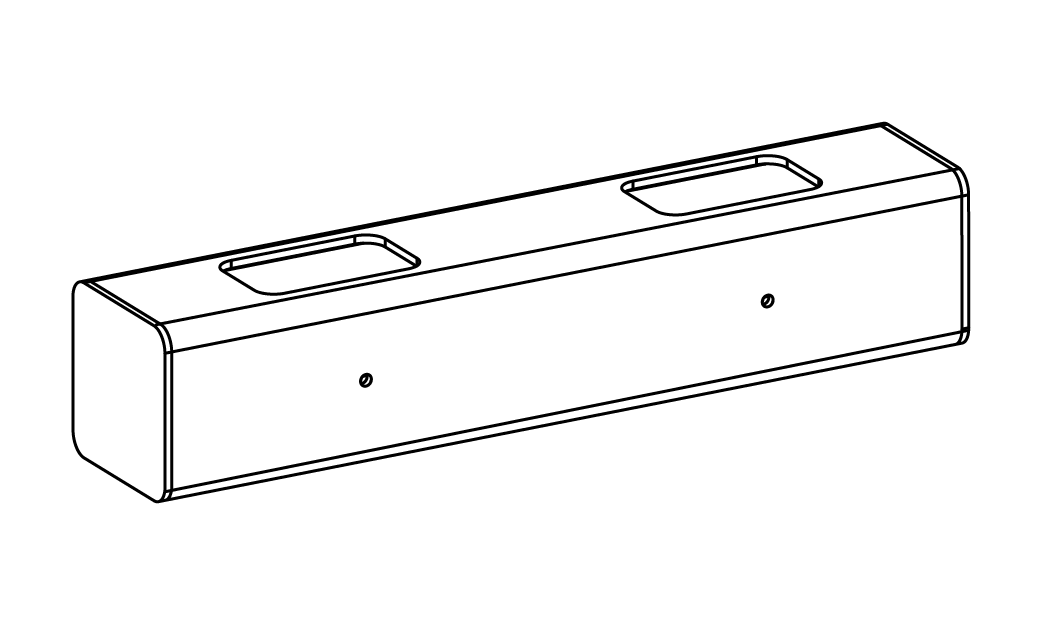

B. Rail (4)

1½" × 1½" × 7⅜"

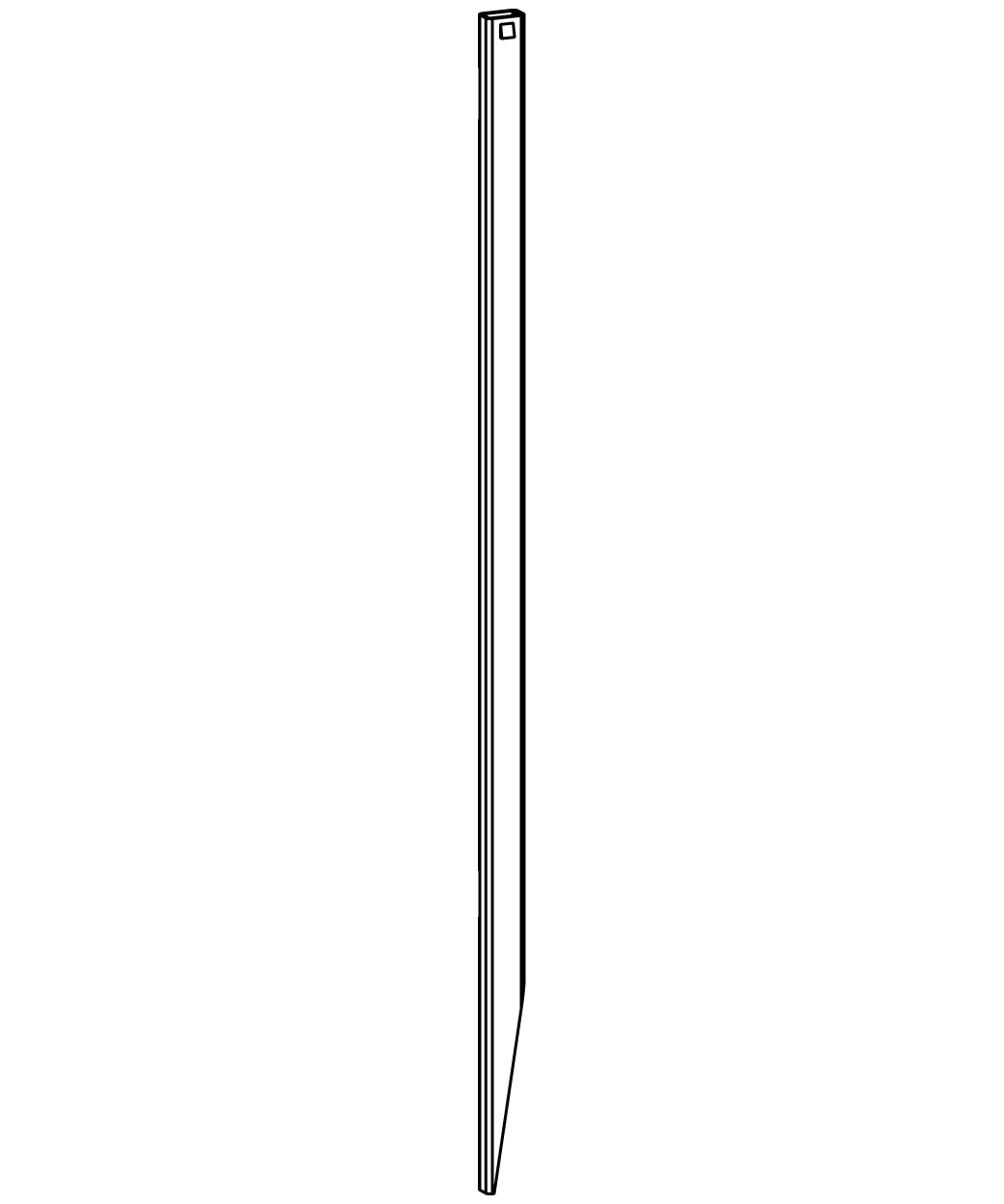

C. Post (4)

⅞" × 1½" × 44"

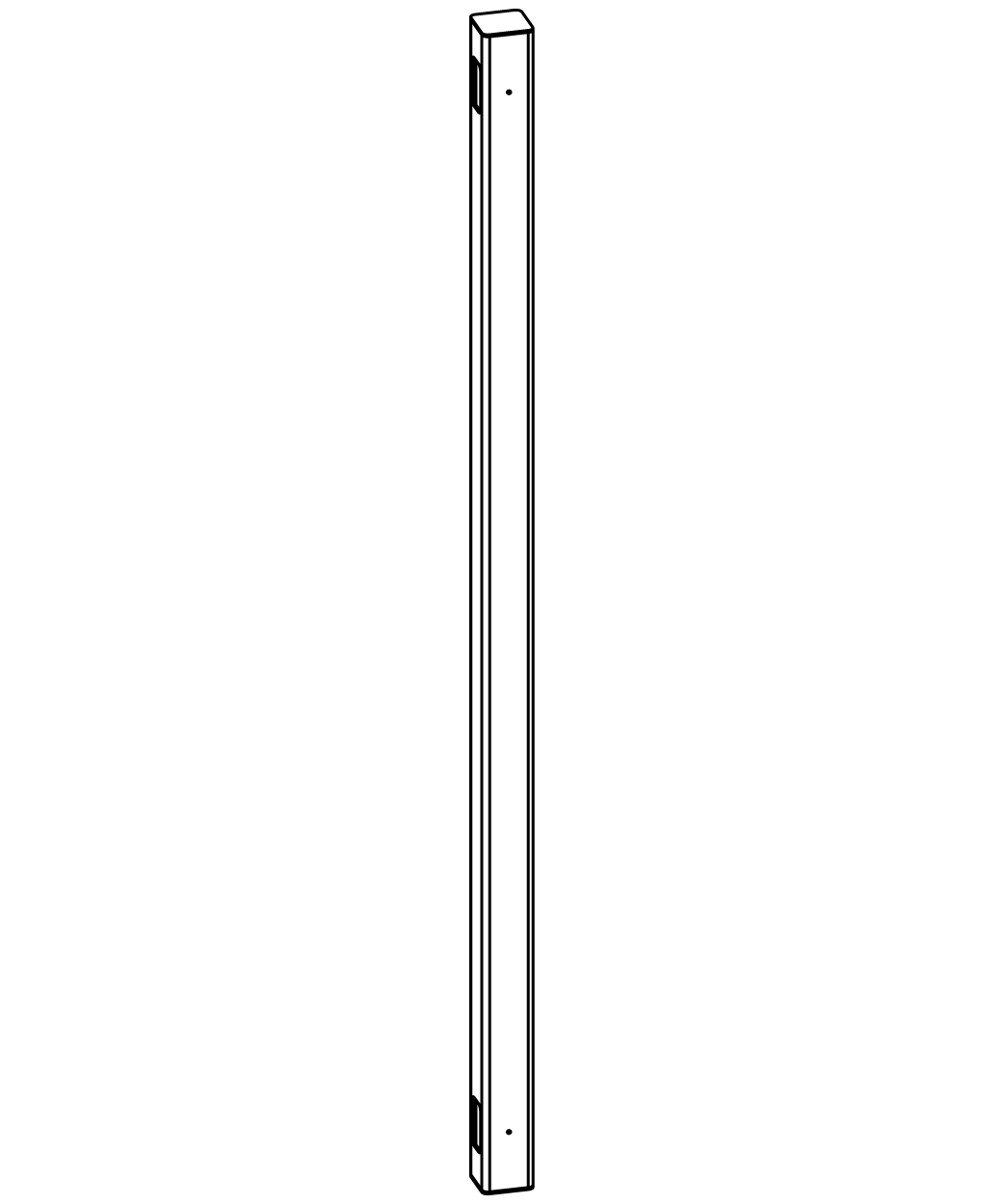

D. Gate Rail (2)

1½" × 1½" × 36"

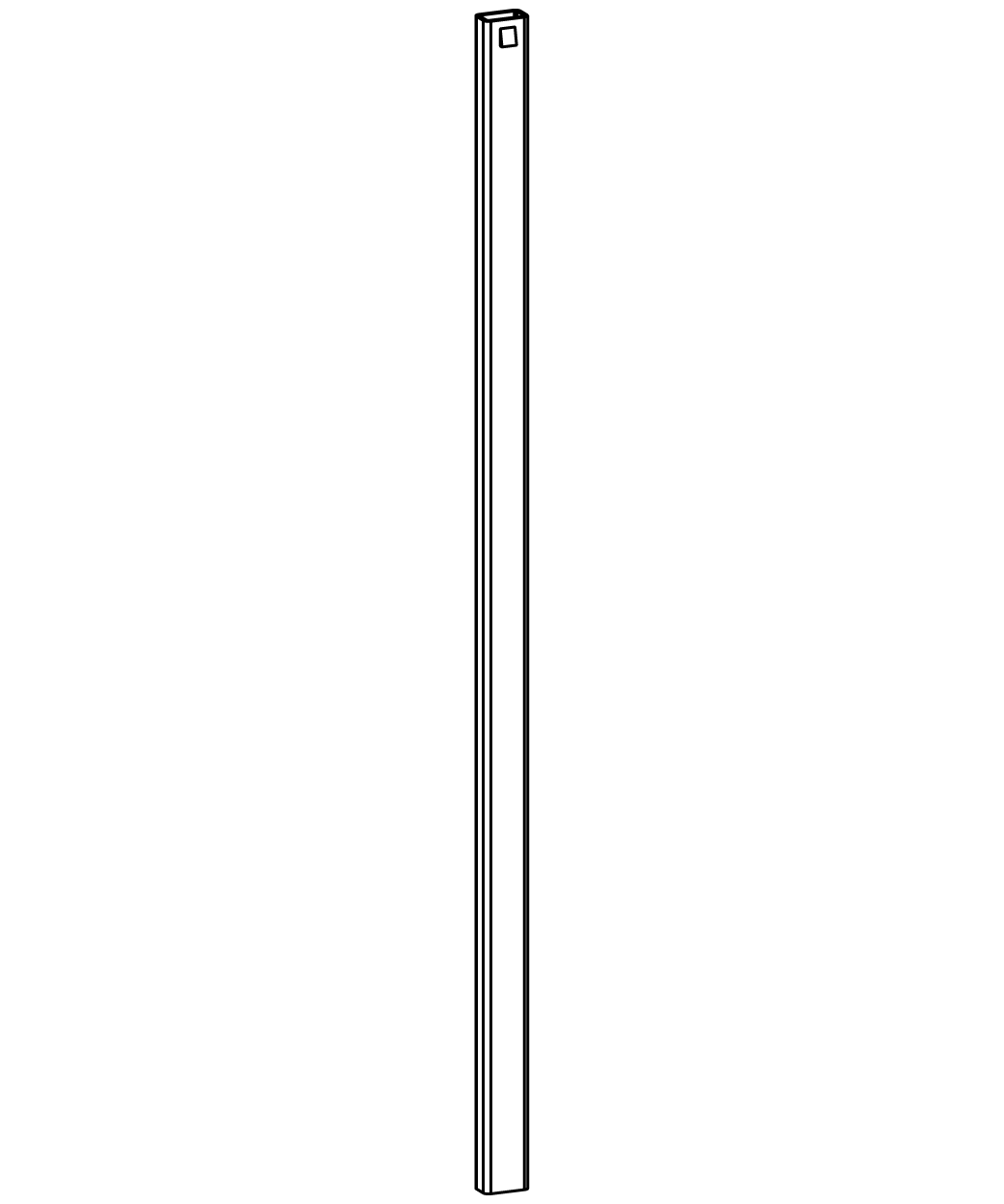

E. Gate Post (2)

⅞" × 1½" × 34"

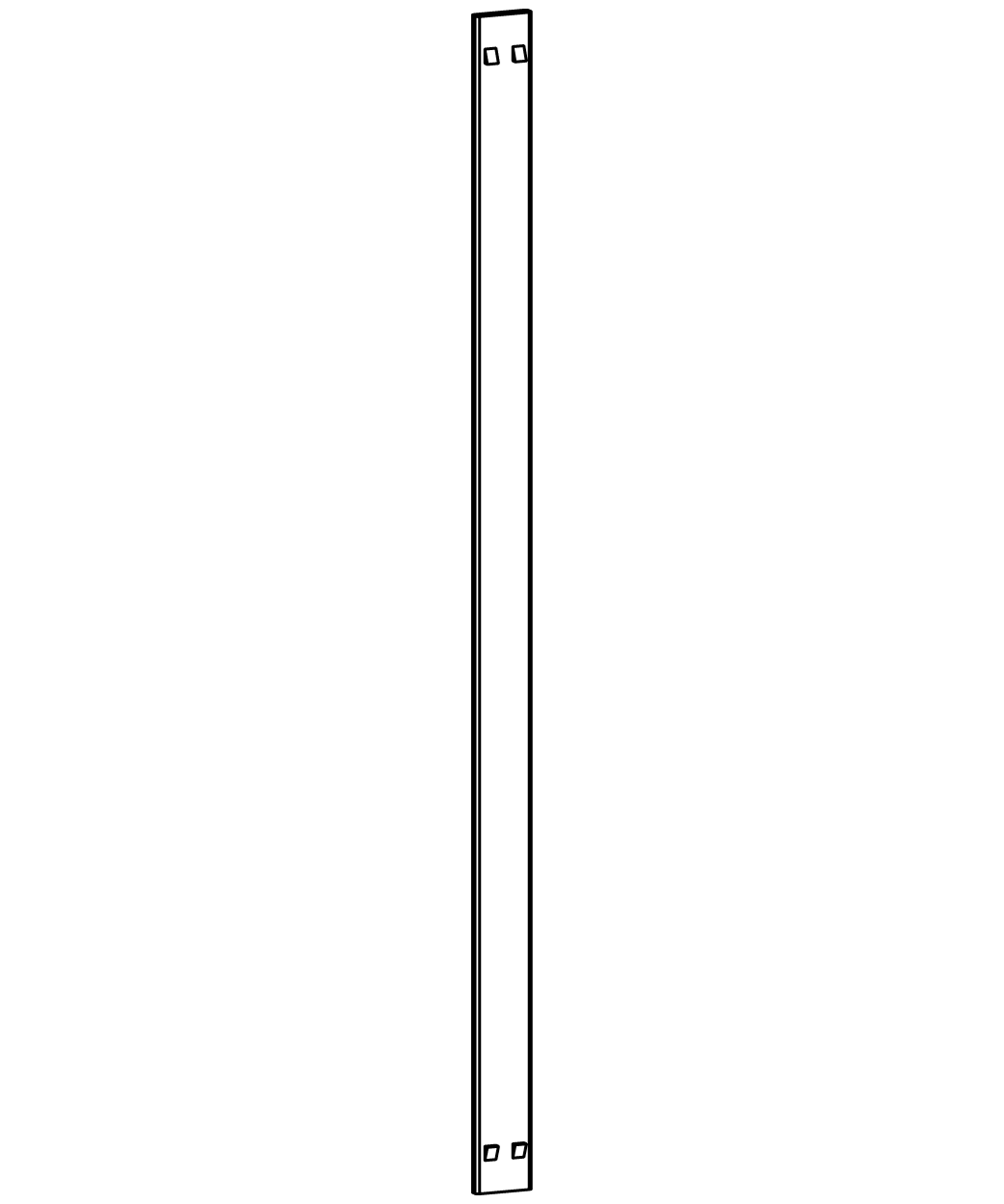

F. Picket (8)

¼" × 1¼" × 31¼"

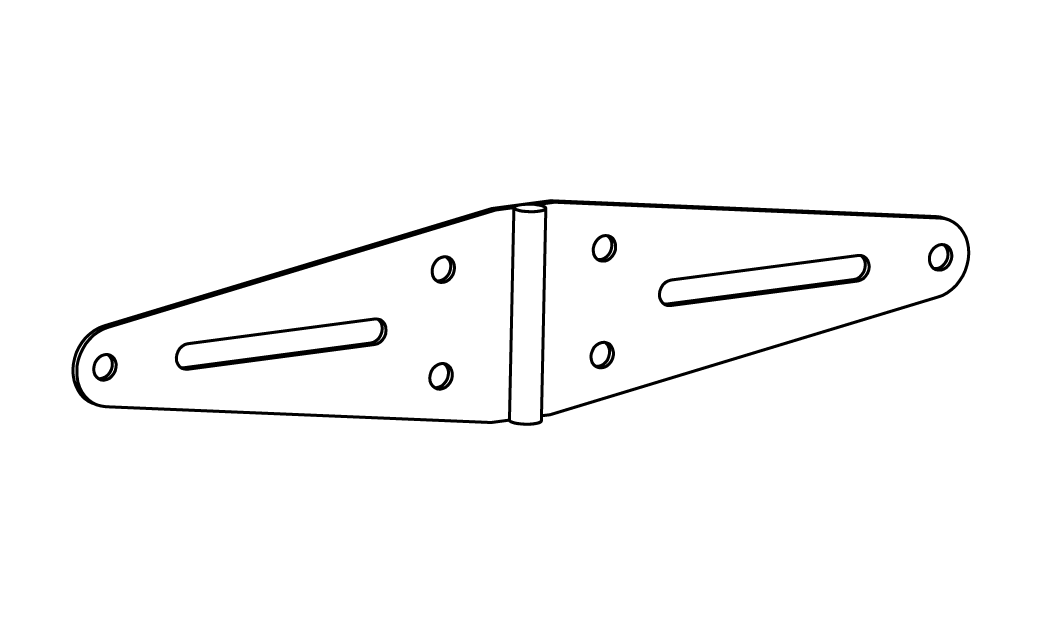

G. Gate Hinge (2)

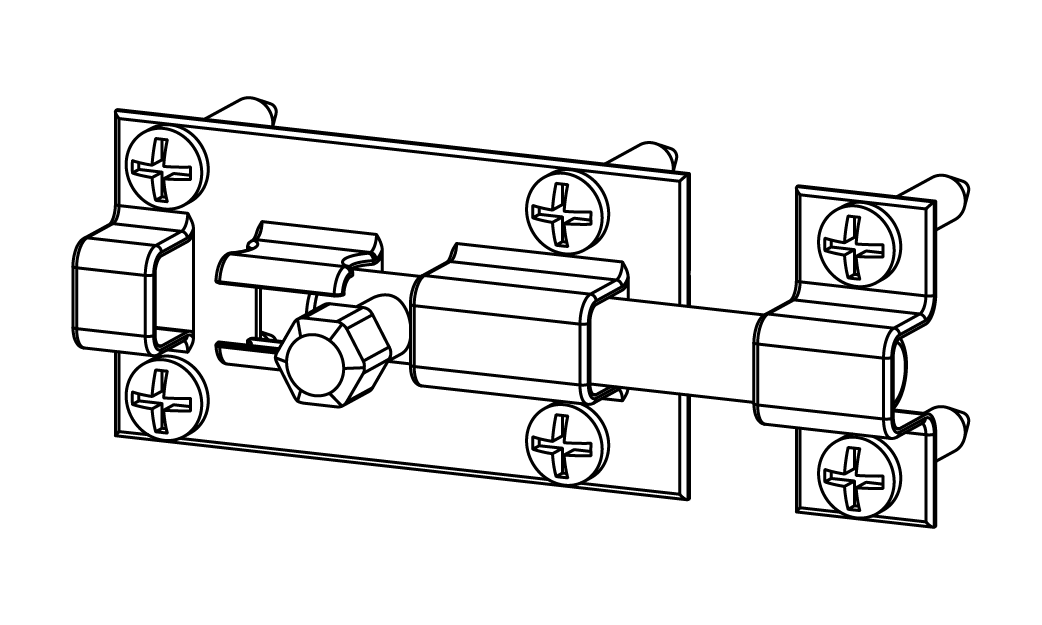

H. Gate Latch (1)

I. ¾" Black Screw (6)

Self-Tapping Stainless Steel

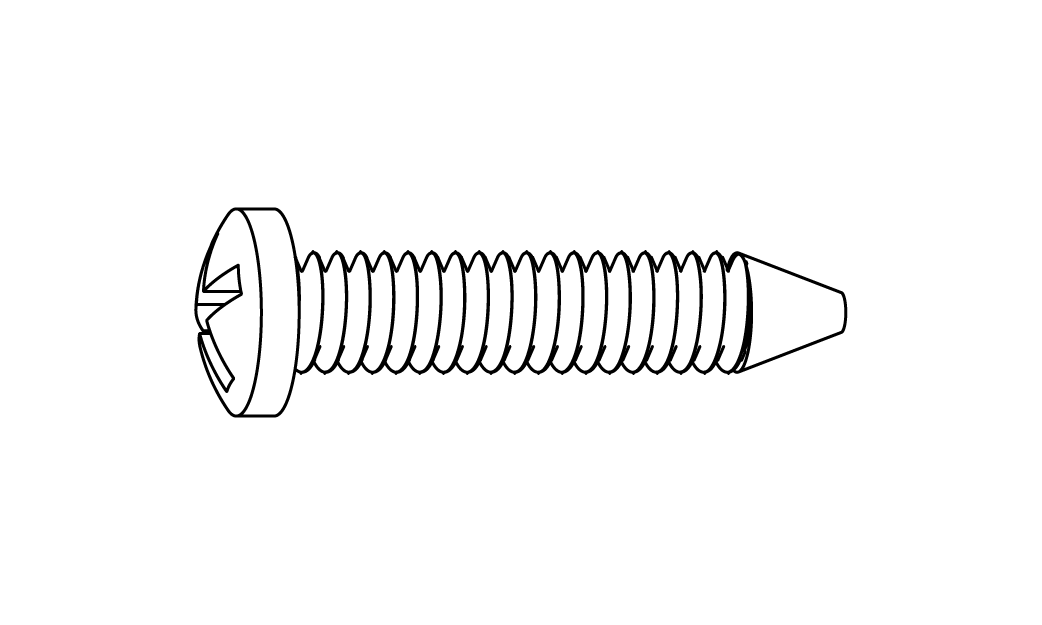

J. ¾" White Screw (40)

Self-Tapping Stainless Steel

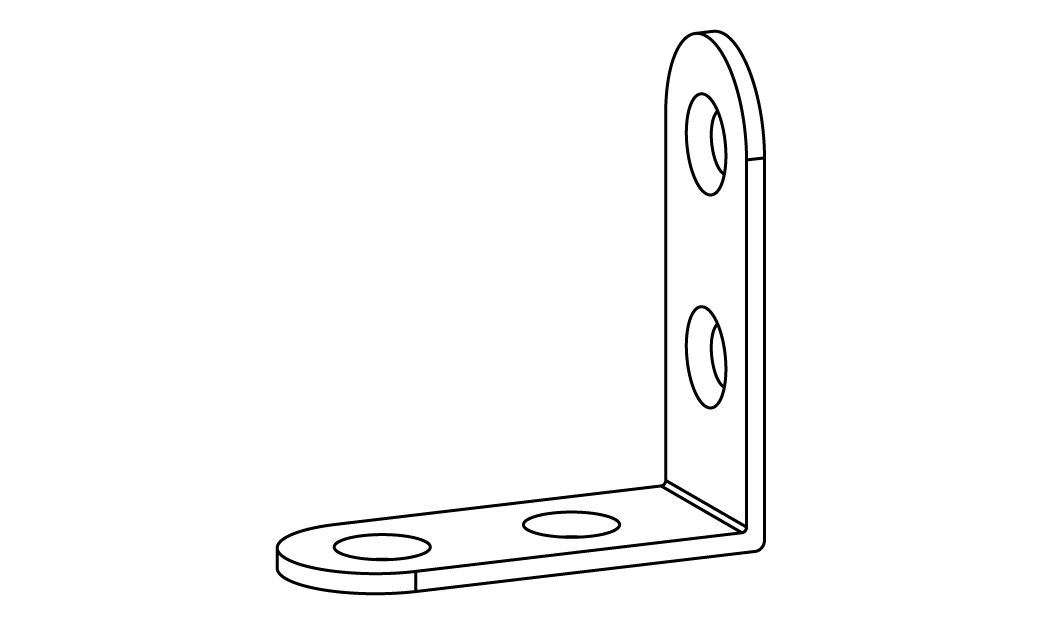

K. L Bracket (4)

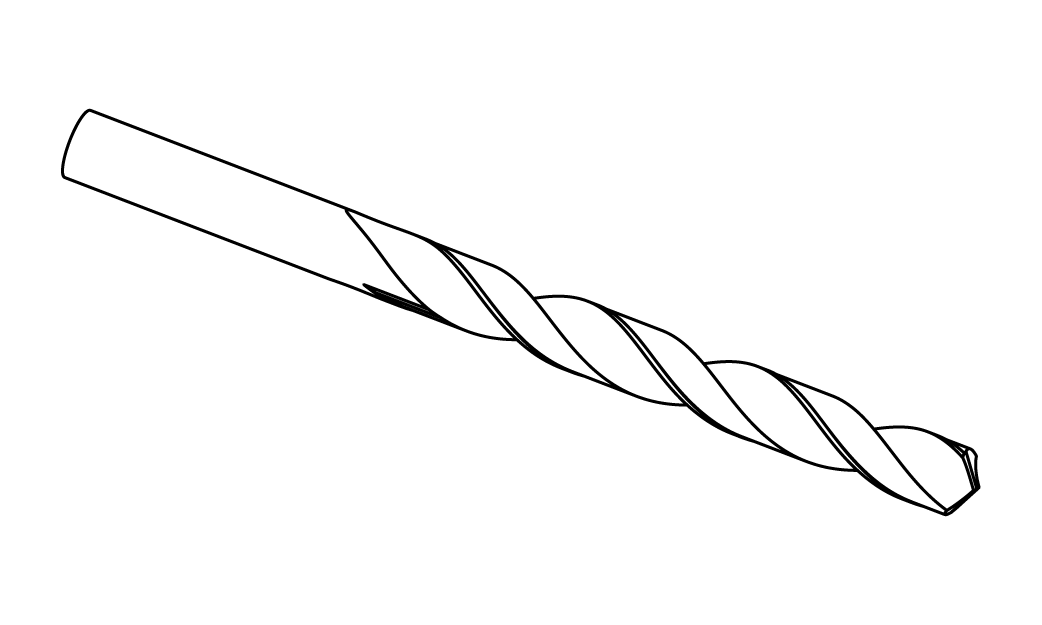

L. ¹⁄₁₆" Drill Bit (1)

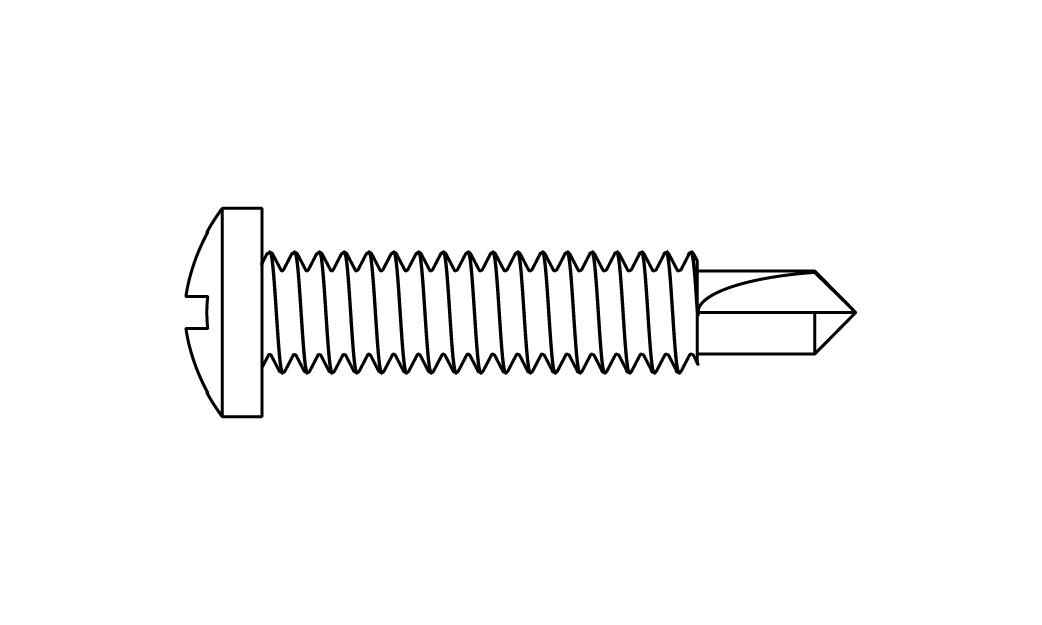

M. ¾" Black Screw (12)

Self-Drilling Stainless Steel

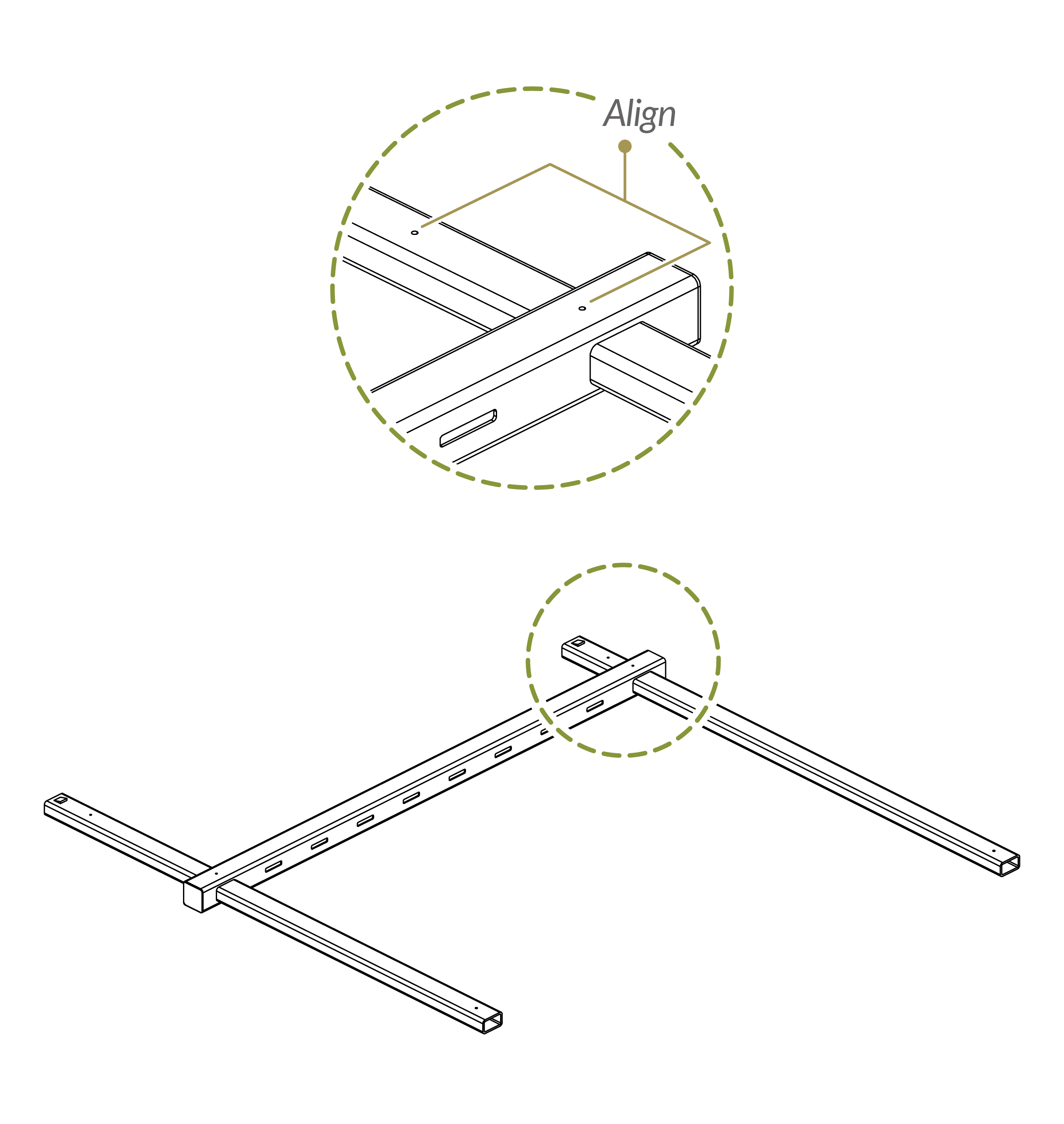

Align the pre-drilled holes.

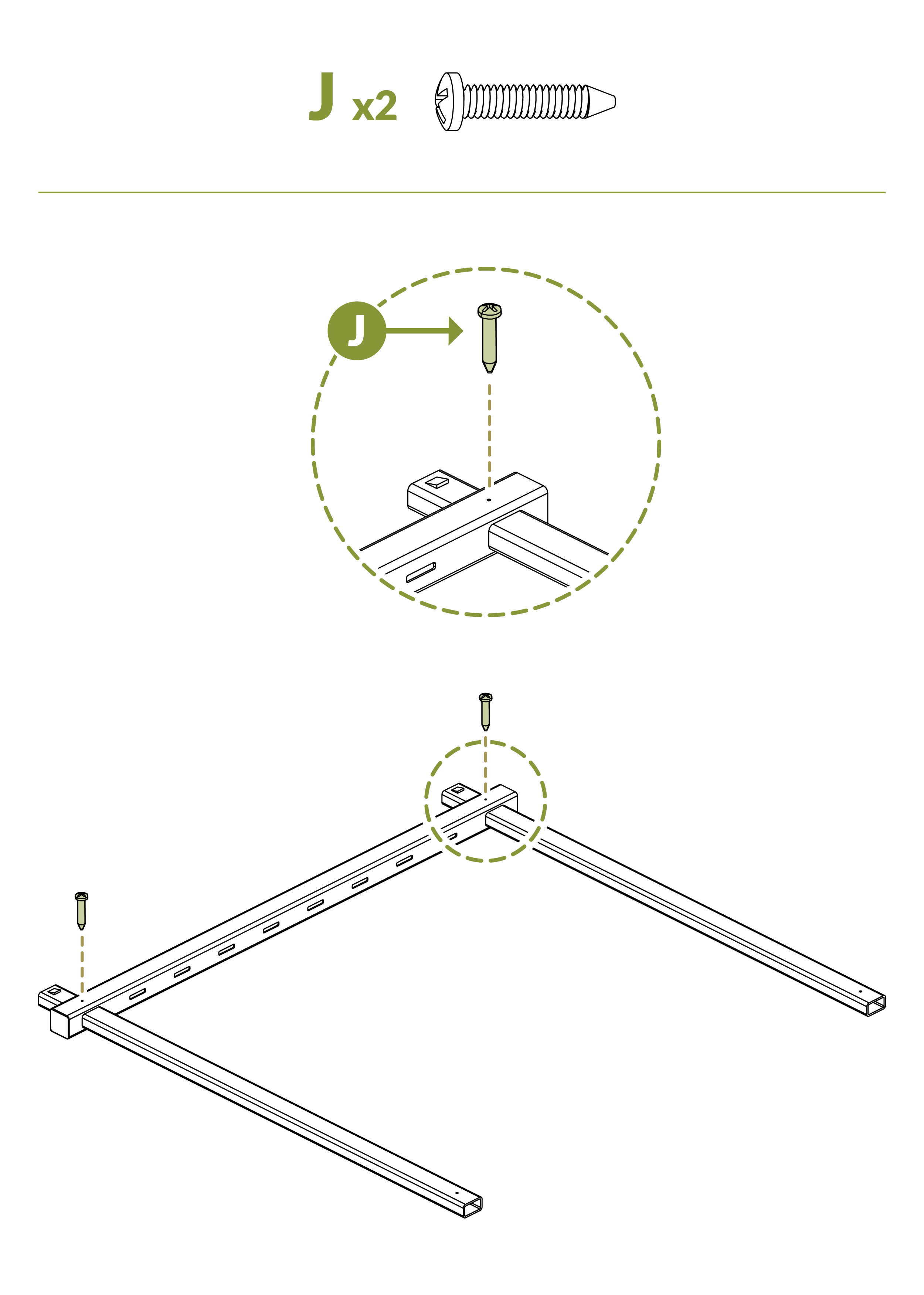

Use screws (J) to fasten the gate rail to the gate posts at each end.

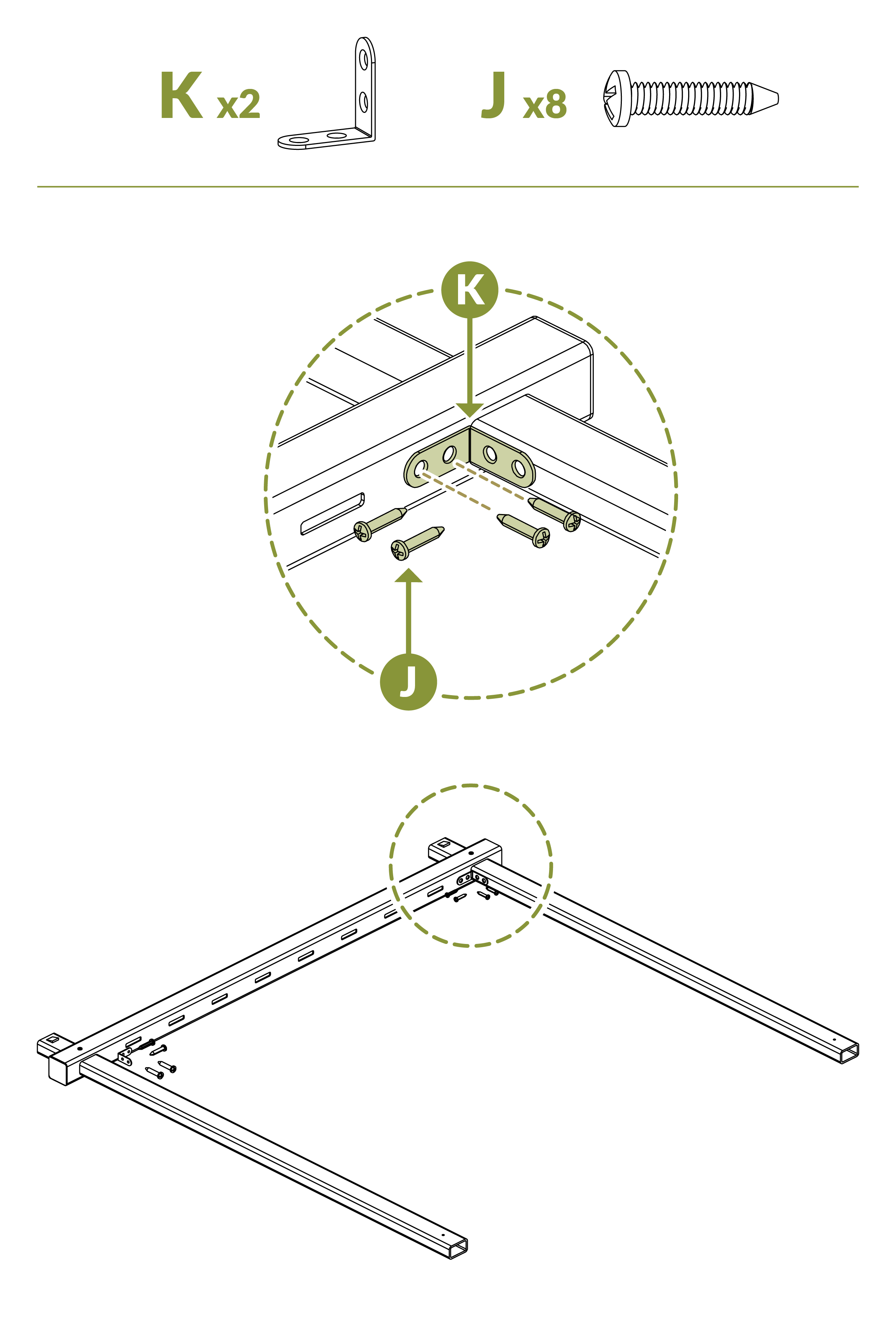

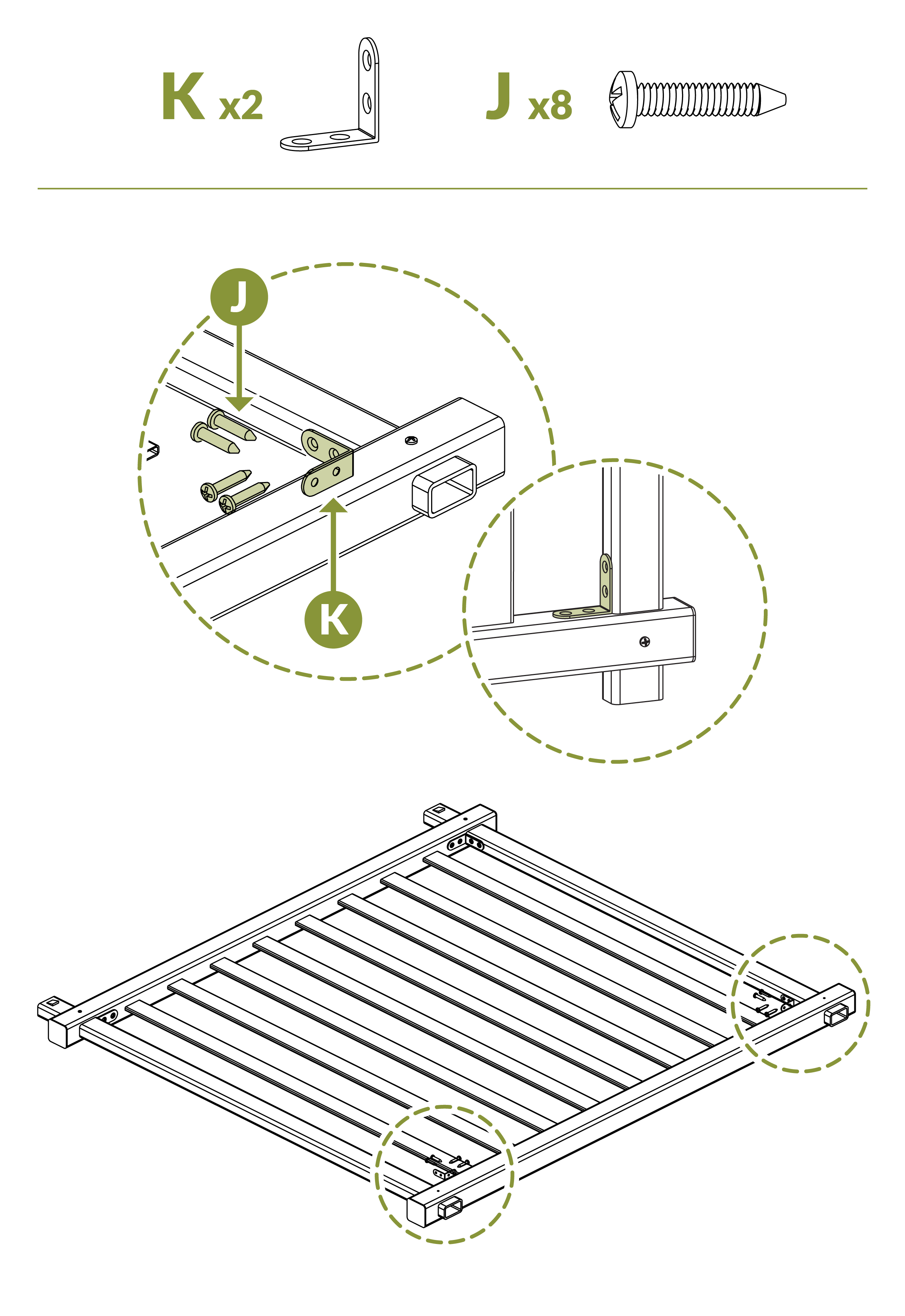

Attach L brackets (K) to the inside corners of the top rail using screws (J) to add stability.

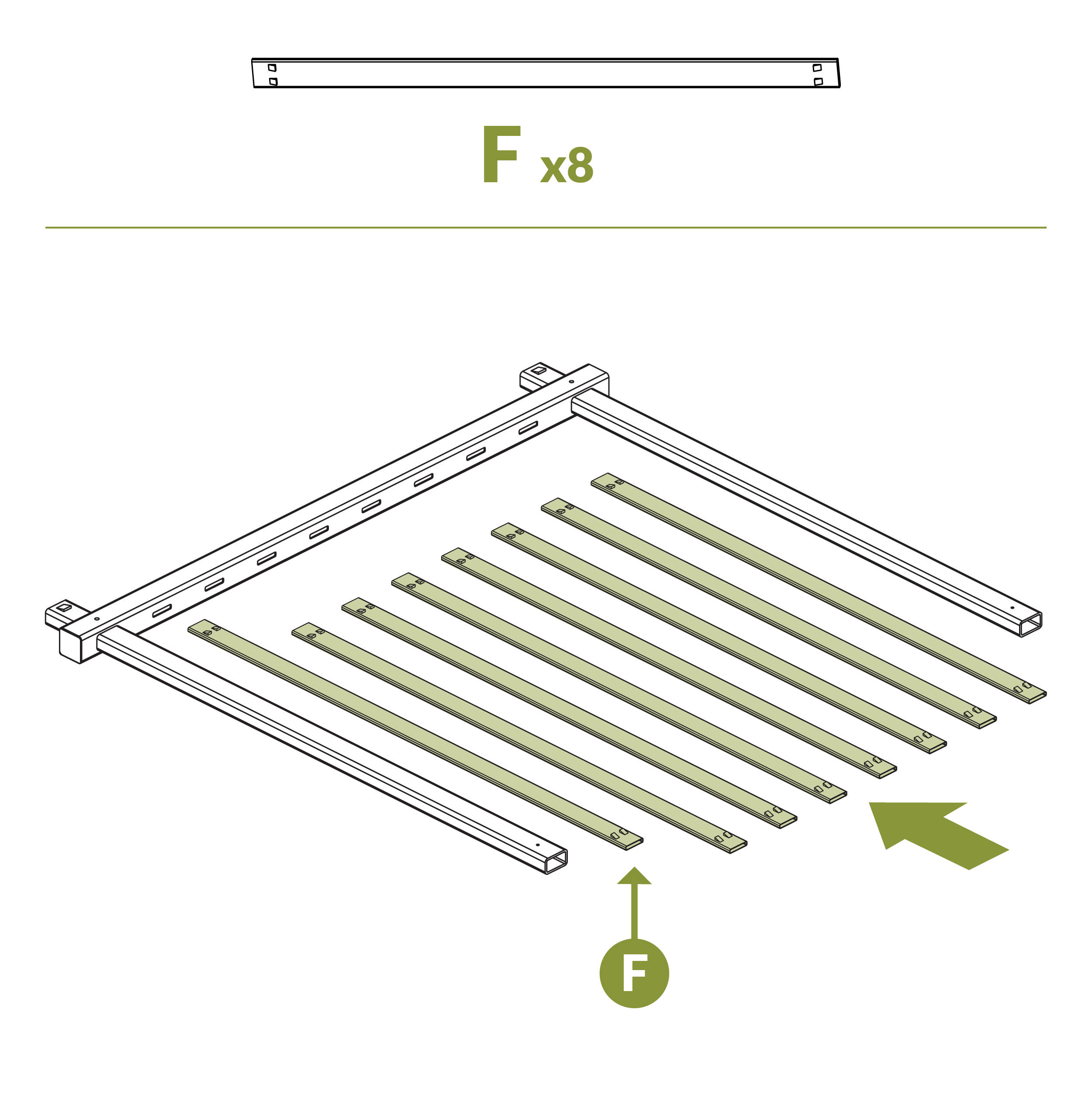

Insert all 8 pickets (F) into the slots of the top gate rail.

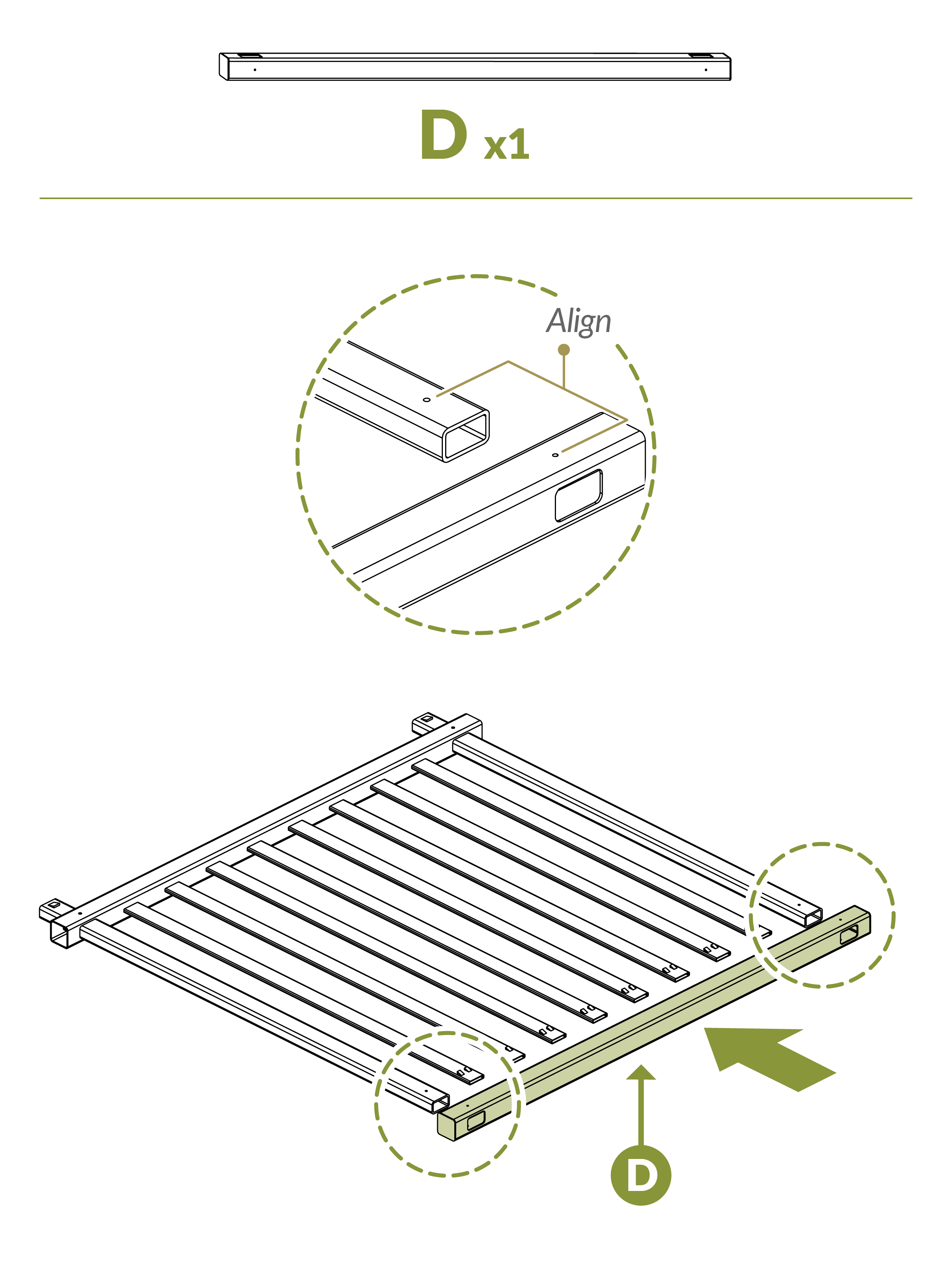

Slide the bottom gate rail (D) onto the lower ends of the pickets, aligning pre-drilled holes.

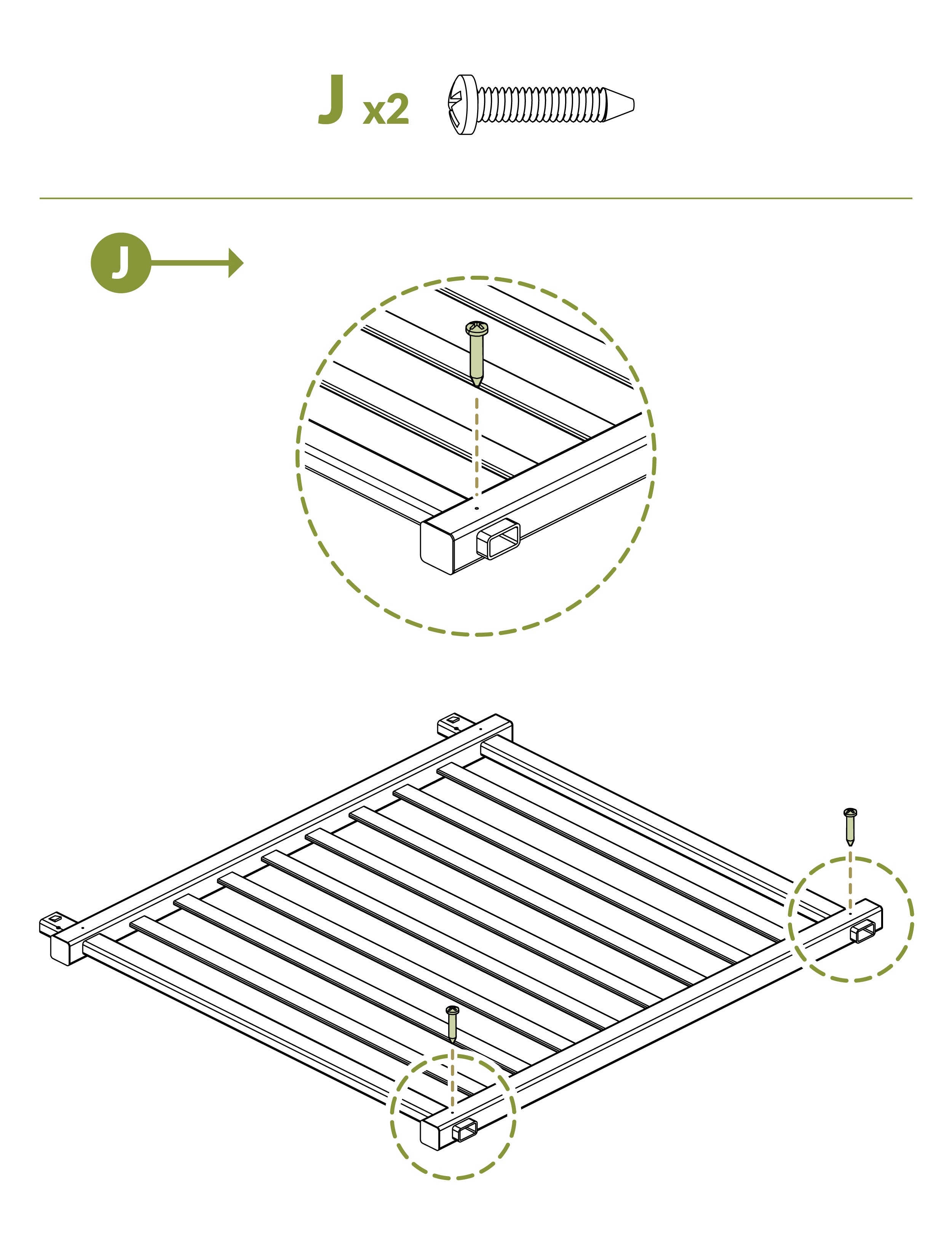

Use screws (J) to fasten the bottom gate rail to the gate posts.

Attach L brackets (K) to the inside corners of the bottom rail using screws (J) to secure and stabilize the bottom of the gate frame.

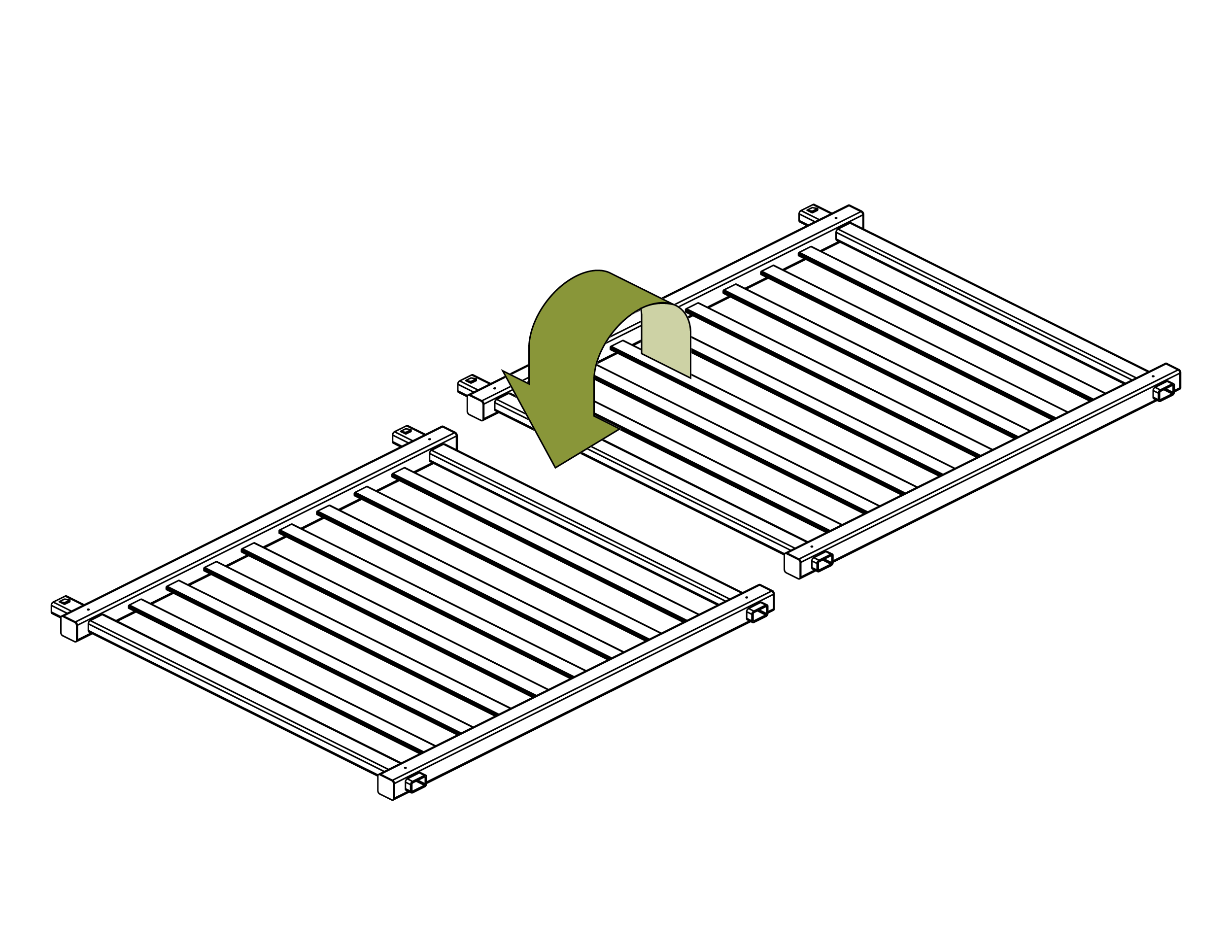

Flip the gate frame over and repeat steps on the opposite side.

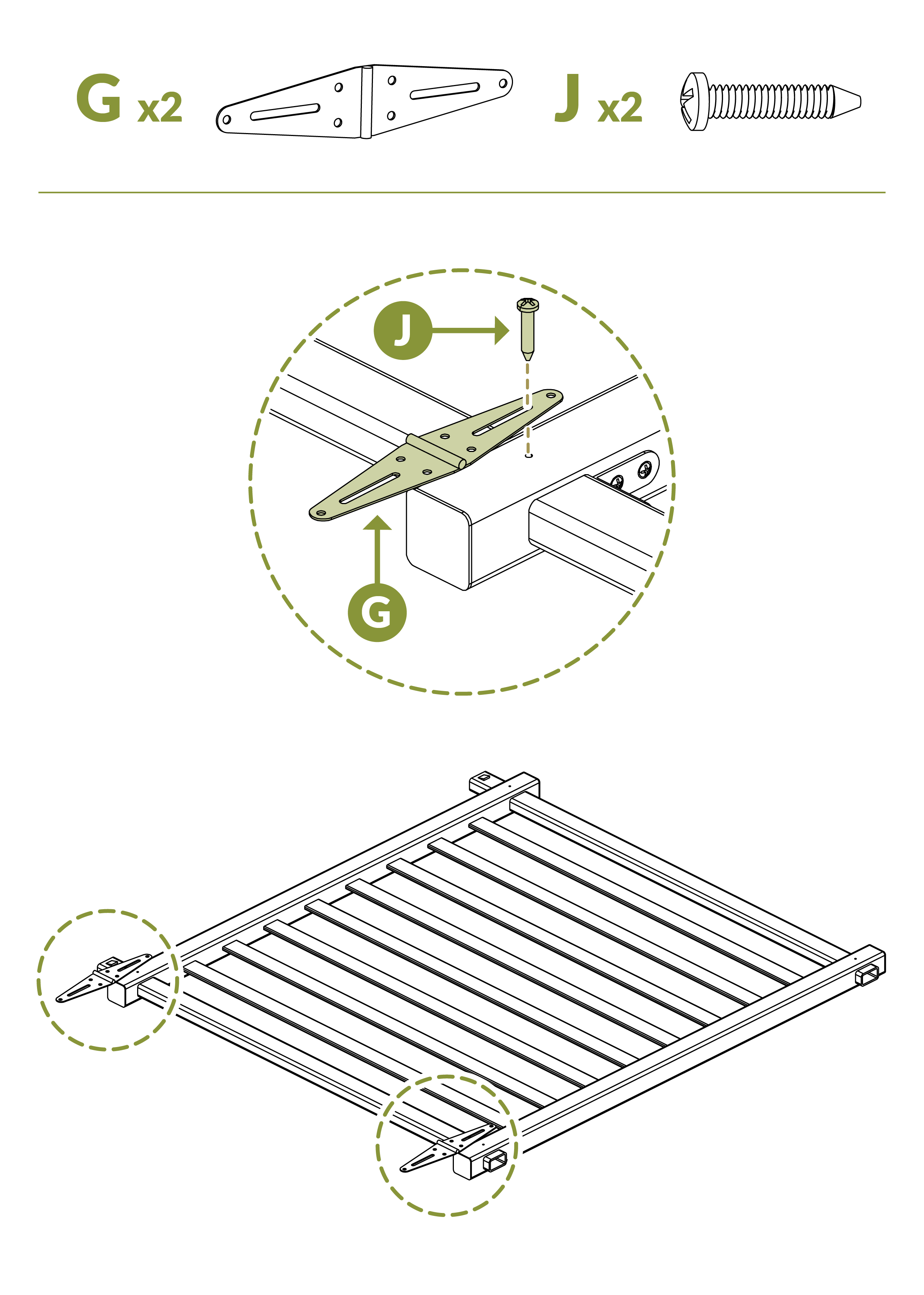

Attach both gate hinges (G) to the top and bottom of one gate post using screws (J).

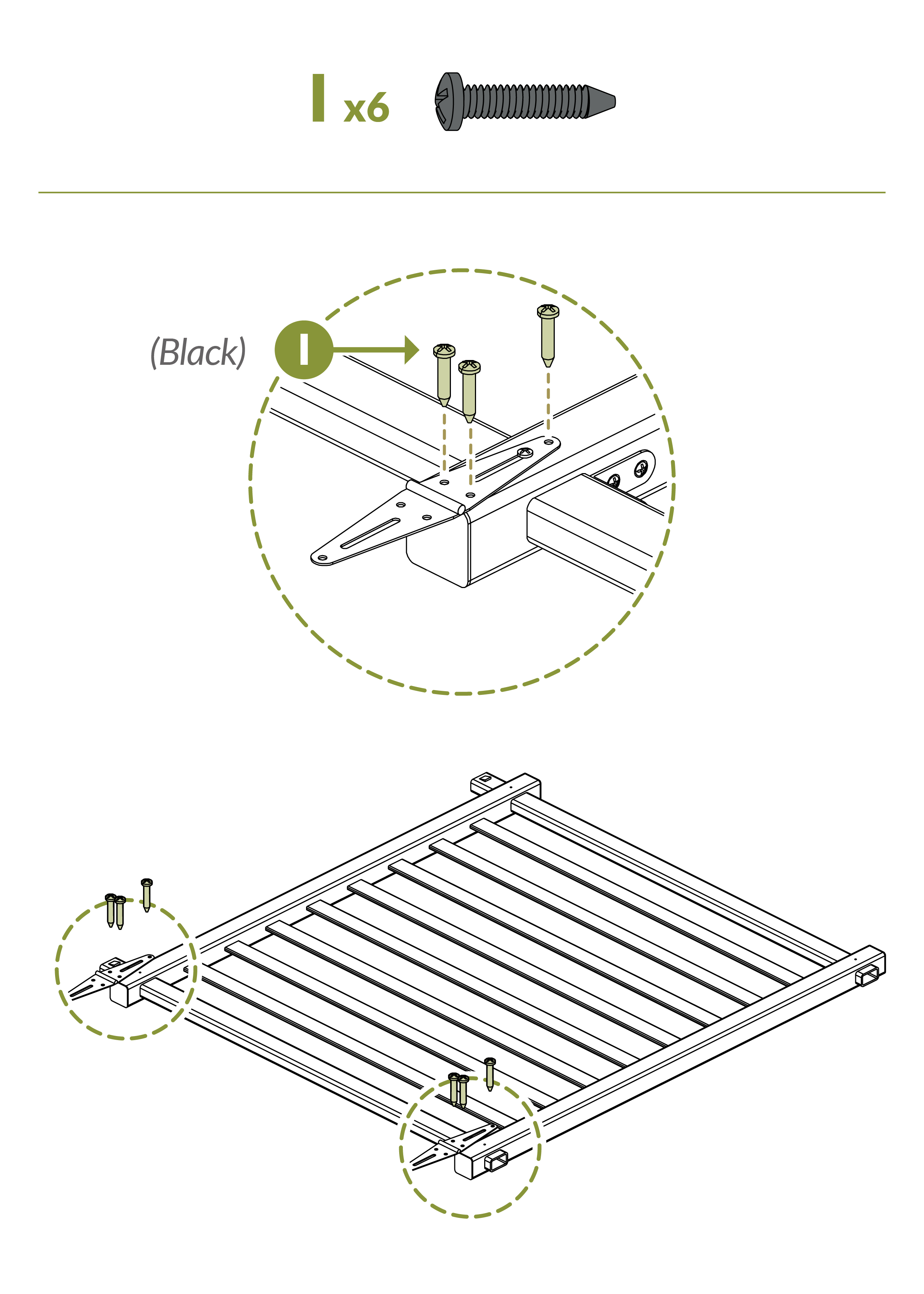

Using black screws (I), fasten the hinges securely through the hinge plate and into the gate post.

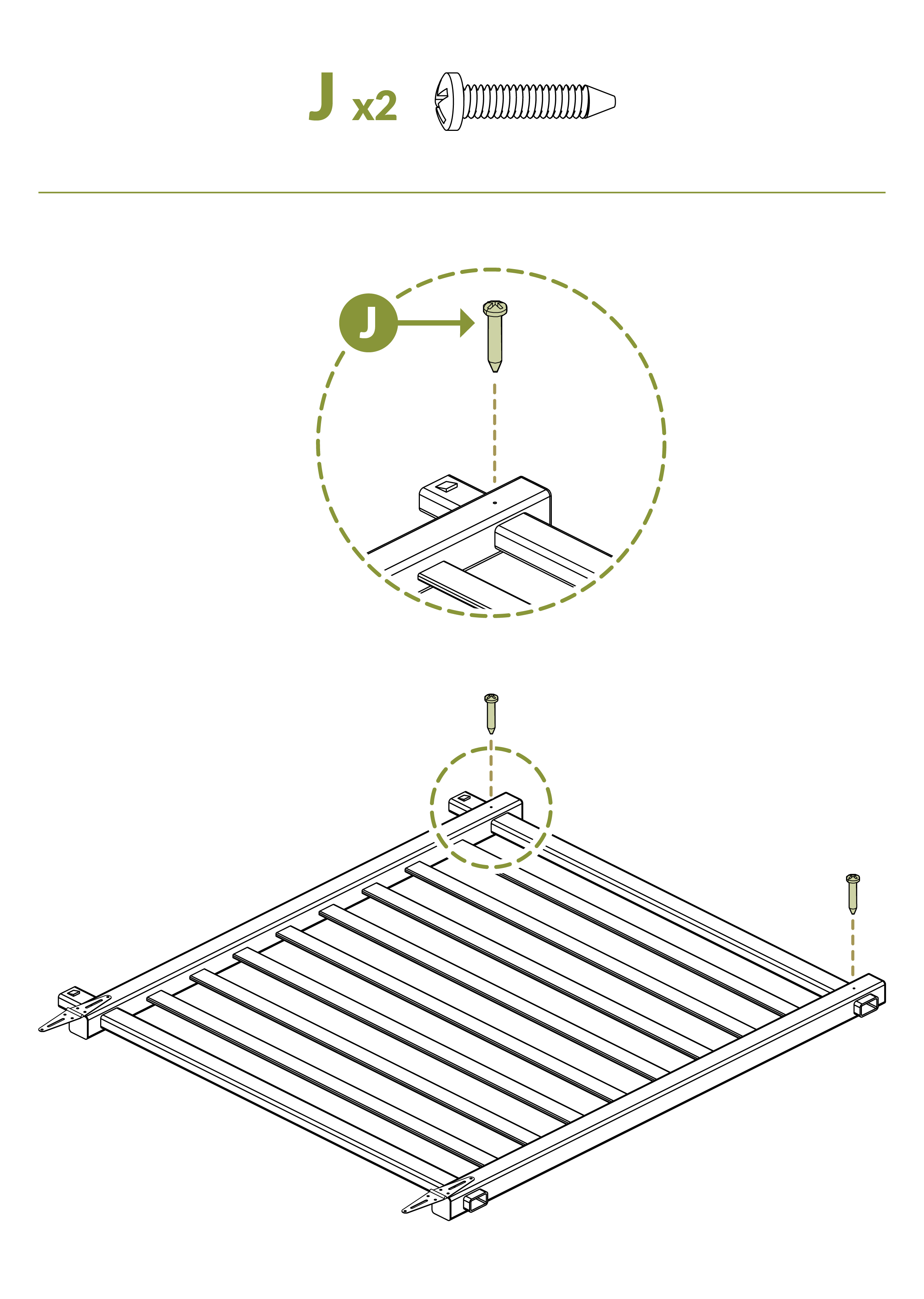

On the side opposite the hinges, fasten the top rail to the gate post using screws (J).

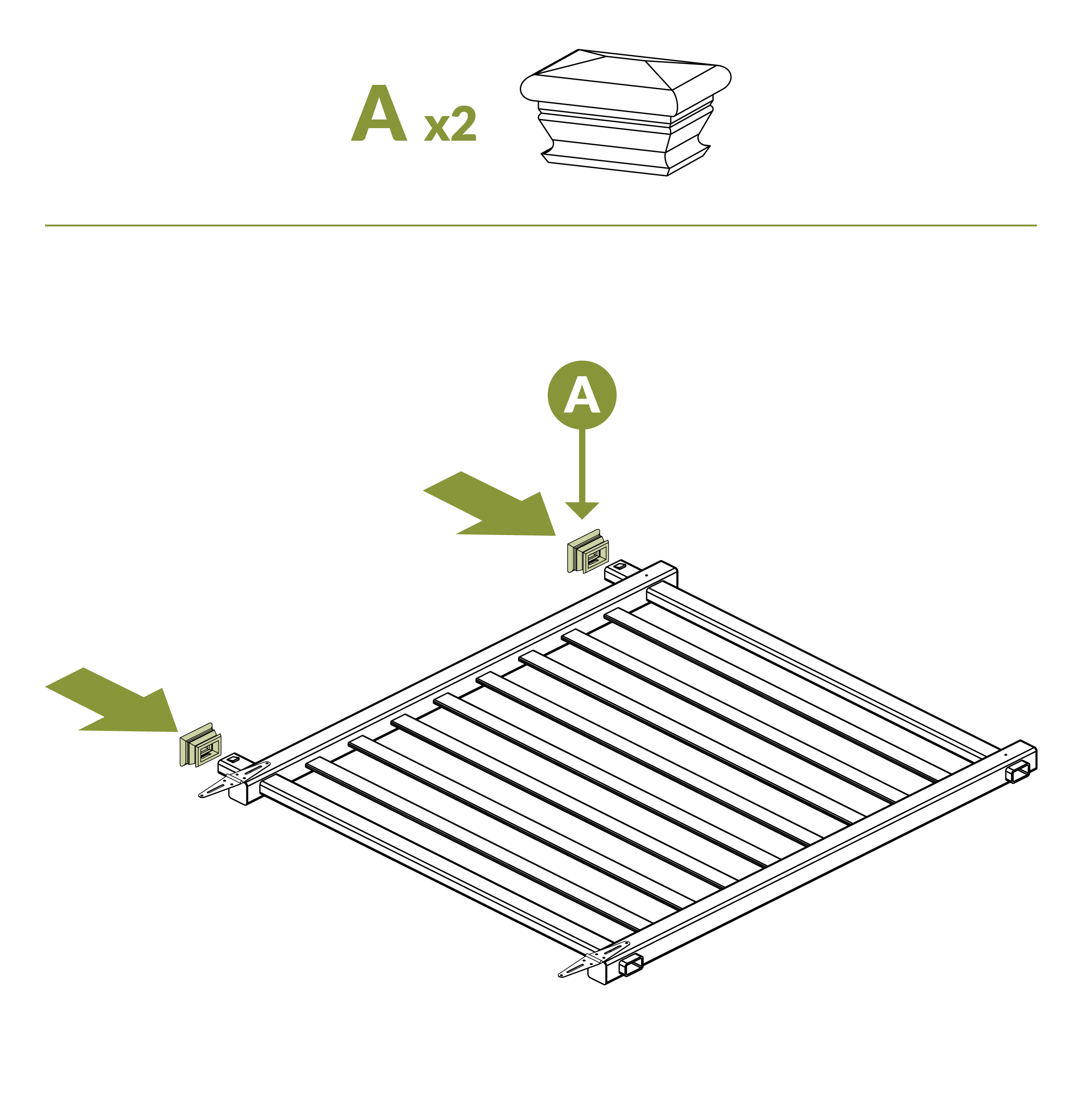

Press post caps (A) onto the top of each gate post.

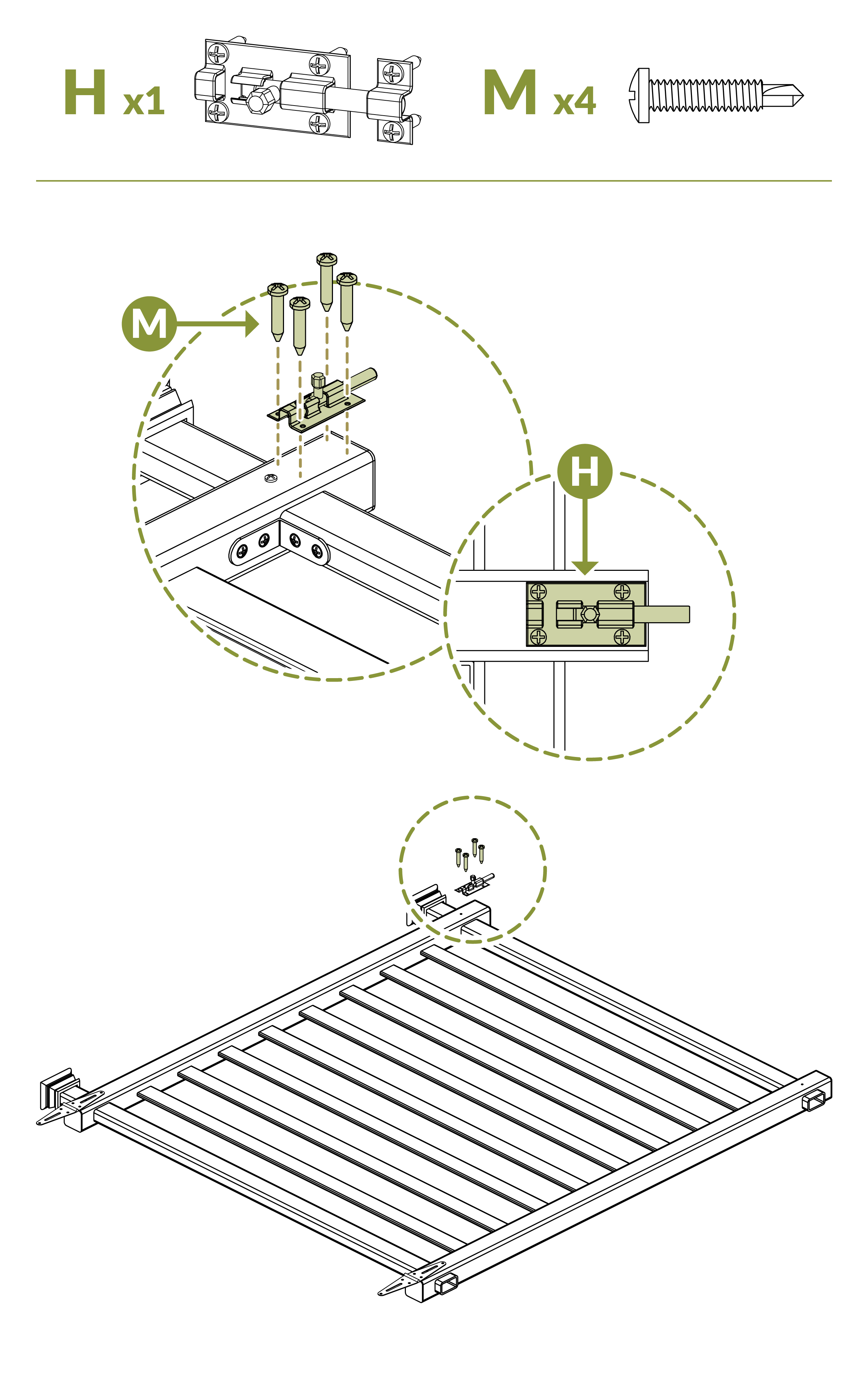

Attach the gate latch (H) to the top rail on the side opposite the hinges using black screws (M). The gate assembly is now complete.

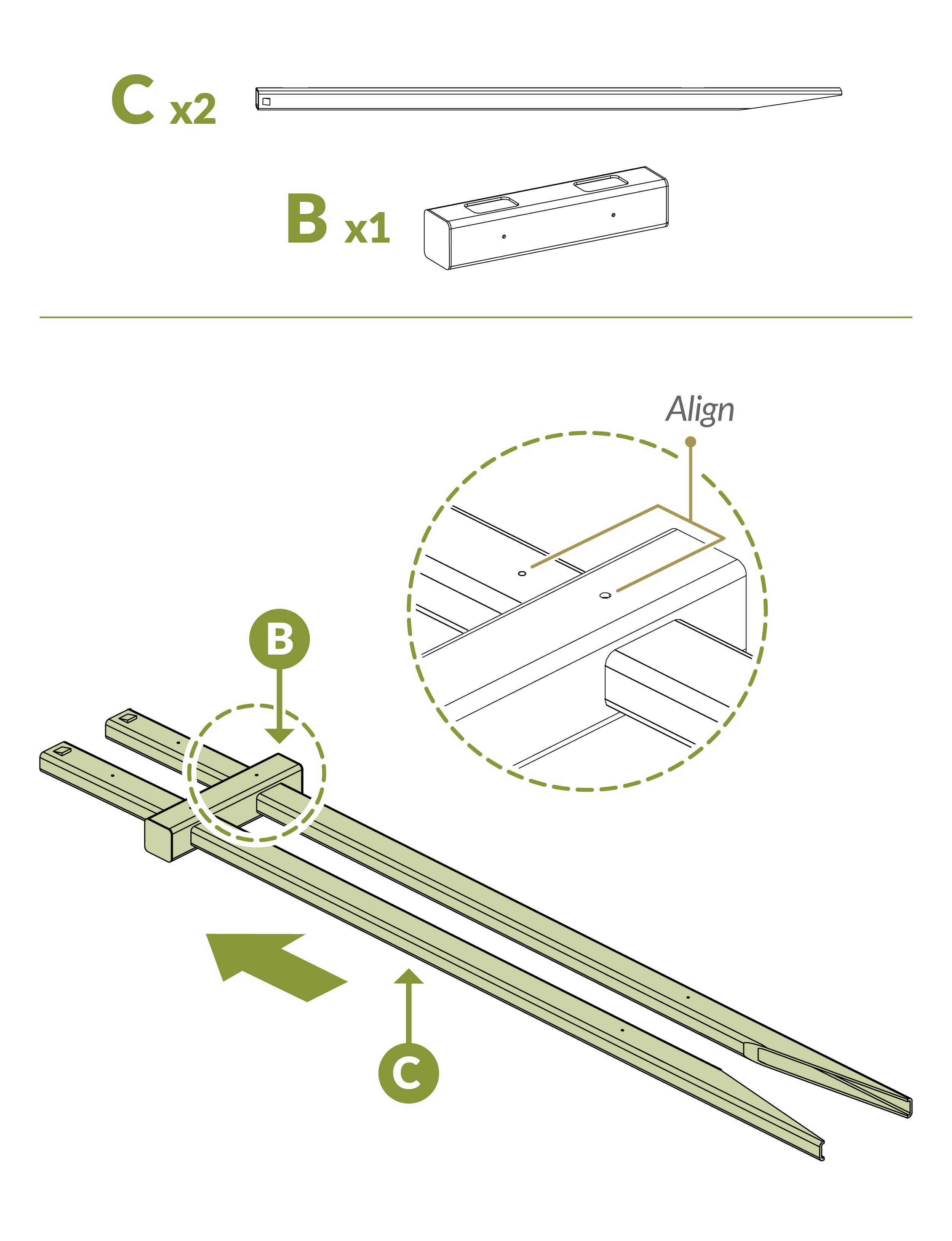

Begin assembling a fence wing. Insert two posts (C) through the top rail (B), aligning the pre-drilled holes.

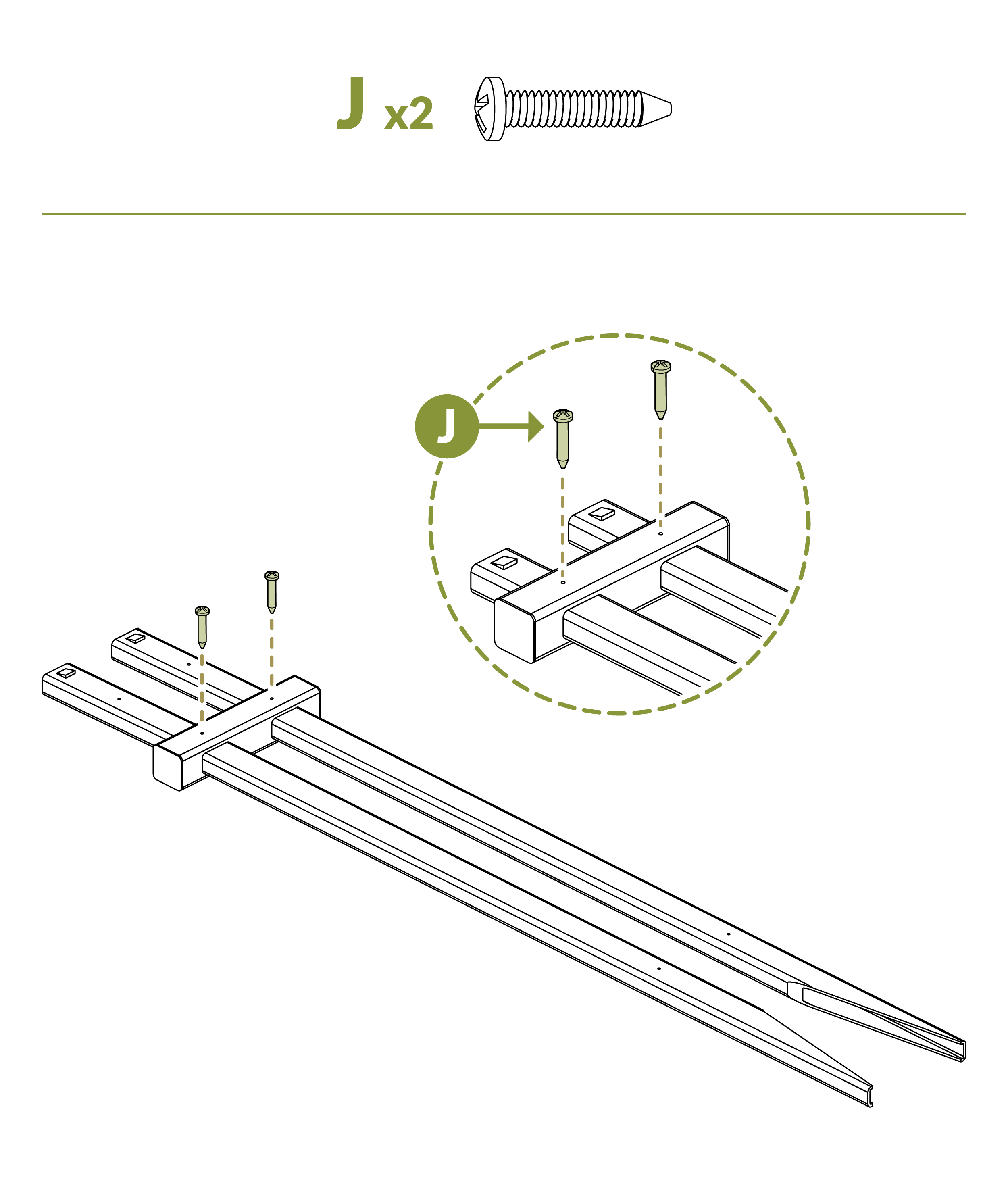

Fasten the top rail to the posts using screws (J).

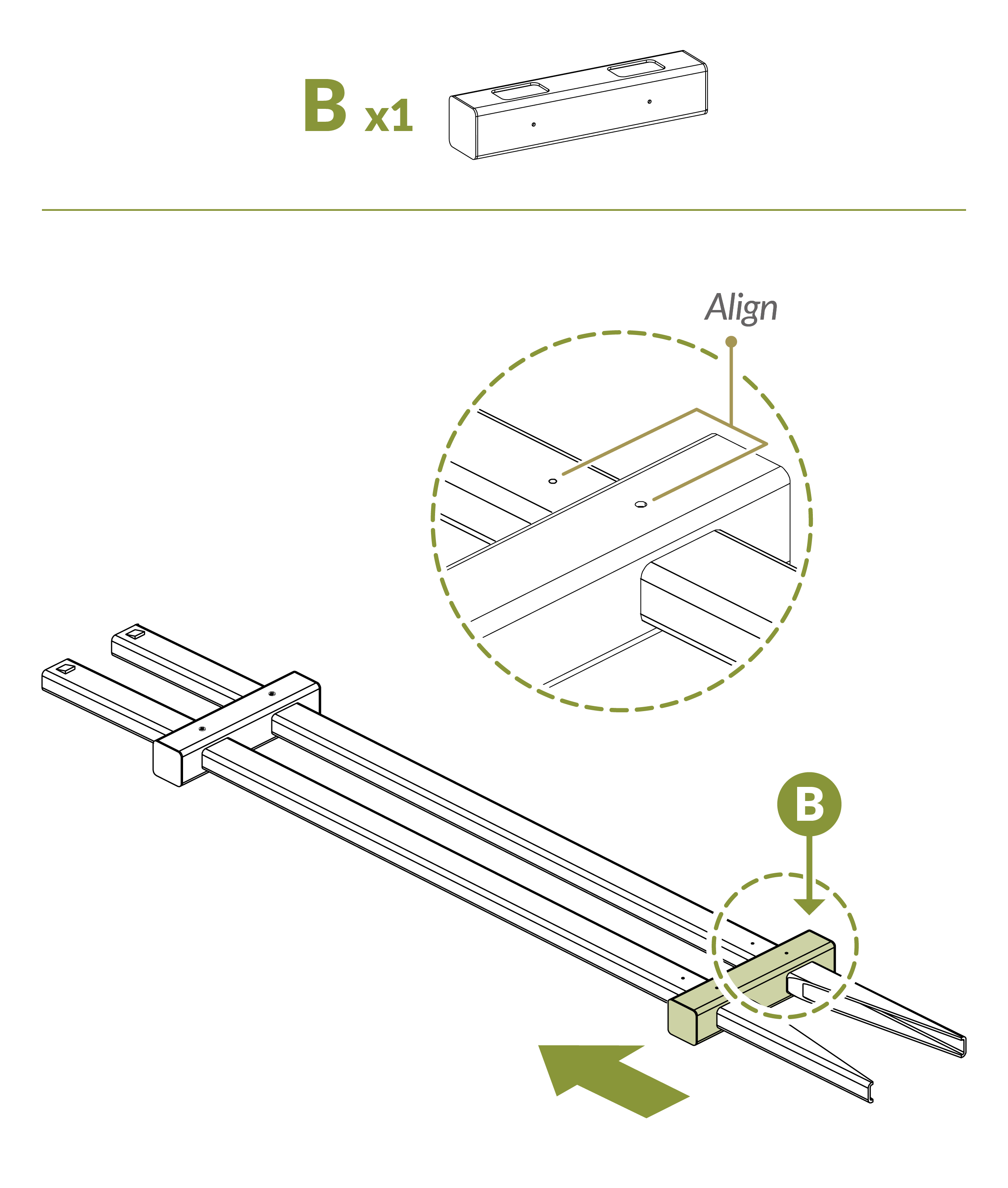

Slide the bottom rail (B) onto the lower (pointed) ends of the posts, aligning pre-drilled holes.

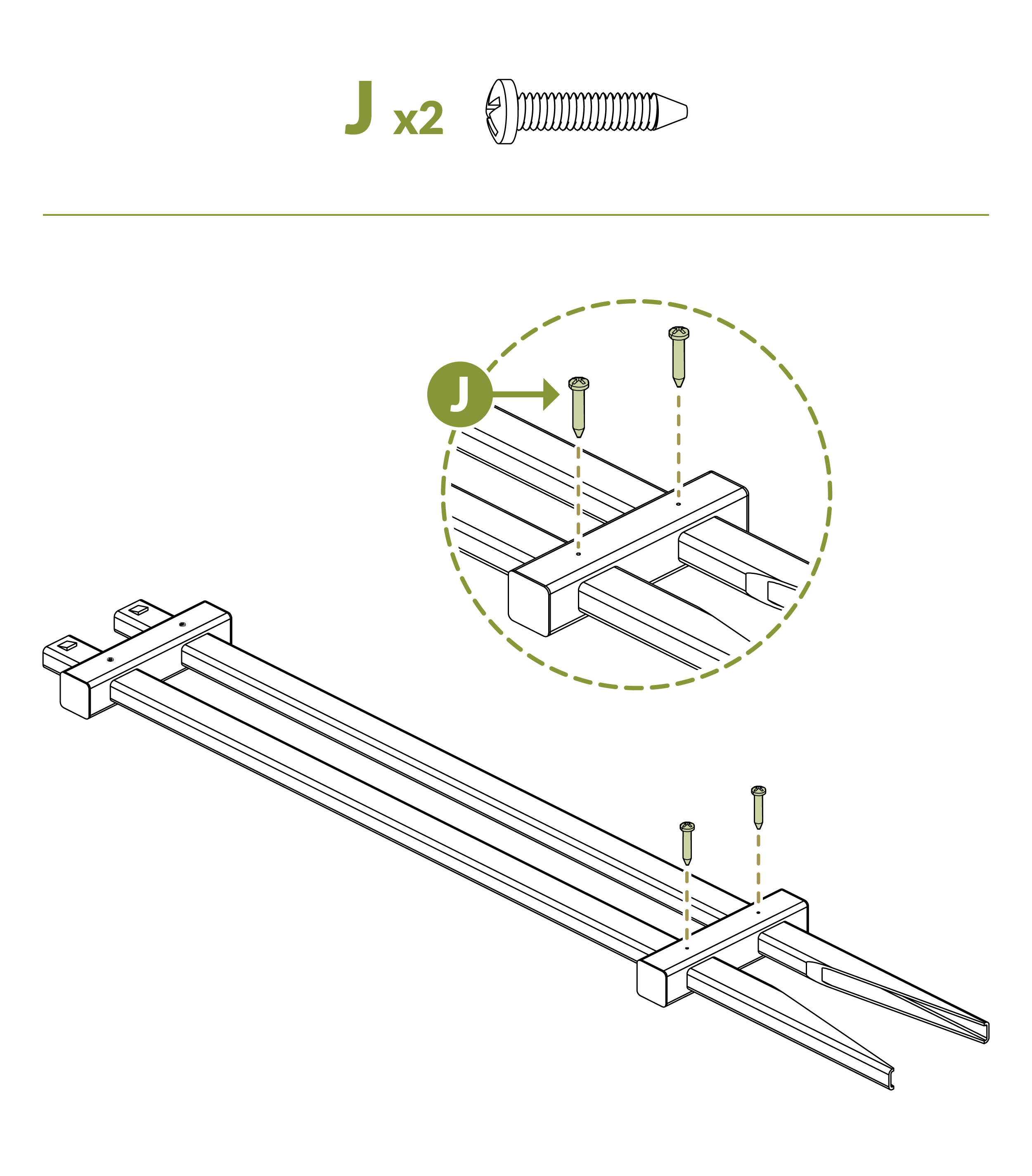

Fasten the bottom rail to the posts using screws (J).

Flip the wing over and fasten screws (J) on the opposite side — 2 at the top rail and 2 at the bottom rail.

Step 20

Repeat steps 15–19 to create one additional fence wing panel. You should now have two completed wing panels.

Step 21

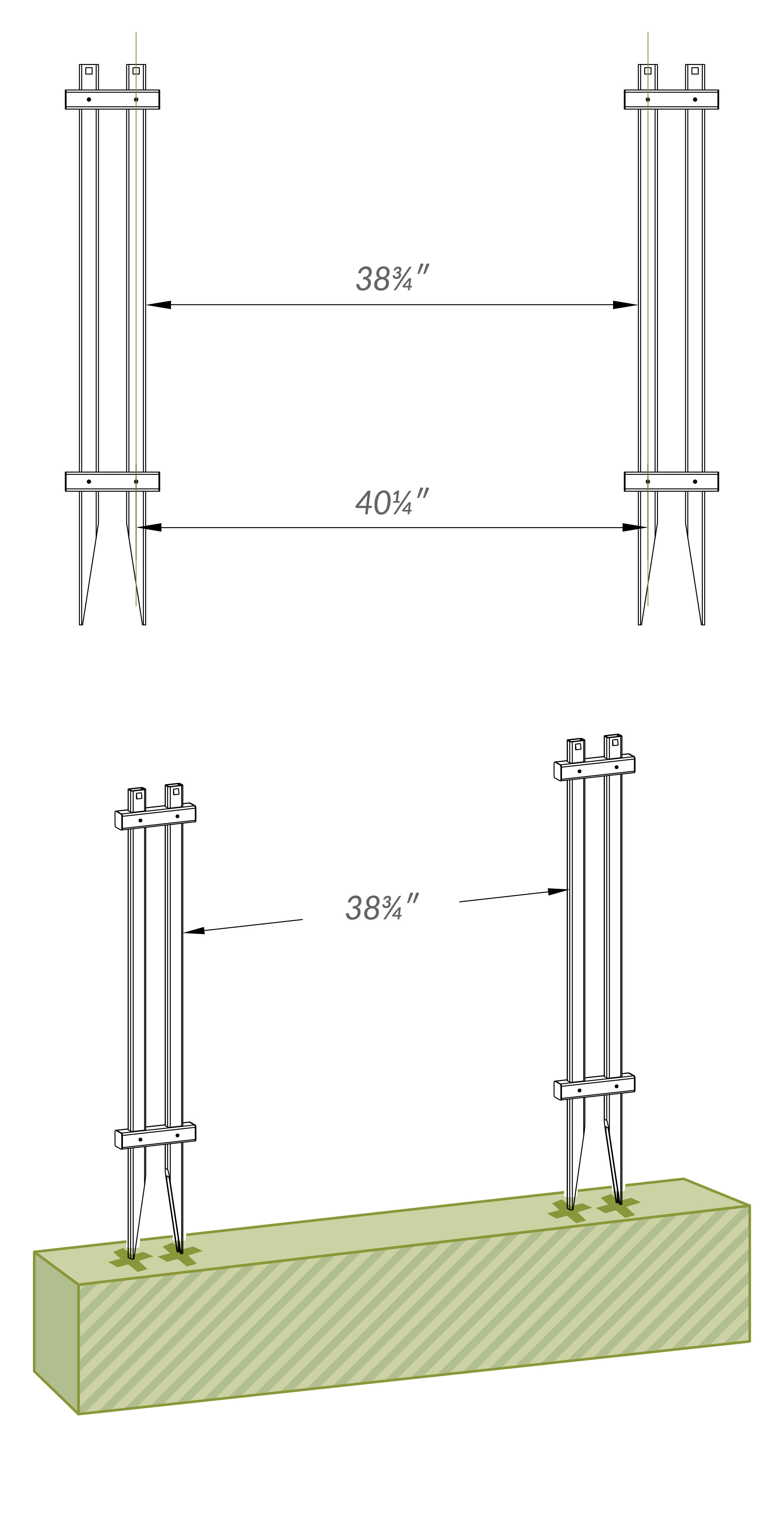

Place both wing panels upright with posts pointing down. Space the two posts of one wing 38¾" apart (outer post to outer post). Use a spacer block or measure carefully to ensure consistent spacing before driving into the ground.

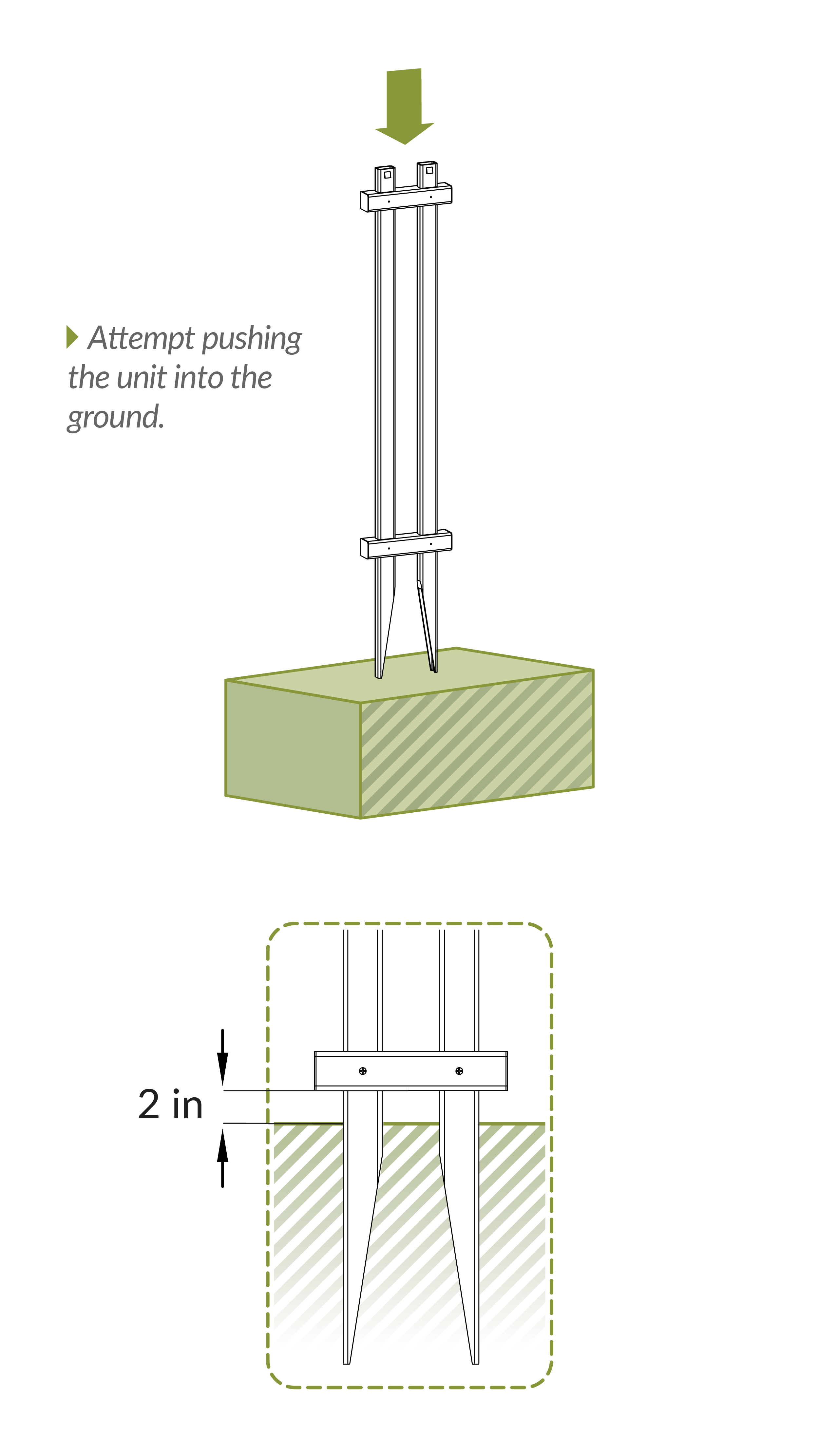

• Attempt to push the unit into the ground.
• Leave approximately 2 inches of clearance between the bottom rail and the ground for optimal aesthetics and drainage.

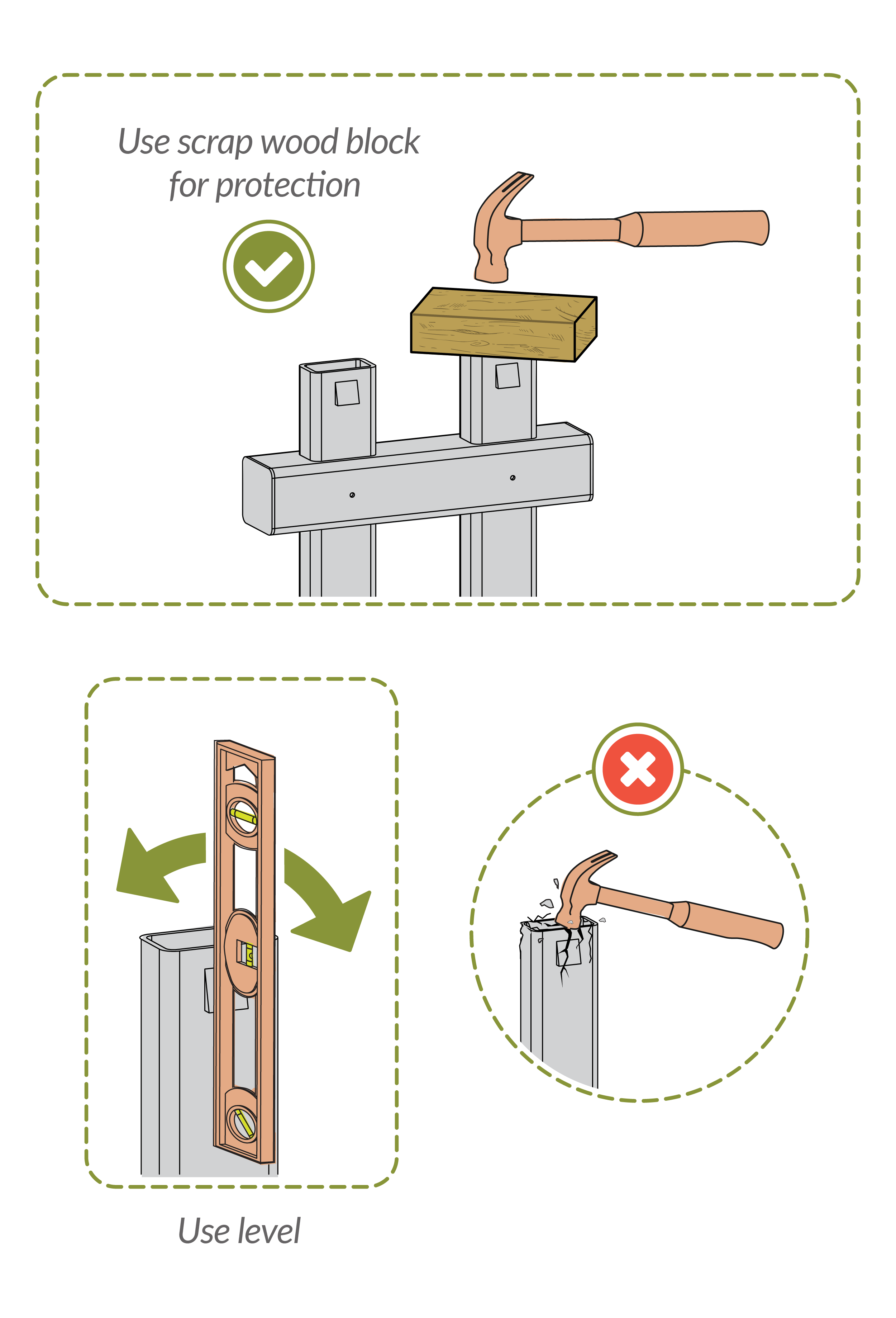

Tap posts into the ground using a mallet and a scrap wood block placed on top of the post to prevent damage. Check straightness with a level as you go.

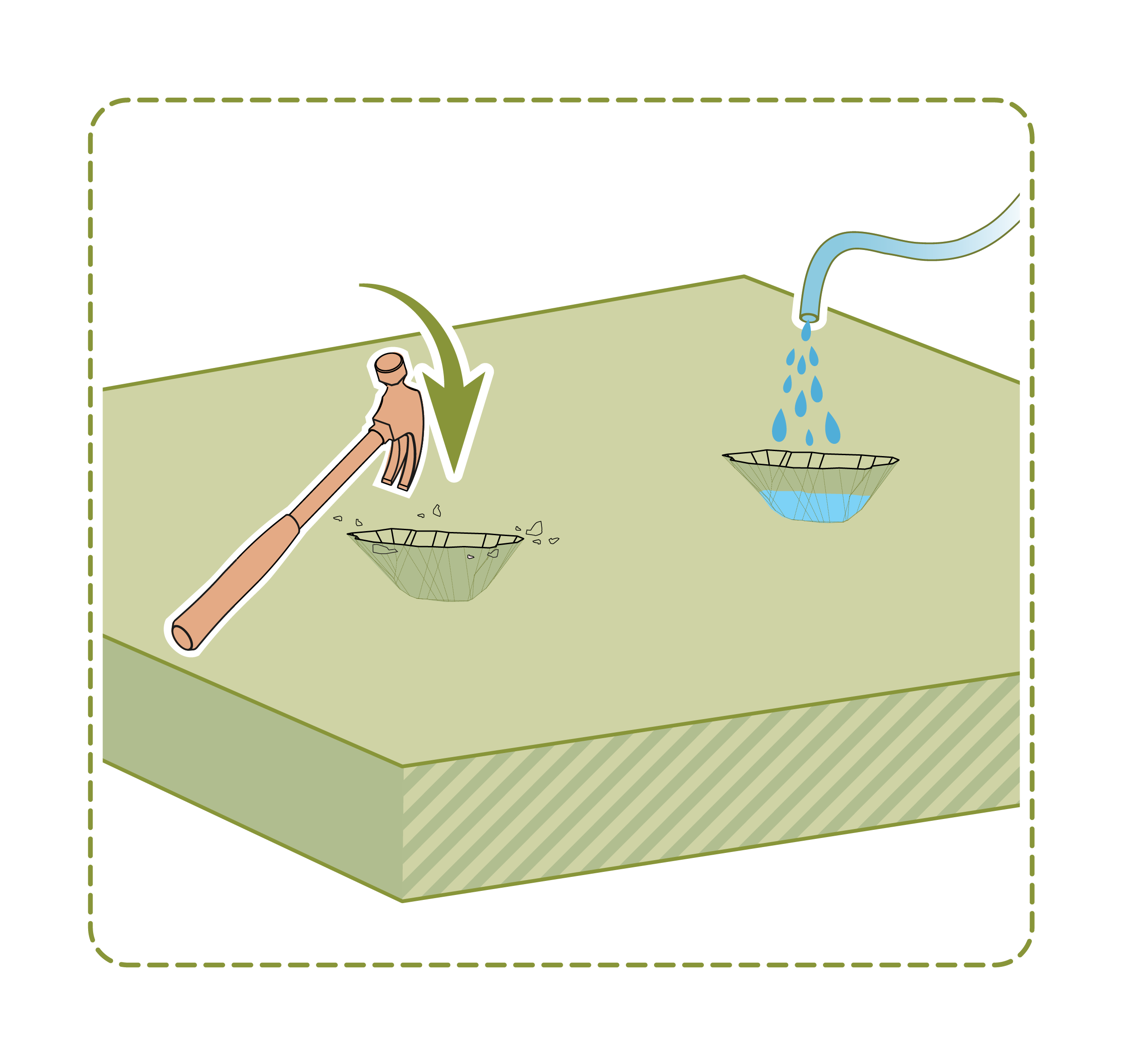

If Ground is Too Hard

• Loosen ground and soak with water

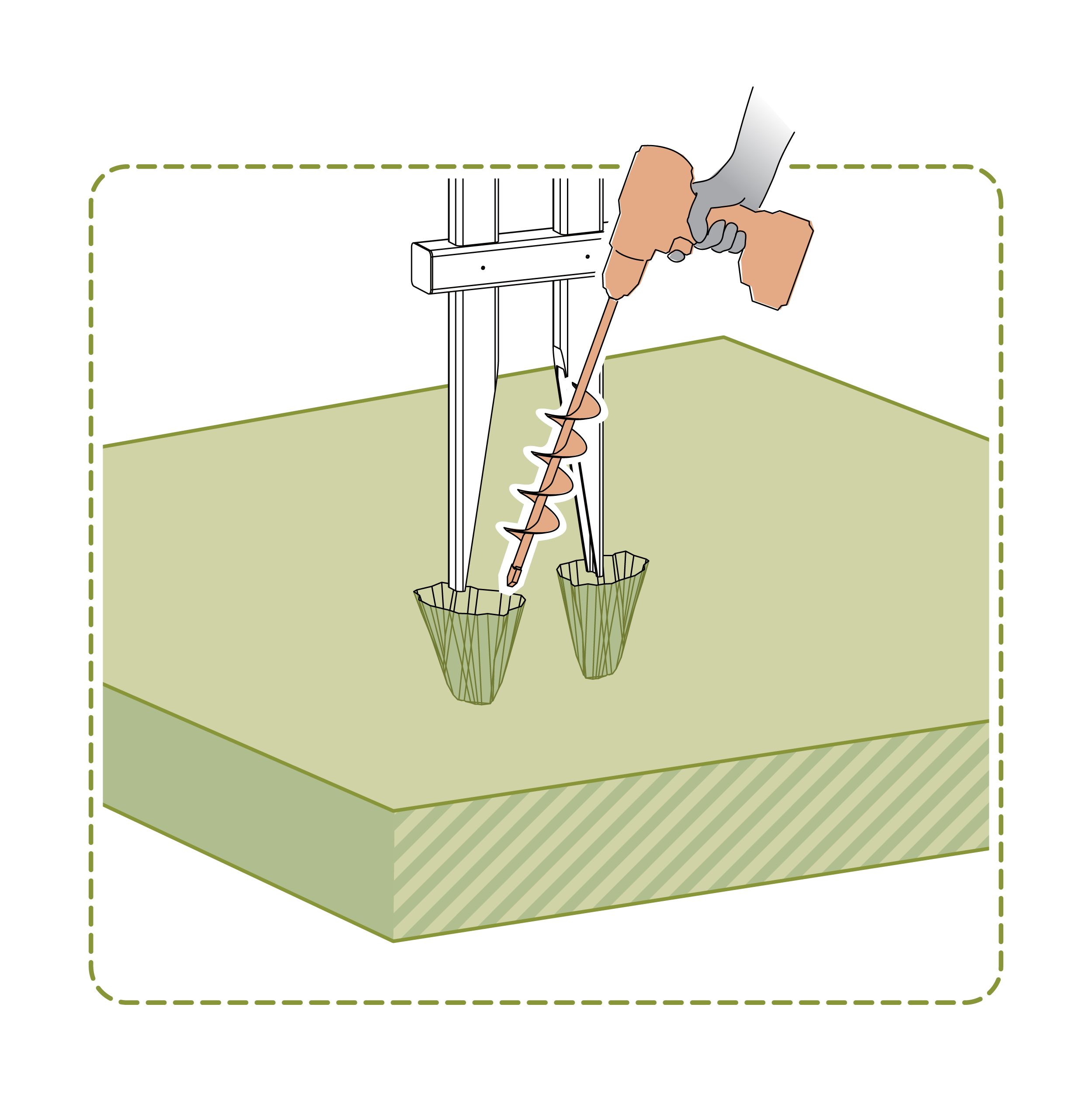

• Alternately, use a 1.5" tulip auger drill attachment

• Install post caps (A) on all four wing posts.

• Temporarily remove 2 screws from the side you designate for the gate hinge as illustrated.

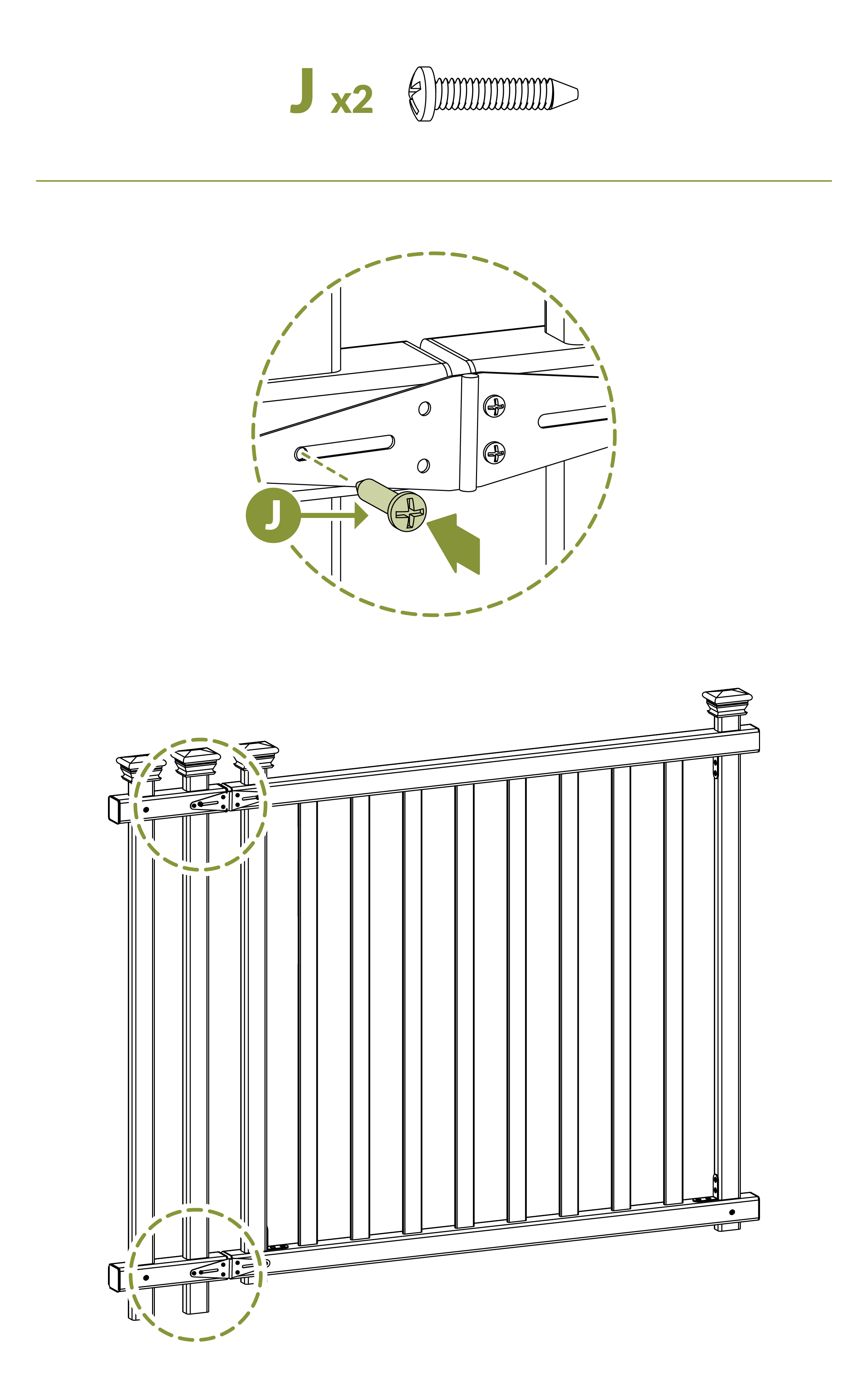

• Screw hinge to the wing post using screws you removed in the previous step (J), connecting the gate to the post. Check that the gate swings freely.

• Using the provided drill bit (L), pre-drill new holes through the hinge plate and into the wing post to prepare for the next step.

• Using black screws (I), fasten the hinges to the wing as illustrated.

• Attach the latch catch to the latch-side wing post using screws (M) and confirm the gate latch (H) engages correctly. Test the gate by opening and closing fully. Your installation is complete!
