ZP19055 Portable Puppy Fence Installation Guide

Introduction

Important Safety Notes:

  • Check inside larger pieces for materials packed within.
  • Assemble on a non-abrasive surface (e.g., shipping box) to avoid scratching.
  • Allow approximately 5' x 8' of clear space for assembly.
  • Do not use excessive force when assembling components.

Returns:
Contact us before returning — we can often resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

For Quick Assistance:

  • Have reference item number ZP19055
  • Provide the specific part name
  • Include the batch lot number

Need Help or Replacement Parts?

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

Customer service agents are available 9am–5pm EST, Monday–Friday.

Product Specifications & Dimensions

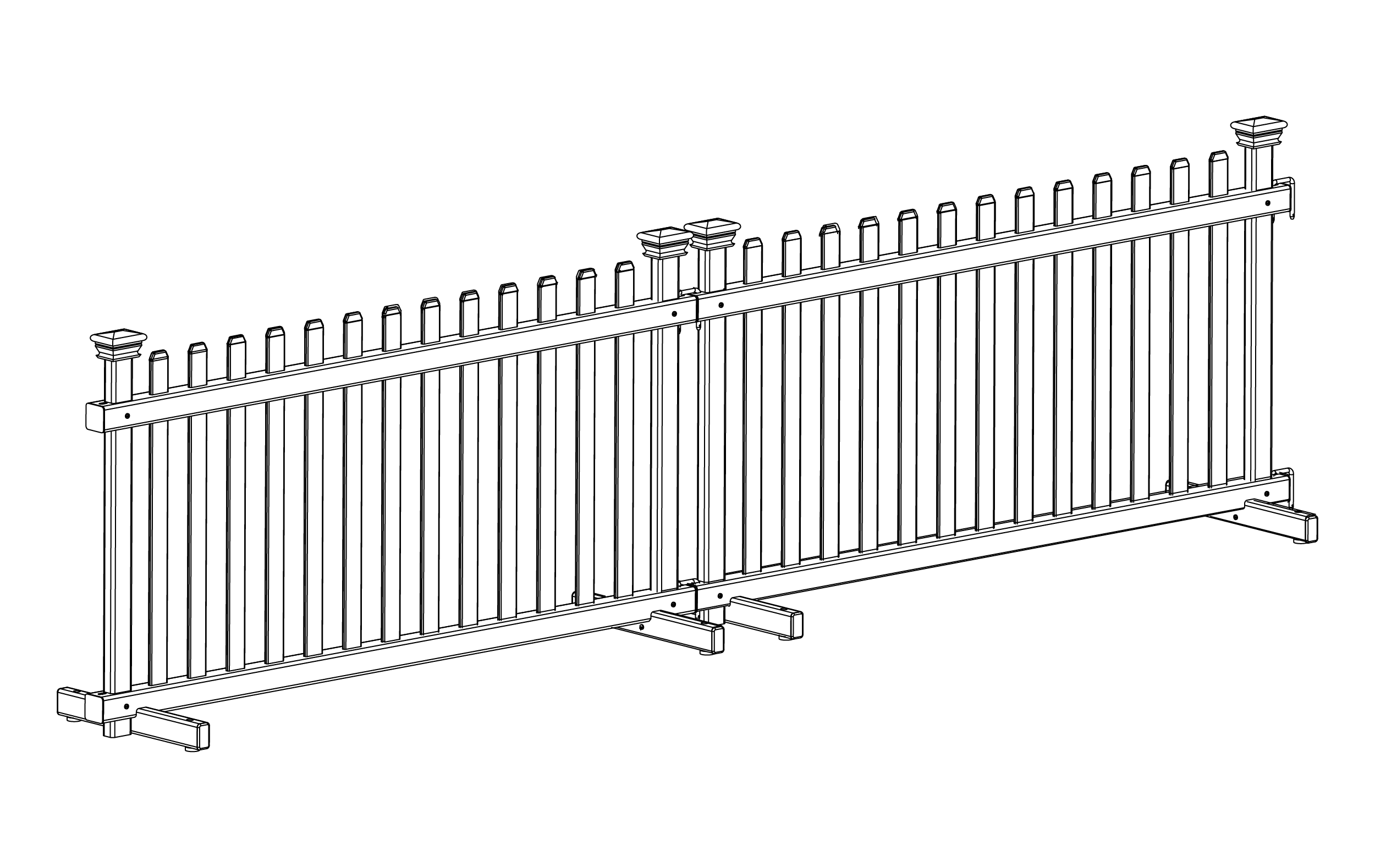

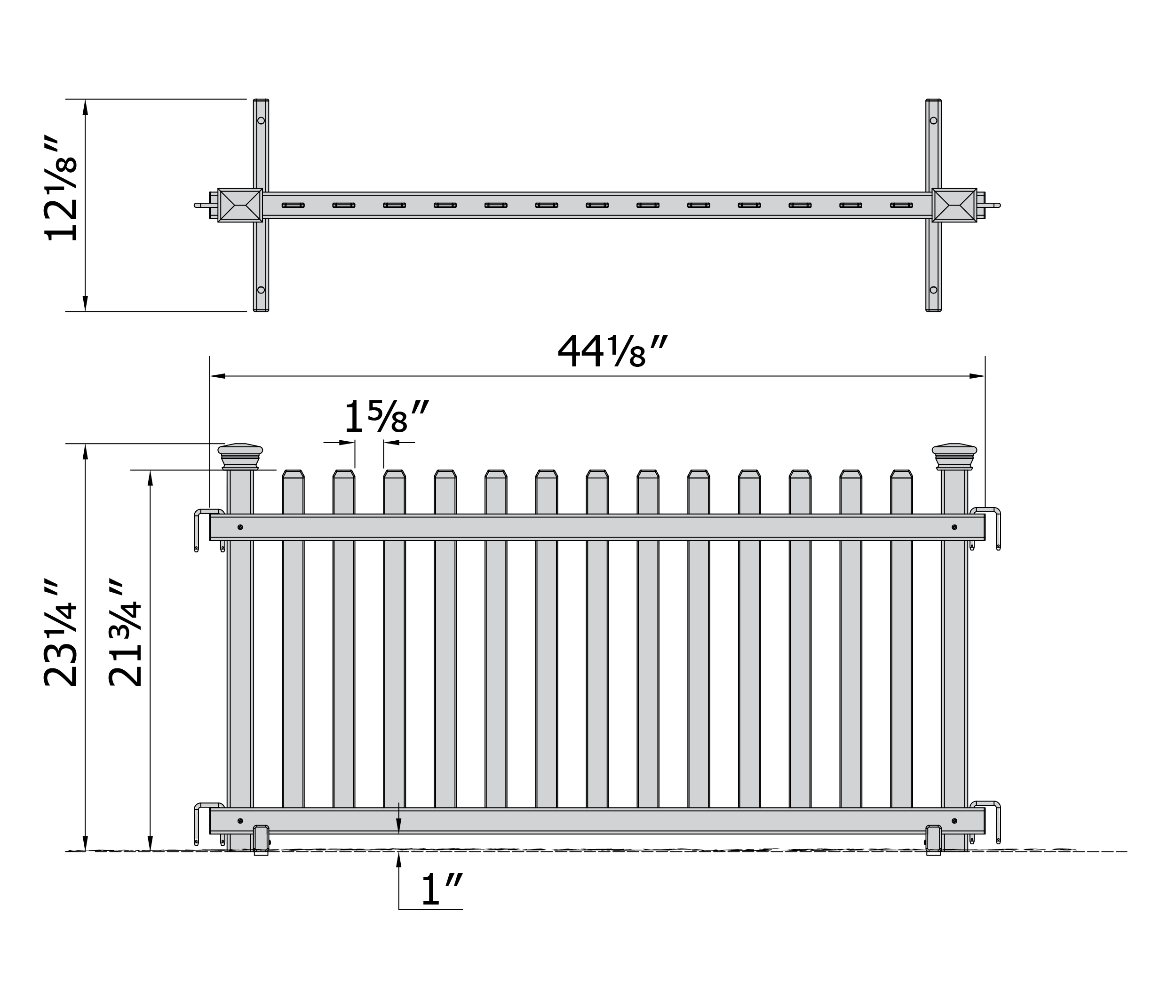

ZP19055 fence dimensions — front and side views

Lay Out Materials

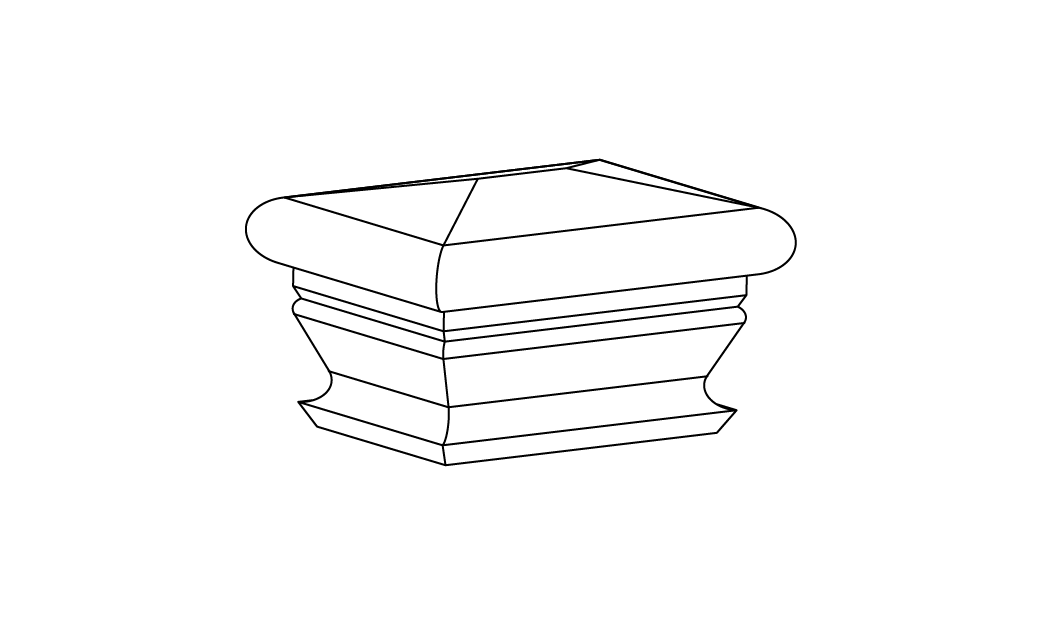

A. Post Cap (4)

Post Cap (A)

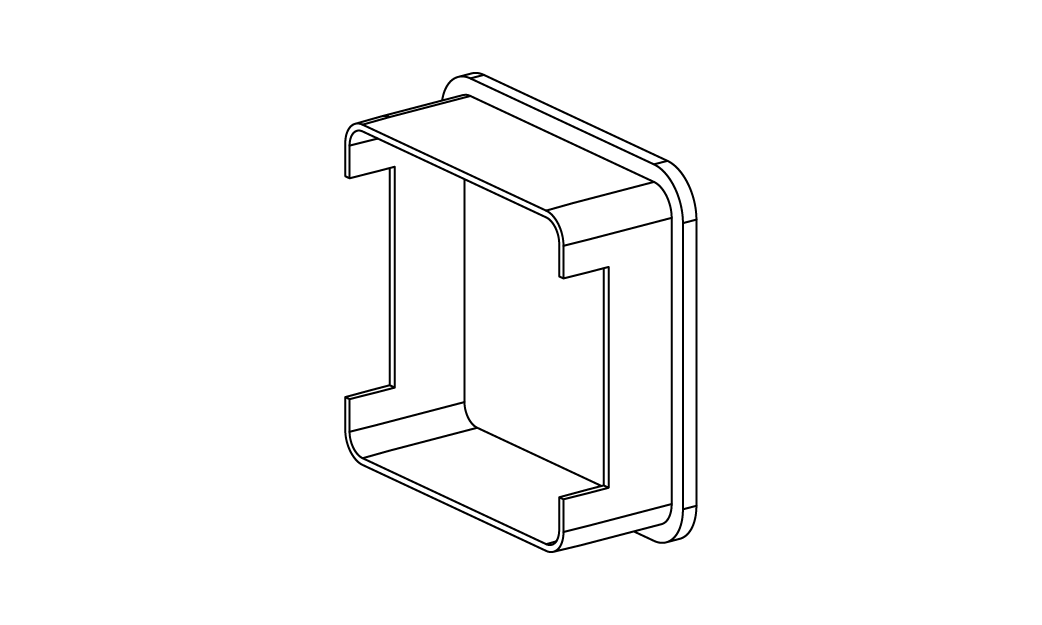

B. Rail End Cap (8)

Rail End Cap (B) — 4 installed, 4 loose

(4 installed, 4 loose)

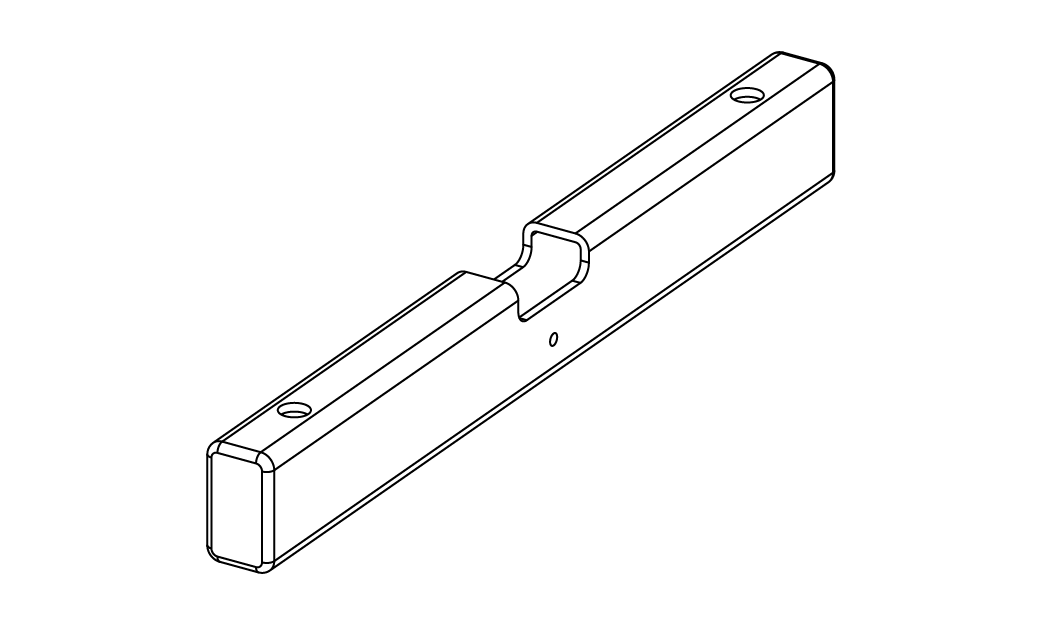

C. Portable Feet (4)

Portable Foot (C) — ⅞" x 1½" x 12"

⅞" x 1½" x 12"

D. Top Rail (2)

Top Rail (D) — 1½" x 1½" x 44"

1½" x 1½" x 44"

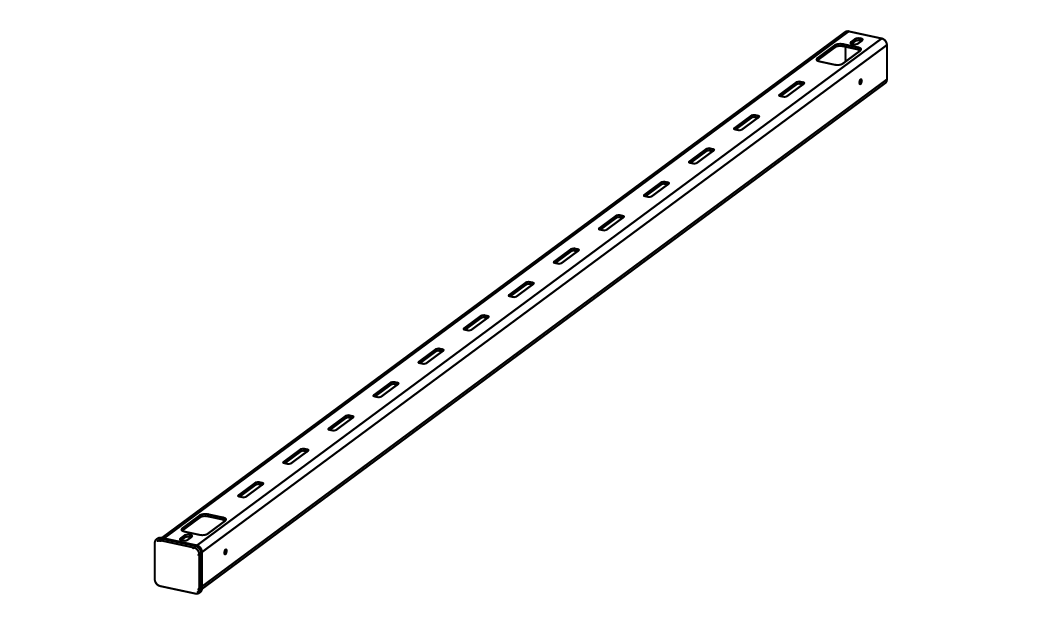

E. Bottom Rail (2)

Bottom Rail (E) — 1½" x 1½" x 44"

1½" x 1½" x 44"

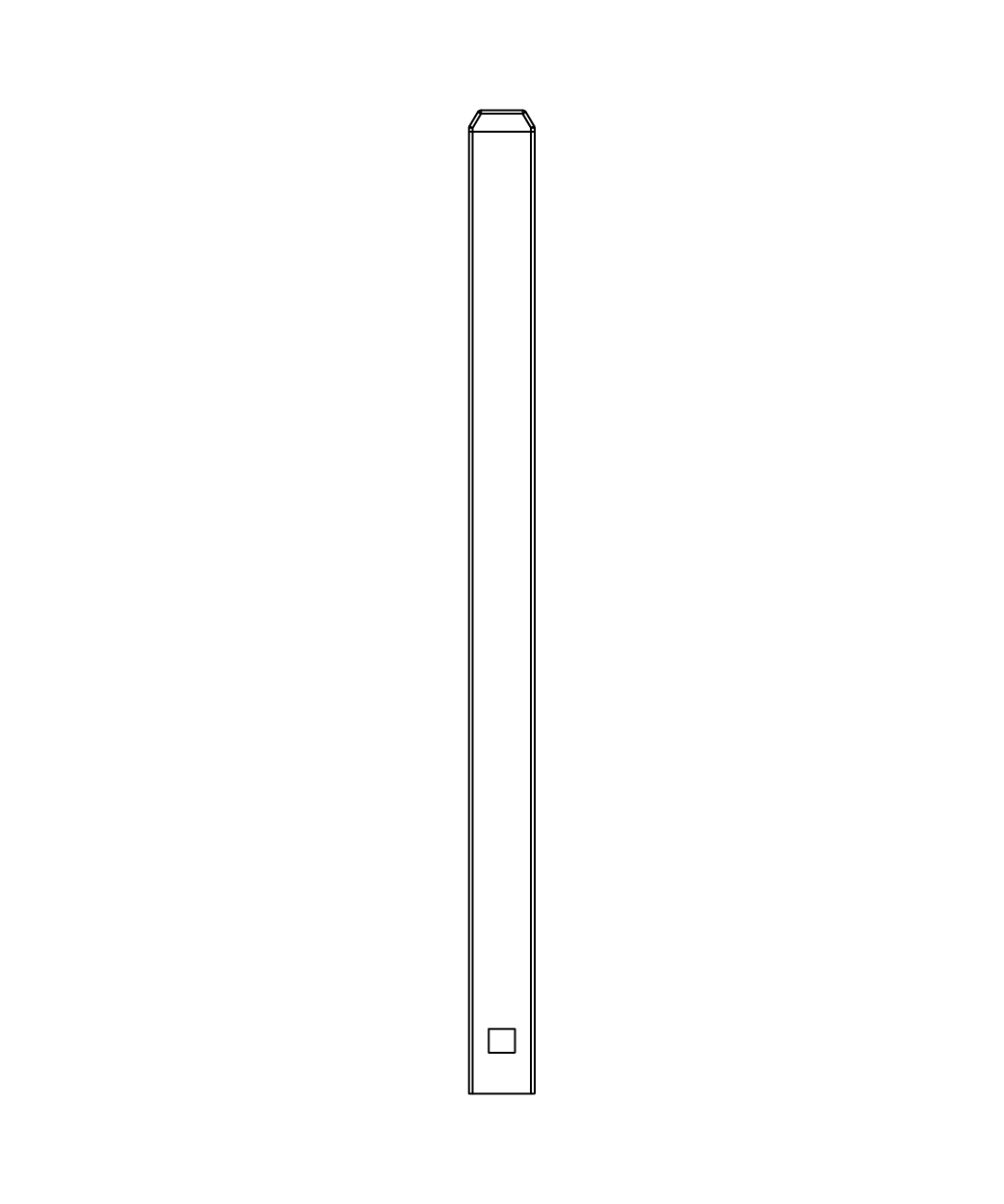

F. Picket (26)

Picket (F) — ¼" x 1¼" x 20¼"

¼" x 1¼" x 20¼"

G. Post (4)

Post (G) — ⅞" x 1½" x 23"

⅞" x 1½" x 23"

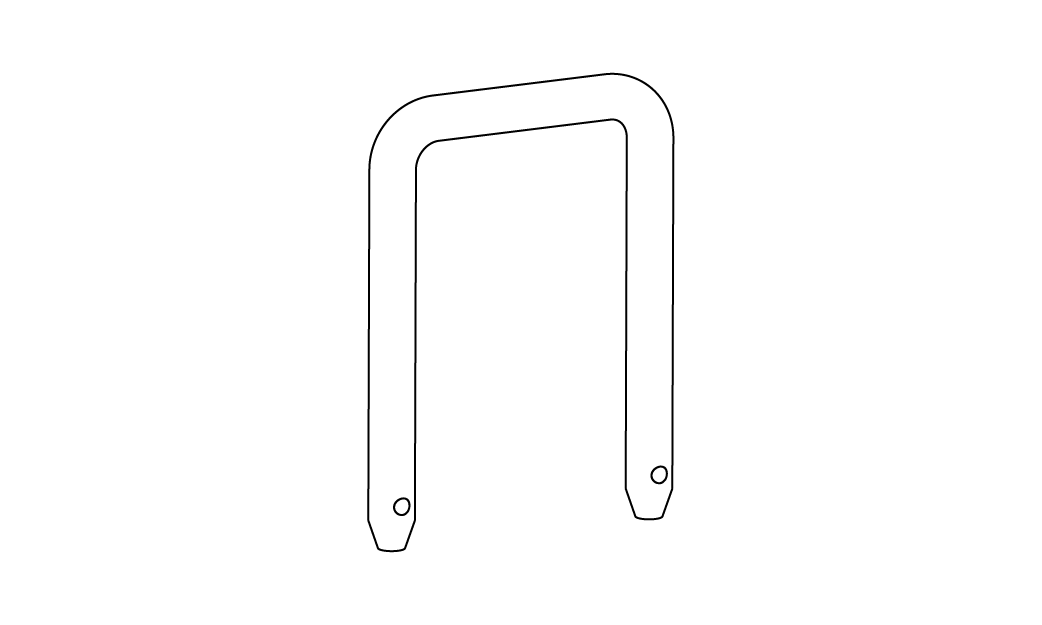

H. Connector Pin (4)

Connector Pin (H)

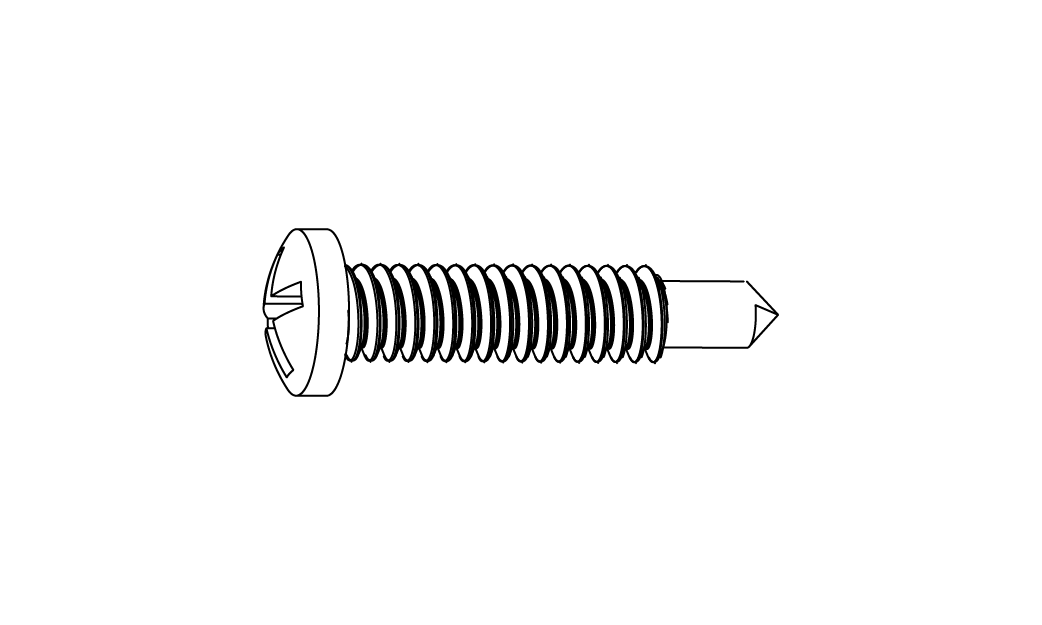

I. ¾" Self-Drilling Stainless Steel Screw (16) – Bag A

3/4 in. self-drilling screw (I) — Bag A, qty 16

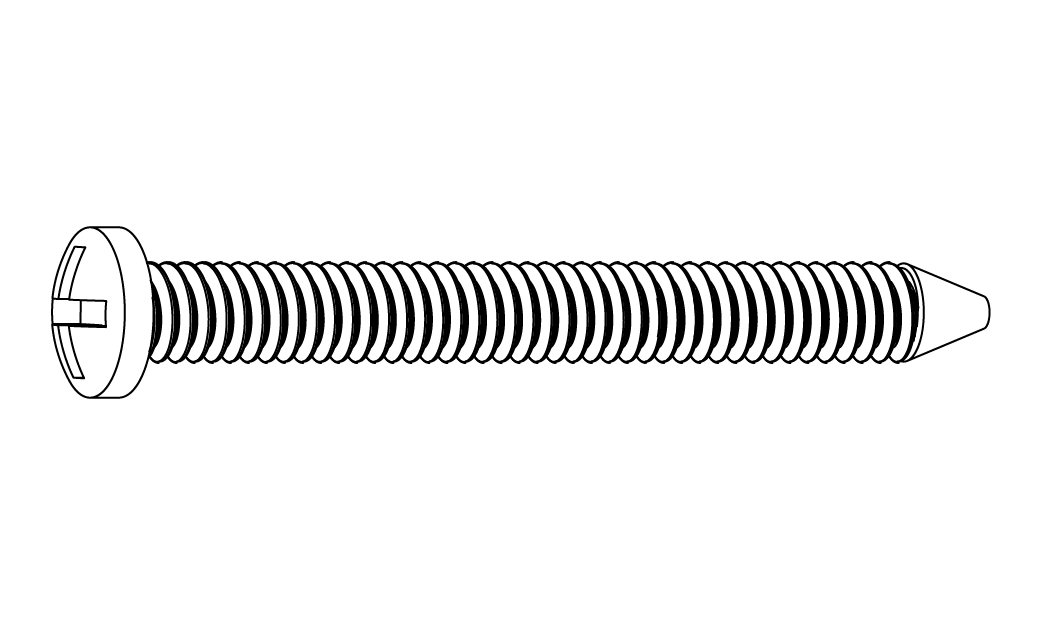

J. 1½" Self-Drilling Stainless Steel Screw (8) – Bag B

1-1/2 in. self-drilling screw (J) — Bag B, qty 8

K. Silicone No-Scratch Pad (8)

Silicone No-Scratch Pad (K) — qty 8

Step 2: Assemble Fence Frame

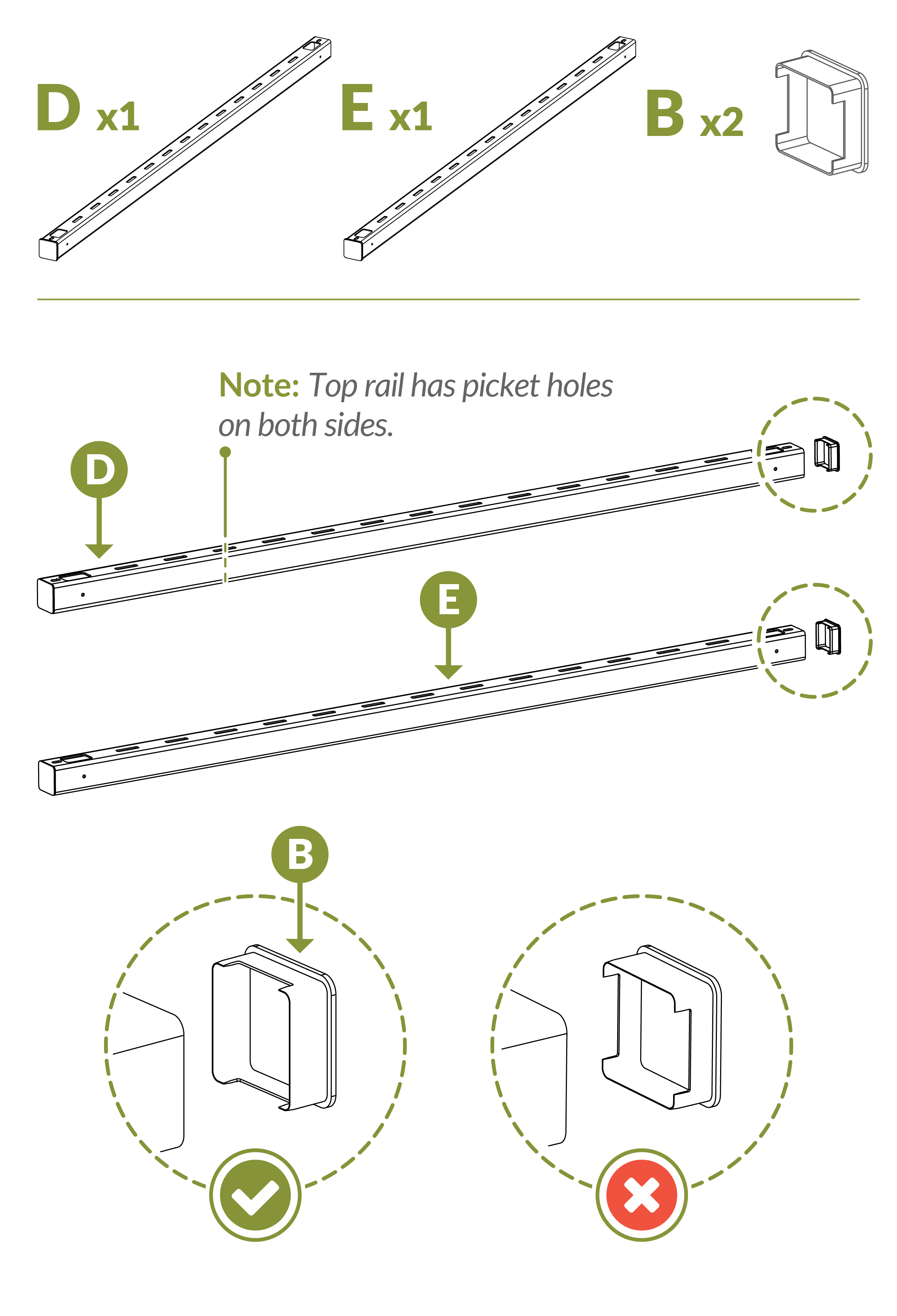

Step 2.1 Step 2.1 — identify Top Rail (D) and Bottom Rail (E)

Step 2.1 — correct Rail End Cap (B) orientation

  • Identify Top Rail (D) (picket holes on top and bottom) and Bottom Rail (E) (picket holes facing up).
  • Insert (2) loose Rail End Caps (B) into each rail as illustrated.

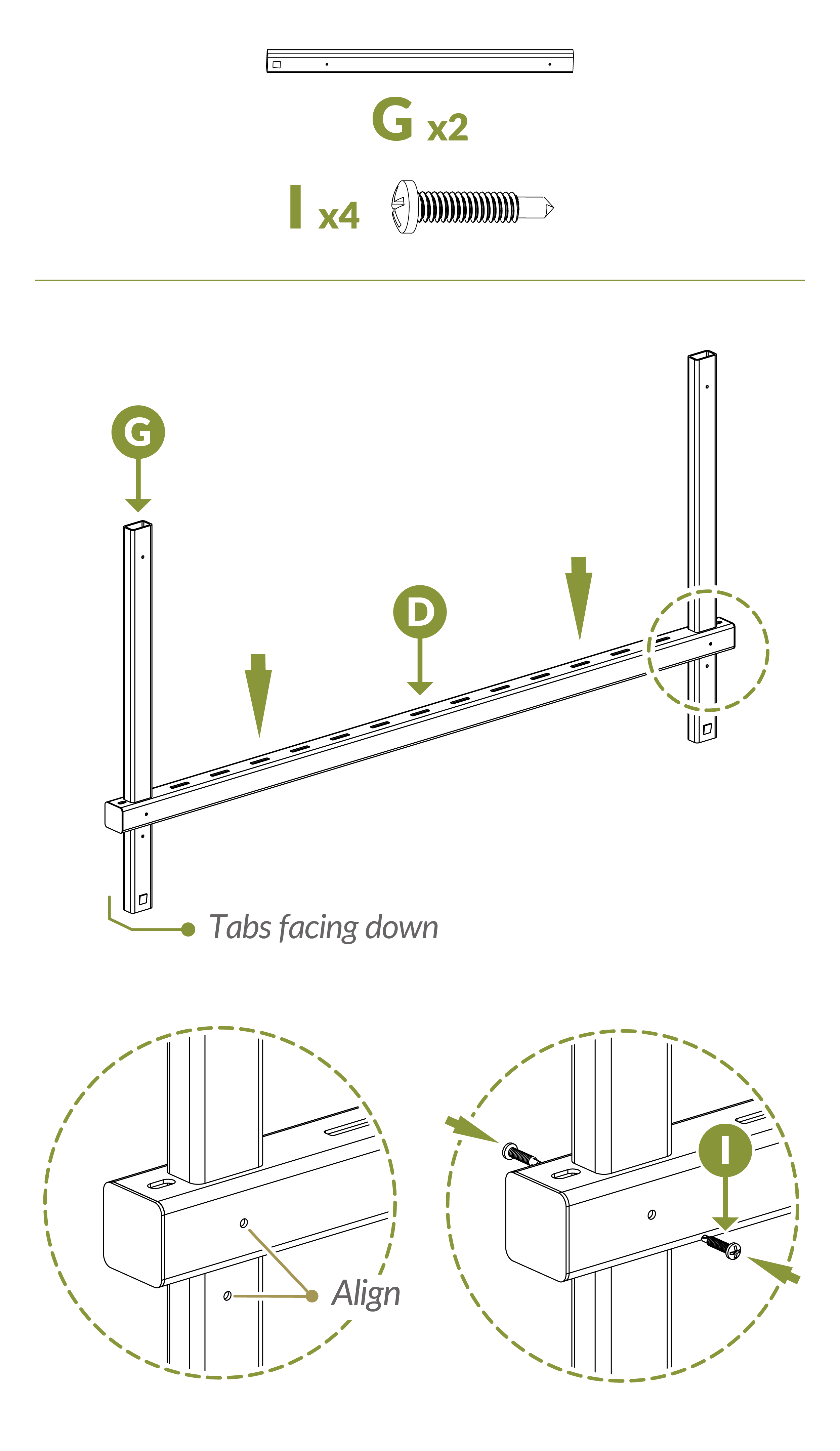

Step 2.2 Step 2.2 — orient Posts (G) and slide down Top Rail (D)

Step 2.2 — drive screws (I) into pre-drilled holes

  • Orient (2) Posts (G) as shown.
  • Slide the Top Rail (D) down the posts, aligning the pre-drilled holes.
  • Drive (4) ¾" Self-Drilling Stainless Steel Screws (I) into the pre-drilled holes.

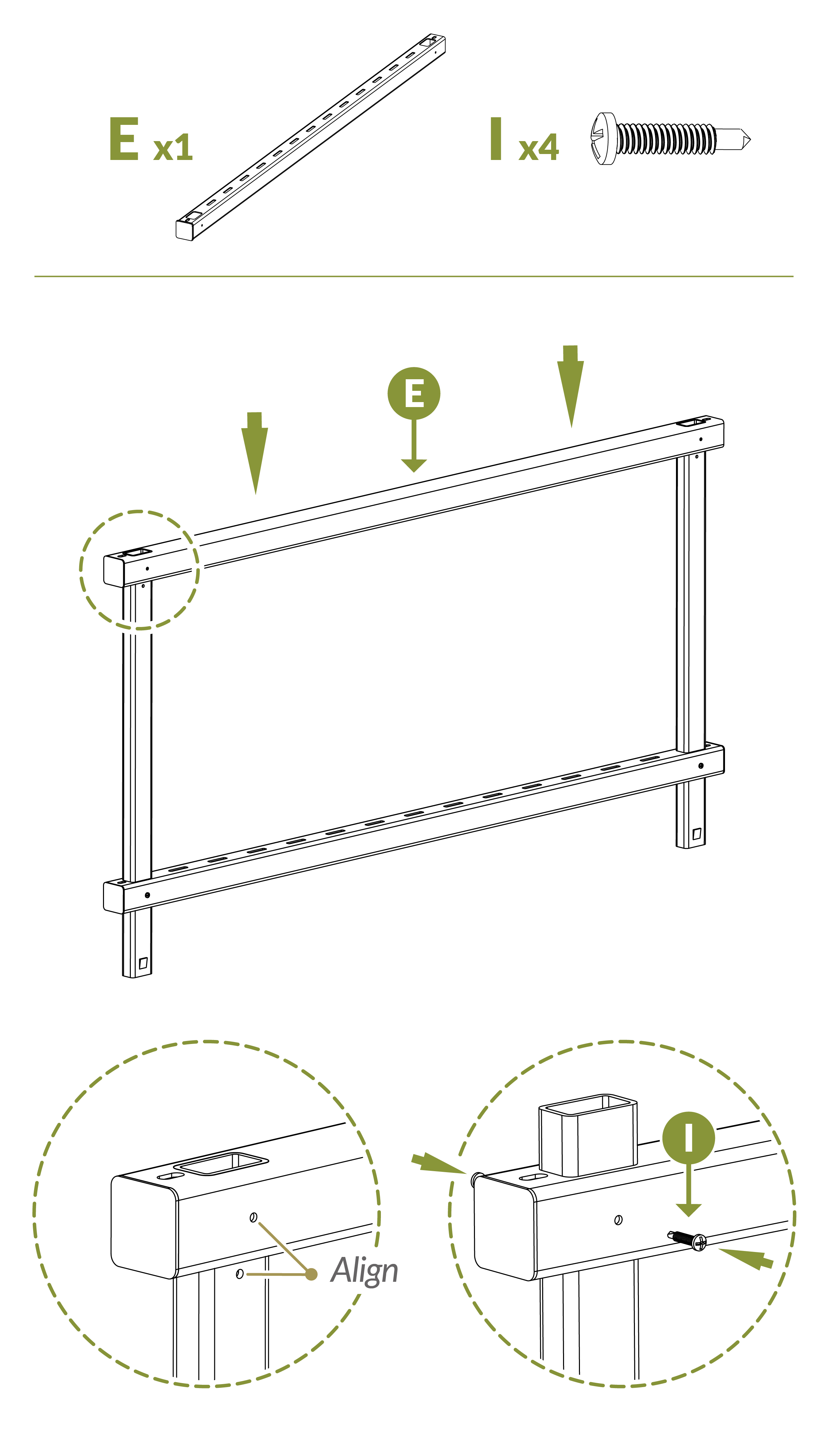

Step 2.3

Step 2.3 — slide Bottom Rail (E) down posts

Step 2.3 — secure Bottom Rail (E) with screws (I)

  • Slide the Bottom Rail (E) down the posts until the pre-drilled holes align.
  • Drive (4) ¾" Self-Drilling Stainless Steel Screws (I) into the holes.

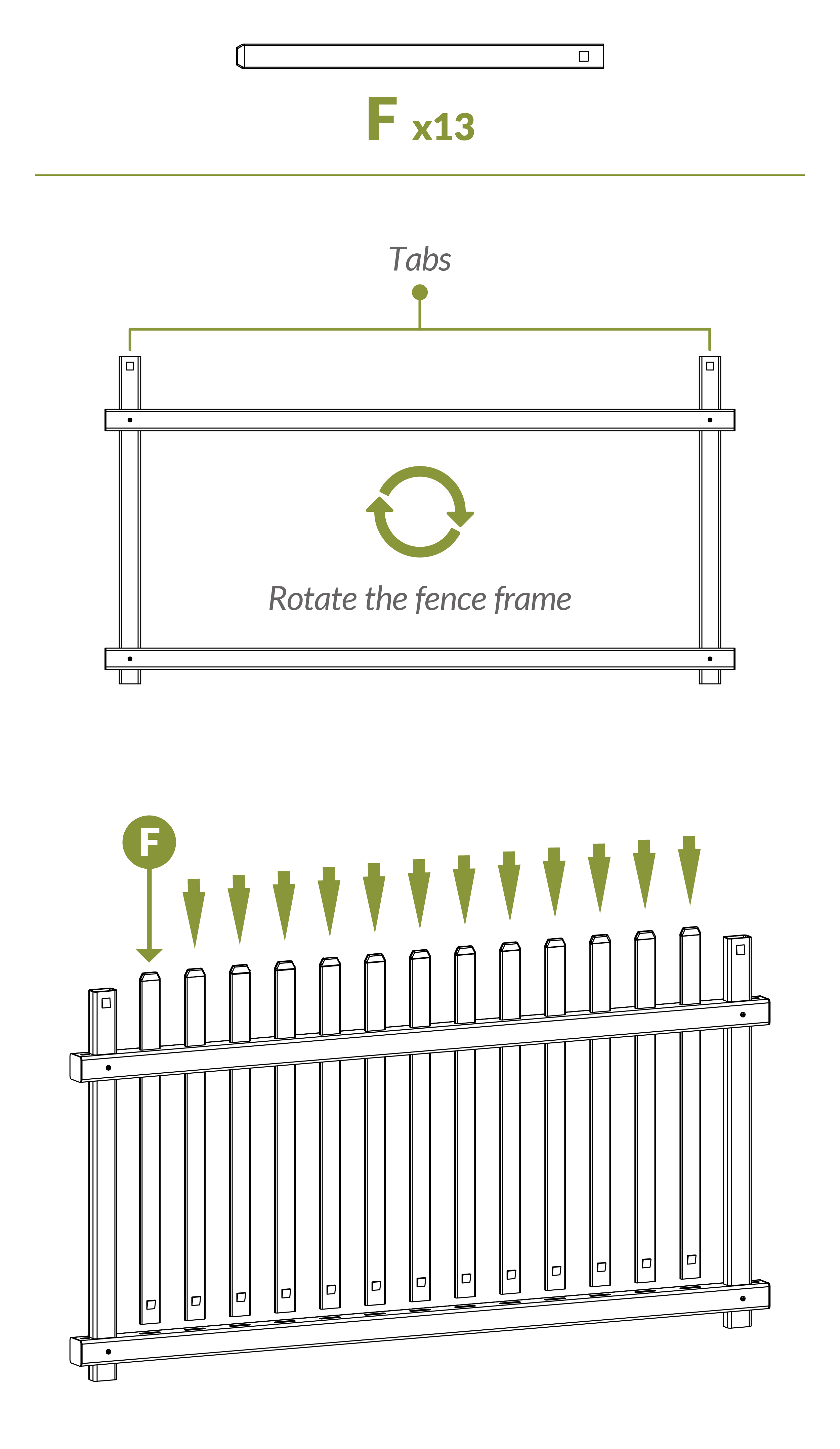

Step 3: Insert the Pickets

Step 3.1 — rotate frame with post tabs facing up

Step 3.1 — insert 13 Pickets (F) into top and bottom rails

  • Rotate the fence frame so that the post tabs are facing up.
  • Insert (13) Pickets (F) into the picket holes in the top and bottom rails.

Step 4: Attach the Feet

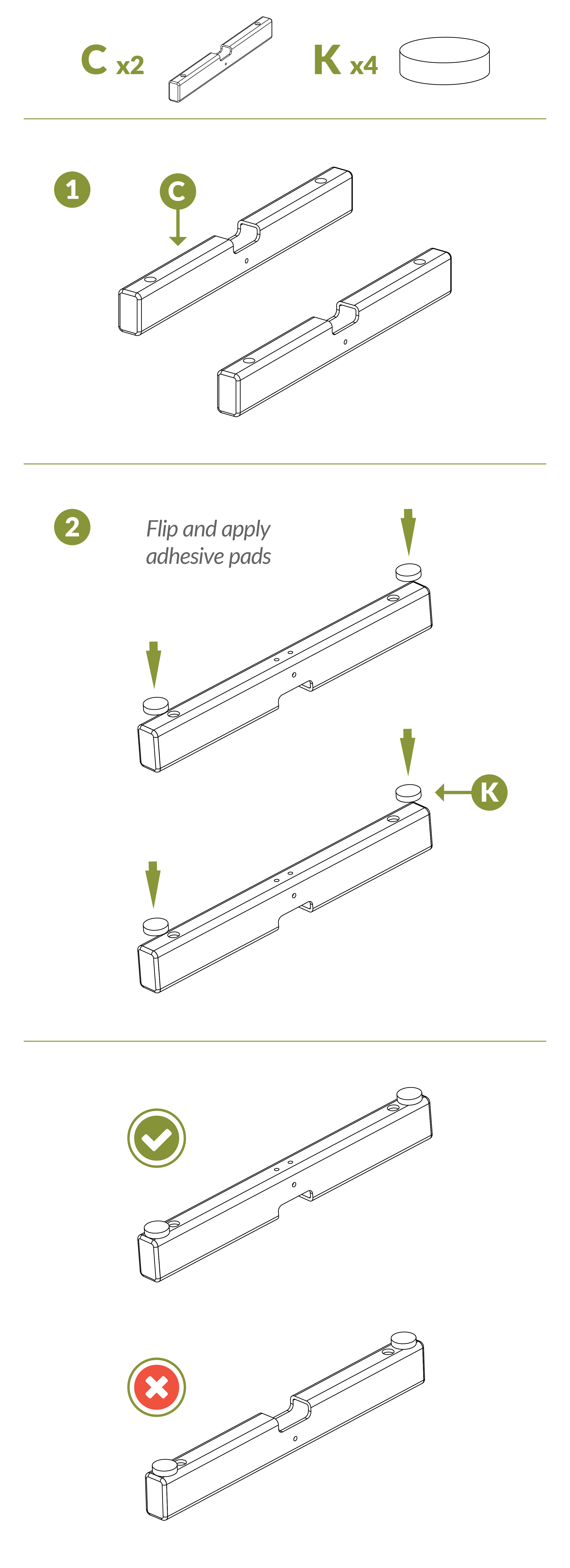

Step 4.1 Indoor Applications Only

Step 4.1 — identify Portable Feet (C)

1. Identify the Portable Feet (C).

Step 4.1 — attach No-Scratch Pads (K) to ends of feet

2. Peel the backing off each Silicone No-Scratch Pad (K) and attach one to each far end on the underside of both feet.

Step 4.1 — correct vs. incorrect foot orientation

3. Ensure feet are oriented right-side up as shown.

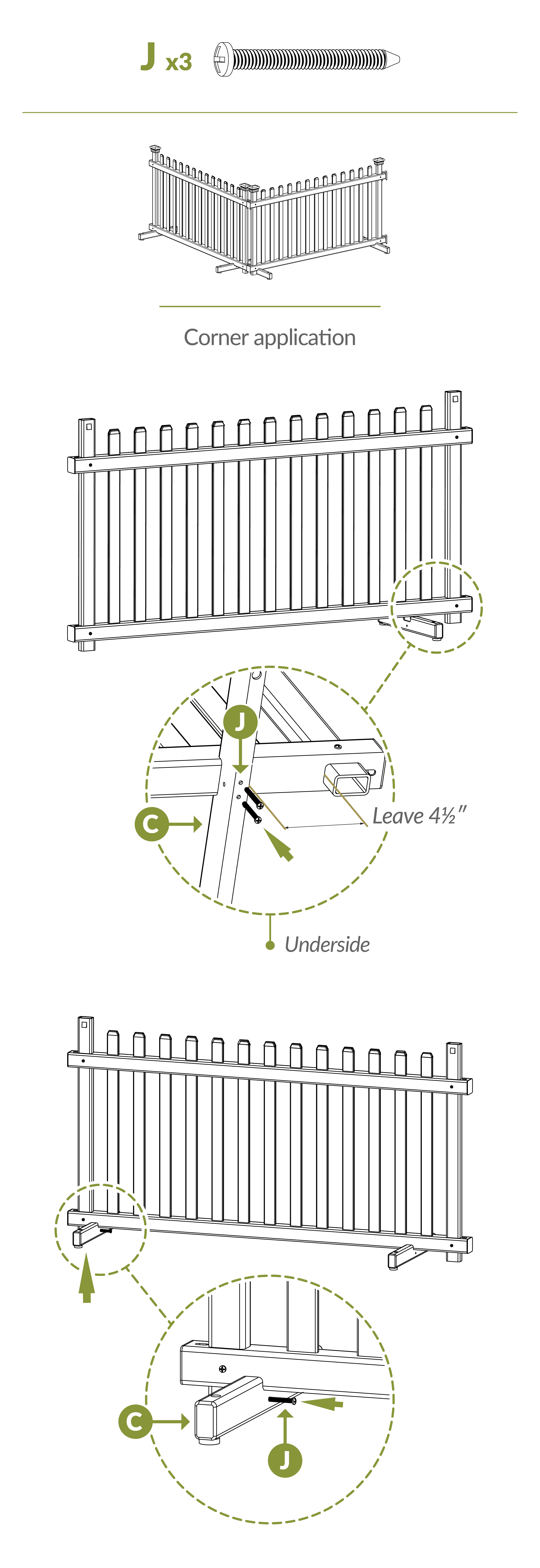

Step 4.2A – Corner/Angled Application

Step 4.2A — slide first foot's notched end into bottom rail

1. Slide the notched end of a portable foot into the underside of the bottom rail.

Step 4.2A — position foot 4½" from post, drive 2 screws

2. Position the foot at least 4½" from the edge of the post. Drive (2) 1½" Self-Drilling Stainless Steel Screws (J) through the pre-drilled holes in the underside of the foot.

Step 4.2A — slide second foot's notched end into rail

3. Slide the notched end of the second portable foot into the underside of the rail.

Step 4.2A — slide foot to post, drive 1 screw into side

4. Slide the foot until it touches the post and drive (1) 1½" Self-Drilling Stainless Steel Screw (J) into the pre-drilled hole in the side of the foot.

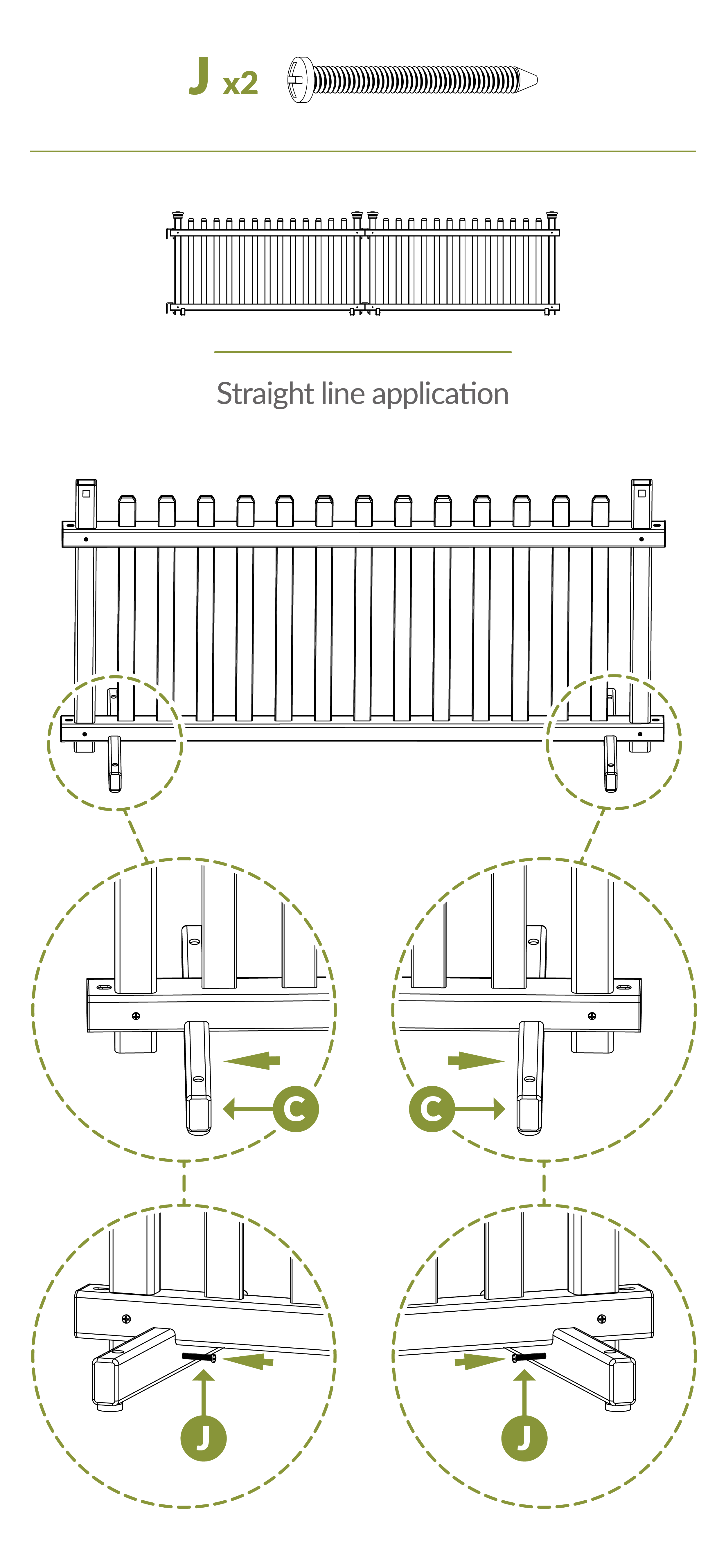

Step 4.2B – In-Line Application

Step 4.2B — slide foot to post, drive screw into side

Step 4.2B — repeat on opposite side of fence panel

  • Slide the notched end of a portable foot under the bottom rail until it touches the side of the post.
  • Drive (1) 1½" Self-Drilling Stainless Steel Screw (J) into the pre-drilled hole in the side of the foot.
  • Repeat on the other side of the fence panel.

Step 5: Assemble Second Fence Panel

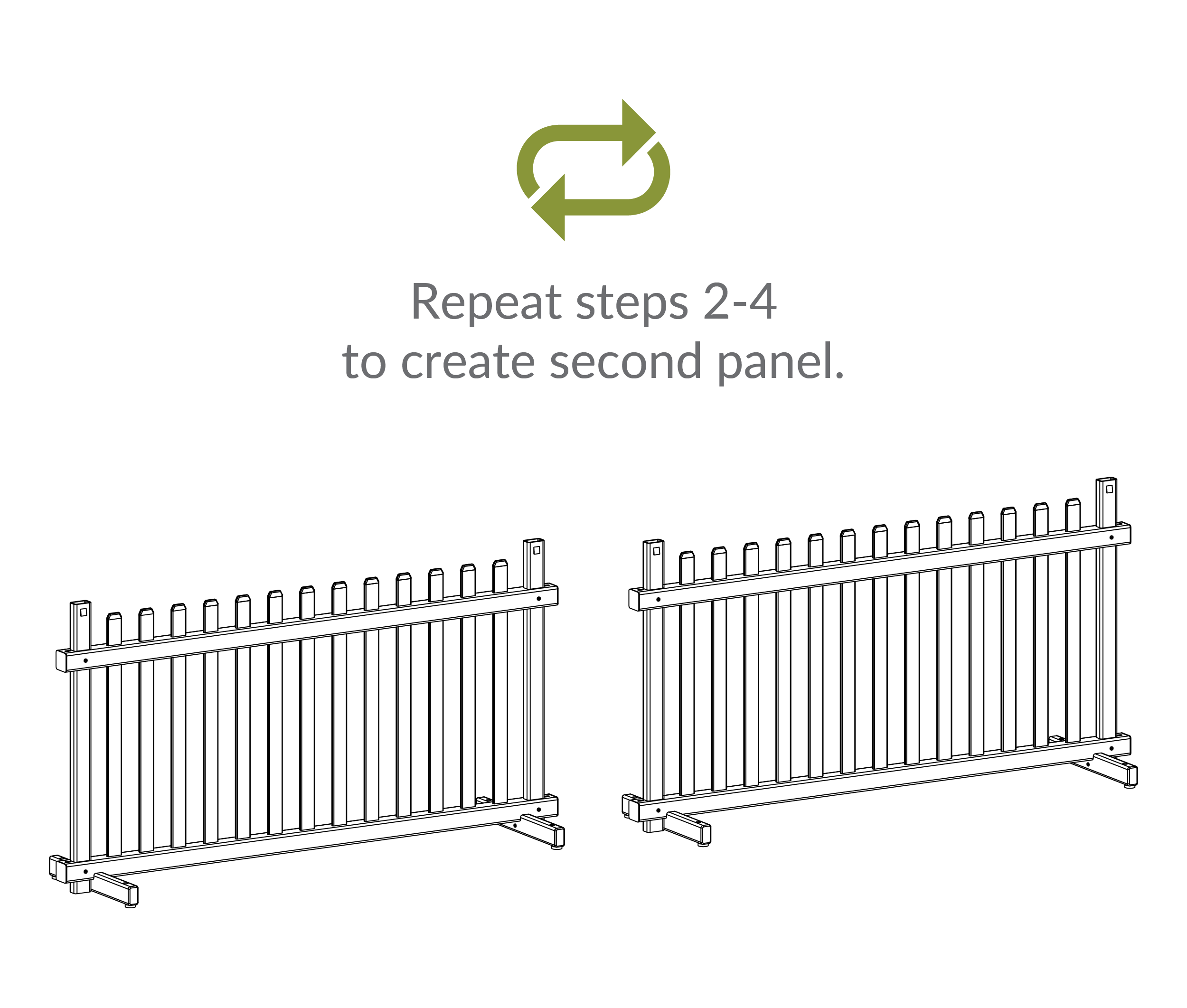

Step 5 — two completed panels ready to connect

Step 6: Connect the Panels

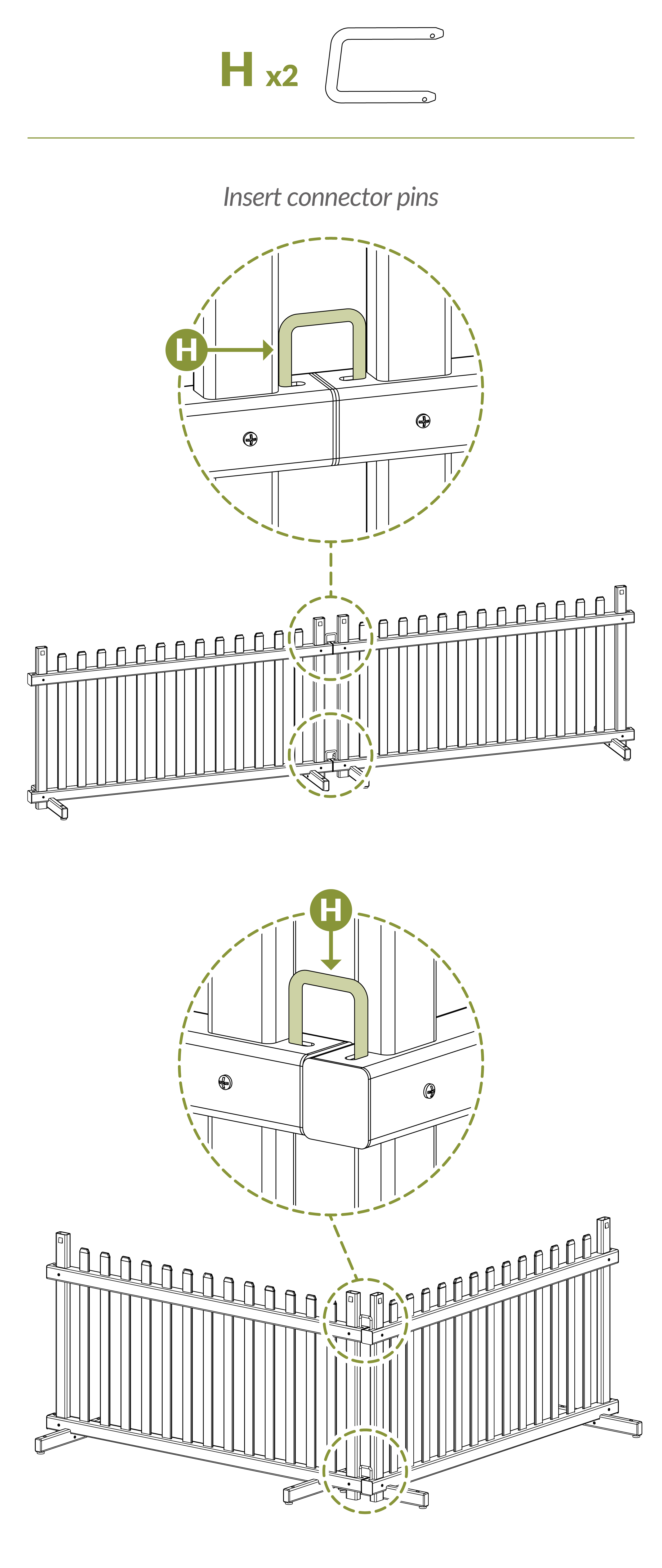

Connect the fence panels using Connector Pins (H) —compatible with straight-line or corner configurations

Step 6 — connect panels with Connector Pins (H), inline

Step 6 — connect panels with Connector Pins (H), corner

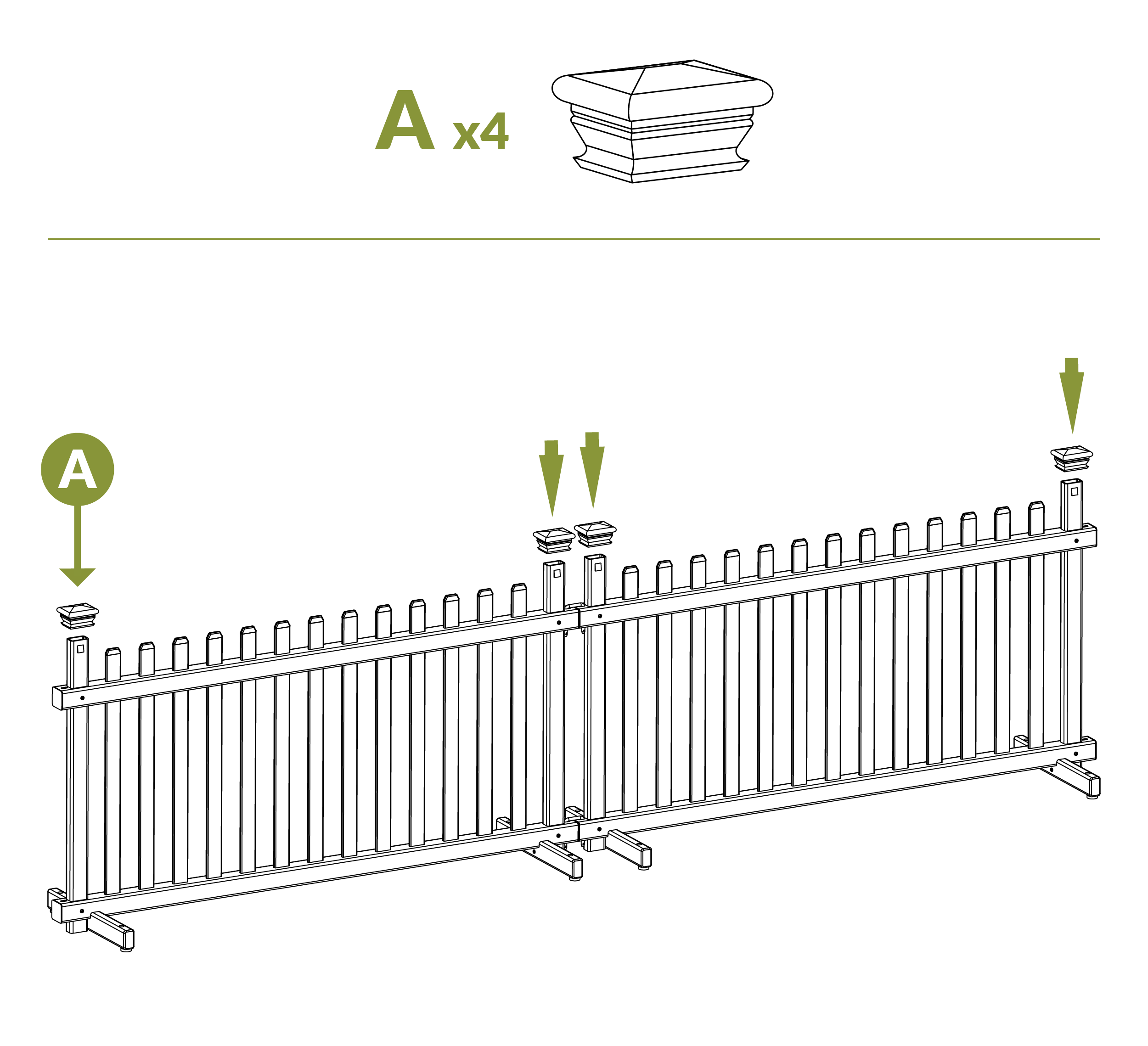

Step 7: Attach Post Caps

Step 7 — press Post Caps (A) onto all four post tops

Press a Post Cap (A) onto each post top until it snaps into place.

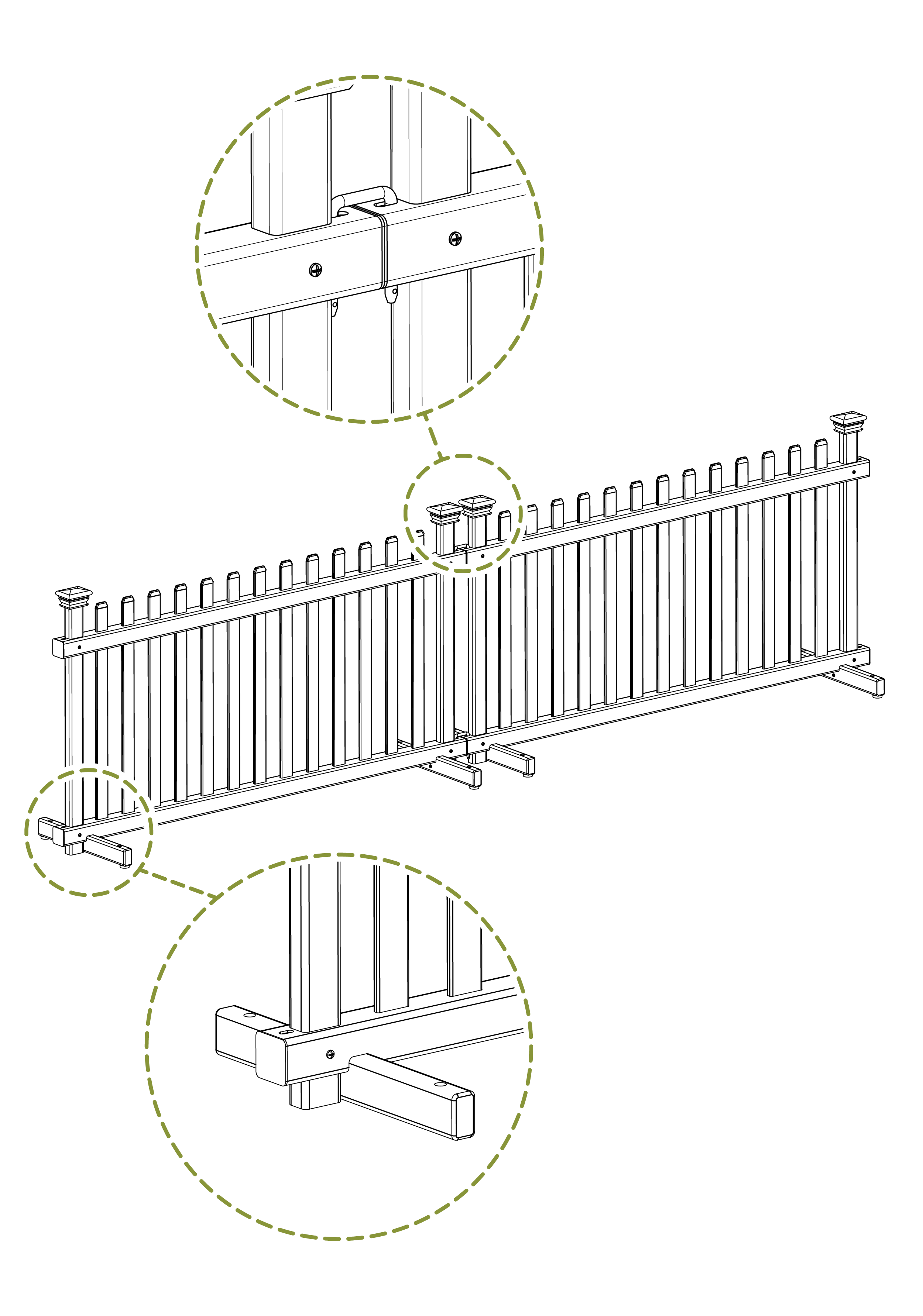

Step 8: Secure Panels (Optional)

Step 8 — drive rebar stake through portable foot holes

Step 8 — zip tie or cotter pin through Connector Pin (H)

  • To more permanently secure your portable fence:
    • On grass: drive a ½" diameter rebar stake (not included) into the two holes in each portable foot.
    • Any configuration: thread a zip tie or cotter pin (not included) through the holes in each Connector Pin (H) to prevent removal
