ZP19075 Newberry Wood Fence Kit

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approximately 5' x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19075
• Provide the specific part name
• Include the batch lot number found on the end of the box

Drill with Phillips Bit

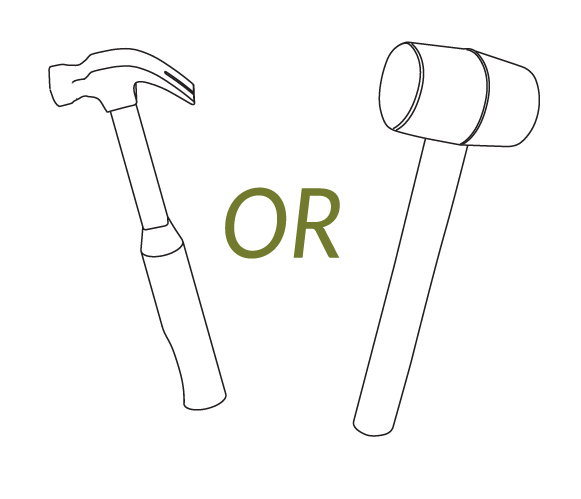

Hammer or Mallet

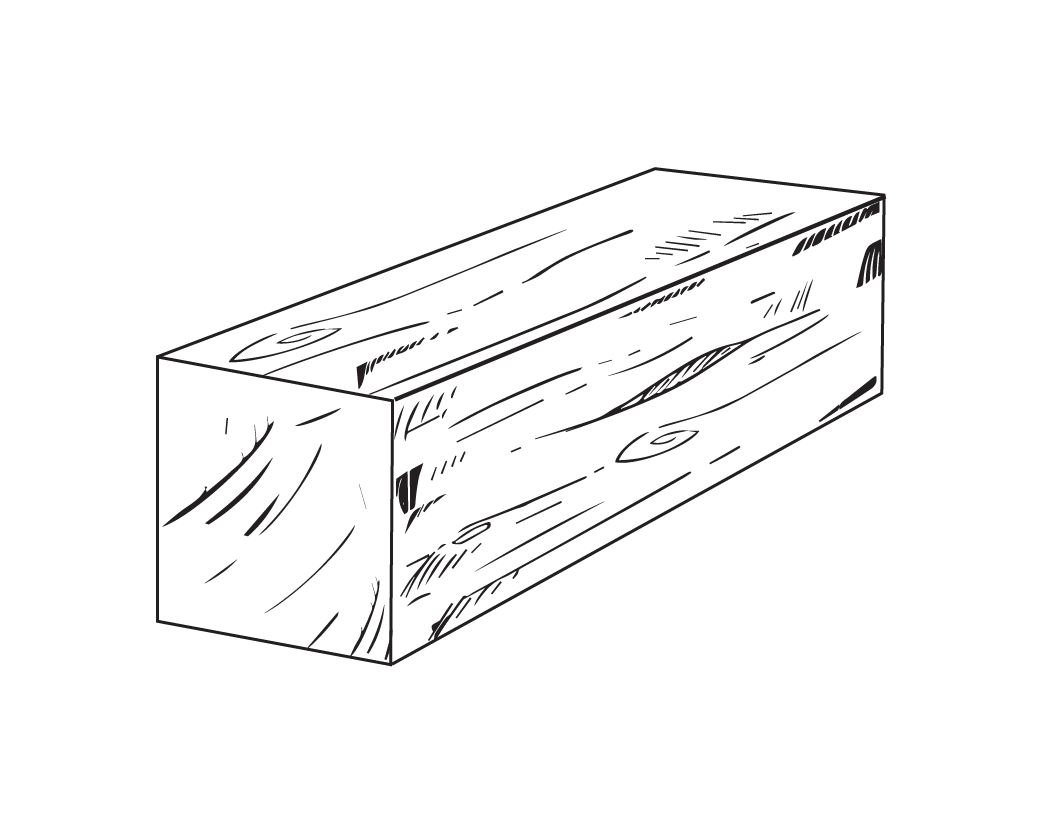

Scrap 2x4 Wood Block or Similar

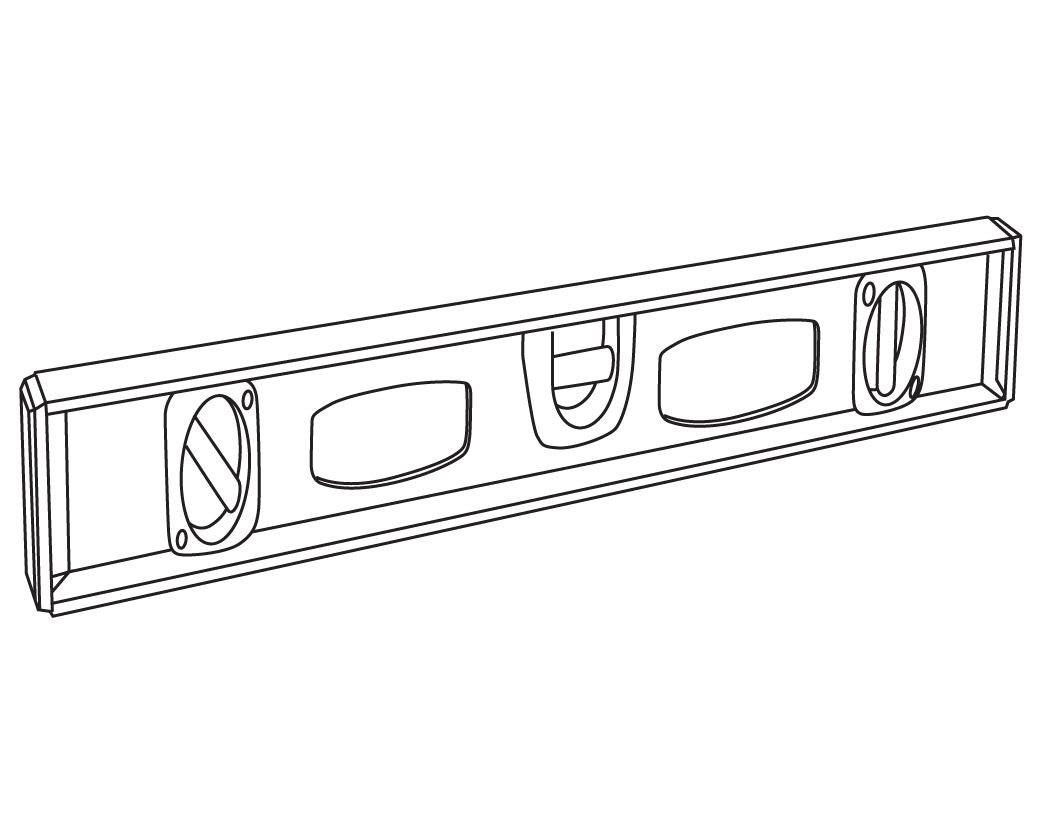

Level (Optional)

A- Bottom Rail (2)

1" x 3" x 40 ⅔" (rail with drainage holes)

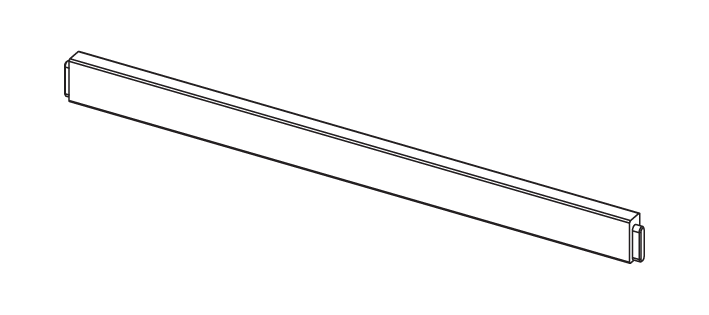

B- Top Rail (2)

1" x 3" x 40 ⅔"

C- Ground Stake (3)

¾" diameter x 44 ¾"

D- End Post (4)

1" x 3" x 32"

E- Slat (14)

½" x 3" x 27 ⅛"

F- Stake Bracket (8)

G- Stake Cap (3)

H- Stake Peg (3)

I- 4" Self-Tapping Stainless Steel Screw (16)

J- ⅝" Self-Tapping Stainless Steel Screw (16)

• Push Bottom Rail (A) against a wall for support.
• Insert (7) Slats (E) into Bottom Rail (A).

• Insert Top Rail (B) over Slats (E).

• Attach (2) End Posts (D) to each side of the panel.

• Attach (4) Stake Brackets (F) to the panel using (8) 4" Screws (I).

• Secure brackets using (8) ⅝" Screws (J).

• Insert (1) Ground Stake (C) into the brackets on the side of the panel.
• Orient the stake with the drilled side and drainage holes facing down.

• Hammer stake in using a scrap wood block; check for level every few taps. Leave ~1.5" between the top of the stake and the top of the panel.
• Do not install Stake Caps (G) before hammering into the ground.

Step 10

• Pass the stake through the brackets on both panels to extend the fence run.

Step 11

• Lift the panels and install (3) Stake Pegs (H) into the stakes to raise the panels off the ground.

Step 11b (Optional – Sloped Surface)

• Step panels by installing the lower panel beneath the stake peg.
• For a surface that drops more than 3" across the length of a panel, call our customer service team at 704-892-5222 or 877-234-6196 for additional installation options.

• Press (3) Stake Caps (G) onto the top of each stake.
