General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.
• Assemble on a soft, non-abrasive surface to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• Do not overtighten screws; some force may be required to drive screws.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19001
• Provide the specific part name or letter
• Include the batch lot number found on the end of the box

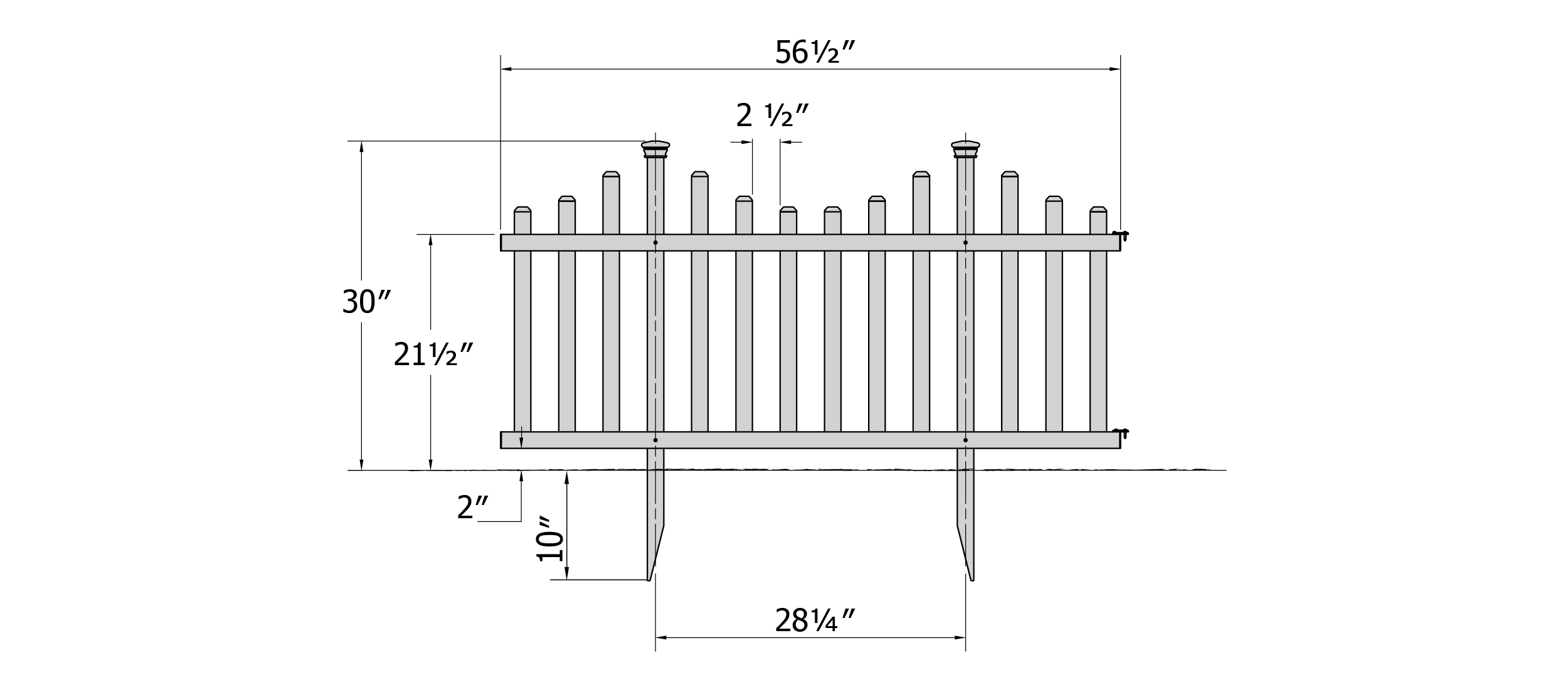

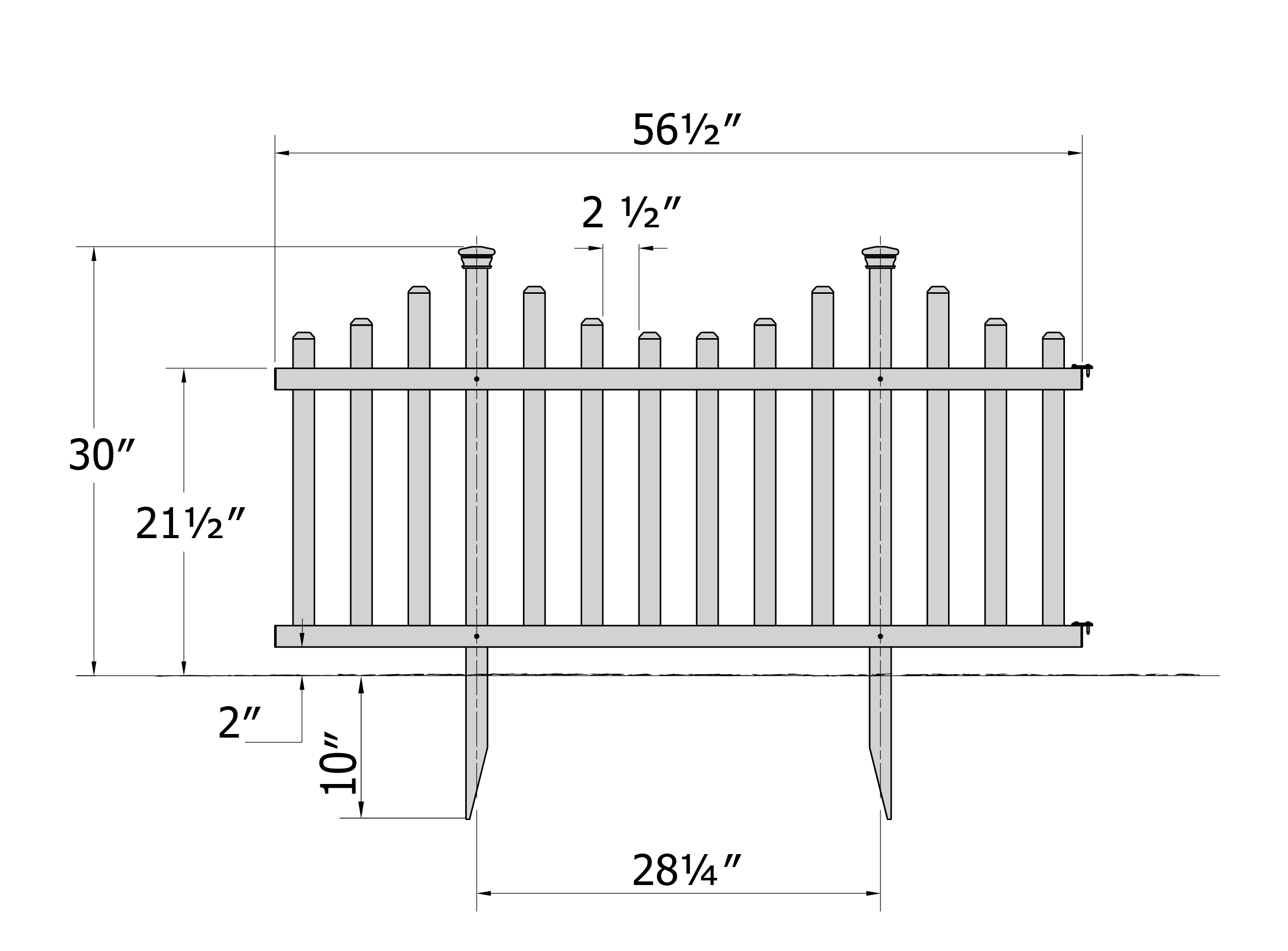

Detailed Dimensions & Specifications

Product Specifications:

• Panel Width: 56½”
• Panel Height: 30"
• Post Height: 40"
• Picket Spacing: 2½”
• Post Depth: 10"
• Clearance under panel: 2"

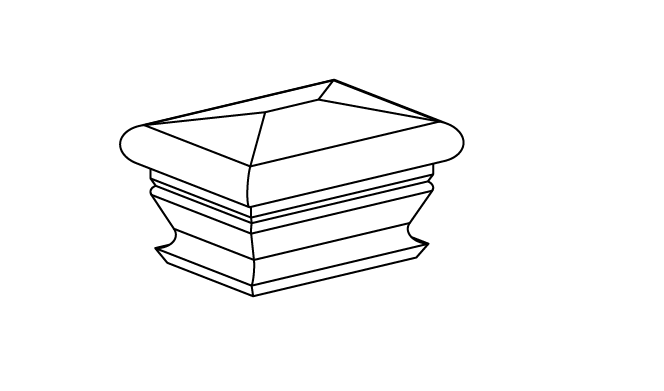

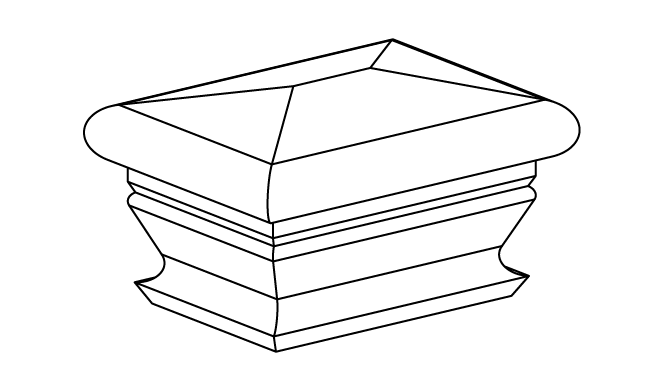

A. Post Cap (4)

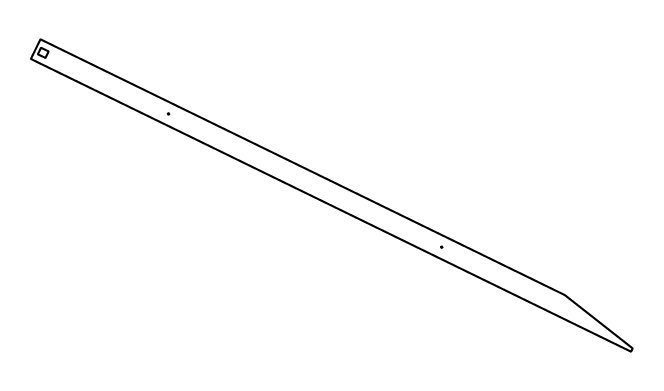

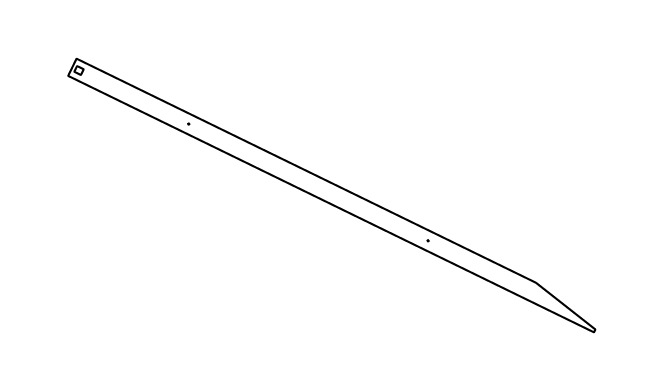

B. Post (4)

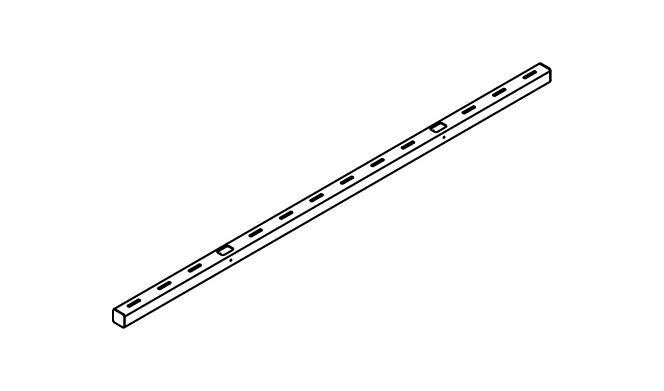

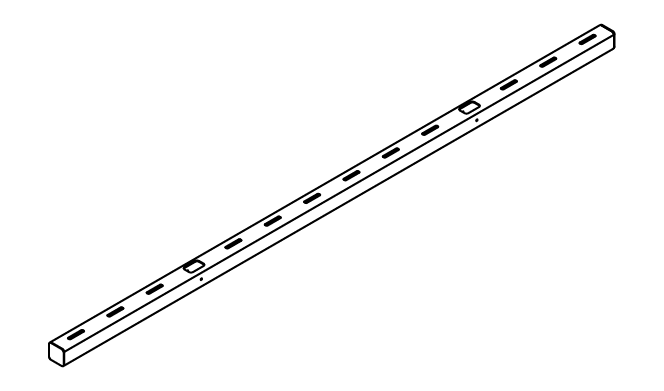

C. Top Rail (2)

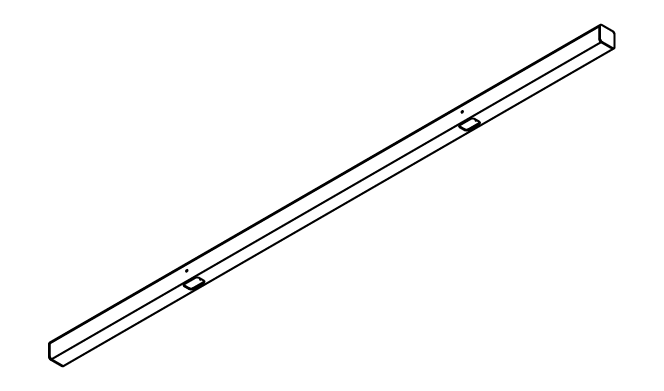

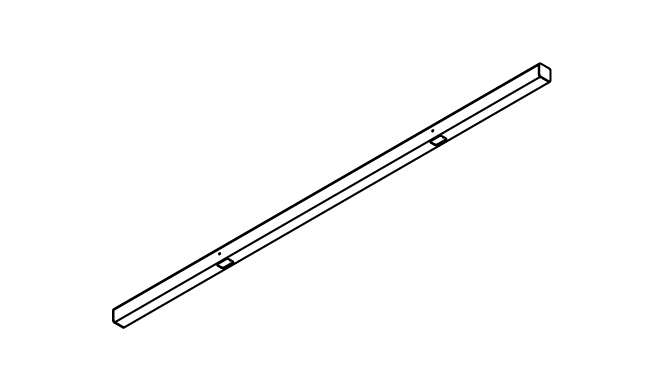

D. Bottom Rail (2)

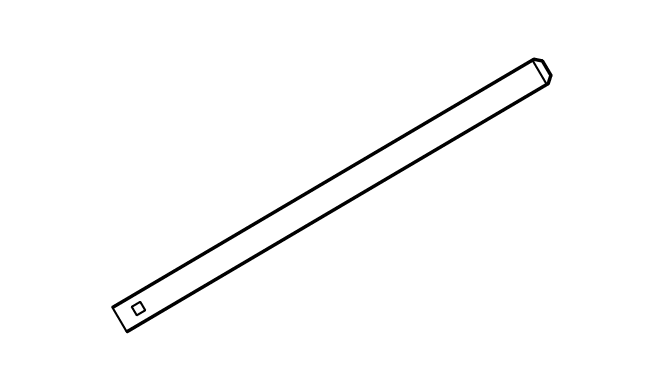

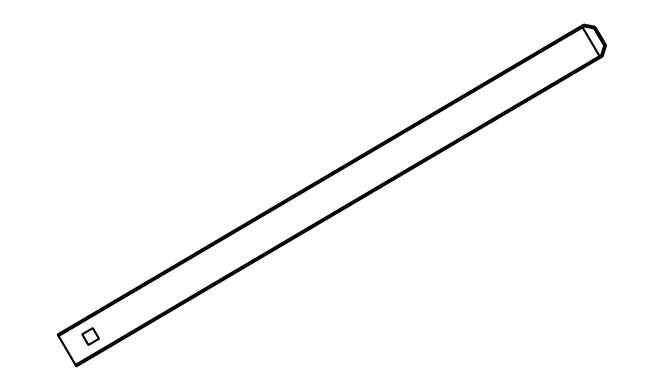

E. Pickets (24 total)

• #1 (8 pcs) — ¼" x 1½" x 25⅛"
• #2 (8 pcs) — ¼" x 1½" x 23"
• #3 (8 pcs) — ¼" x 1½" x 21⅞"

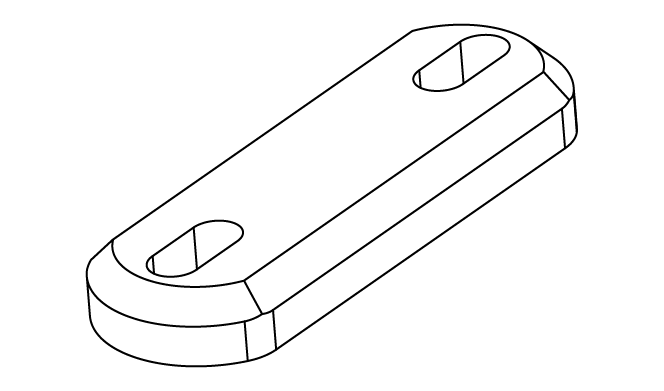

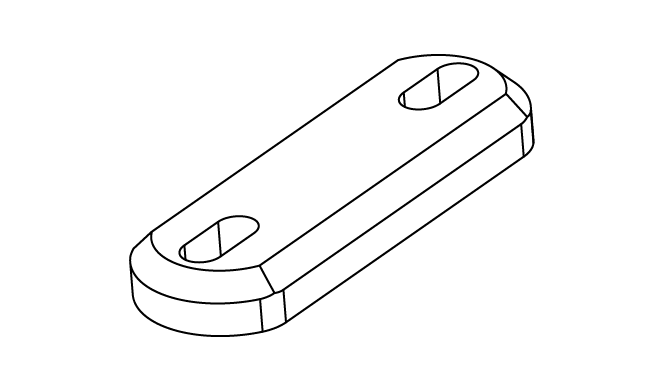

F. Joiner Clip (4)

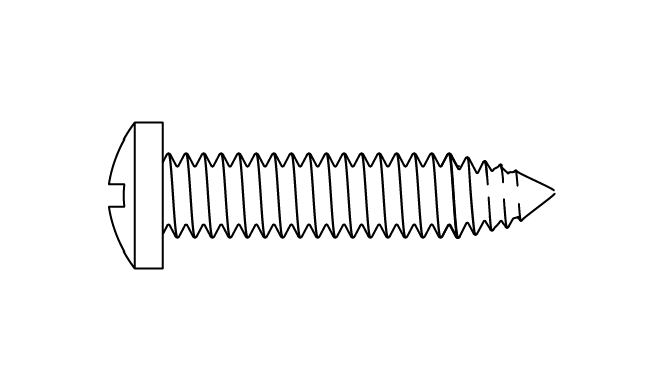

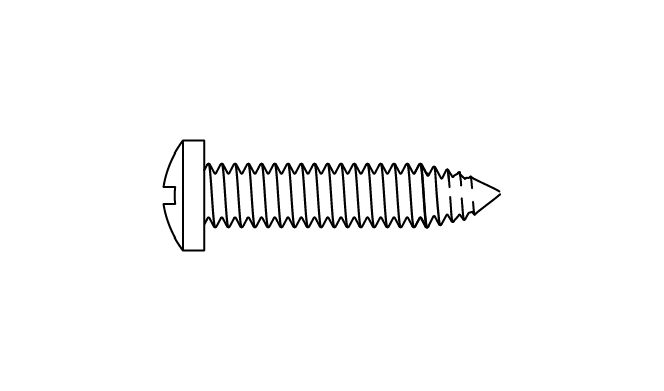

G. ¾" Self-Tapping Stainless Steel Screws (24)

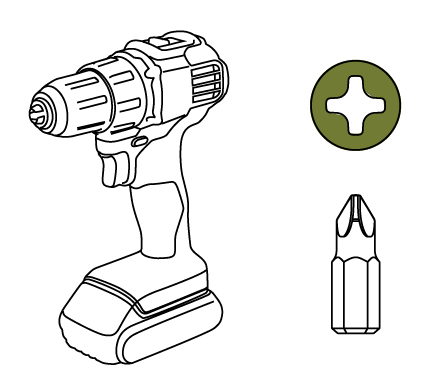

Power Drill with Phillips Bit

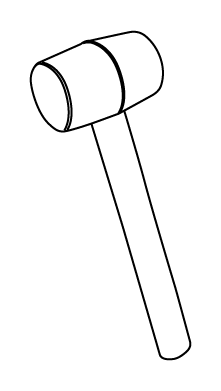

Mallet

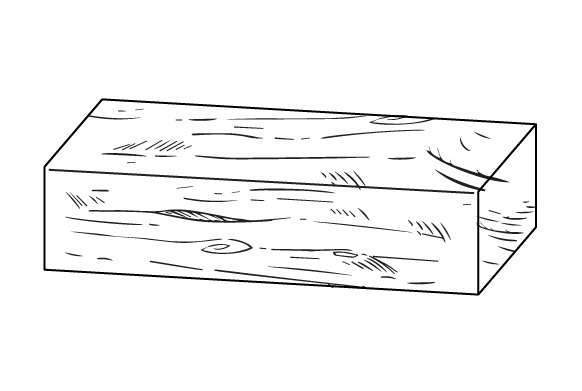

Wood Block

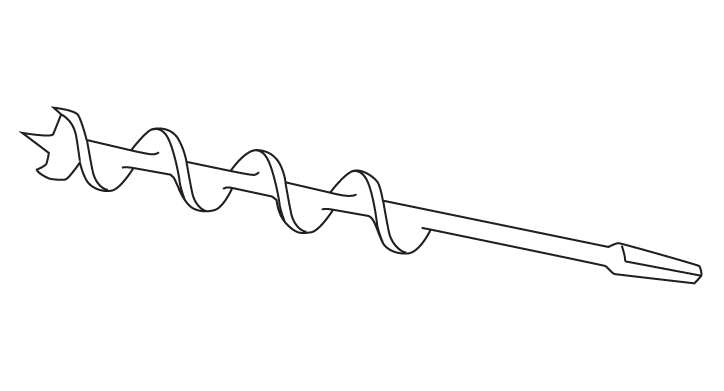

1¾" Tulip Auger

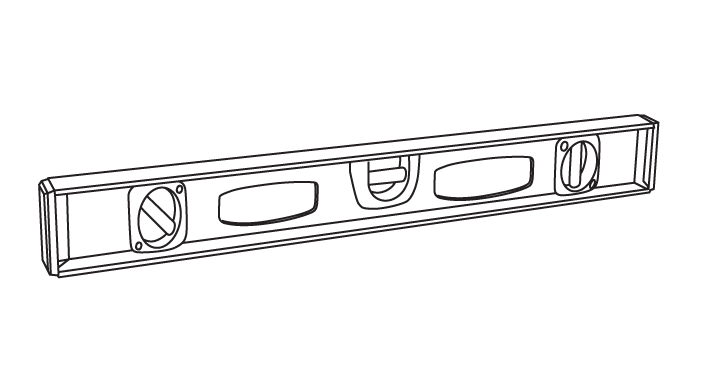

Level

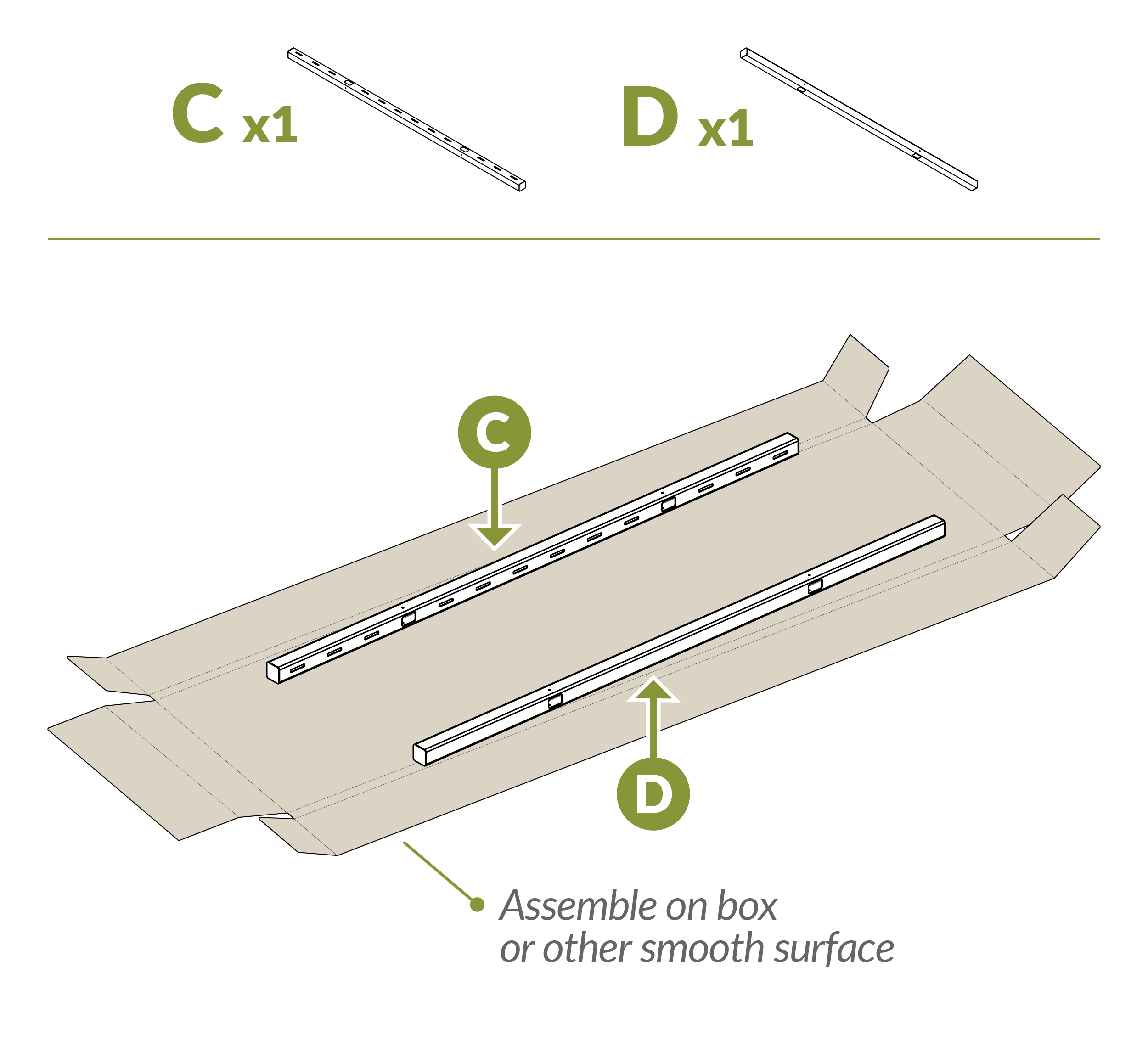

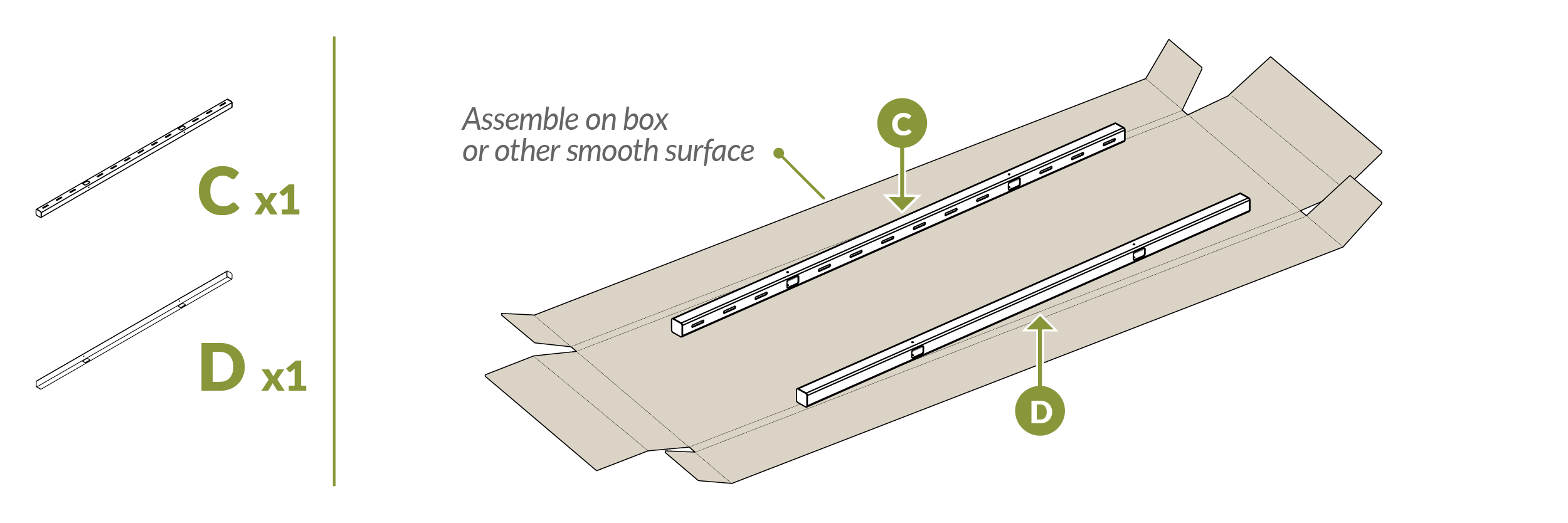

• Assemble on soft surface to prevent scratching.

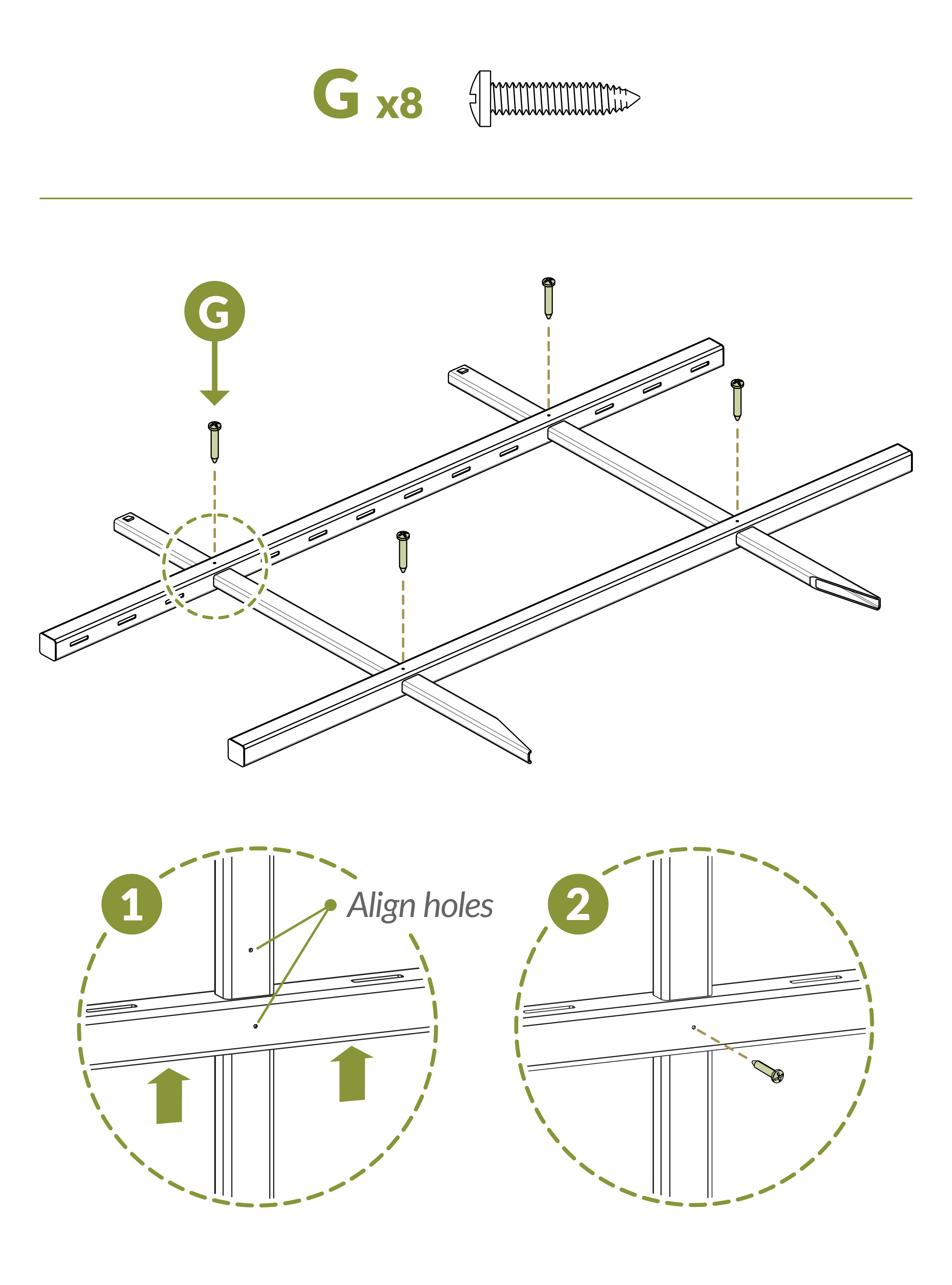

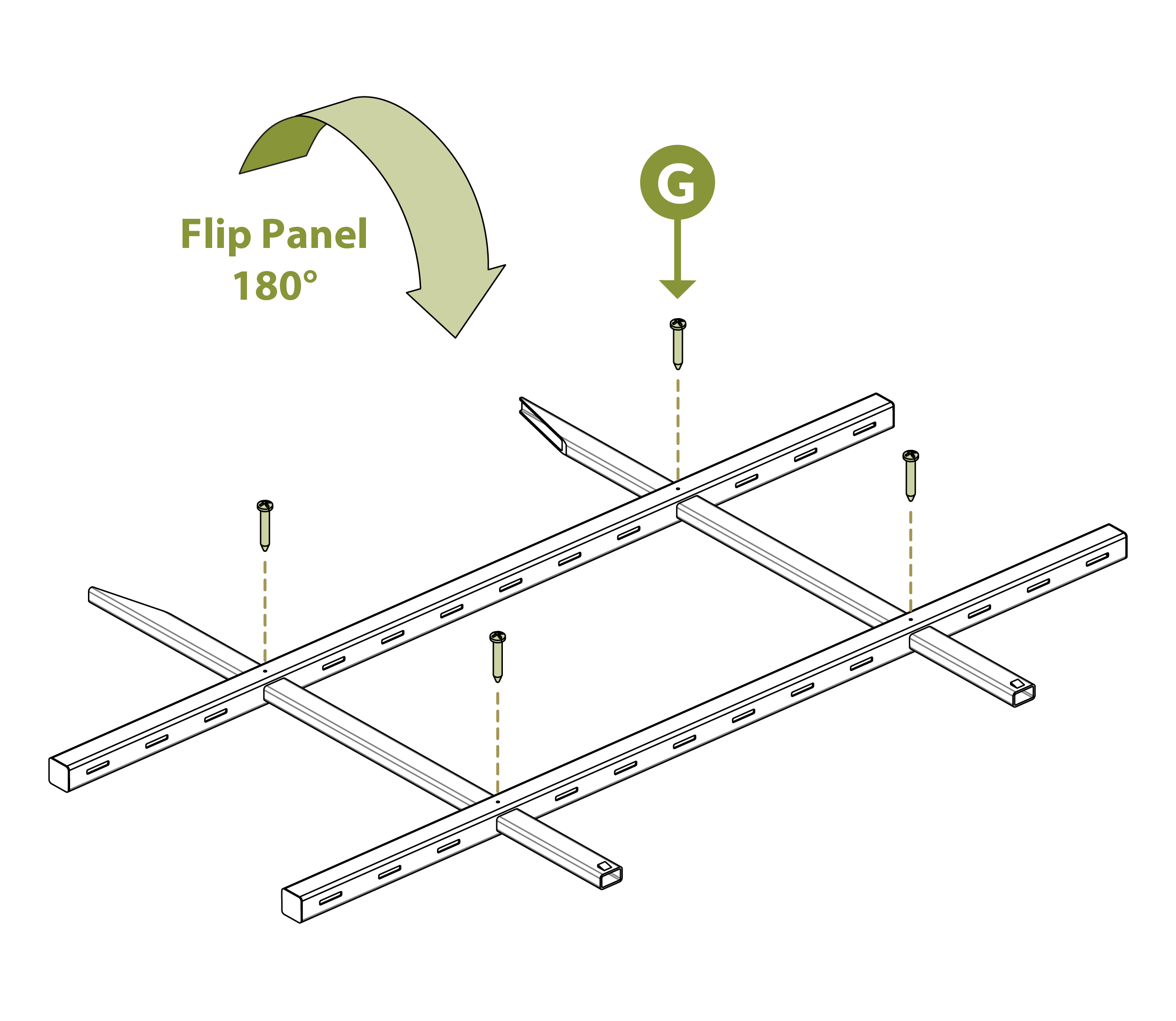

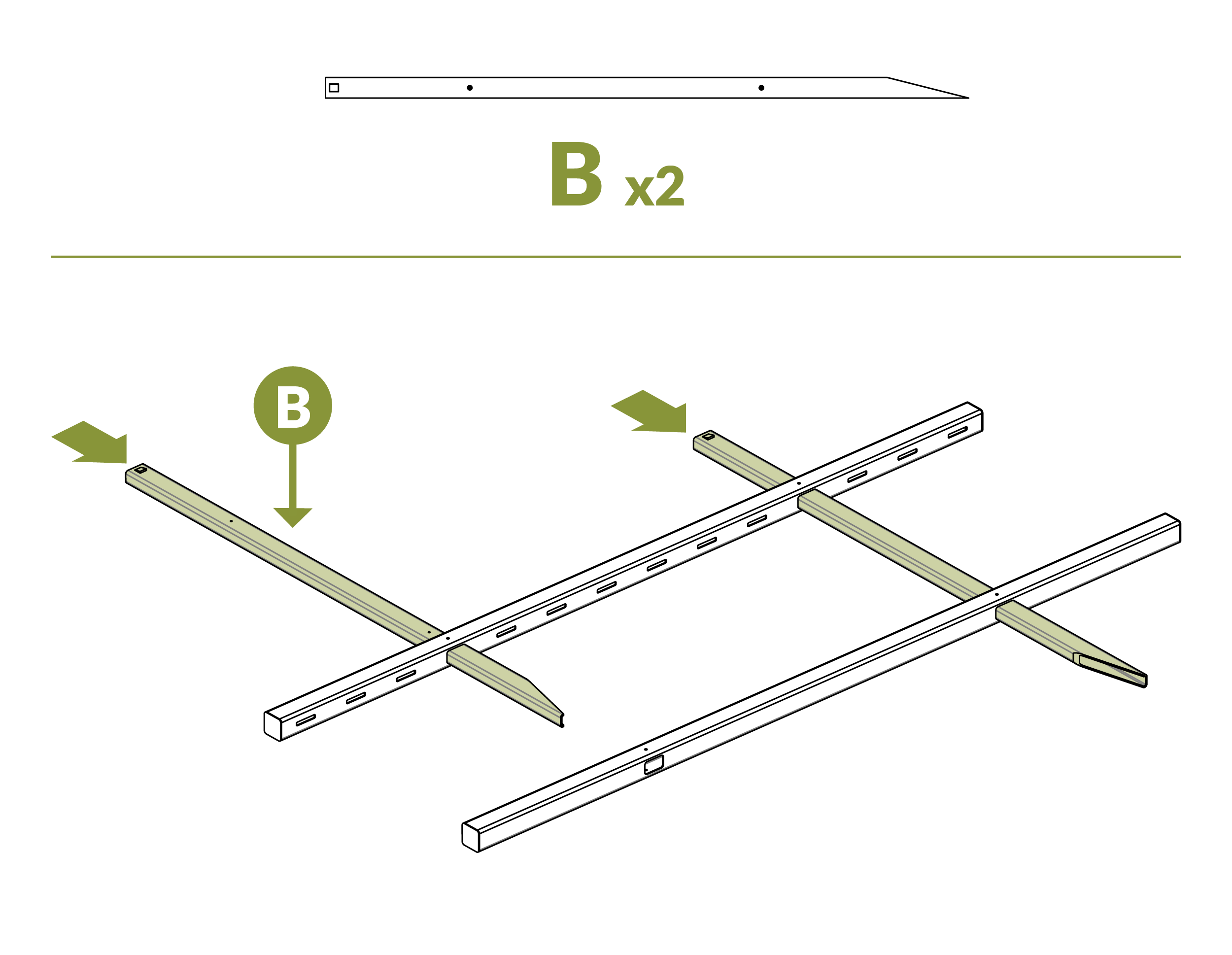

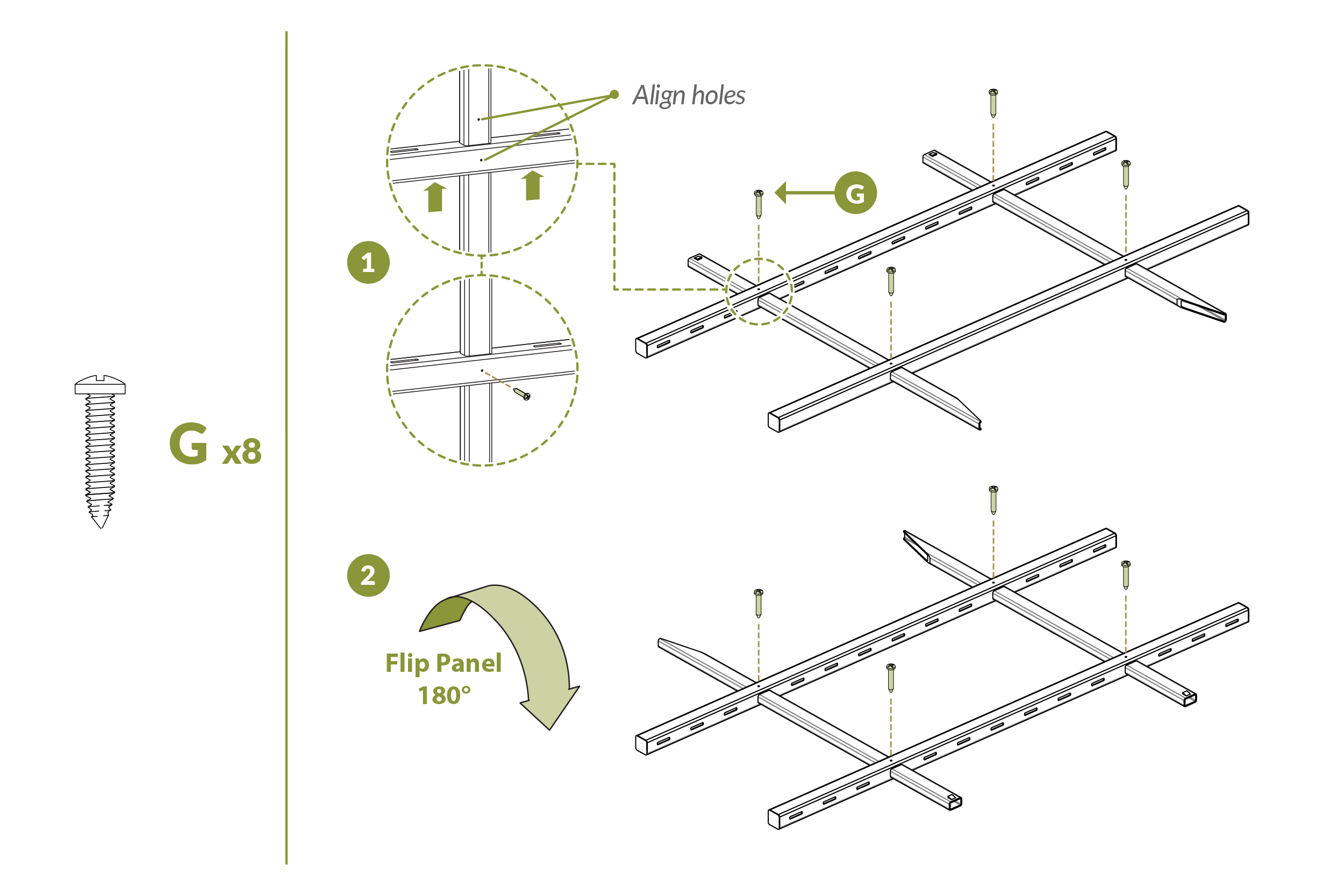

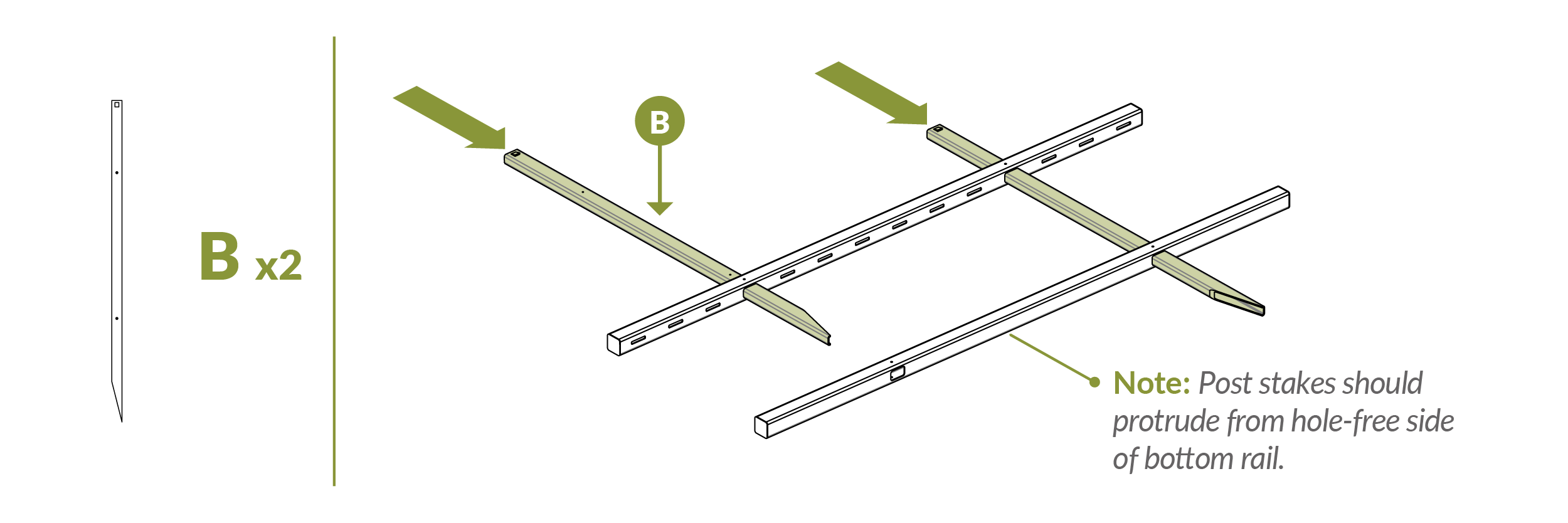

• Post stakes should protrude from hole-free side of bottom rail.

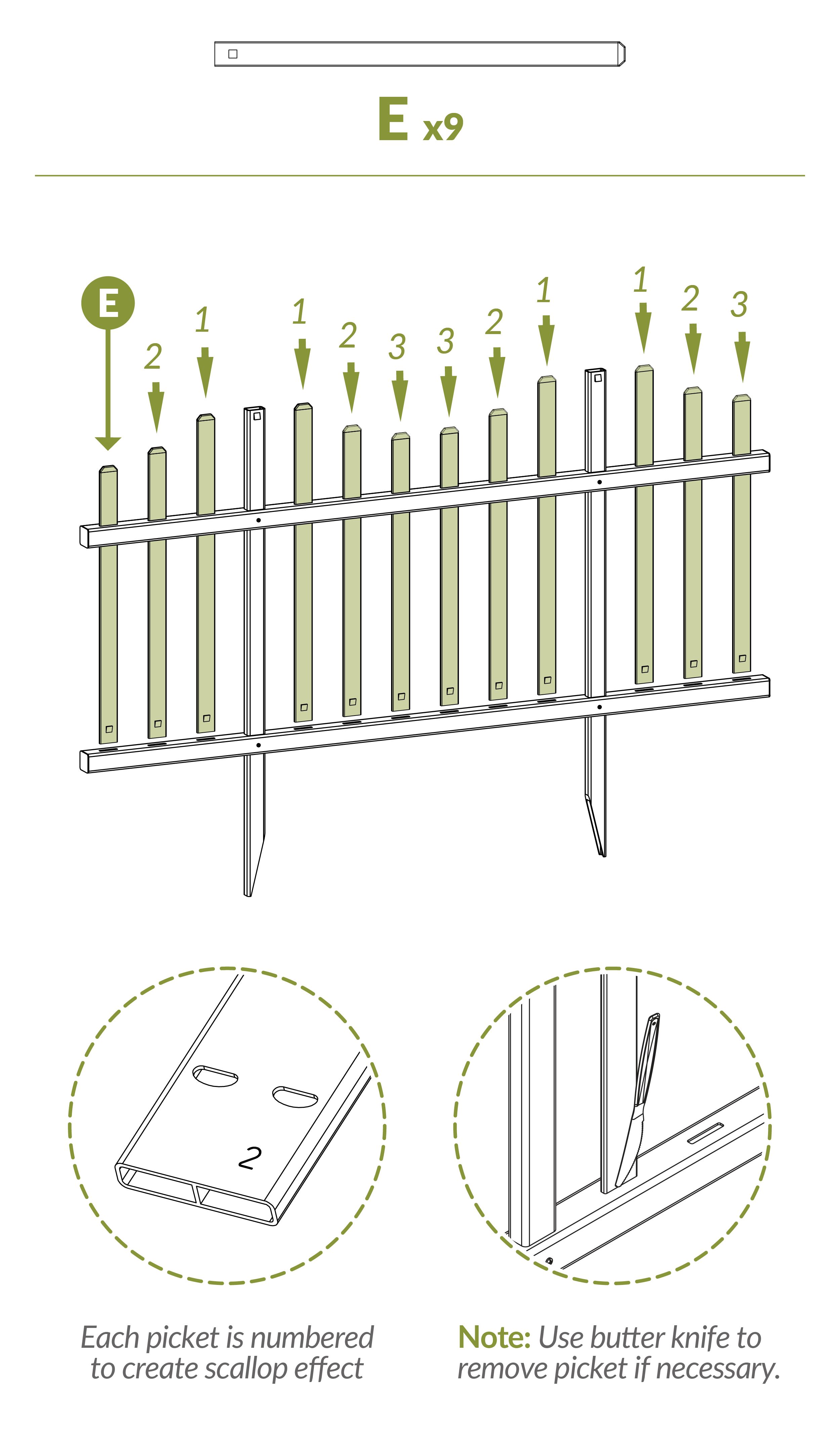

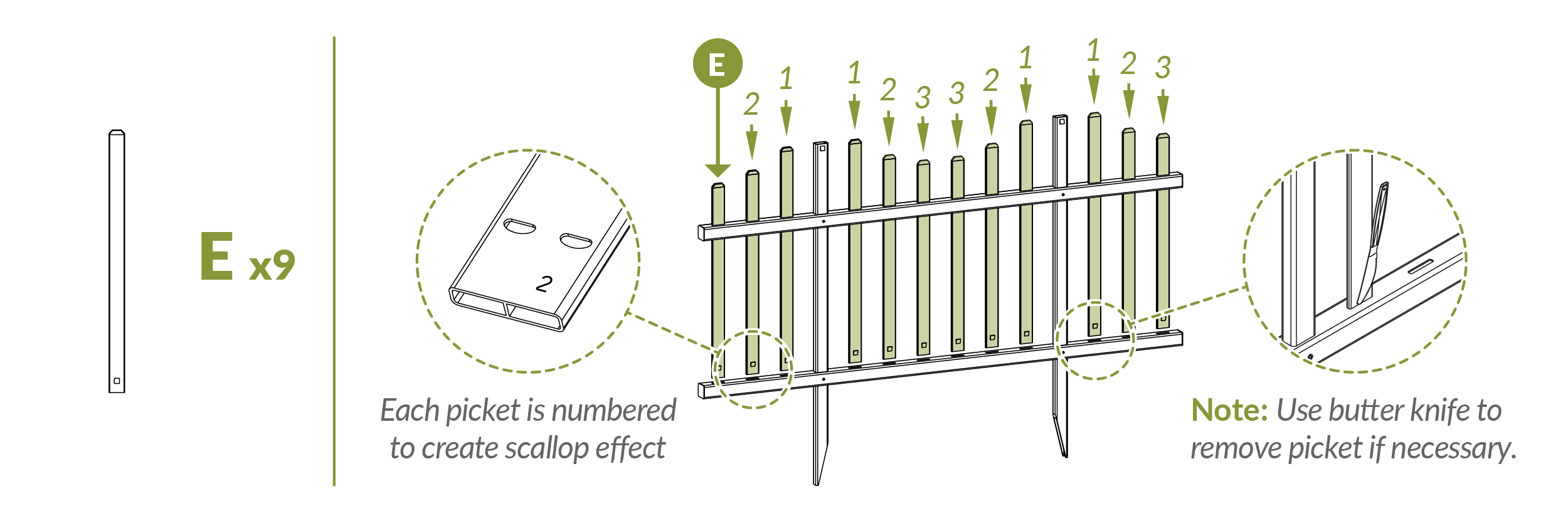

• Pickets are identified 1, 2, and 3 to create a scallop as shown. Slide each down through the top rail and into the bottom rail.

• Pickets lock into bottom rail when installed. To remove a picket, gently insert a butter knife into the bottom rail as shown, and slowly pull up the picket.

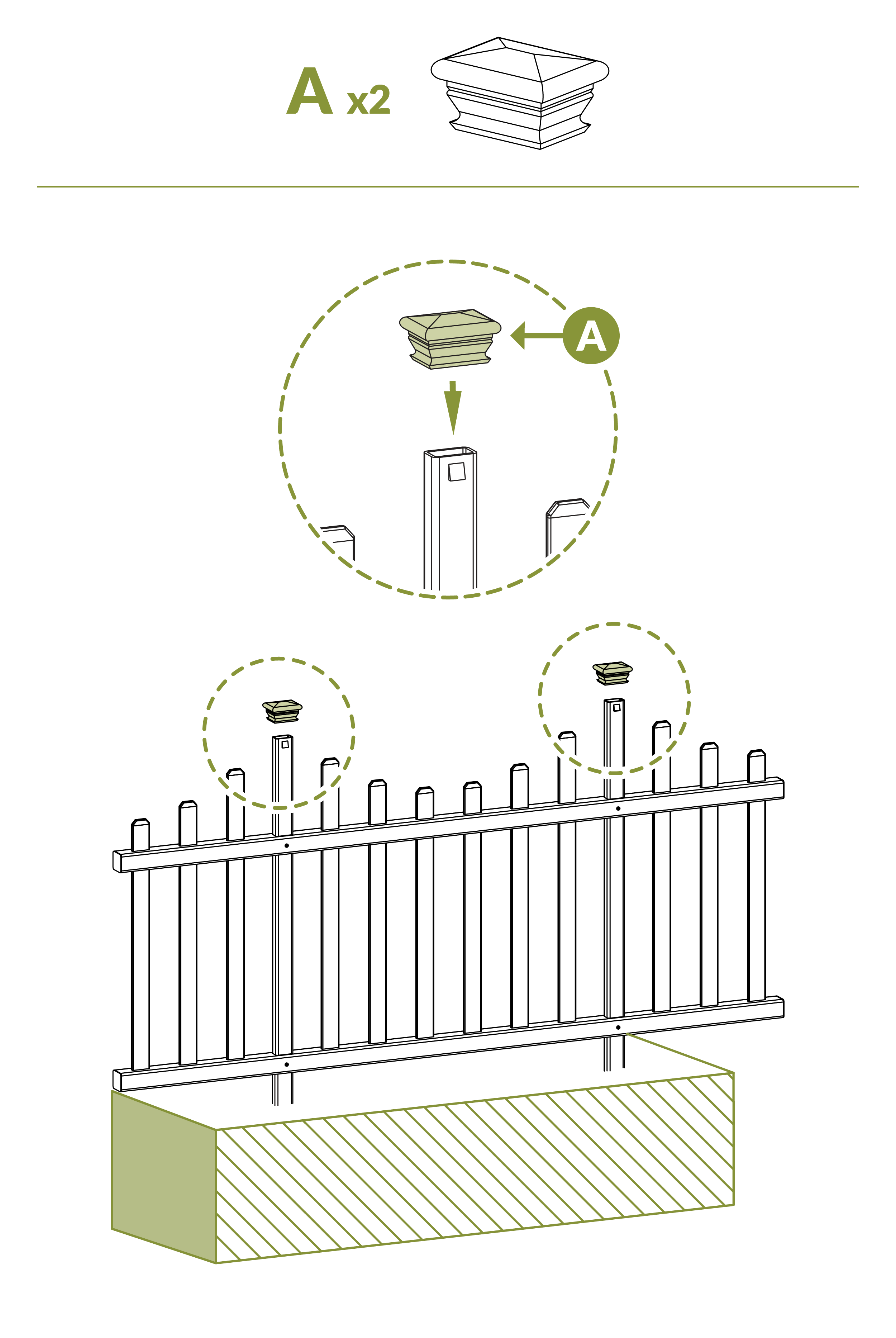

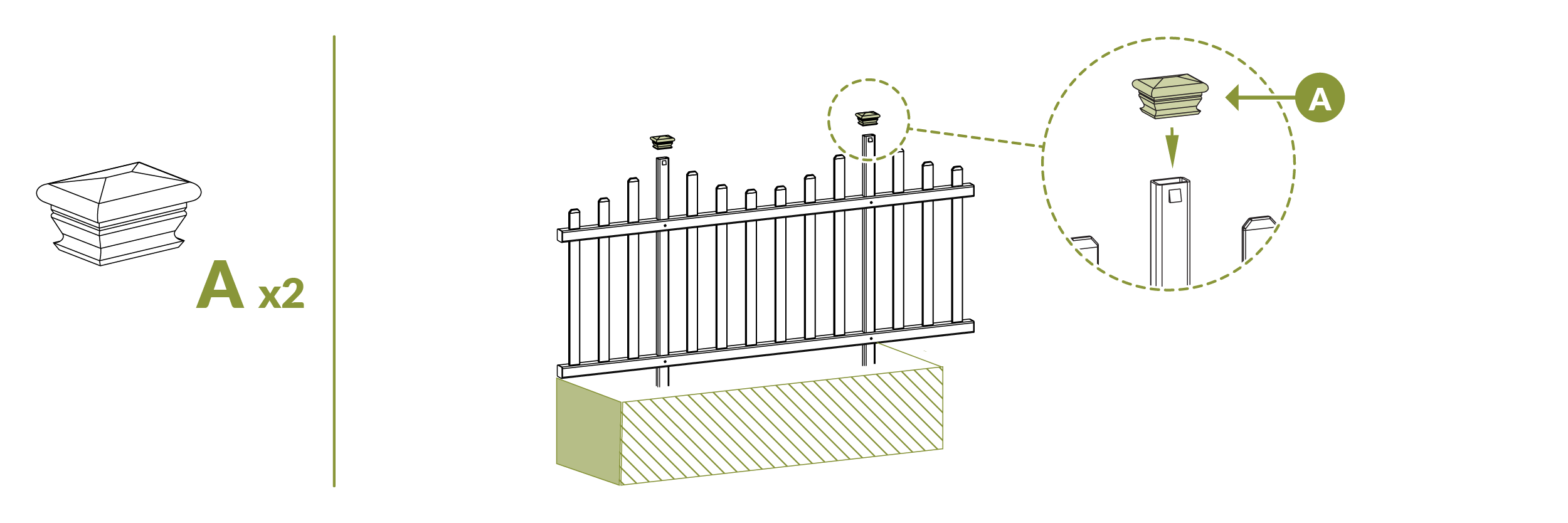

• Note: Do not install post caps (part A) until fence is fully installed, as this impedes next installation steps.

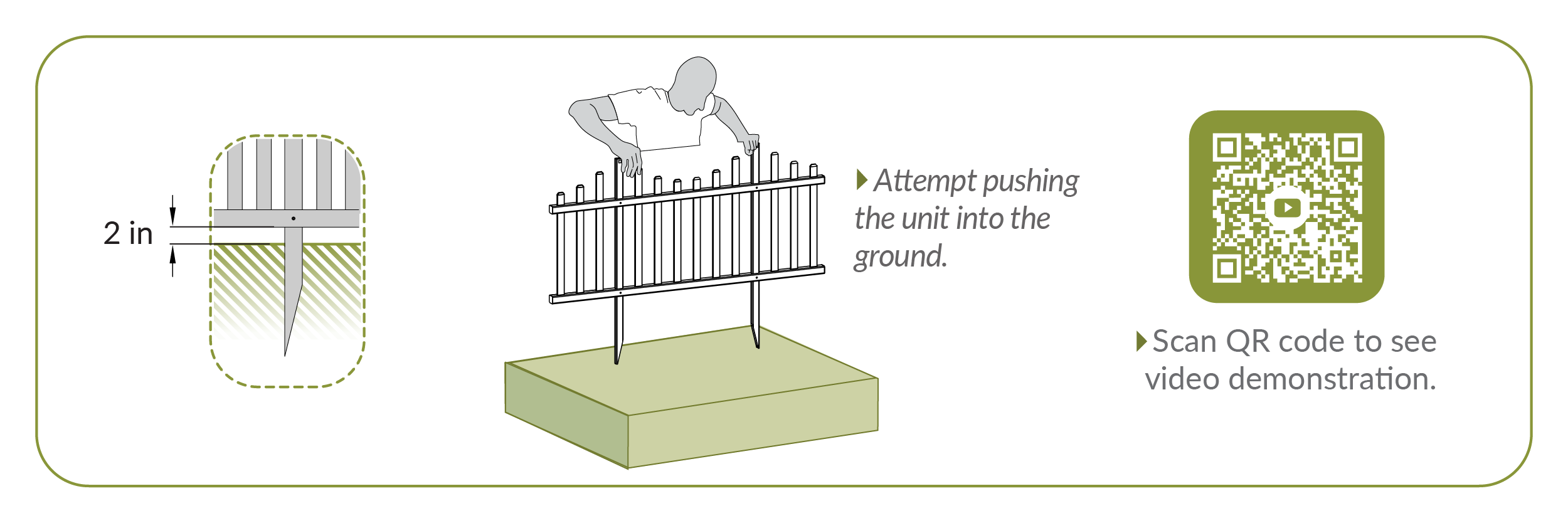

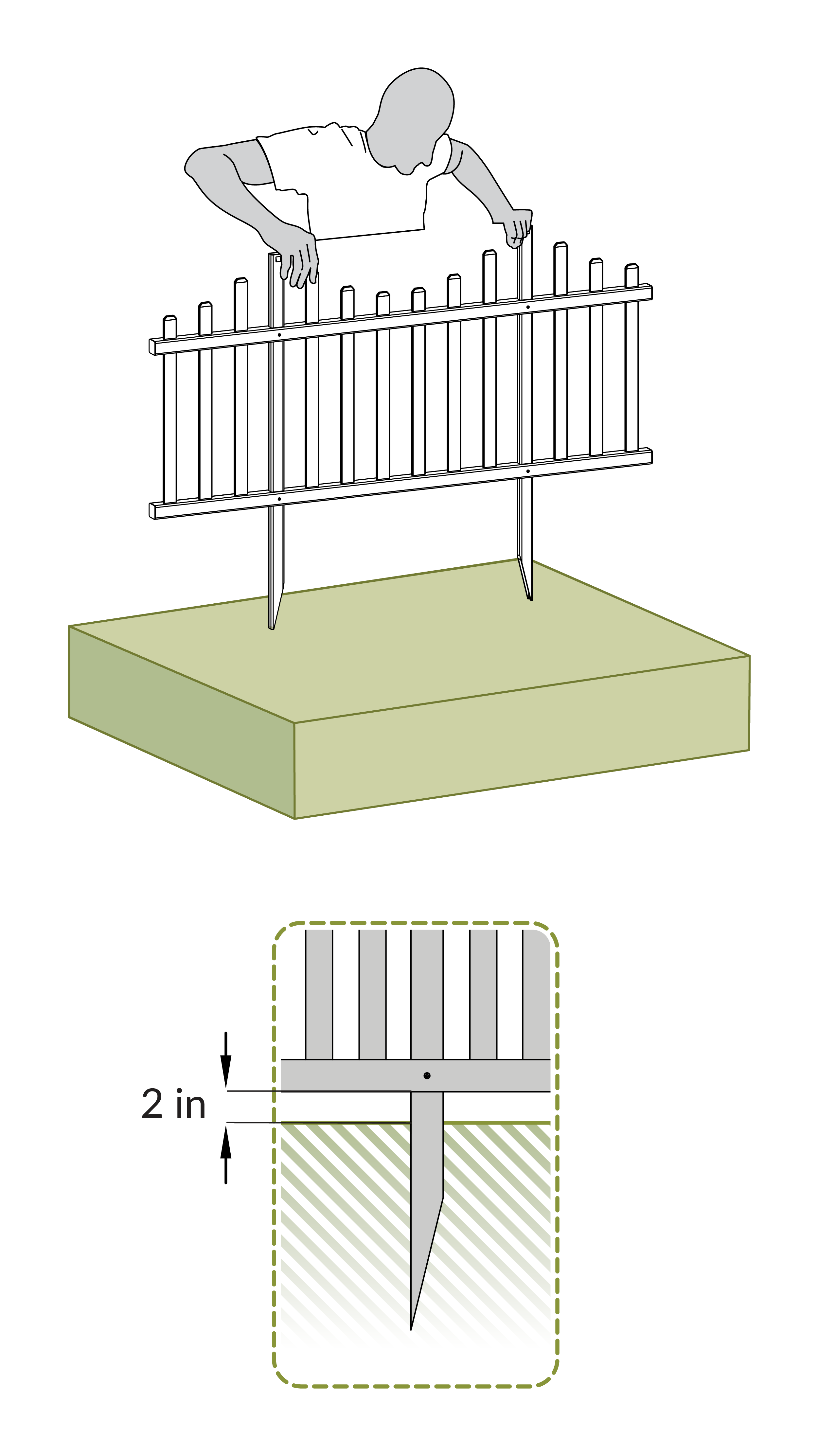

• Attempt pushing the unit into the ground.

• Click here for a Video Demonstration.

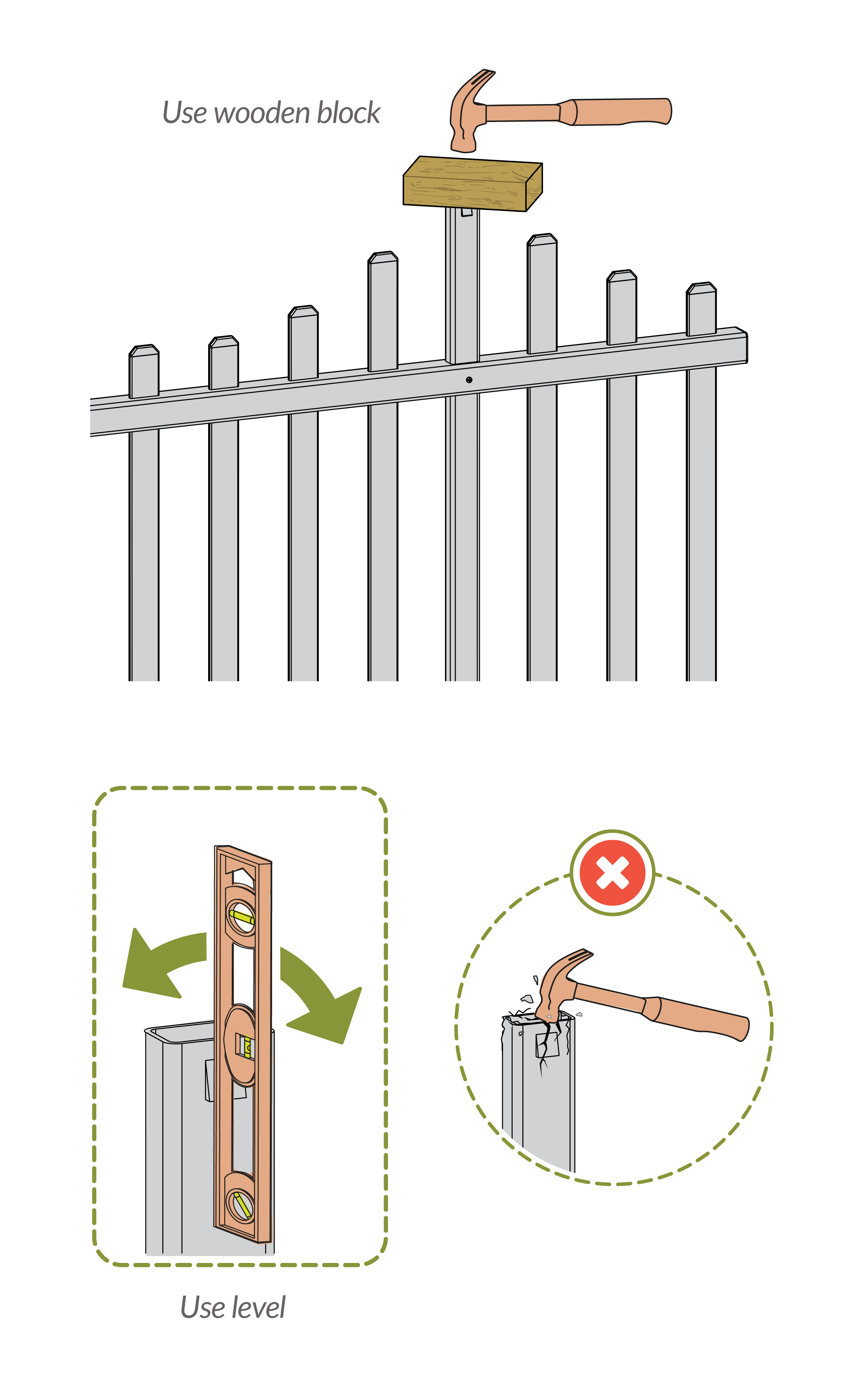

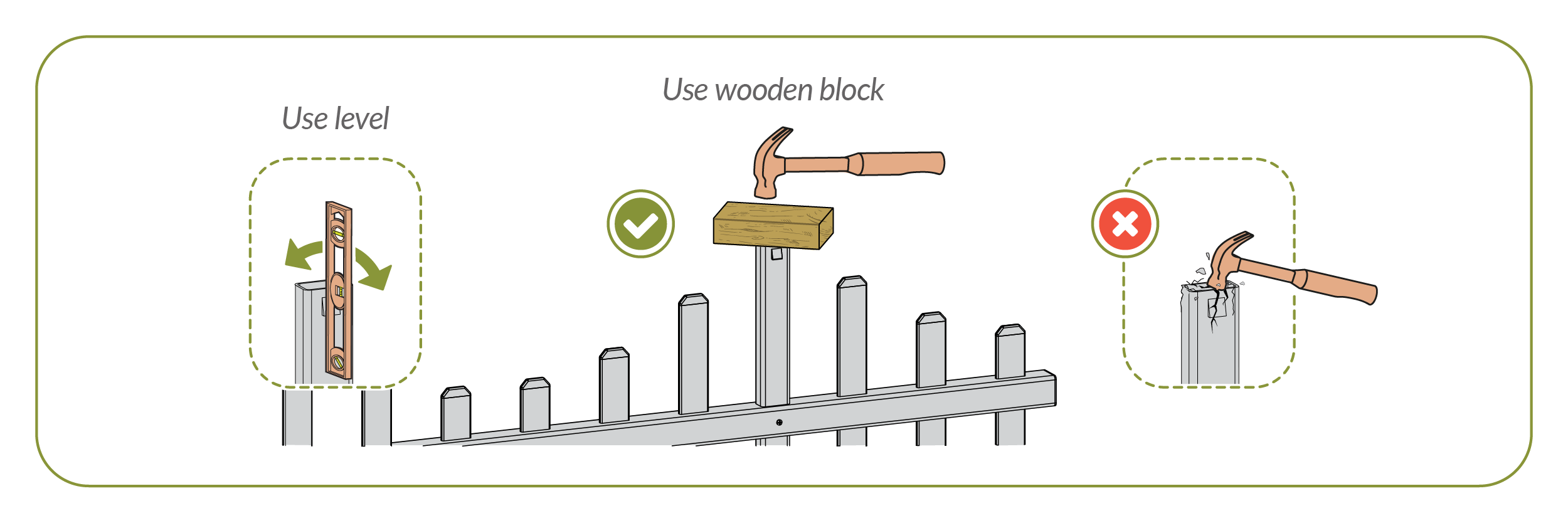

• Tap posts using wood block for protection.

• Check straightness with level.

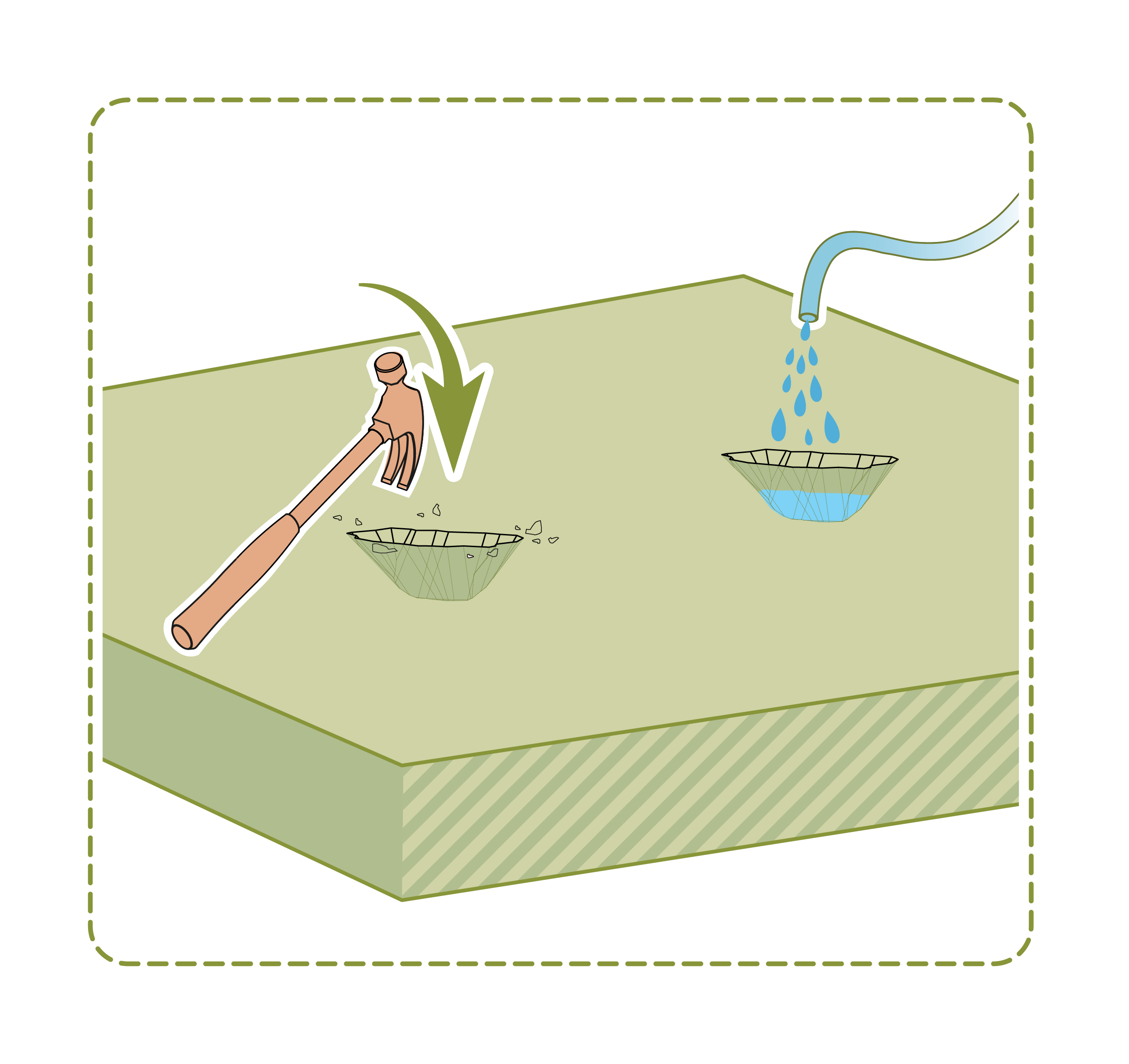

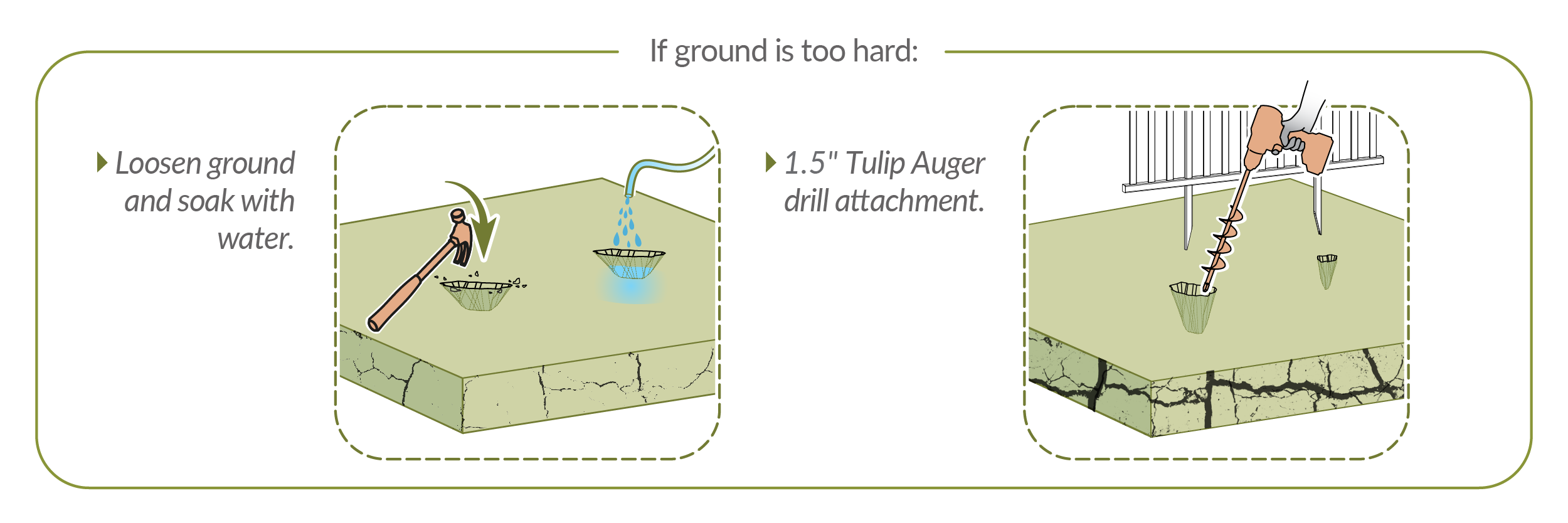

• Loosen ground and soak with water.

• Loosen ground with tulip auger.

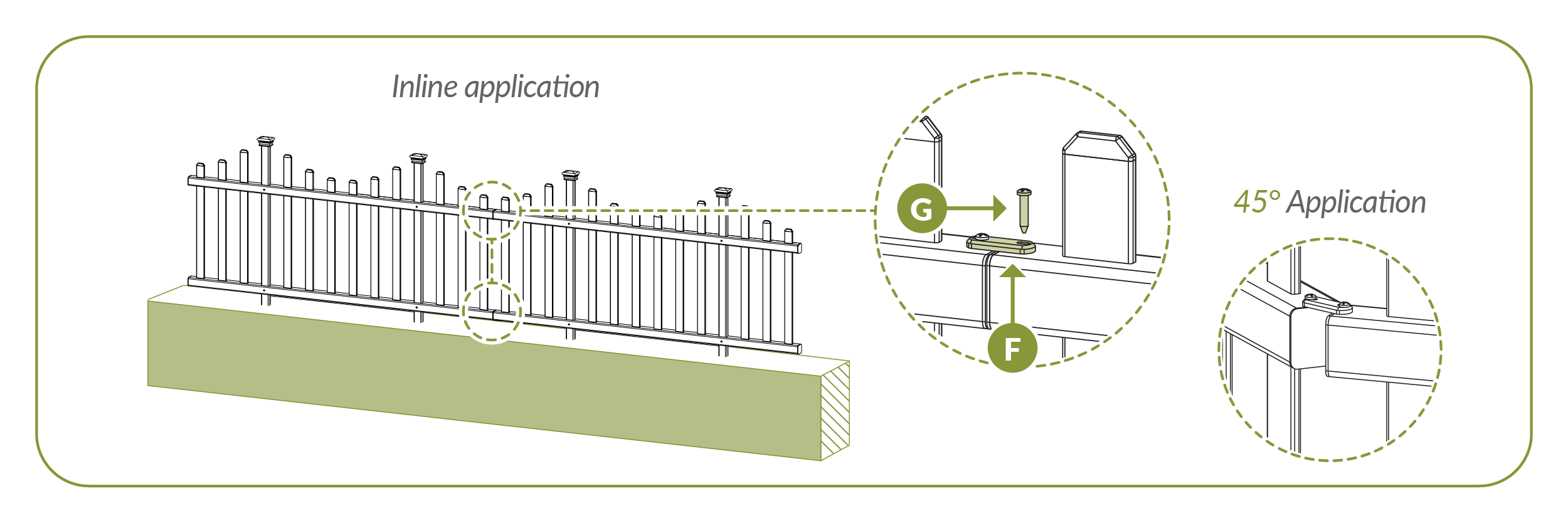

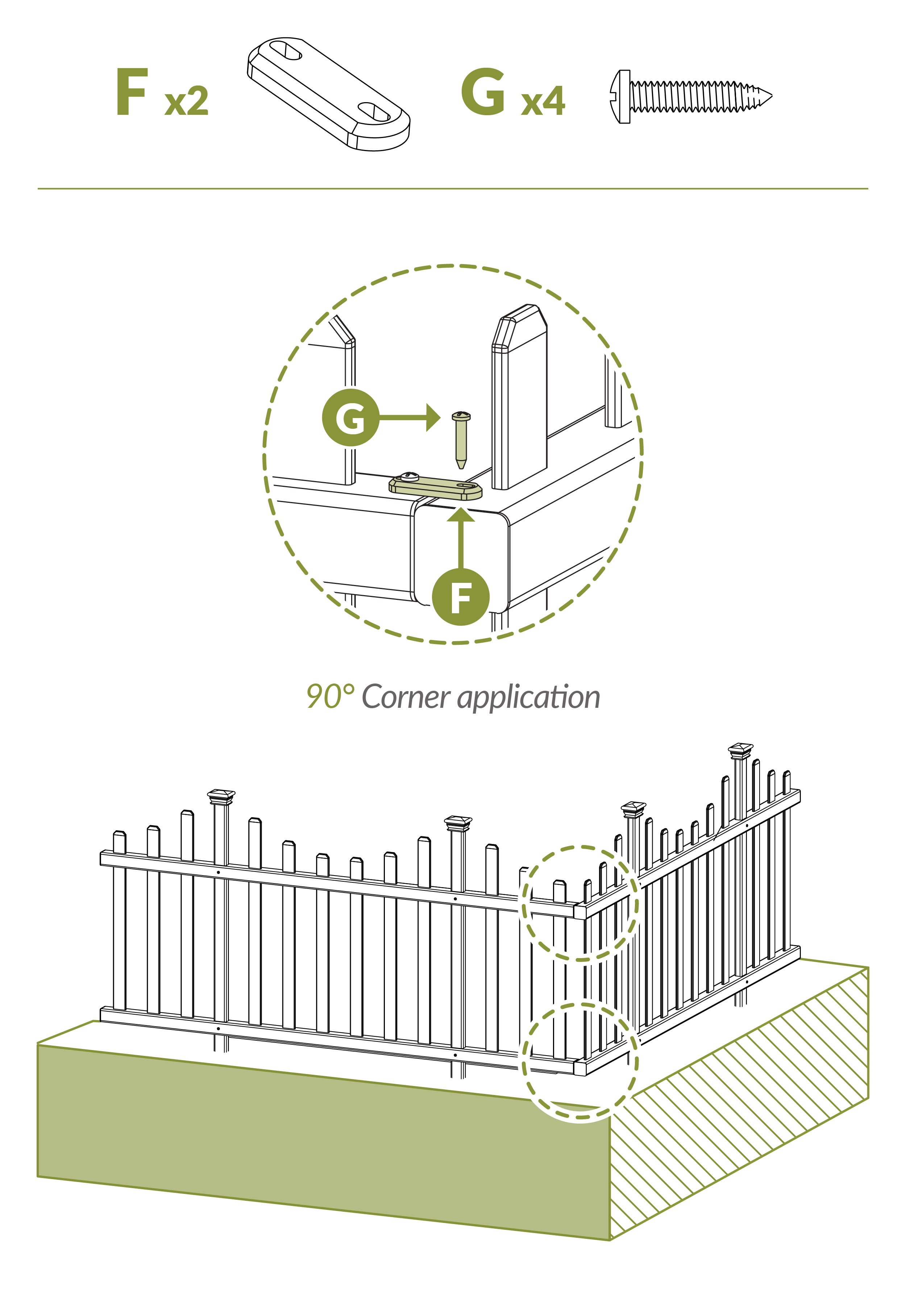

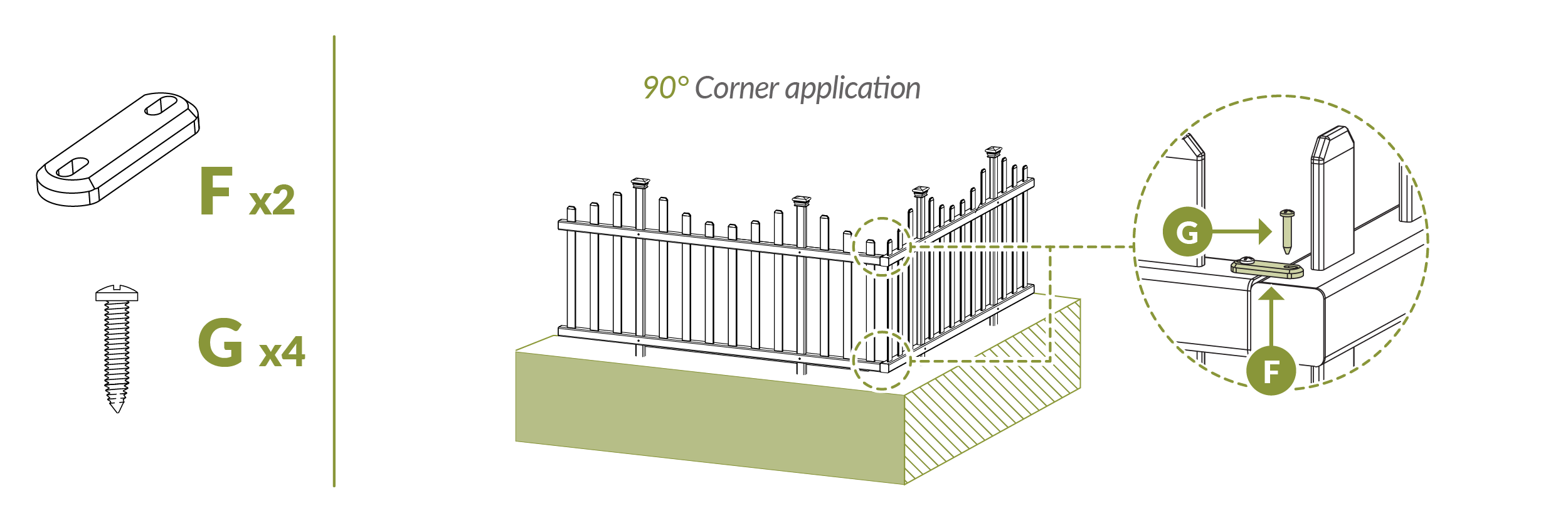

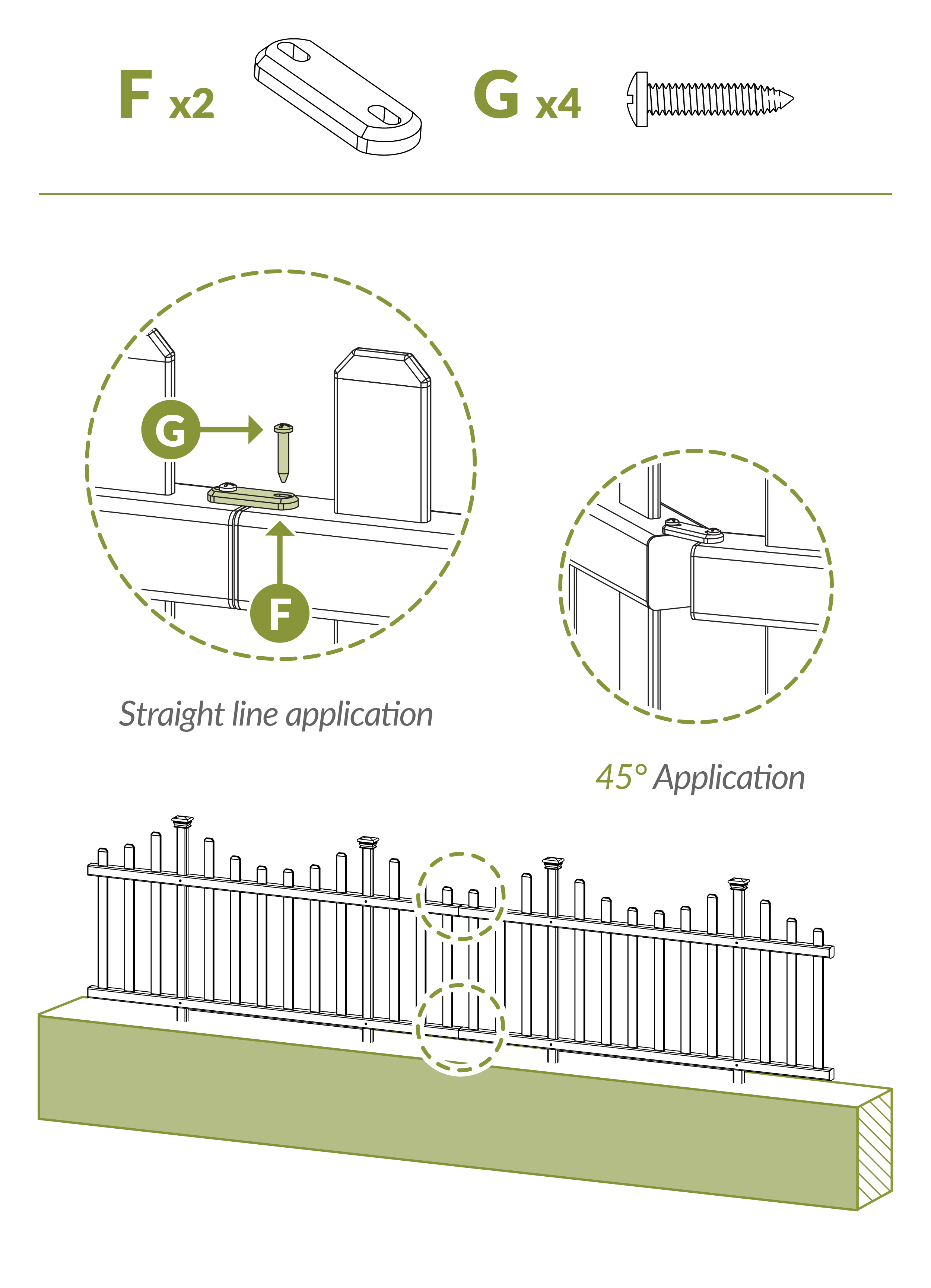

• Note: There are no pre-drilled holes for the joiner clips. This allows for installation at any angle.
