General Information

Important Safety Notes:

• Check the inside of larger components for additional materials packed inside
• Assemble components on a non-abrasive surface to avoid scratching
• Allow approximately 5 ft × 8 ft of unobstructed space for assembly
• Do not use excessive force during assembly

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19009
• Provide the specific part name
• Include the batch lot number found on the end of the box

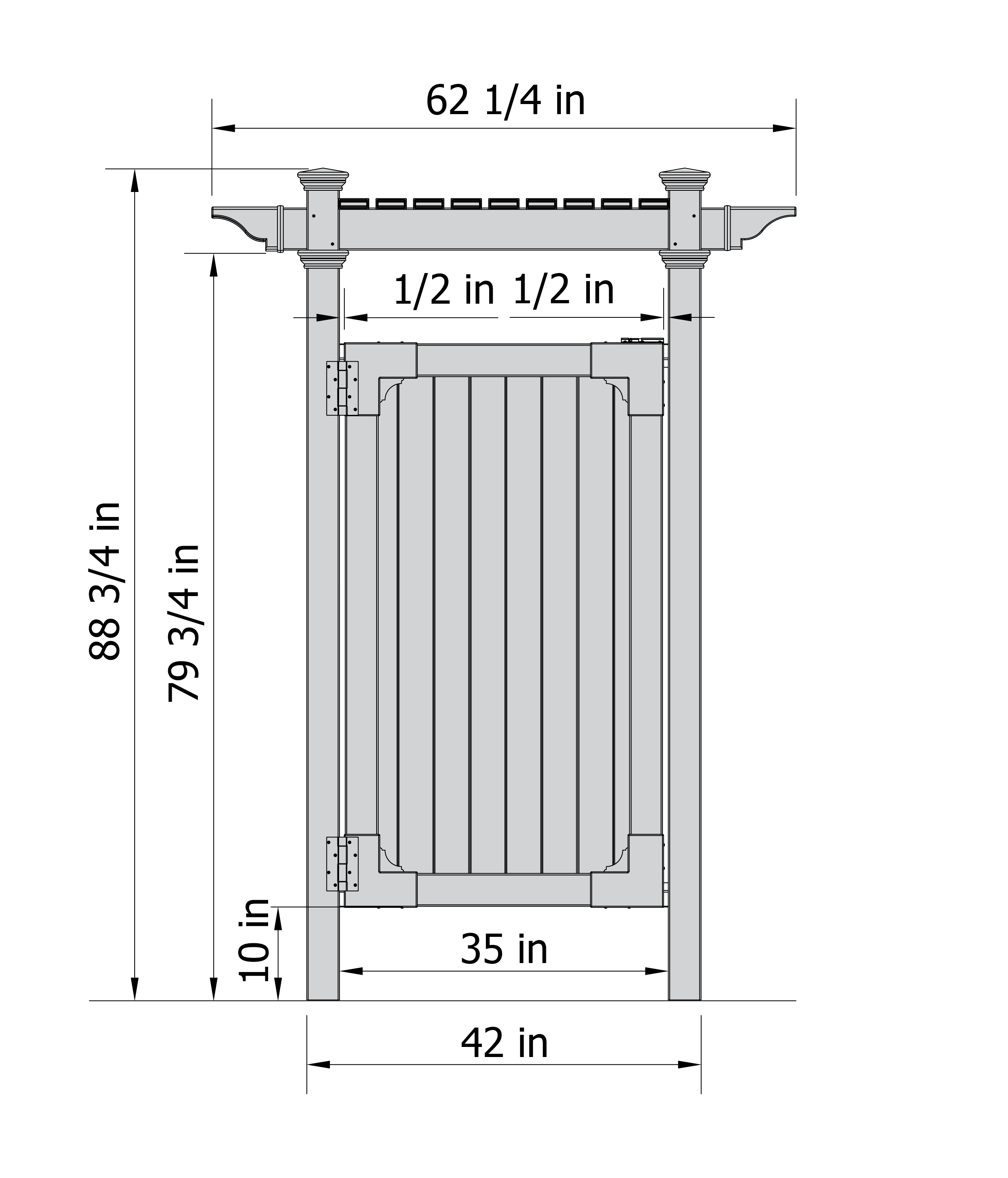

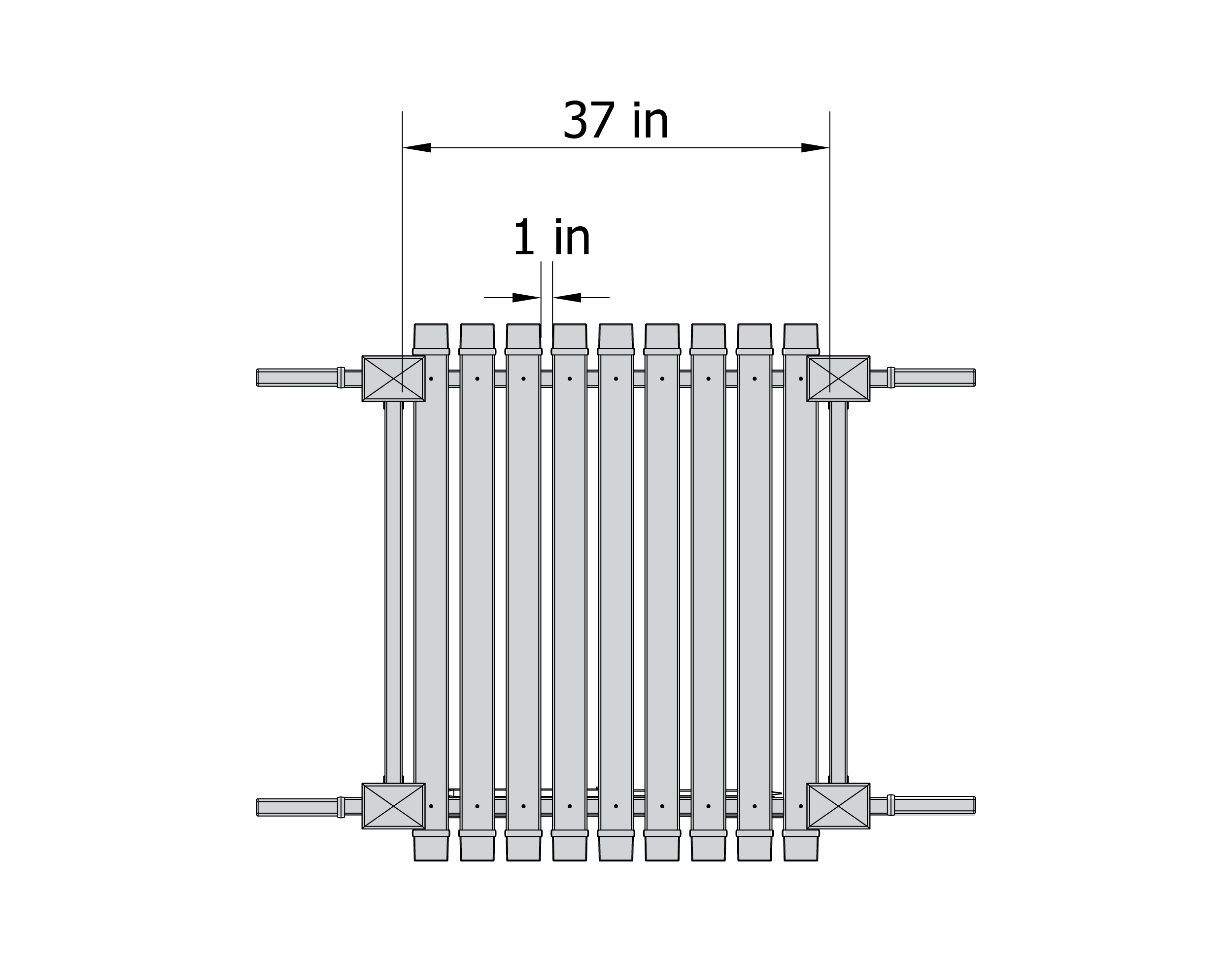

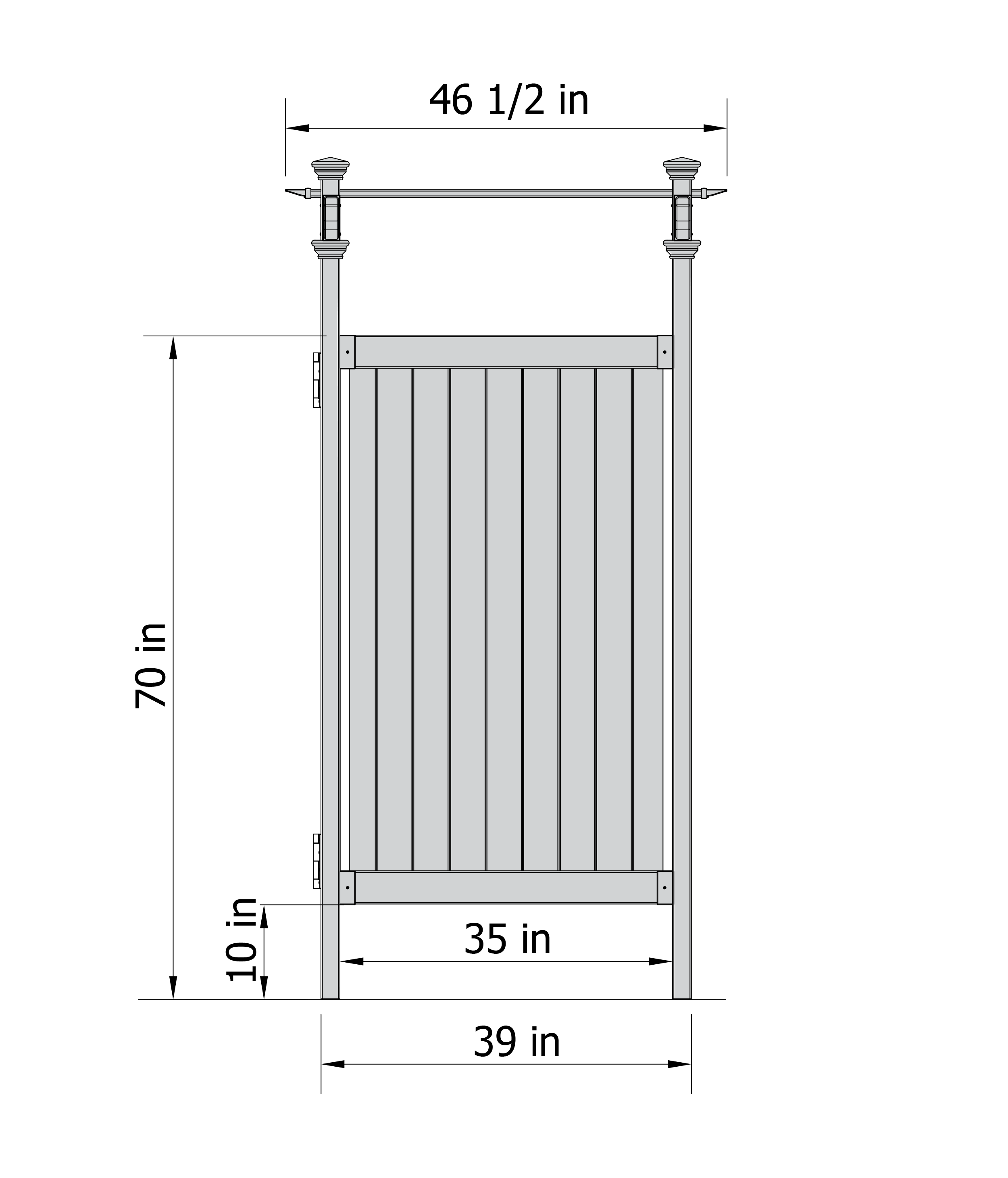

Detailed Dimensions & Specifications

Product Specifications:

• Overall size: 62¼ in W × 47 in L × 88¾ in H
• Interior width: 35 in
• Post height: 79¾ in

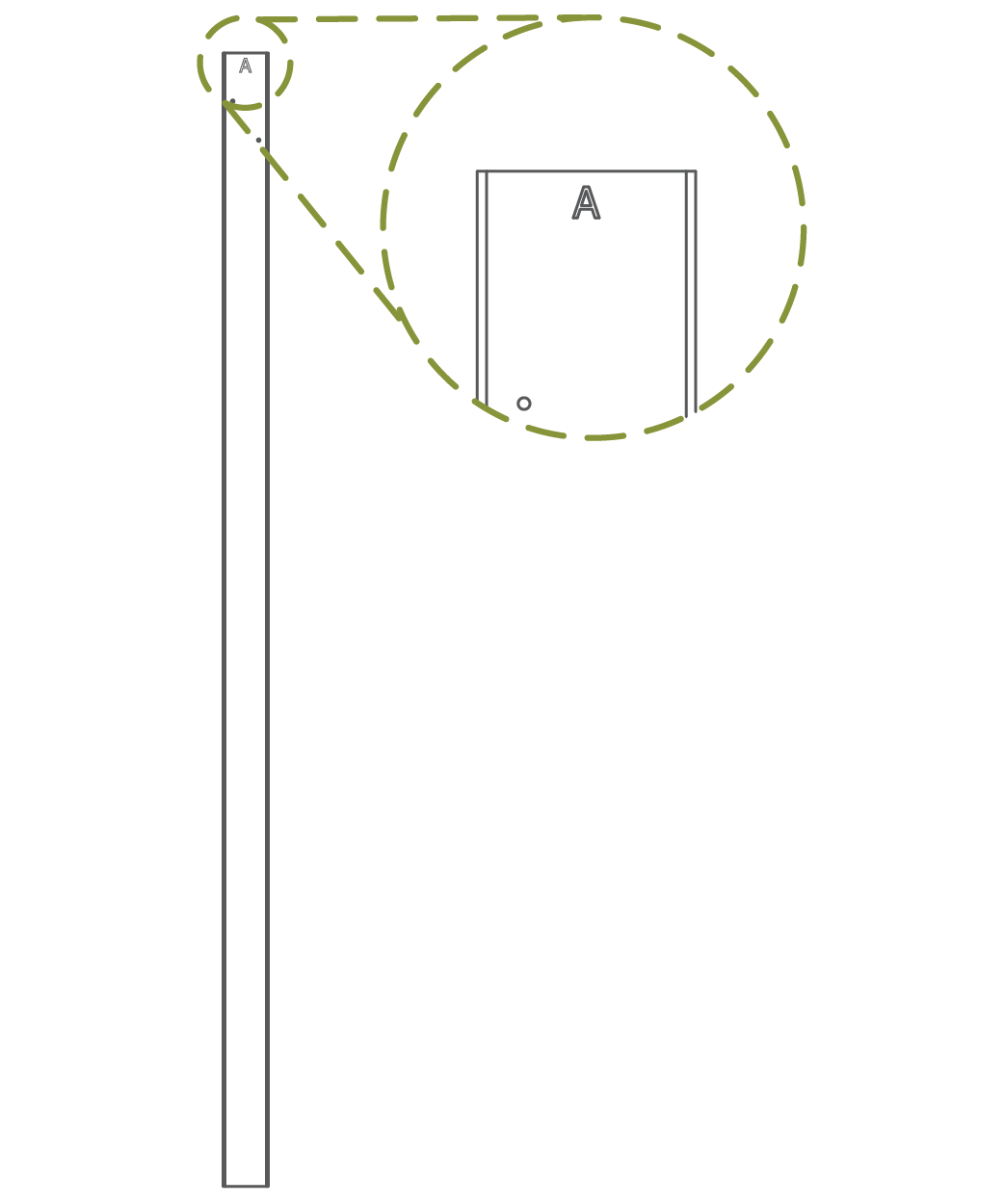

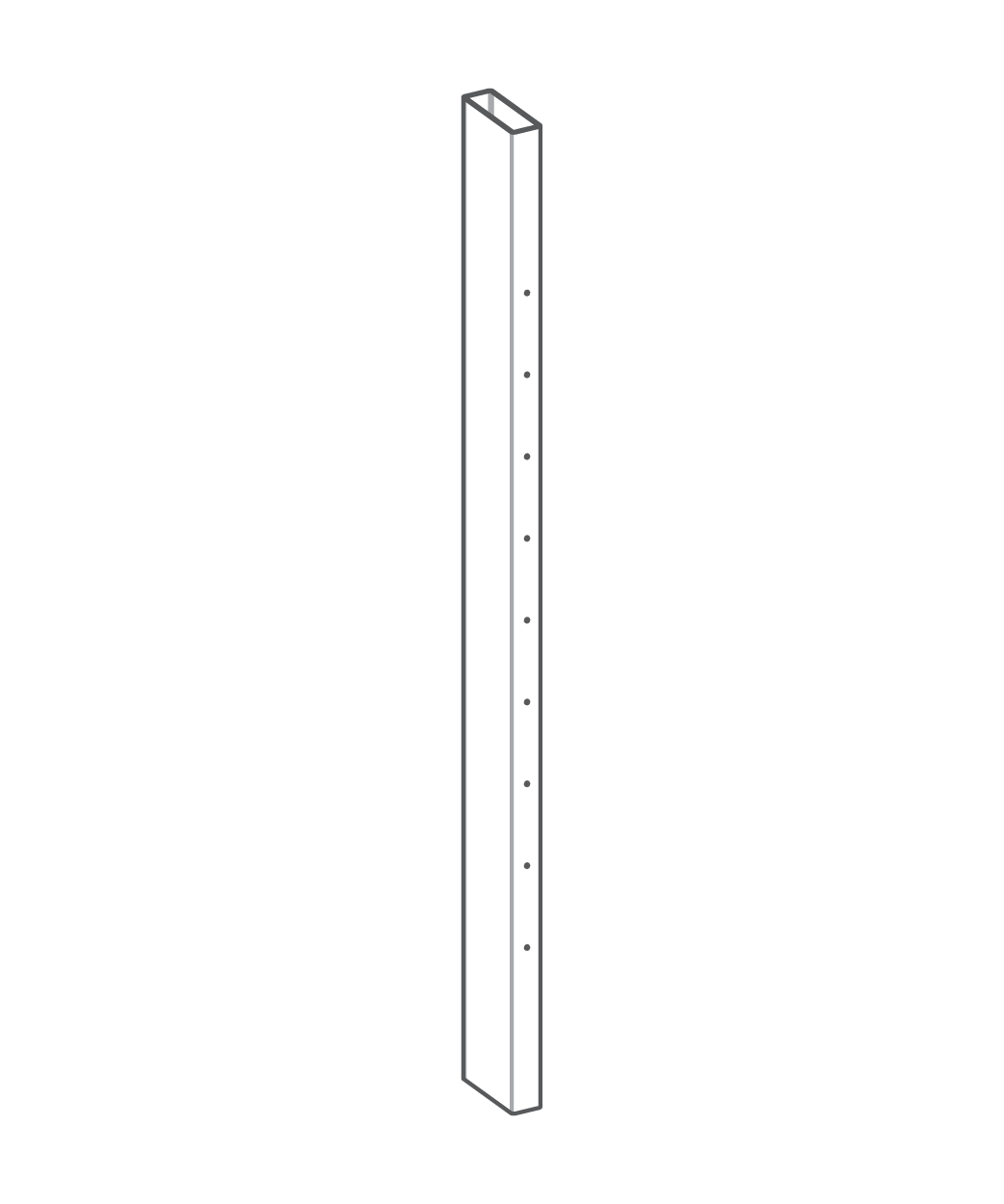

A — Post A (1)

2 in × 3½ in × 87⅜ in

B — Post B (1)

2 in × 3½ in × 87⅜ in

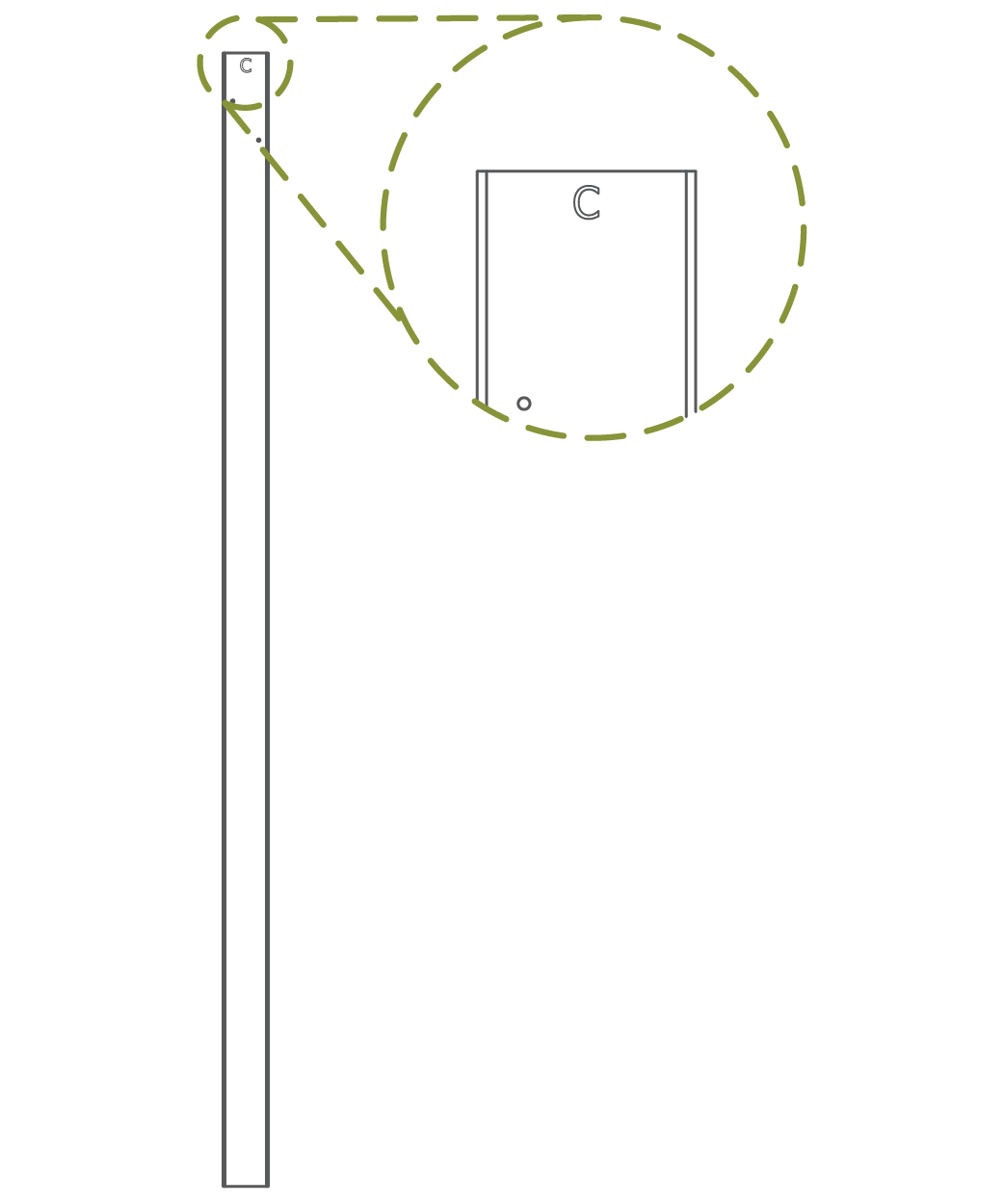

C — Post C (1)

2 in × 3½ in × 87⅜ in

D — Post D (1)

2 in × 3½ in × 87⅜ in

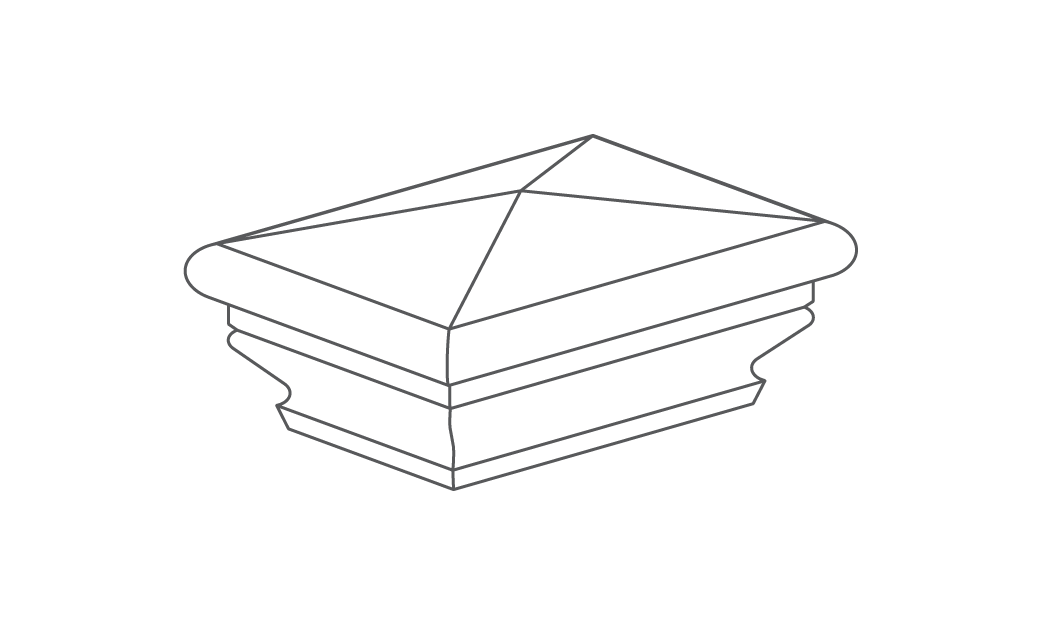

E — Post Cap (4)

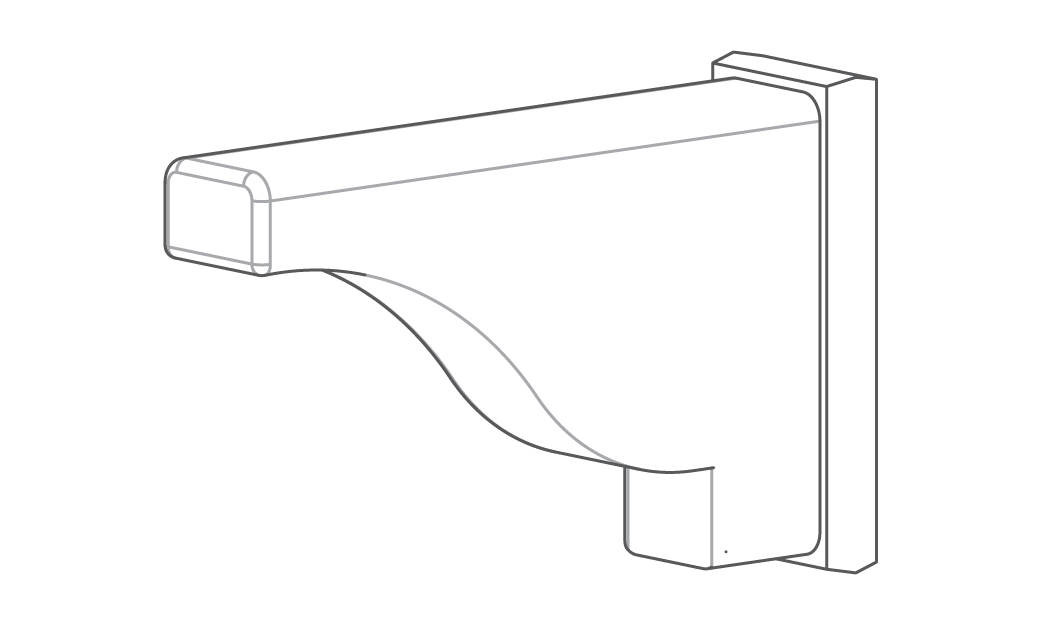

F — Decorative End Cap (4)

G — Post Trim Cap (4)

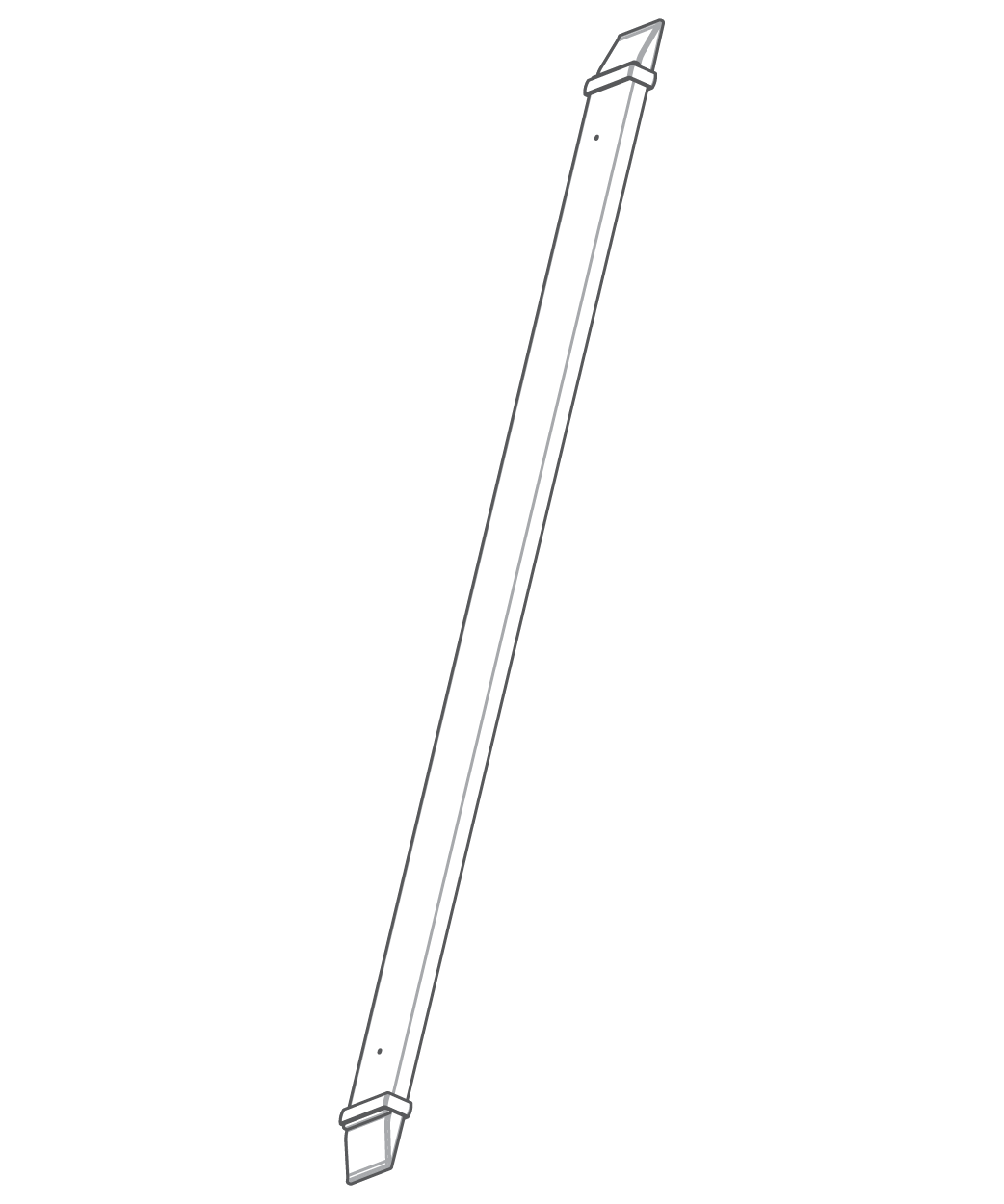

H — Shade Slat (9)

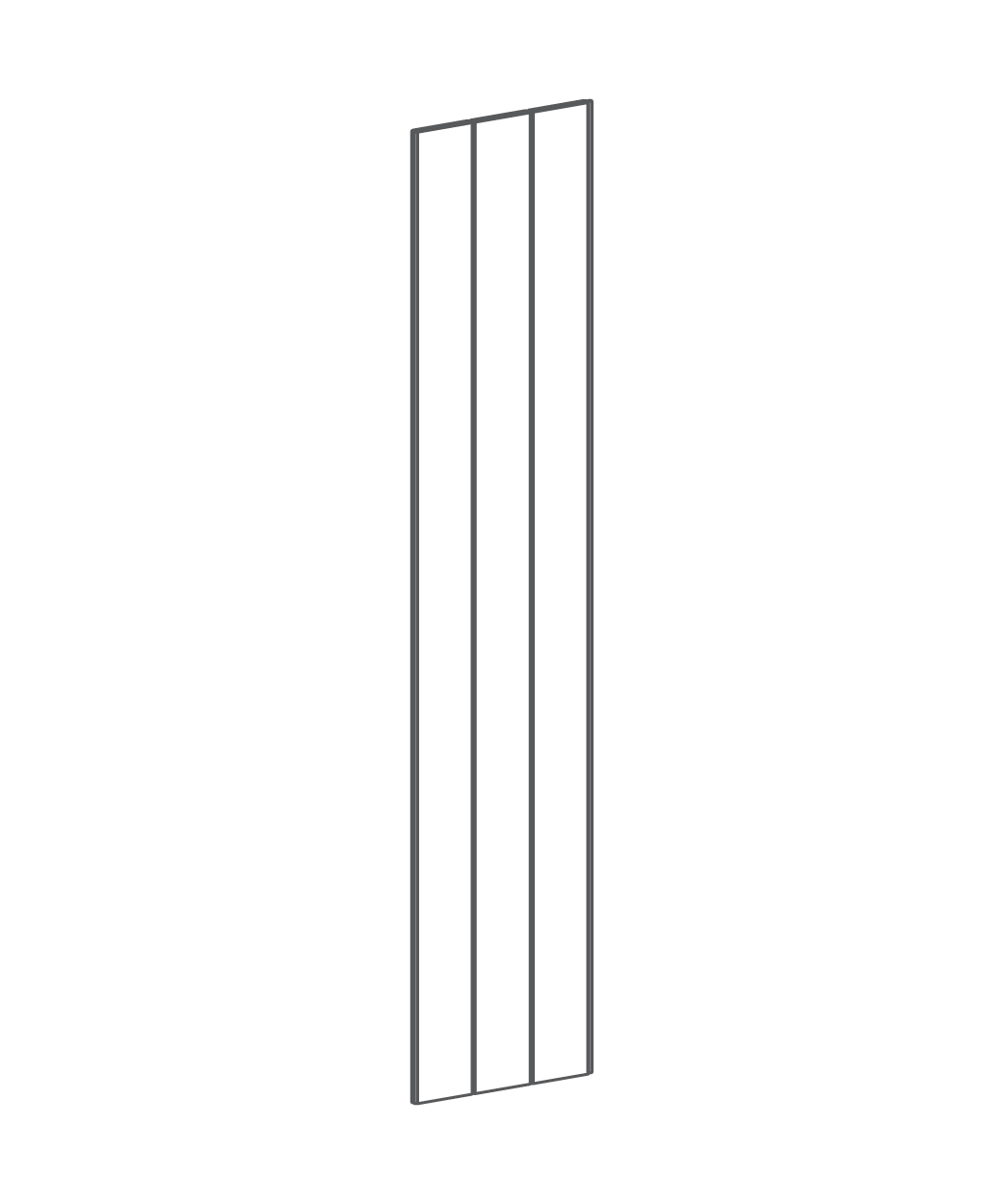

I — Privacy Board (11)

½ in × 12 in × 56⅜ in

J — Beam (2)

1½ in × 4½ in × 48 in

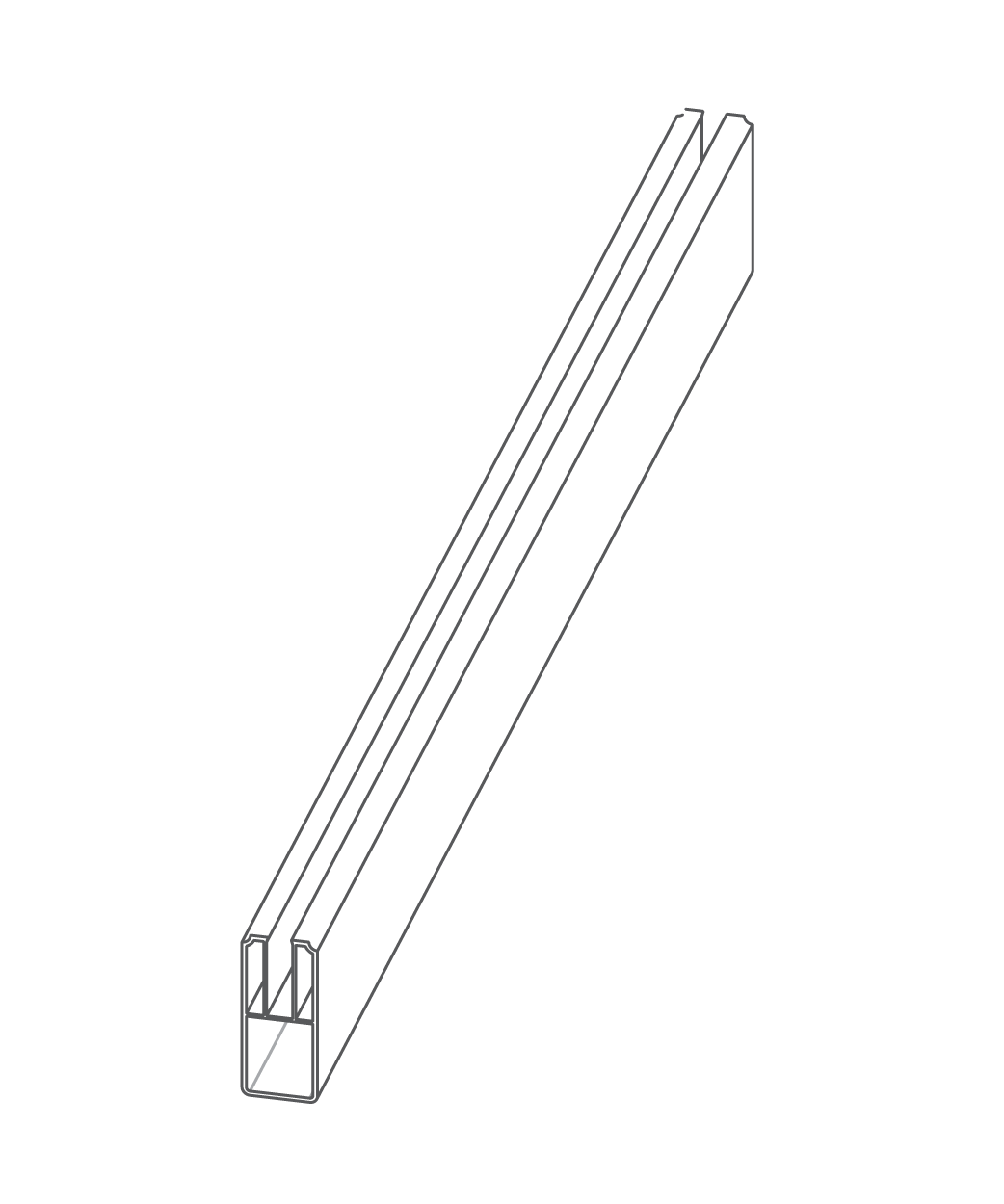

K — Horizontal Rail (6)

1½ in × 3½ in × 34⅞ in

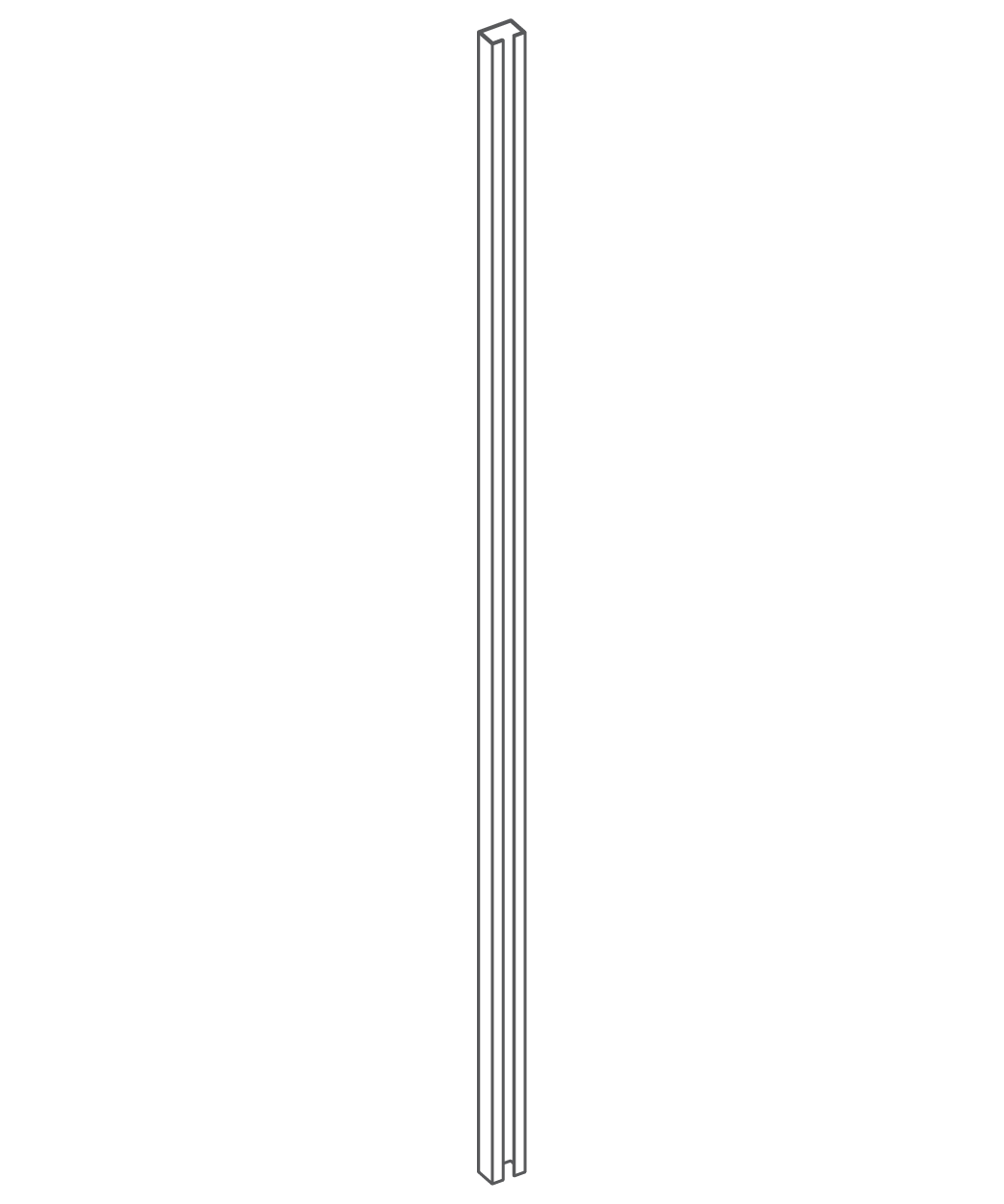

L — U-Channel (6)

⅞ in × 1½ in × 53 in

M — Rail Bracket (12)

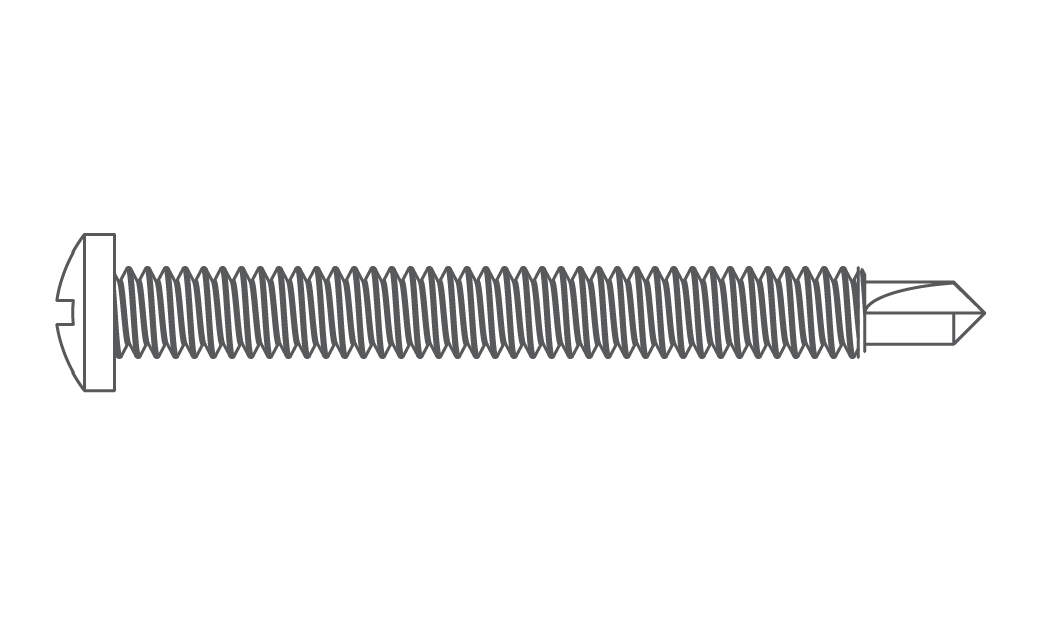

N — 1¼ in White Self-Drilling Stainless Steel Screw (93)

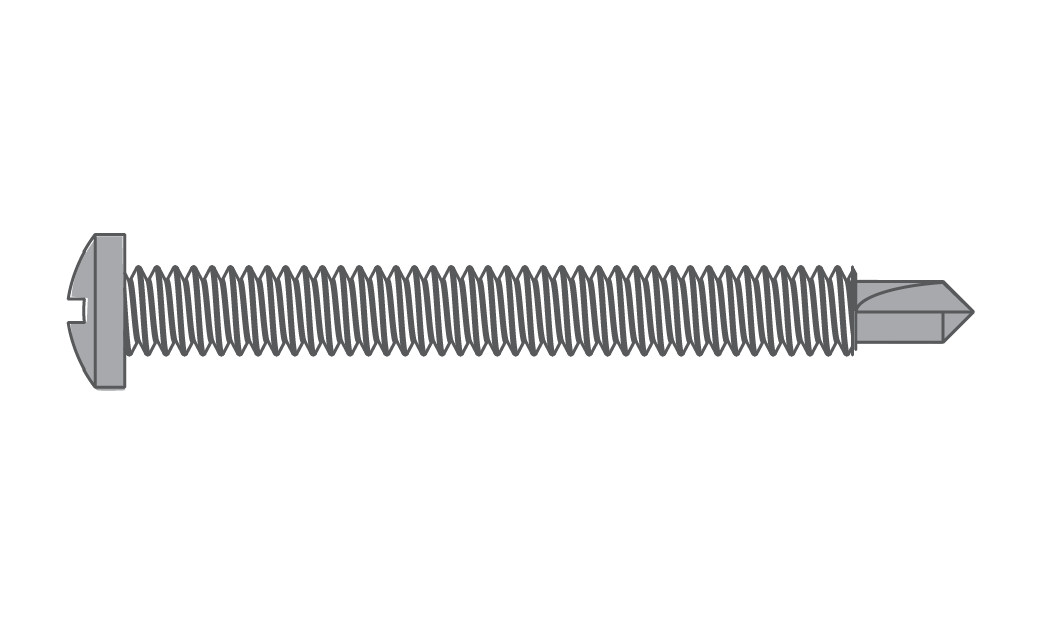

O — 1¼ in Black Self-Drilling Stainless Steel Screw (36)

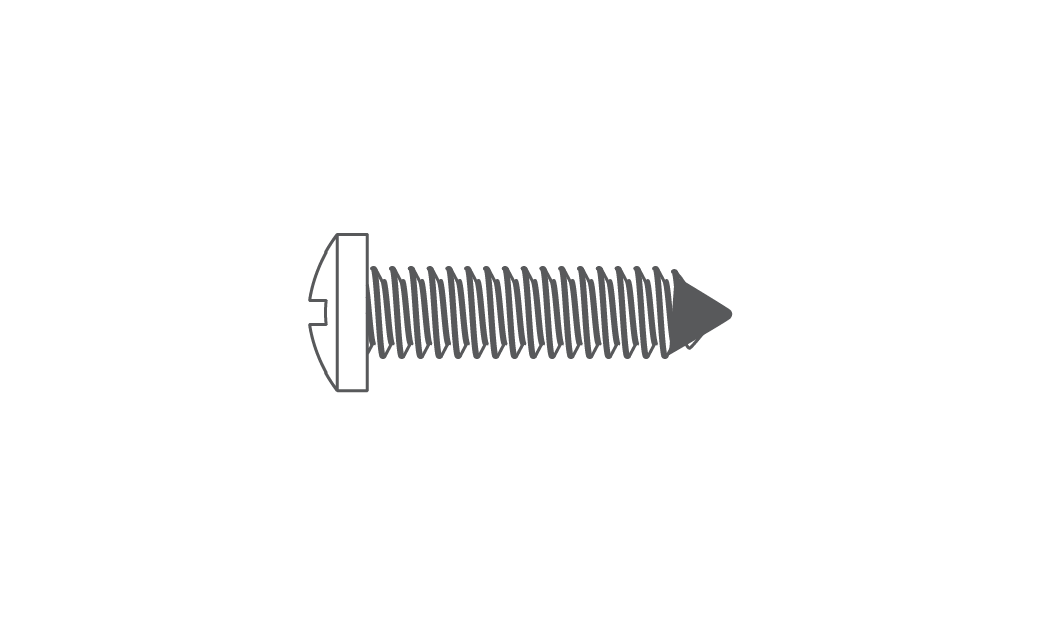

P — ¾ in Self-Tapping Stainless Steel Screw (80)

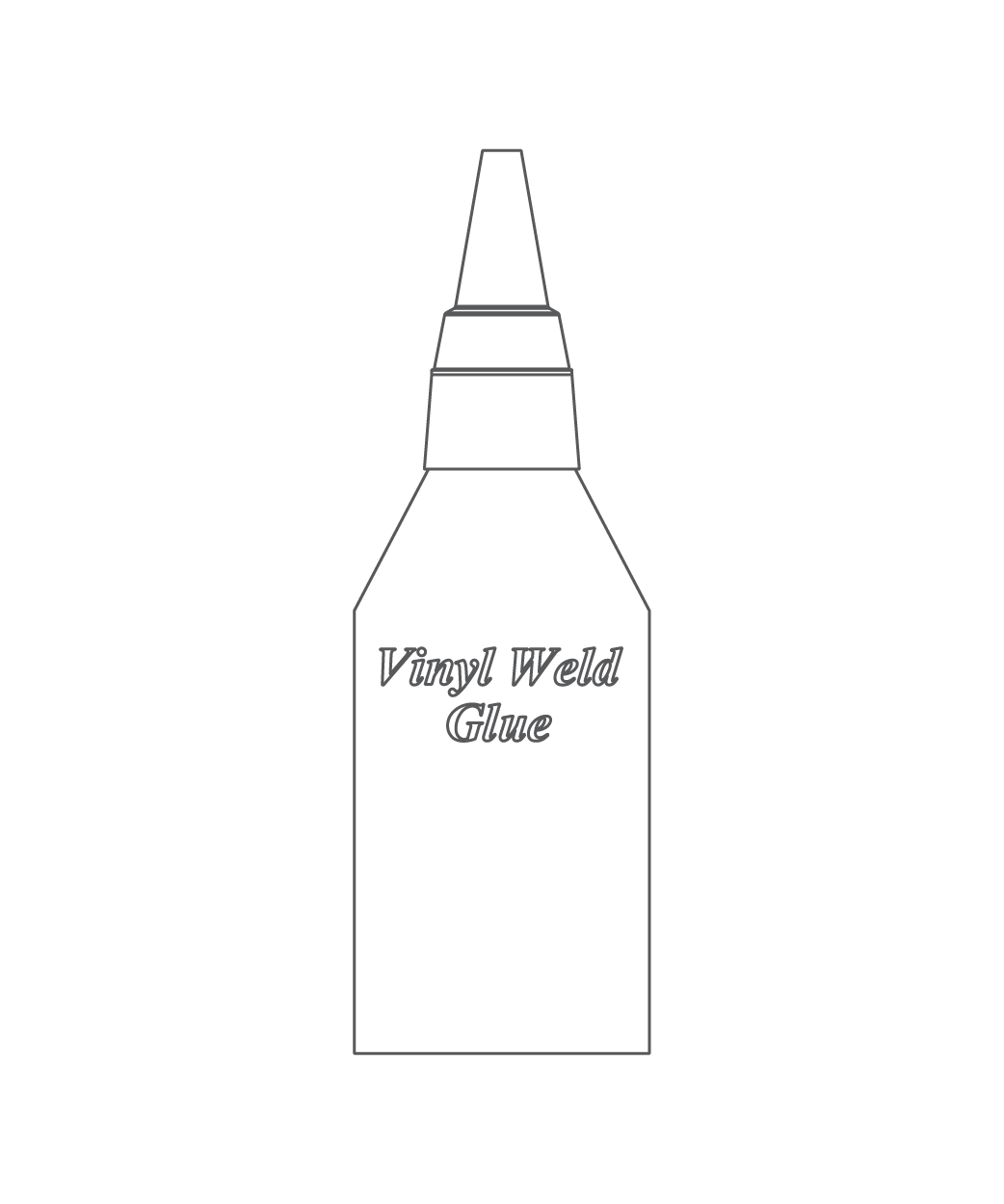

Q — Vinyl Weld Glue

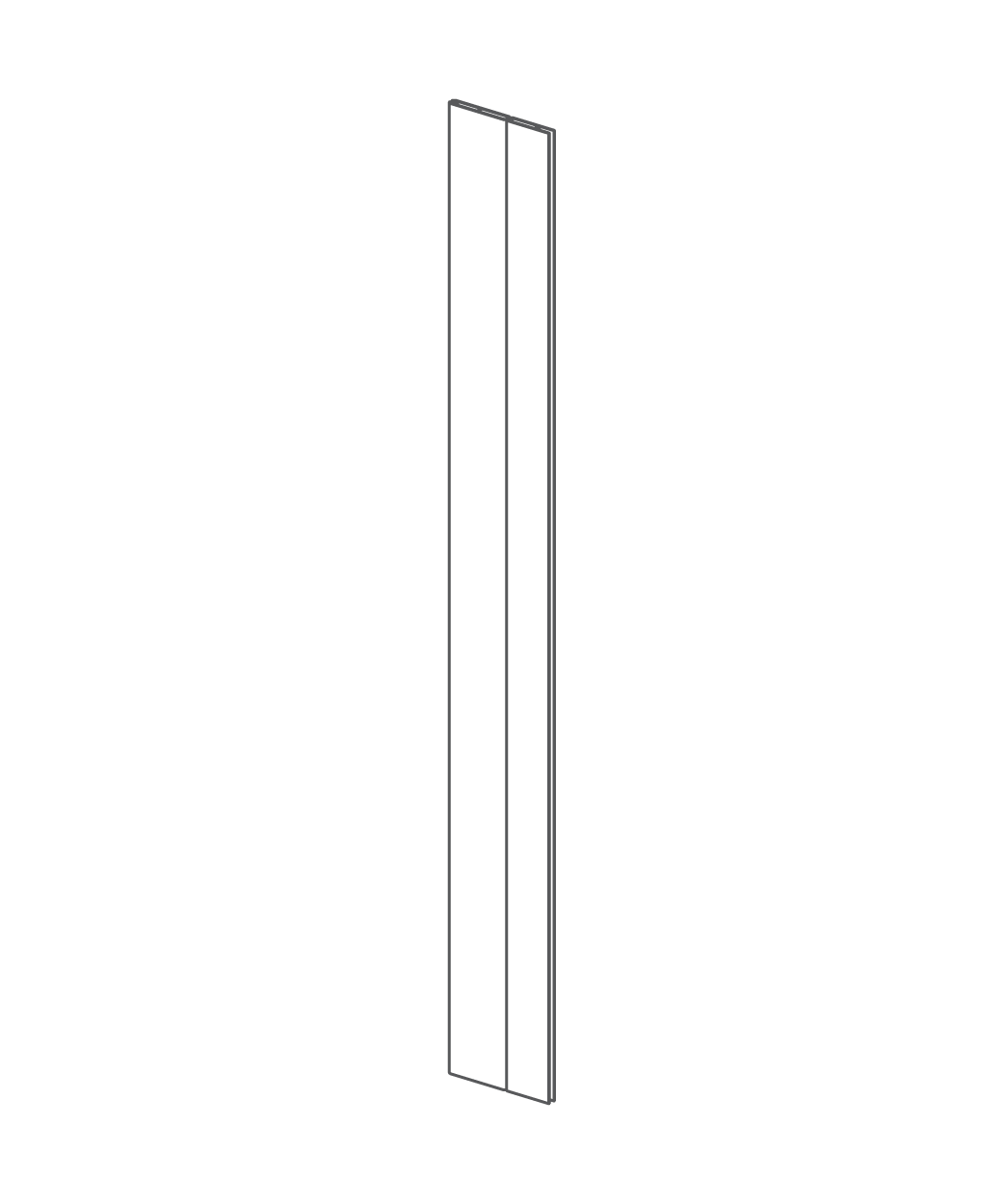

R — Privacy Board – Narrow (1)

½ in × 6¾ in × 56⅜ in

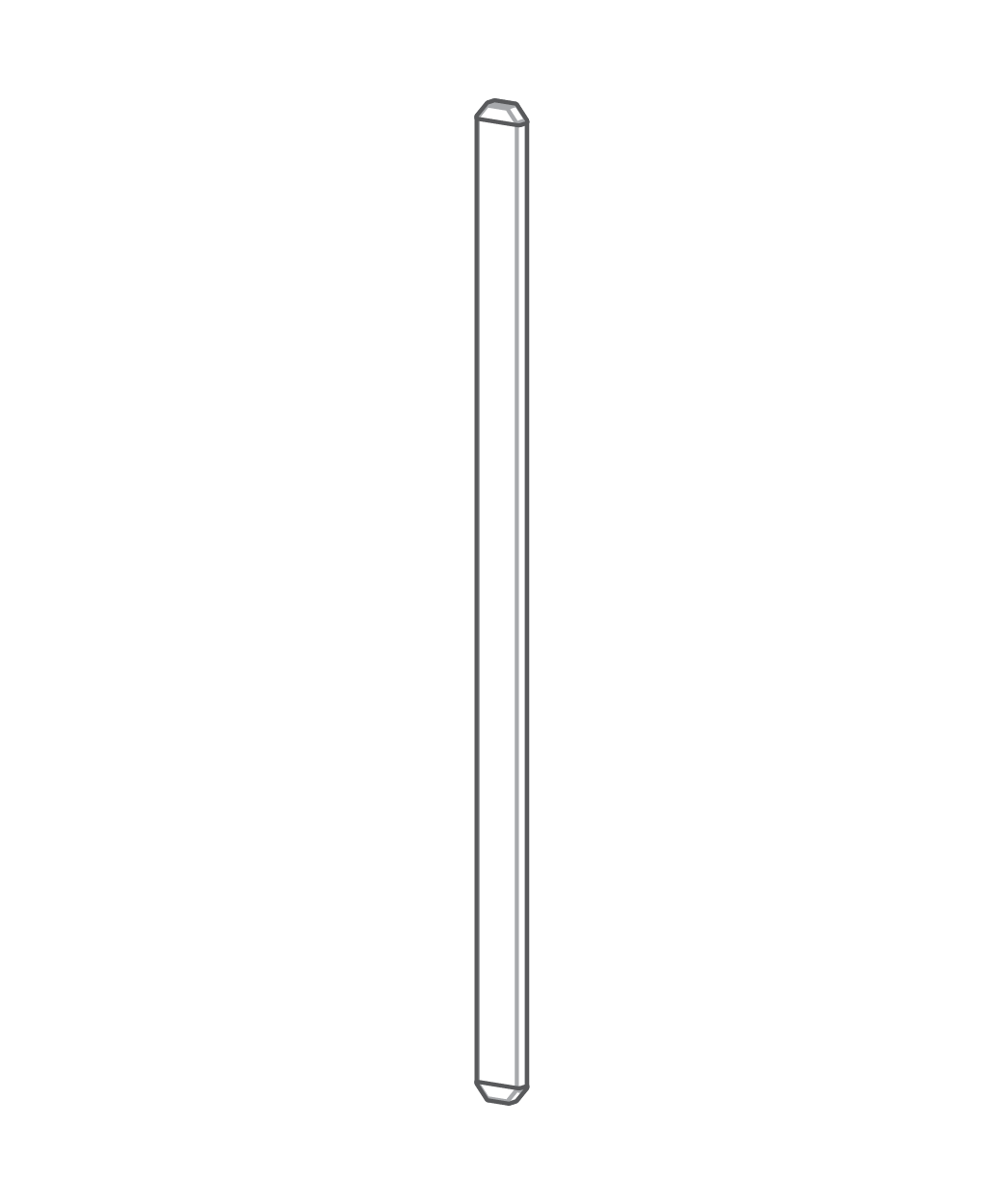

S — Privacy Strip (2)

⅞ in × 3 in × 57 in

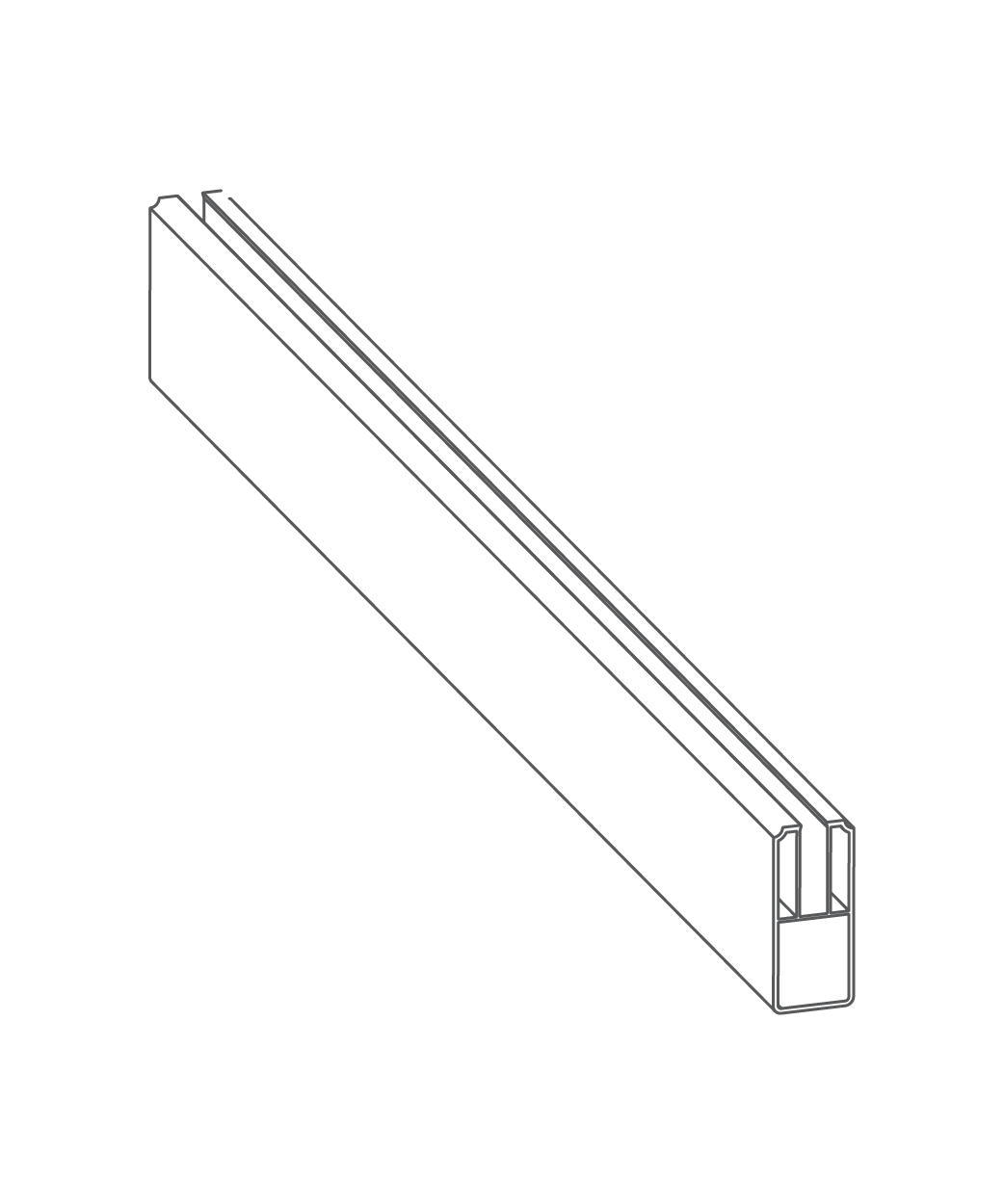

T — Door Horizontal Rail (2)

1½ in × 3½ in × 33⅝ in

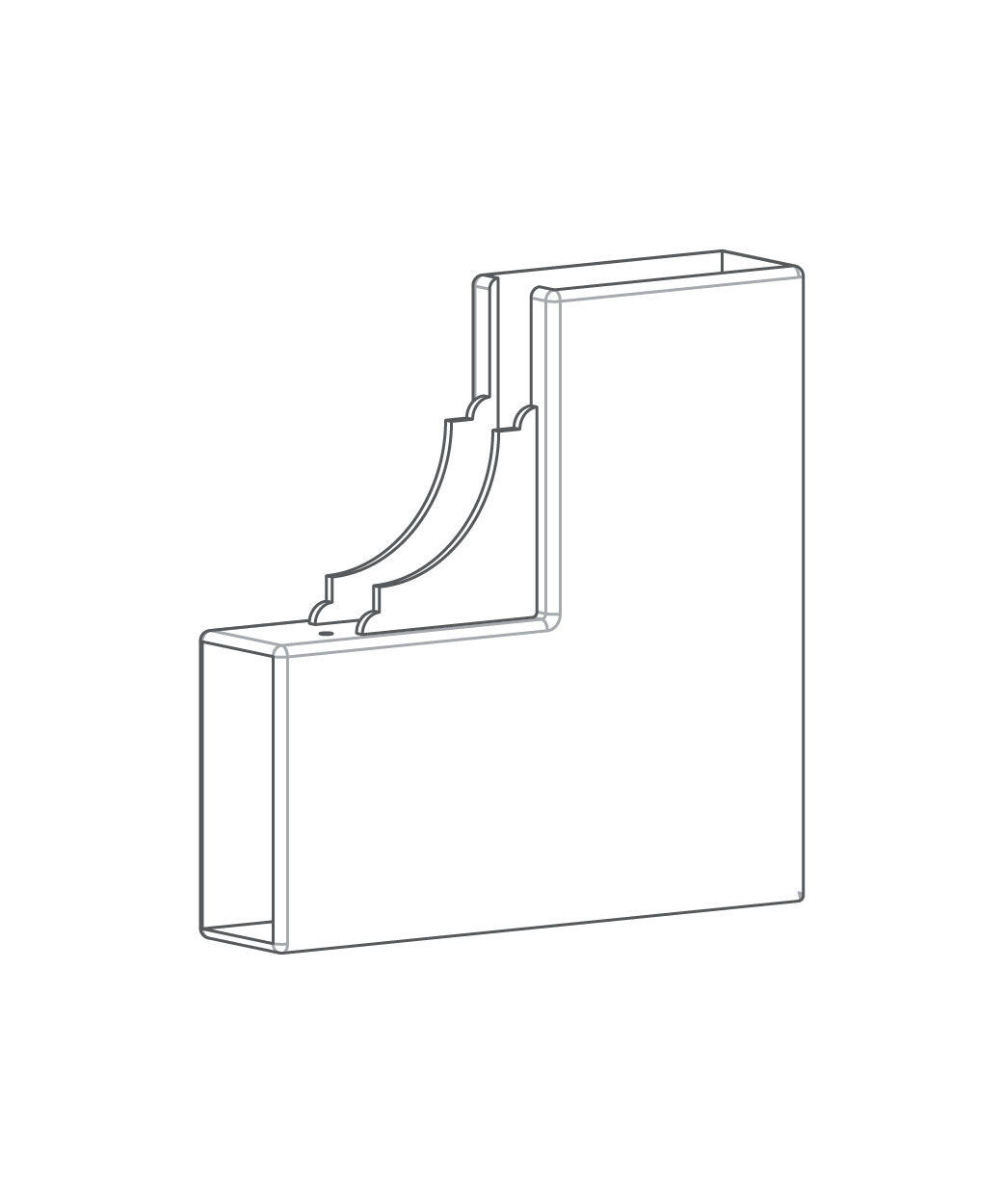

U — Corner Brackets (4)

V — Vertical Door Rail (2)

1½ in × 3½ in × 53 in

W — Door Brace (1)

X — Hinge (2)

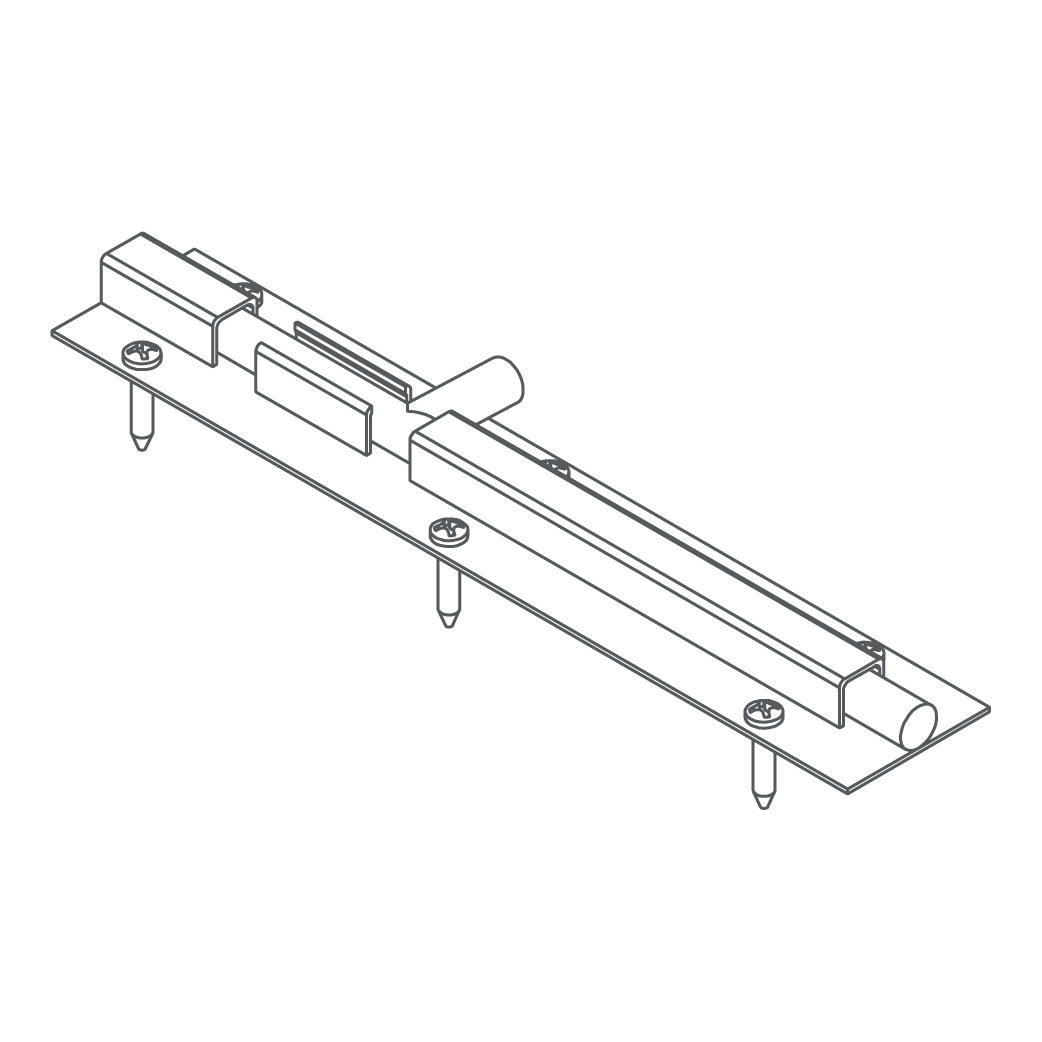

Y — Latch Kit w/ ¾ in Steel Screws (1)

The following items are NOT INCLUDED and may be required depending on your installation method:

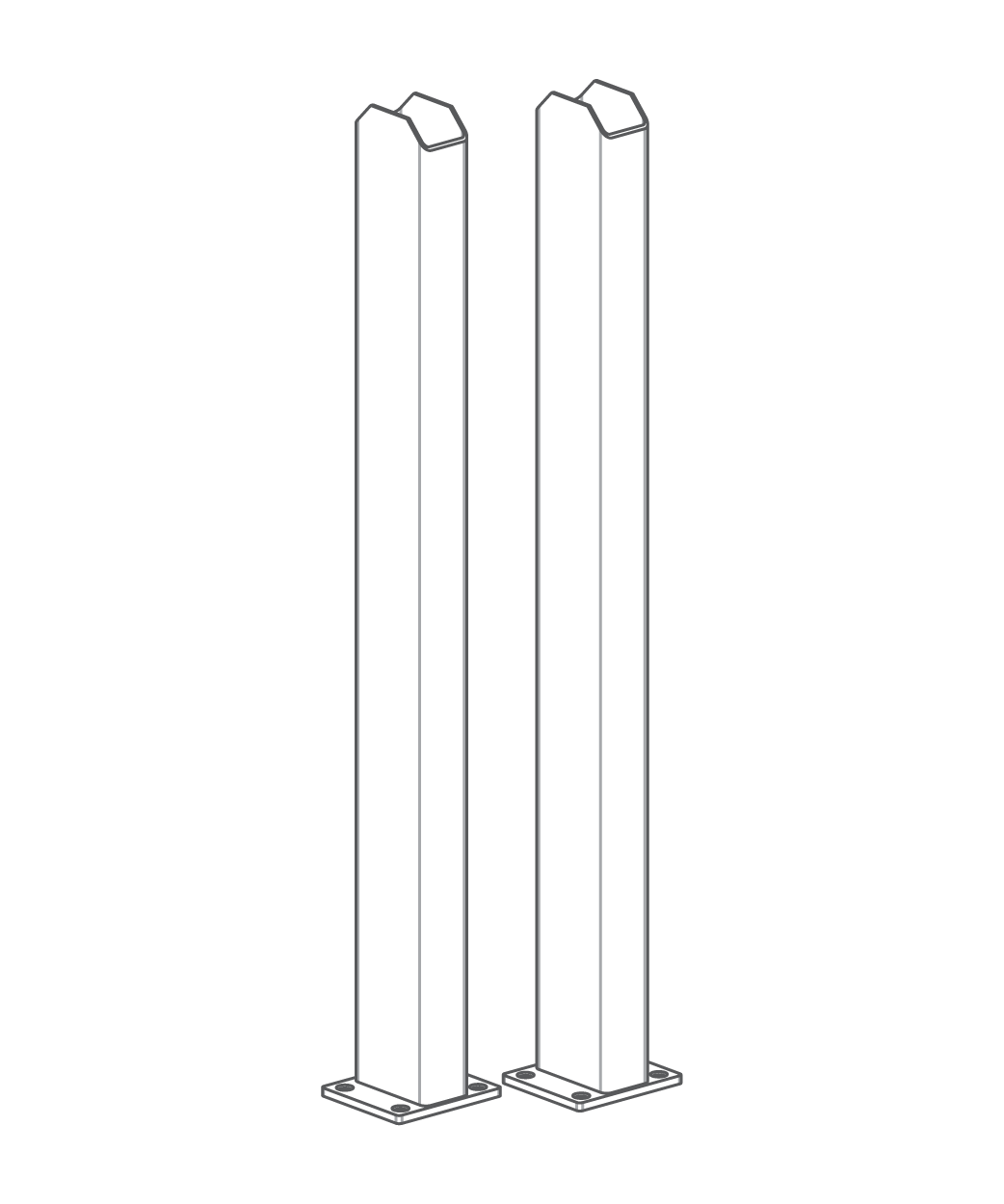

ZP19011 — Zippity Surface Mount 2-Pack

Required for wood or concrete surface mounting

Note: You will need to purchase 2 units for 4 mounts total

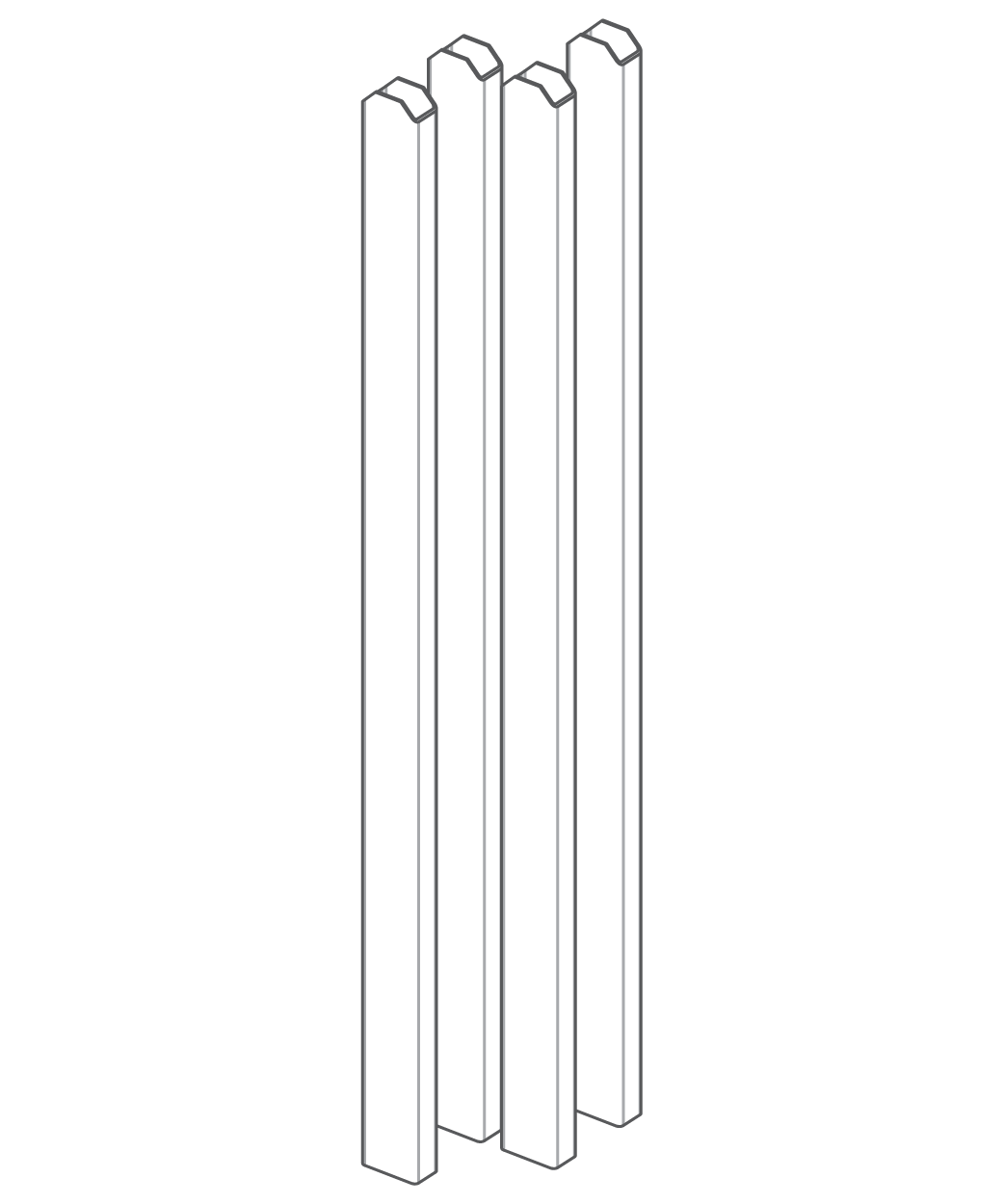

ZP19012 — Zippity Post Extension 4-Pack

Required for in-ground installation

1/4 in × 3 in Concrete Wedge Anchors

Only needed if installing on concrete

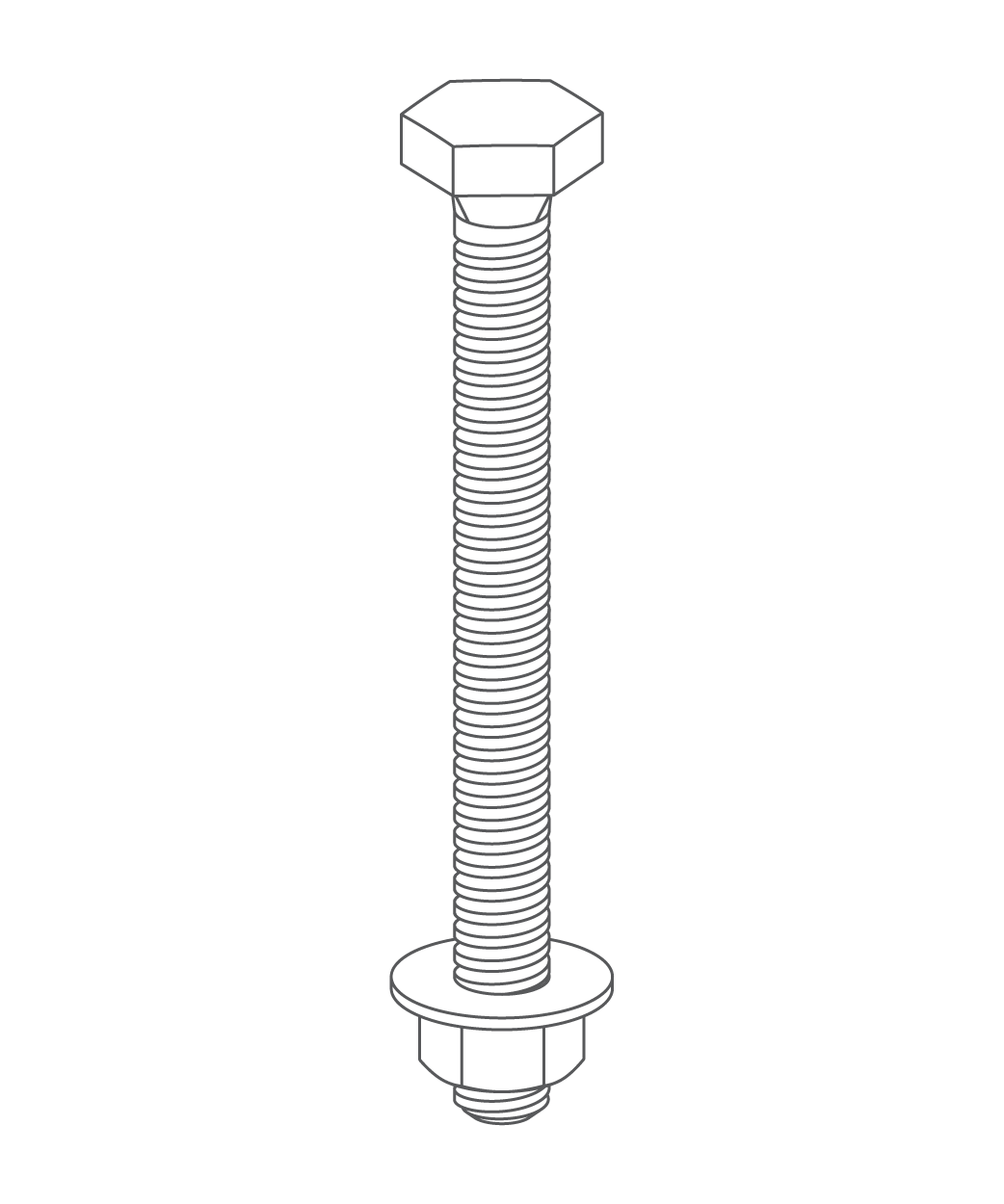

1/4 in × 4 in Hex Head Bolts with Nut and Washer

Only needed if installing on wood

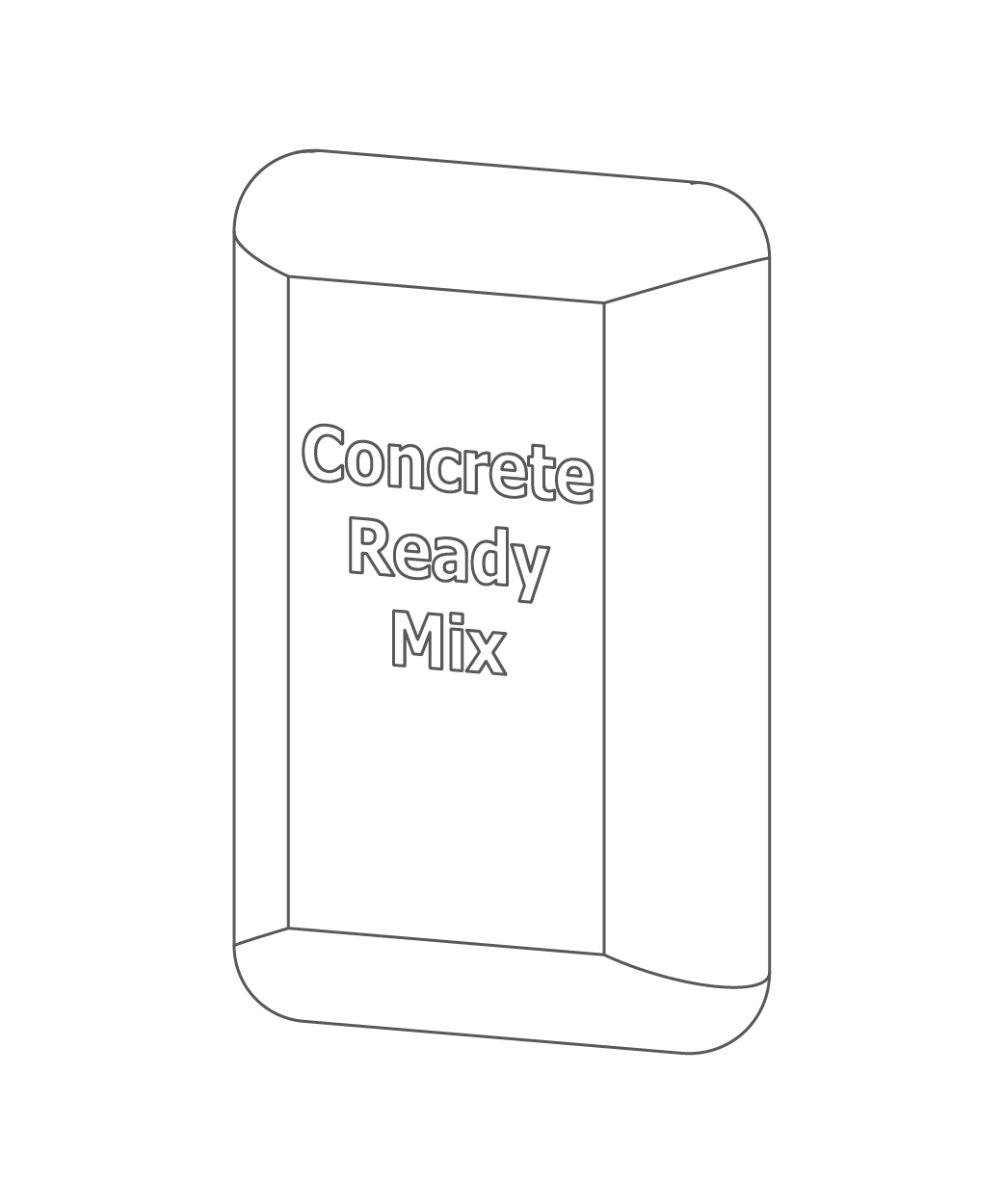

80 lb Concrete Mix

Only needed for in-ground installation

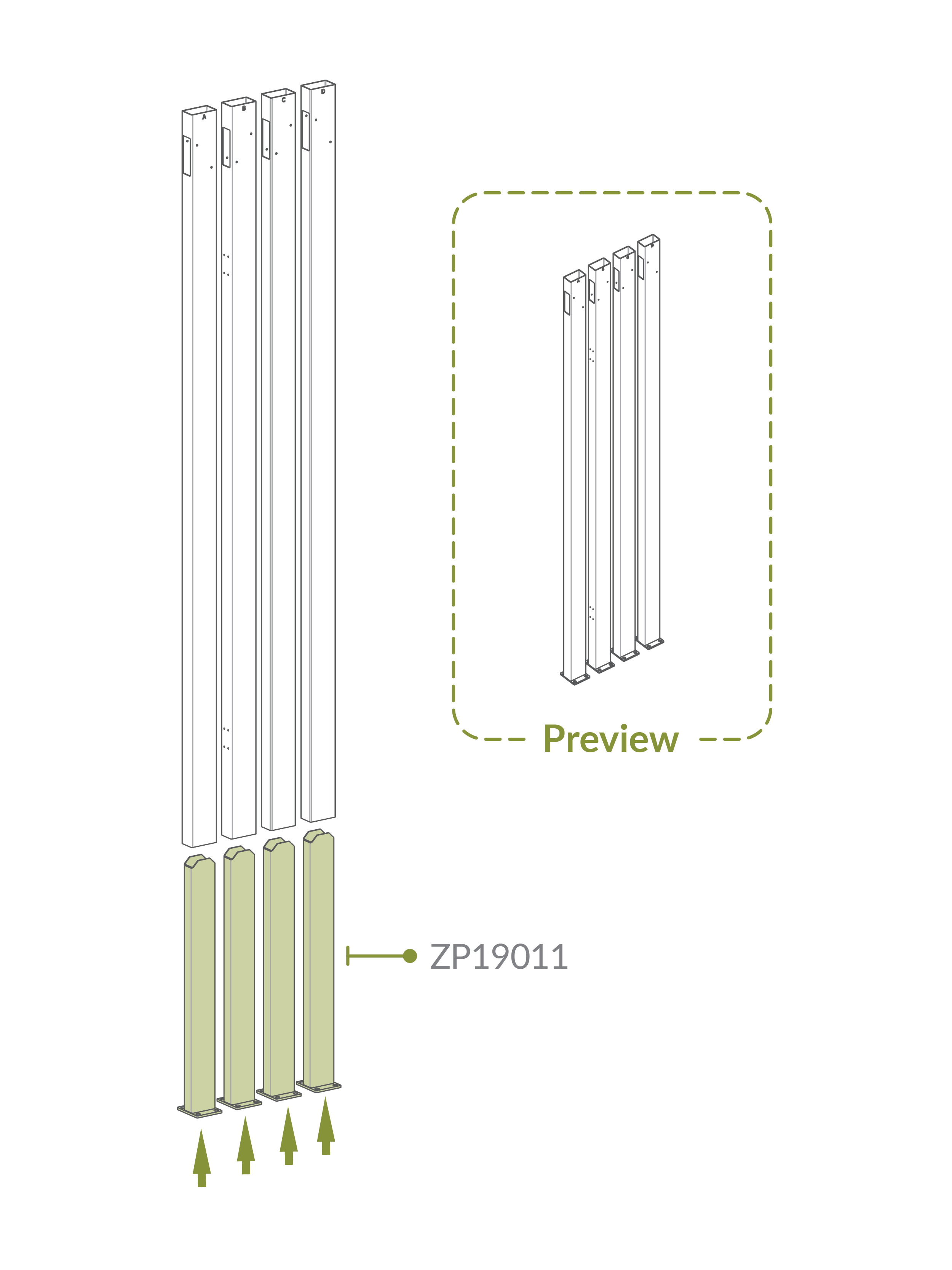

Step 2.1a Concrete or Wood Surface Mounting:

• Insert ZP19011 Surface Mounts (sold separately) into all 4 posts.
• The surface mount will be secured in the next step.

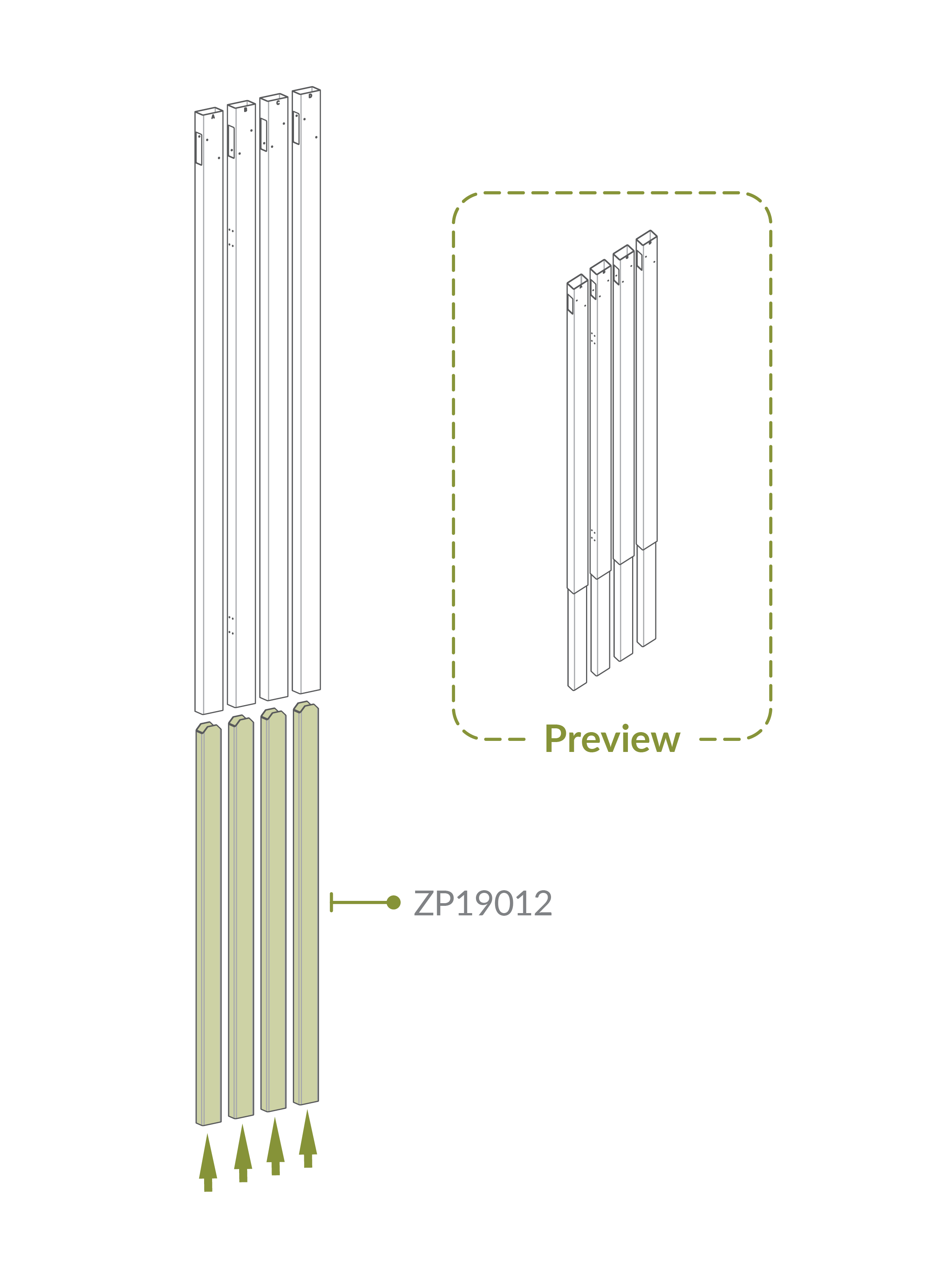

Step 2.1b In-Ground Installation:

• Insert ZP19012 Post Extensions (sold separately) into the bottom of all 4 posts.
• The post extensions will be secured in the next step.

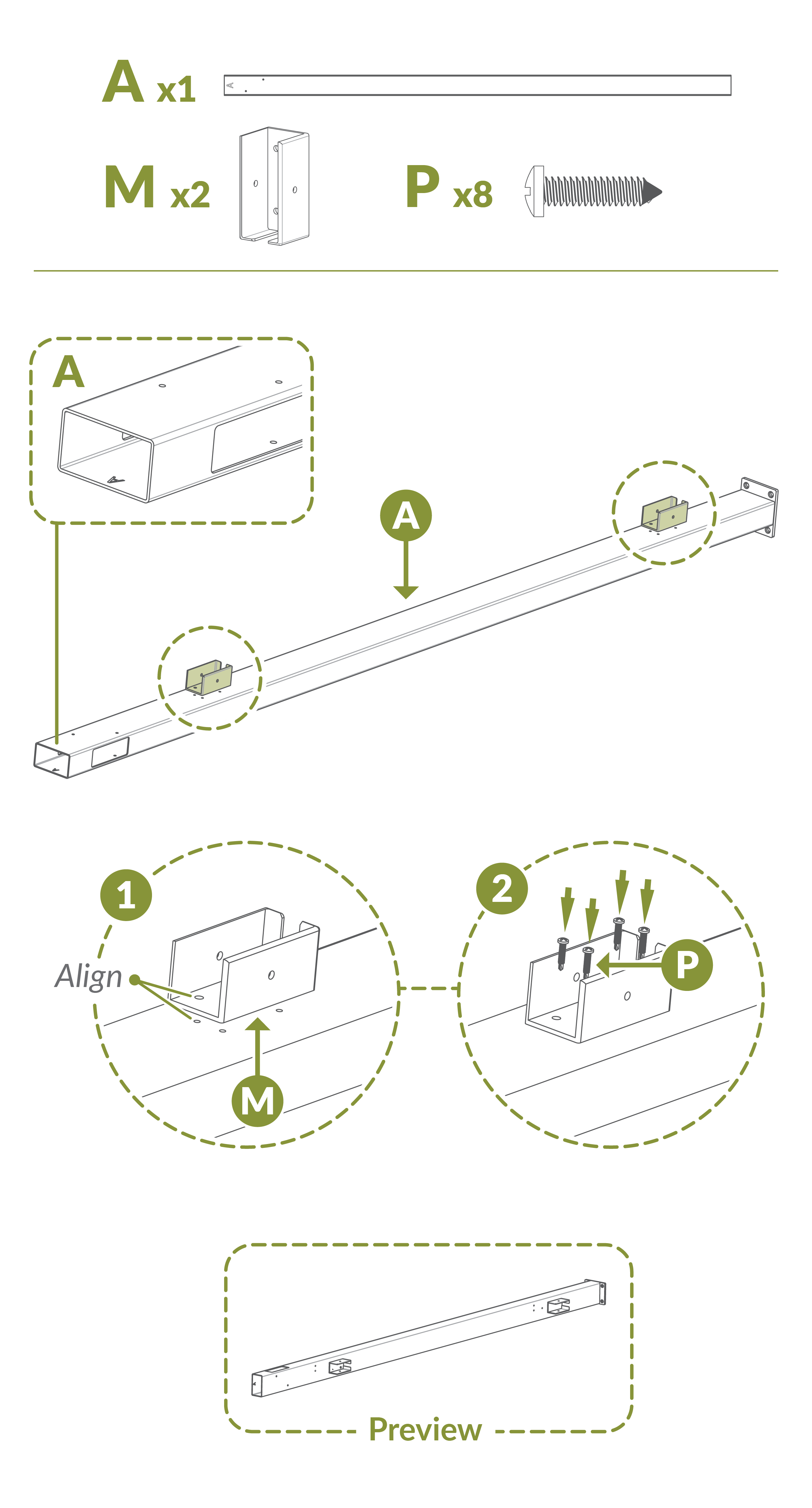

Step 3.1

• Place Post A (A) on to a flat surface. Orient (2) Rail Brackets (M) so that the pre-drilled holes in the bracket align with the pre-drilled holes in the post as shown below.
• Drive (8) ¾" Self-Drilling Stainless Steel Screws (P) into the aligned holes, securing the brackets to Post A A.

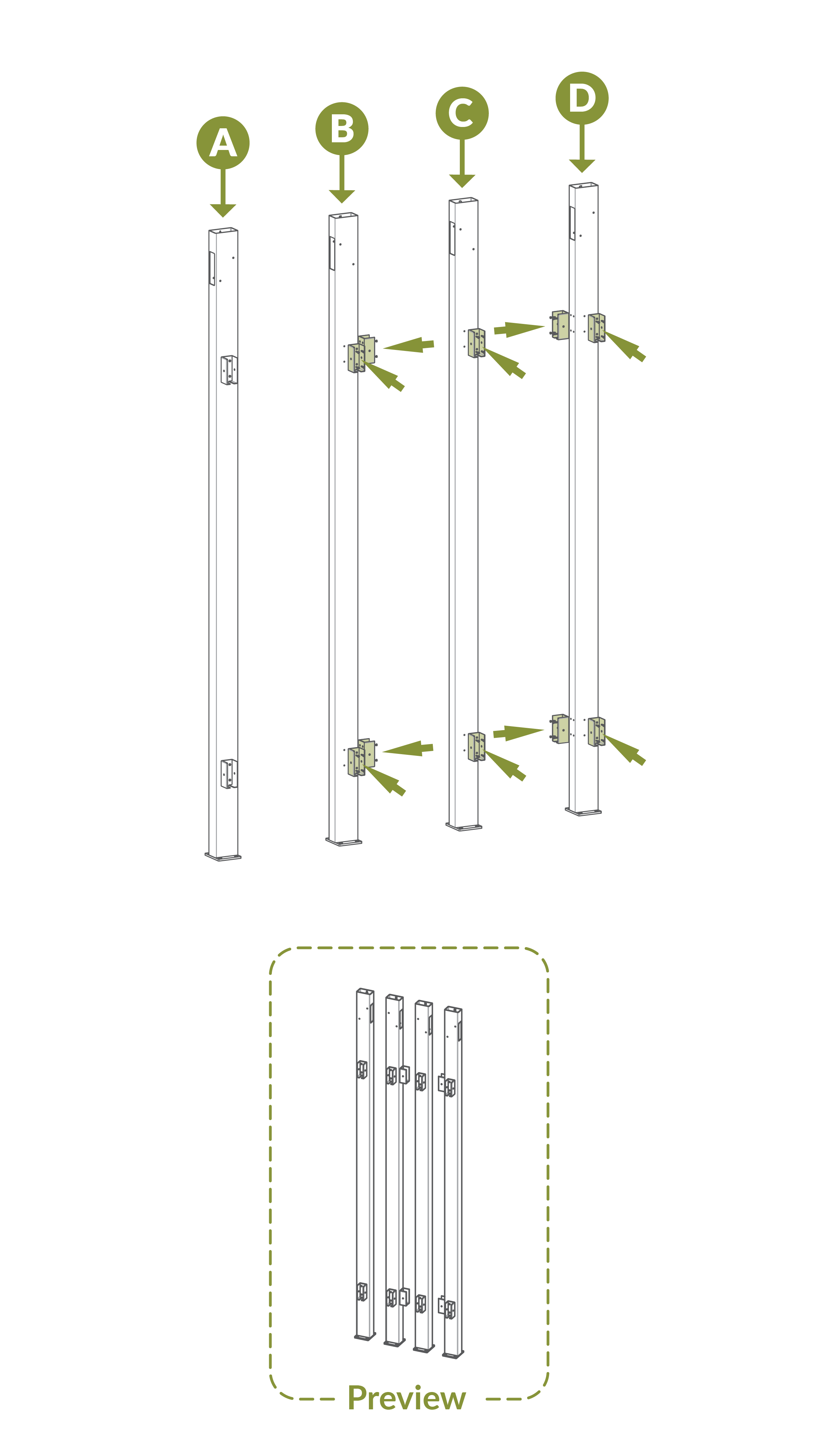

Step 3.2

• Repeat step 3.1 for Post B (B), Post C (C), and Post D (D).
• Two additional Rail Brackets (M) will need to be installed on the side face of both Post B B and Post D D.
• Align the brackets with the pre-drilled holes in the sides of these posts and secure the Rail Brackets (M) with (16) ¾" Self-Drilling Stainless Steel Screws (P).

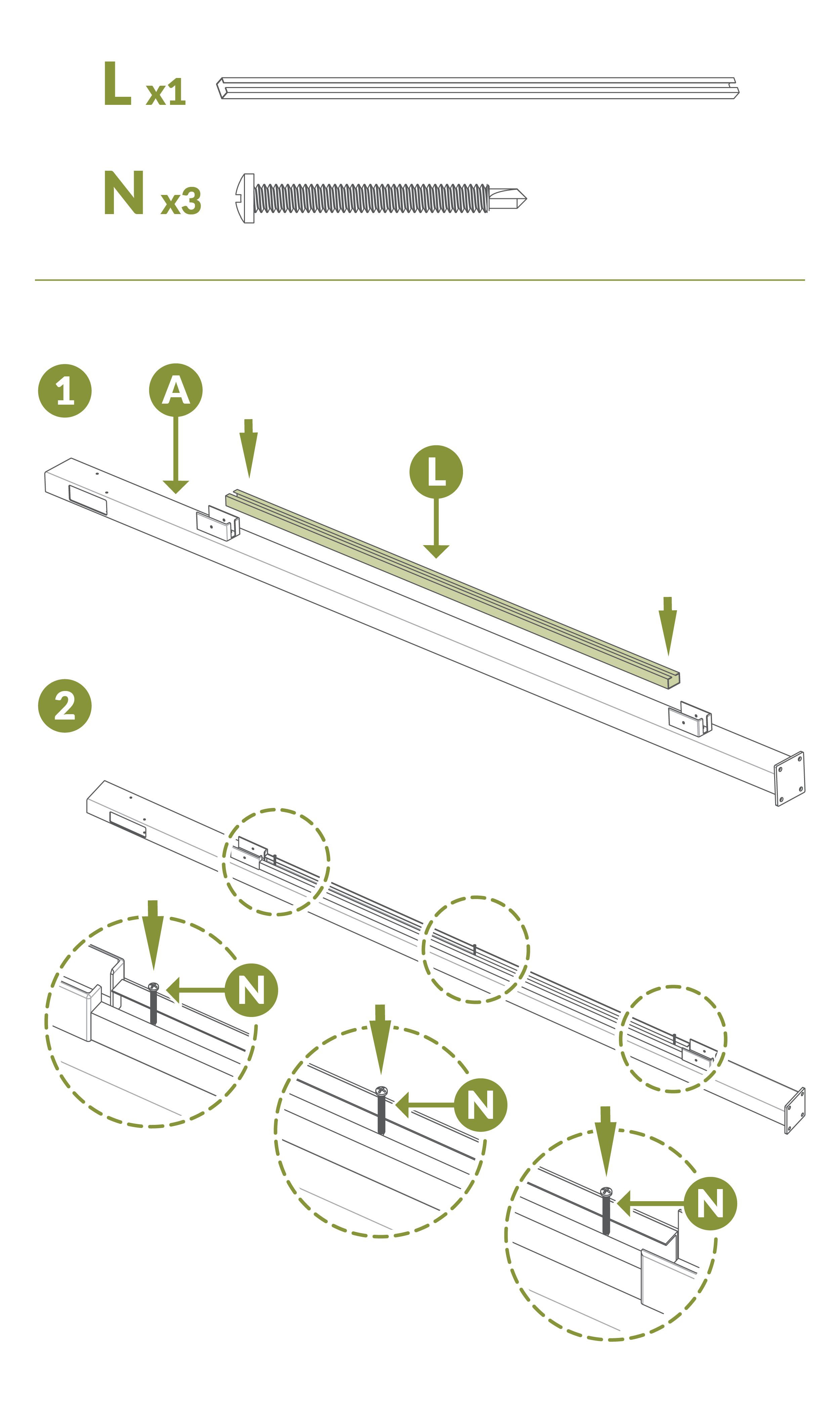

Step 4.1

• Position (1) U-Channel (L) between the two Rail Brackets (M). Ensure the open groove of the U-channel is centered with the brackets.
• Drive (3) 1¼" White Self-Drilling Stainless Steel Screws (N) through the pre-drilled holes in the U-channel.

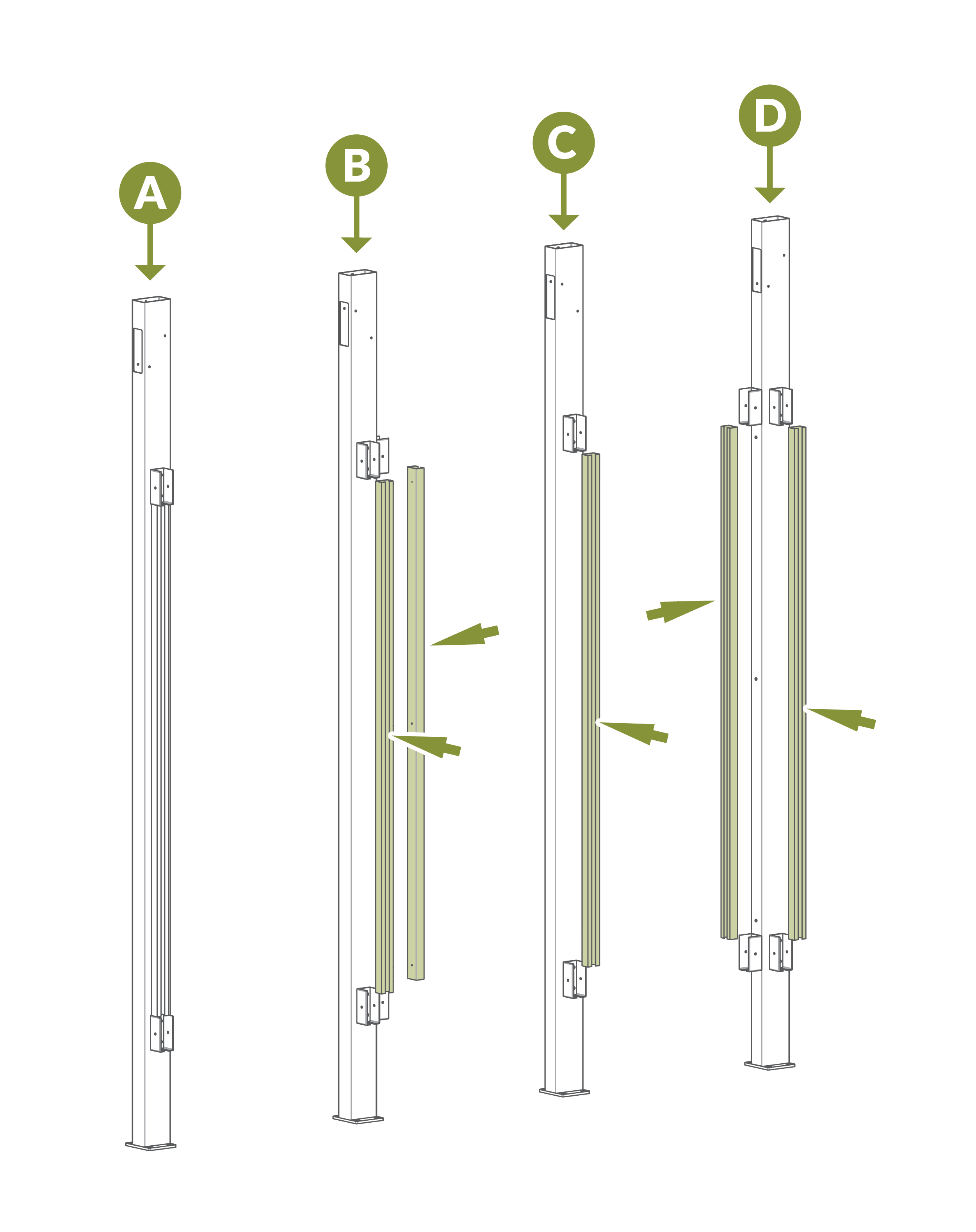

Step 4.2

• Install the U-channels (L) between the brackets on the remaining 3 posts in the same manner as step 4.1.
• Post B (B) and Post D (D) will each have (2) U-channels on each post.

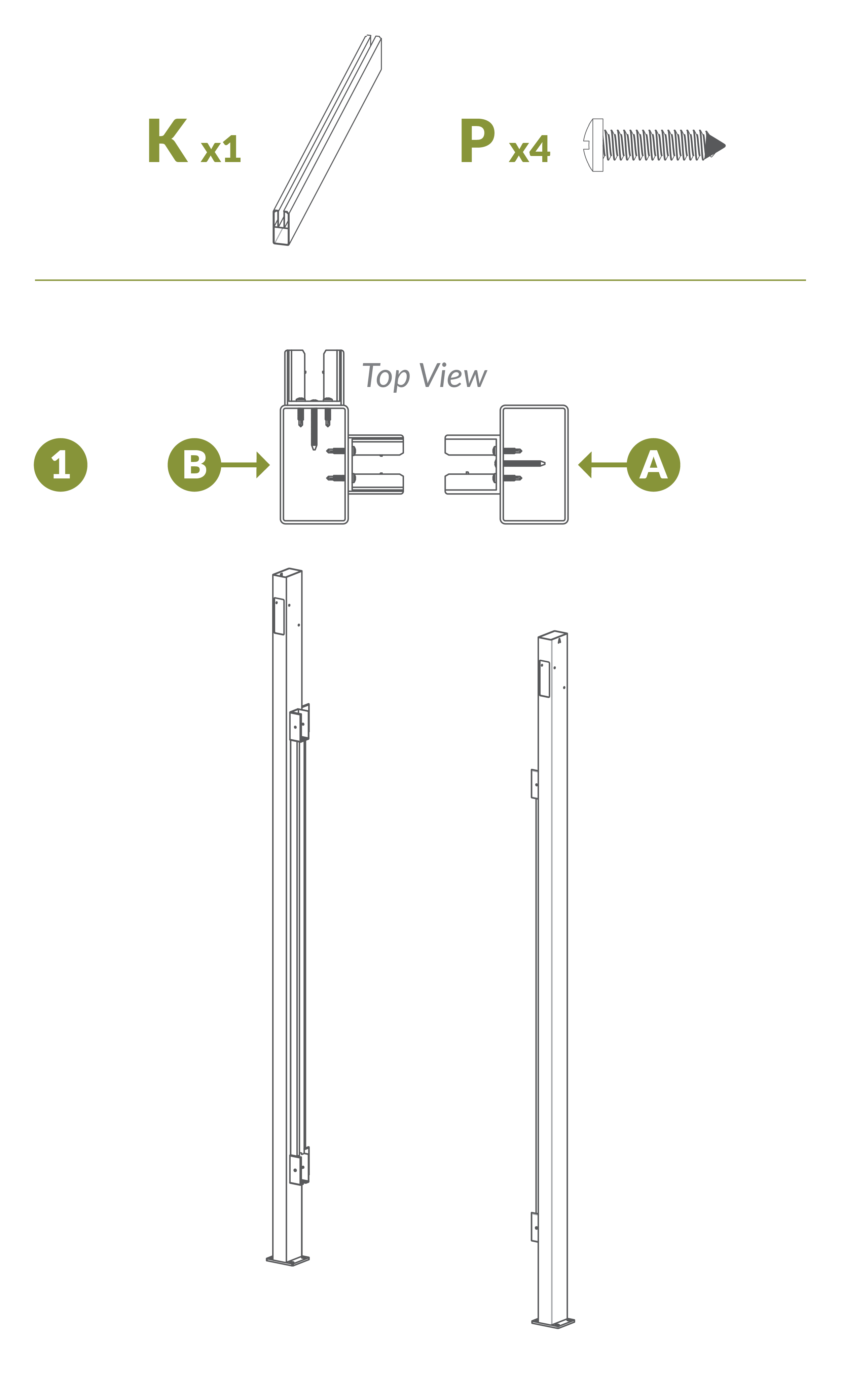

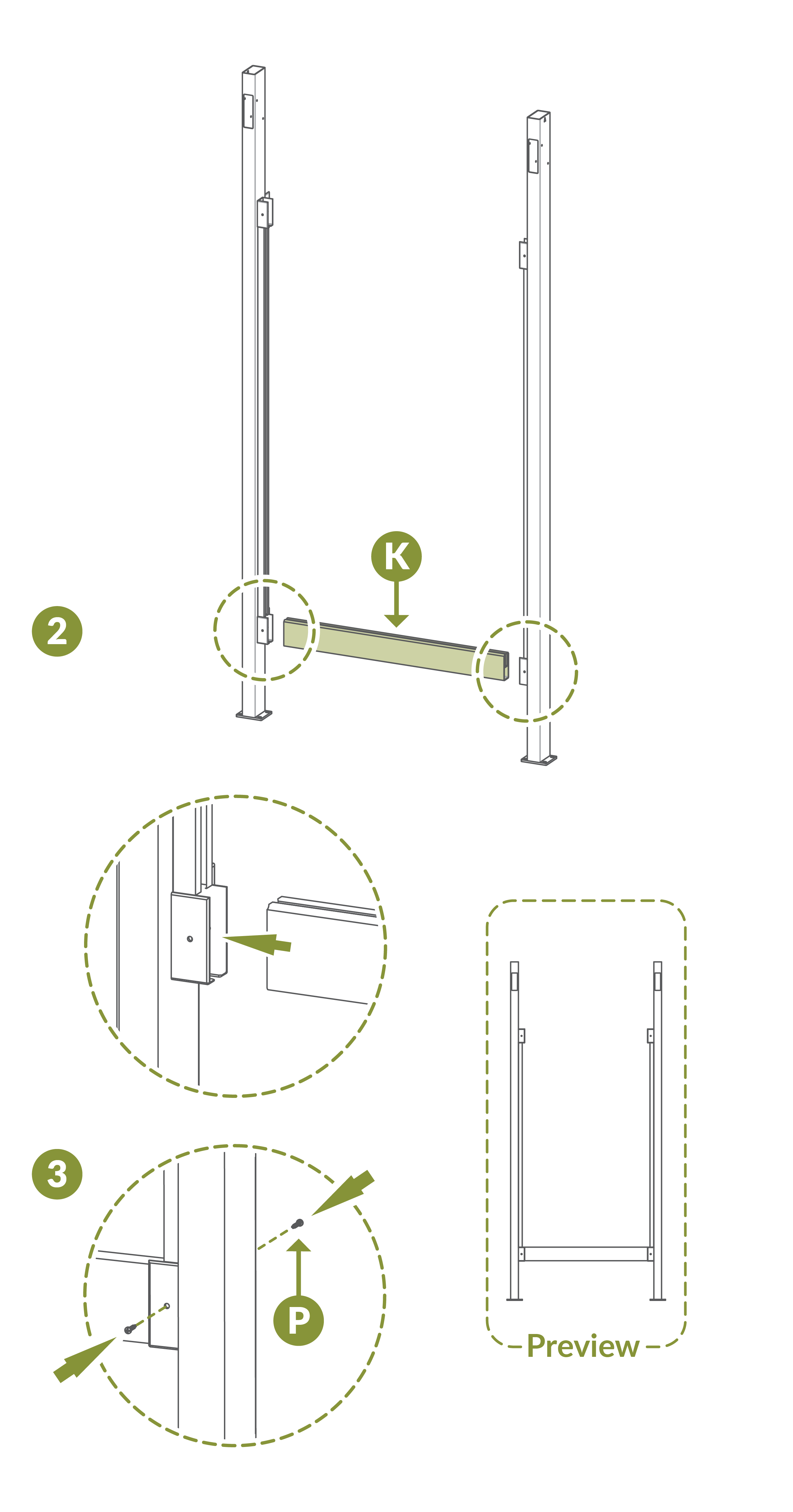

Step 5.1

• Position Post A (A) and Post B (B) as shown.

• Slide (1) Horizontal Rail (K) into the Rail Brackets (M).
• Drive (4) ¾" Self-Drilling Stainless Steel Screws (P) into the pre-drilled holes in the rail brackets.

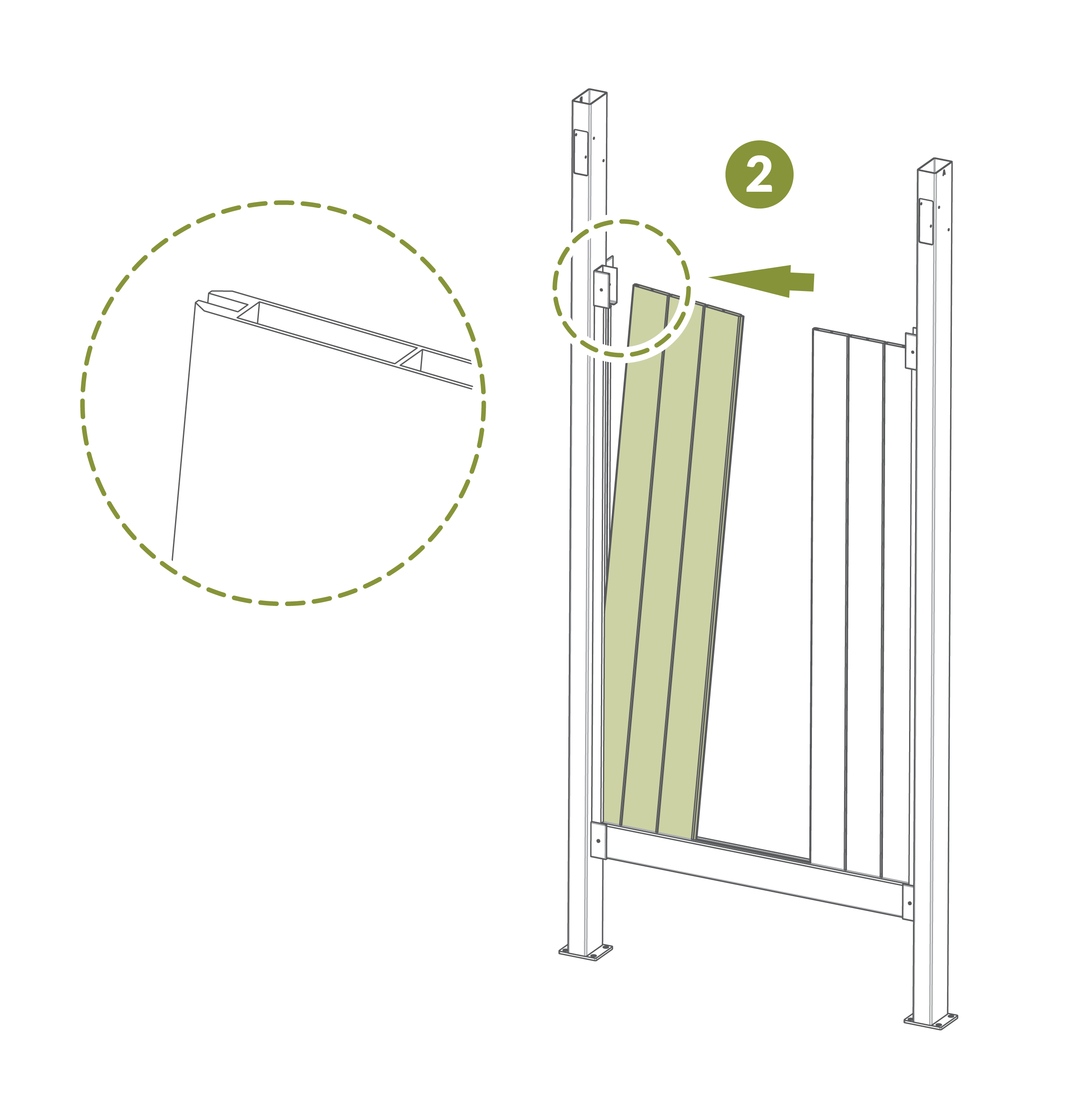

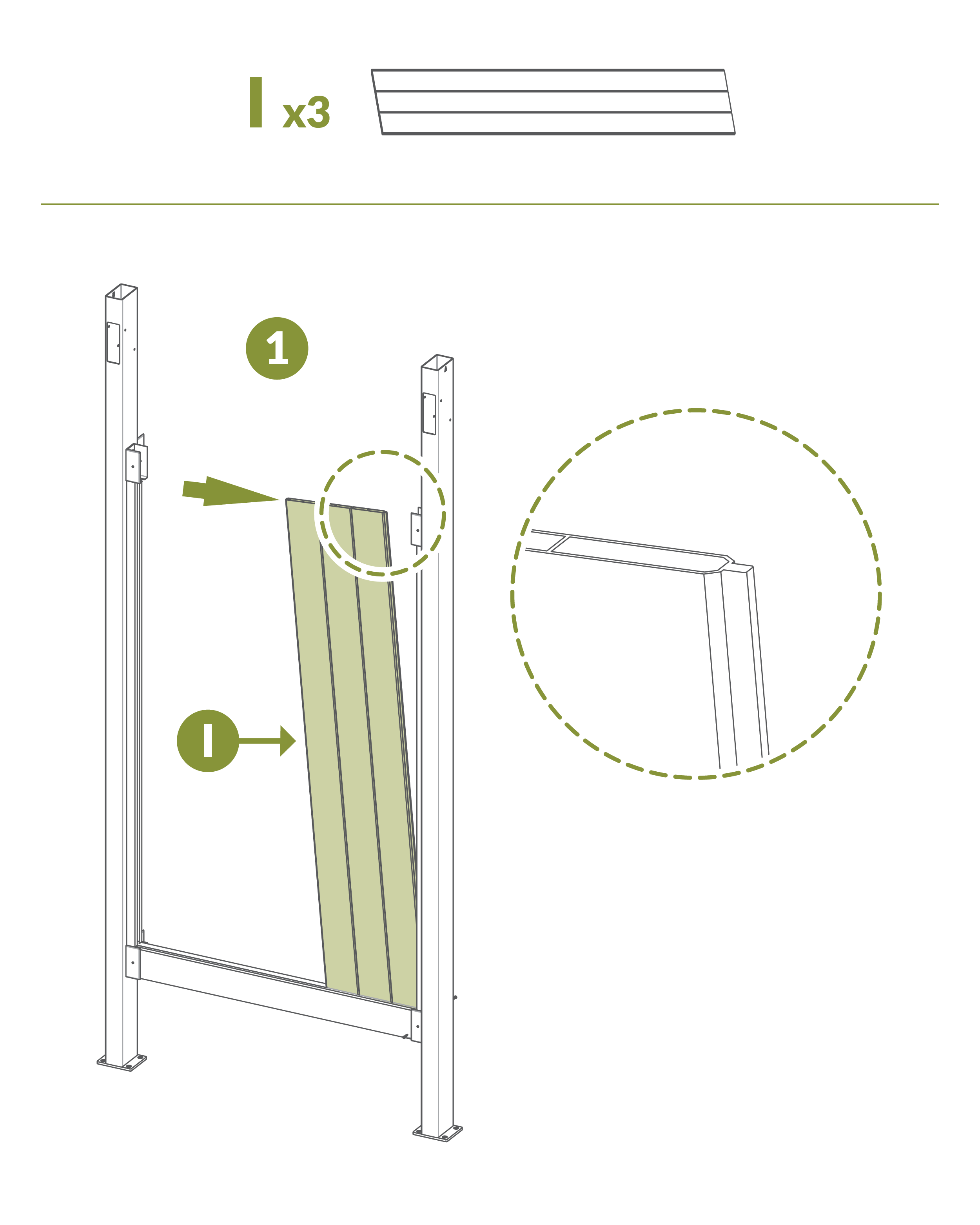

Step 5.2

• Insert (1) Privacy Board (I) into the bottom Horizontal Rail (K).
• Angling the board, insert it into the U-channel (L) as shown.

• Insert (1) Privacy Board (I) on the other end of the rail as shown.

• Slide (1) Privacy Board (I) down the middle of the boards vertically as shown.

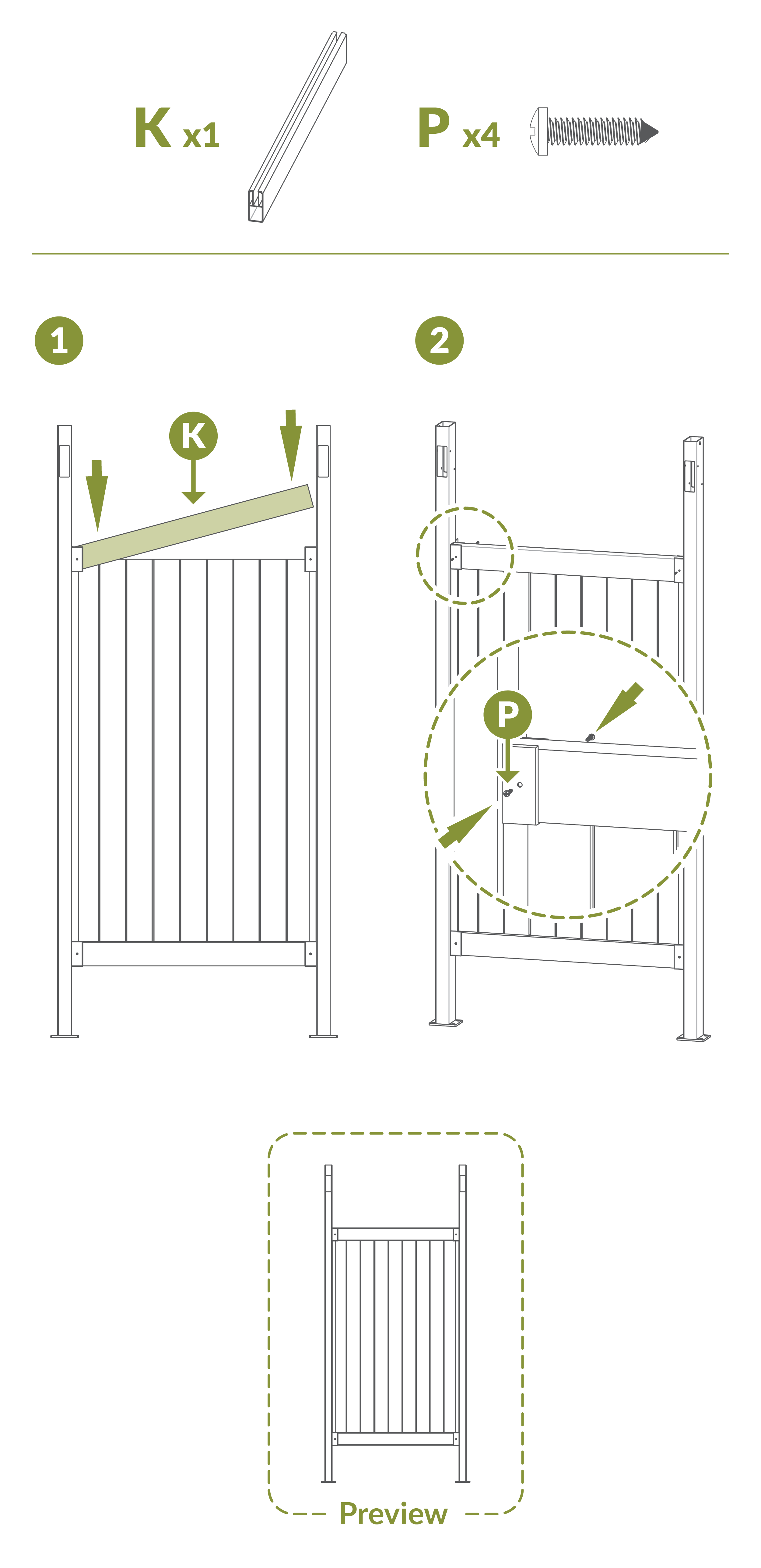

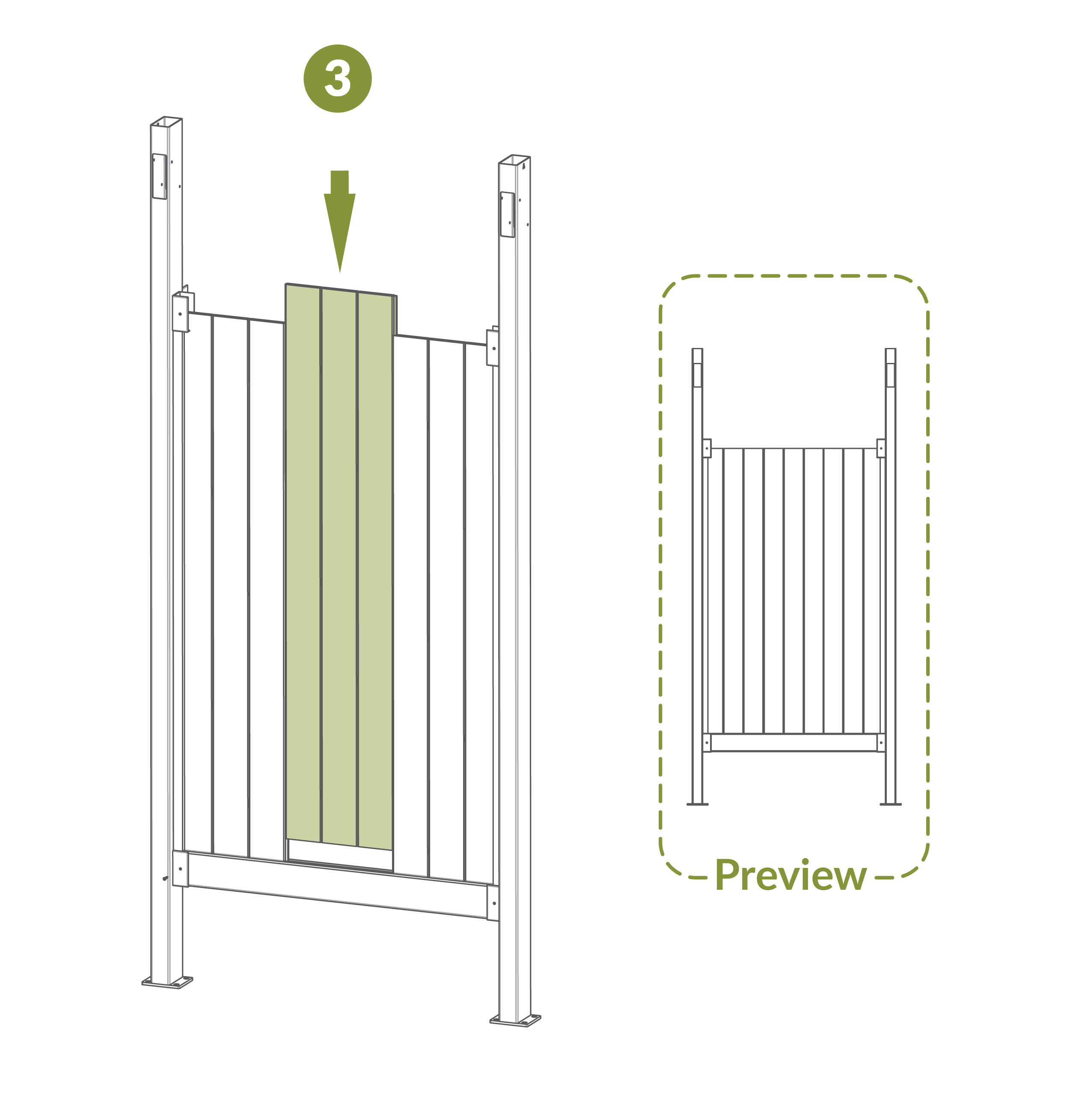

Step 5.3

• Slide (1) Horizontal Rail (K) down over the Privacy Boards (I) starting at one end of the boards as shown.
• Ensure that the rail is inserted fully over the boards and rests inside the Rail Brackets (M).
• Drive (4) ¾" Self-Drilling Stainless Steel Screws (P) through the pre-drilled holes in the front and back of the rail brackets.

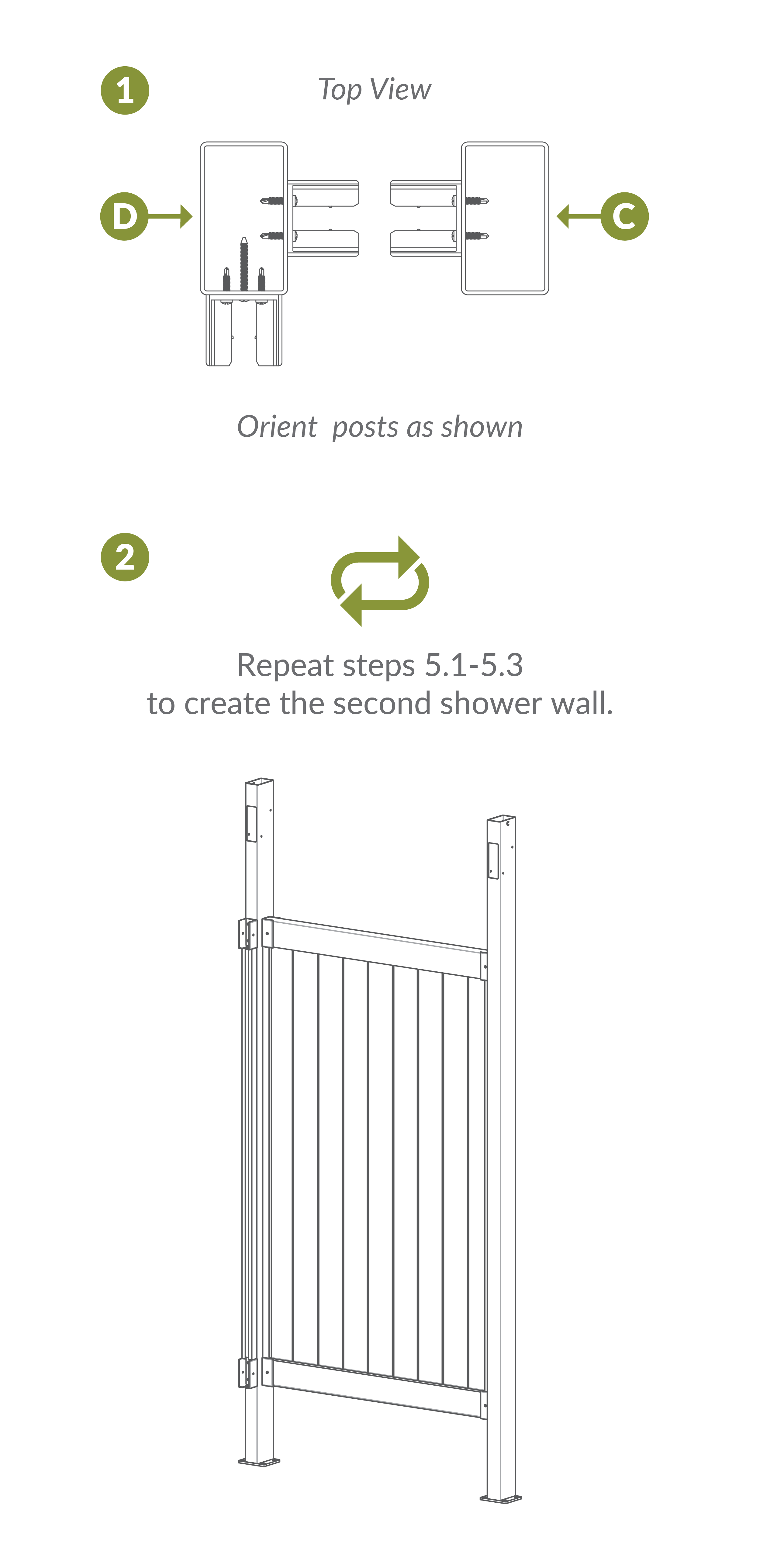

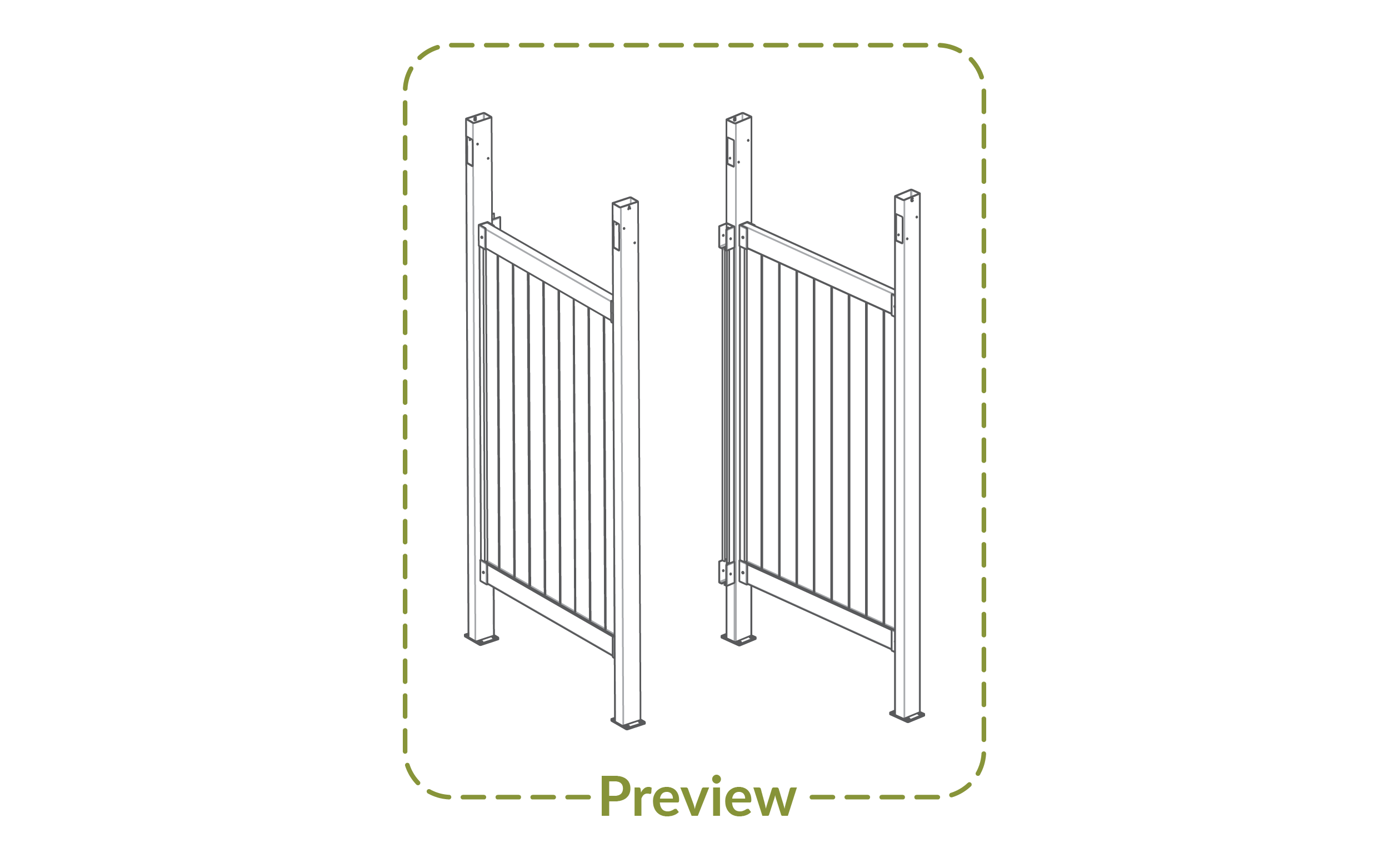

Step 5.4

• Orient Post C C and Post D D as shown below.

• Repeat steps 5.1 - 5.3 for these posts to create the second shower wall.

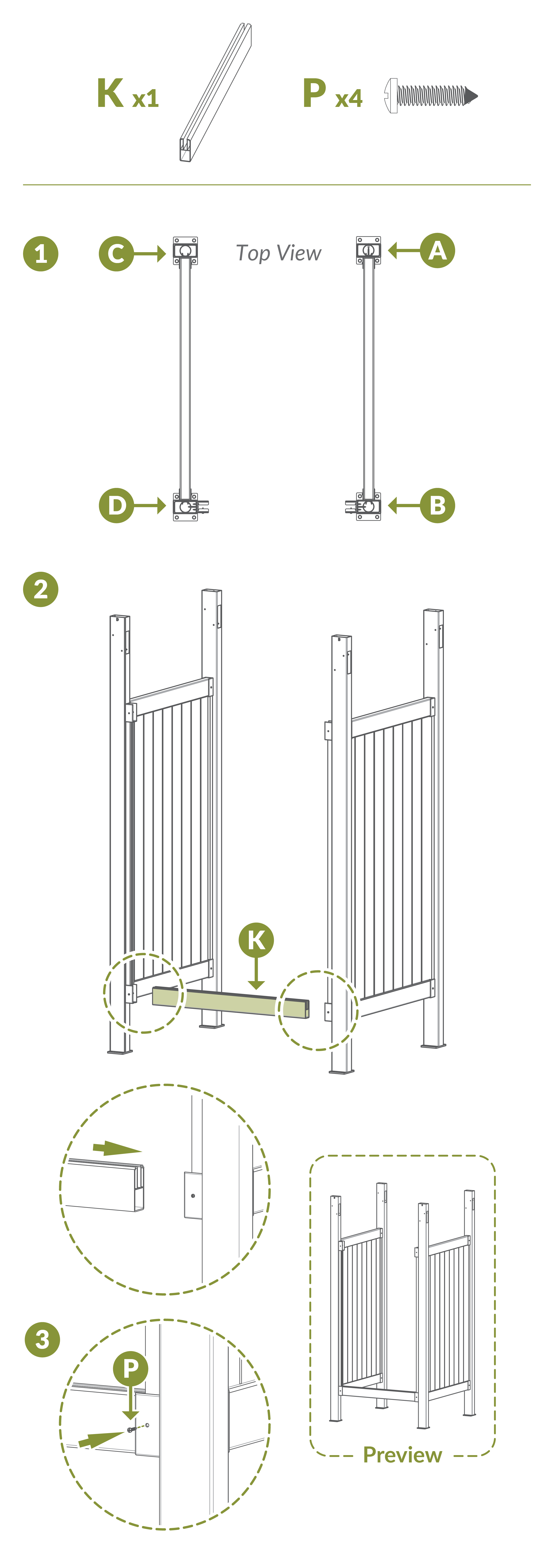

Step 6.1

• Position the side walls as shown below.
• Slide (1) Horizontal Rail (K) into the rail brackets.
• Drive (4) ¾" Self-Drilling Stainless Steel Screws (P) into the rail brackets.

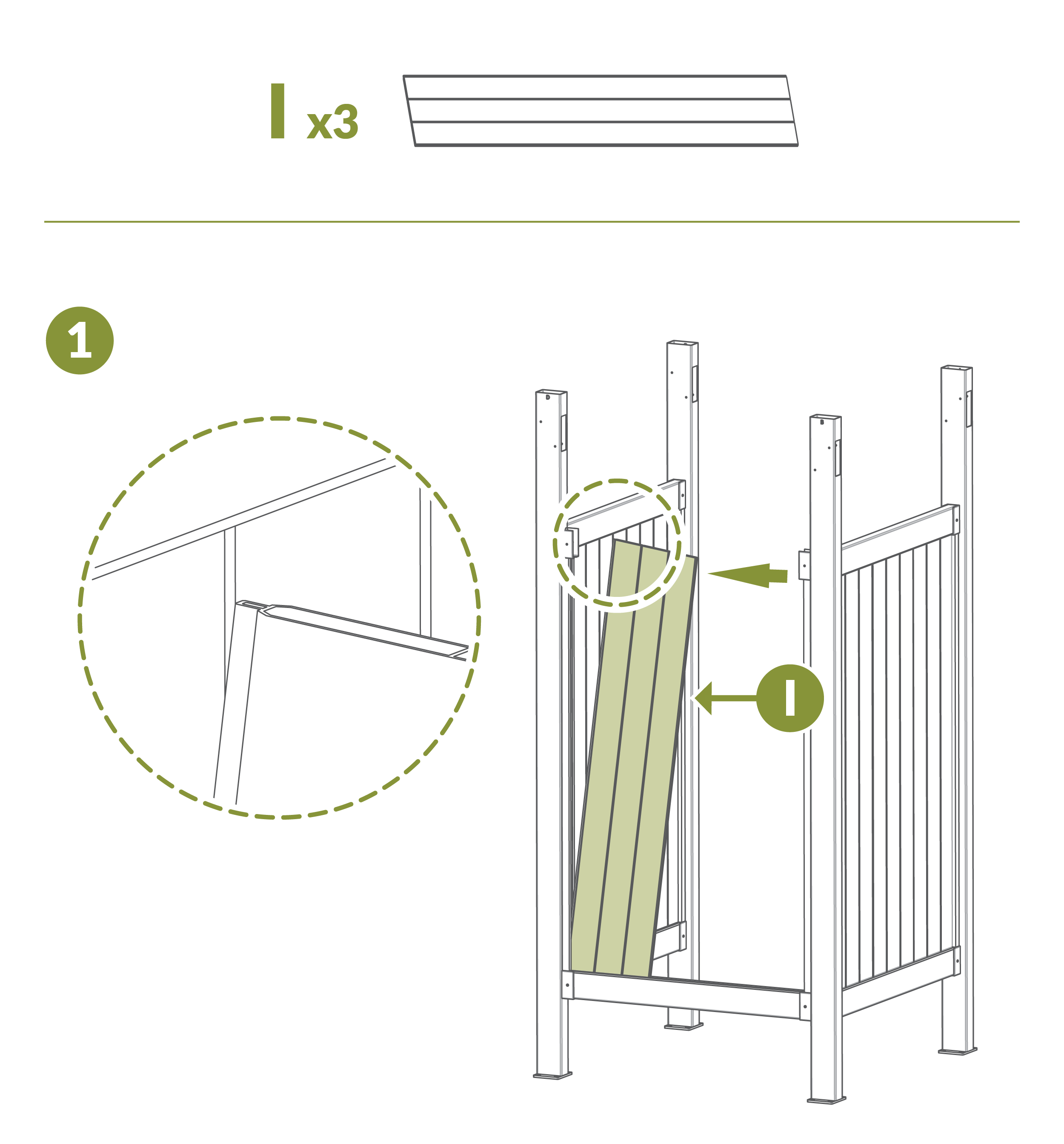

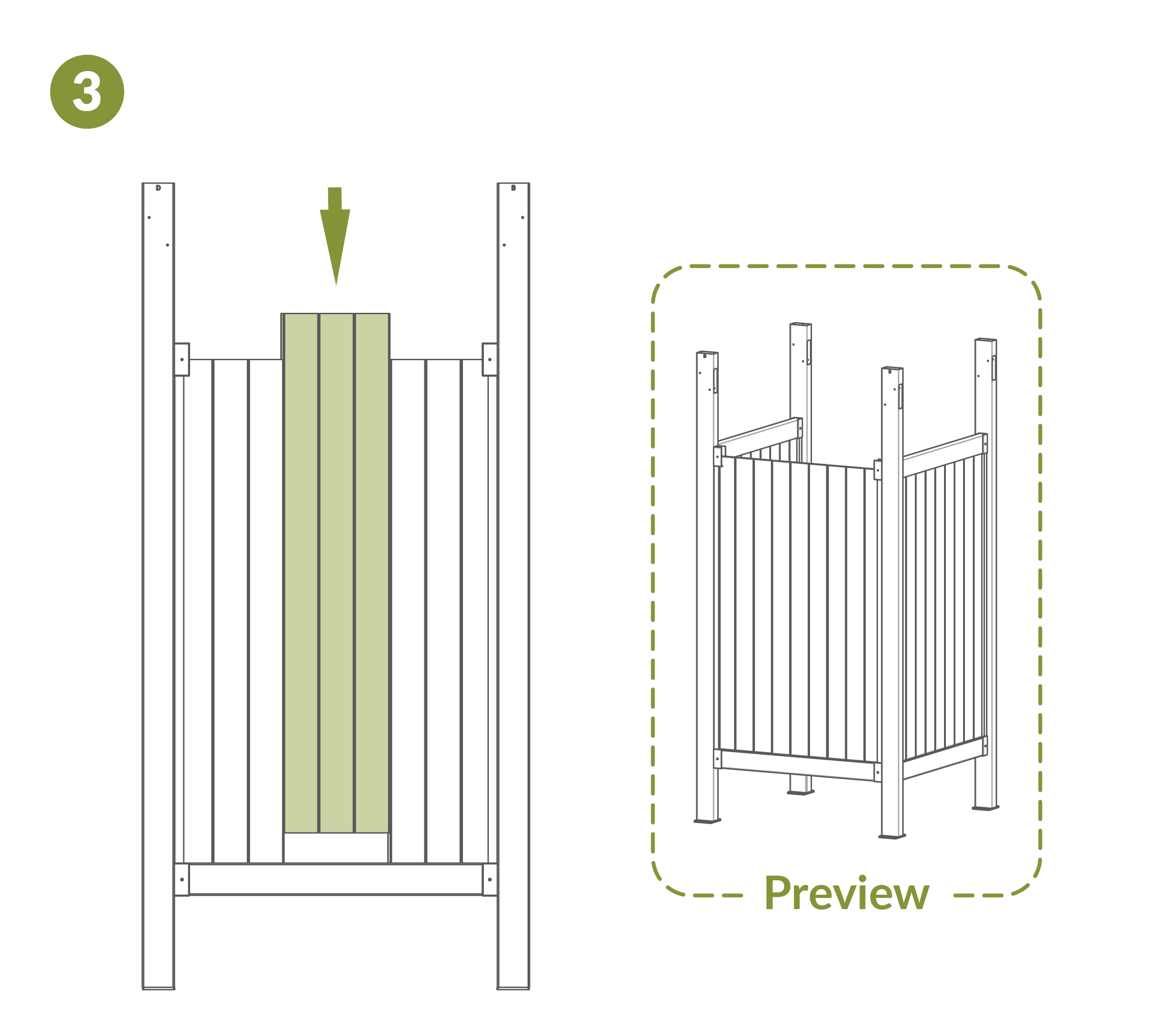

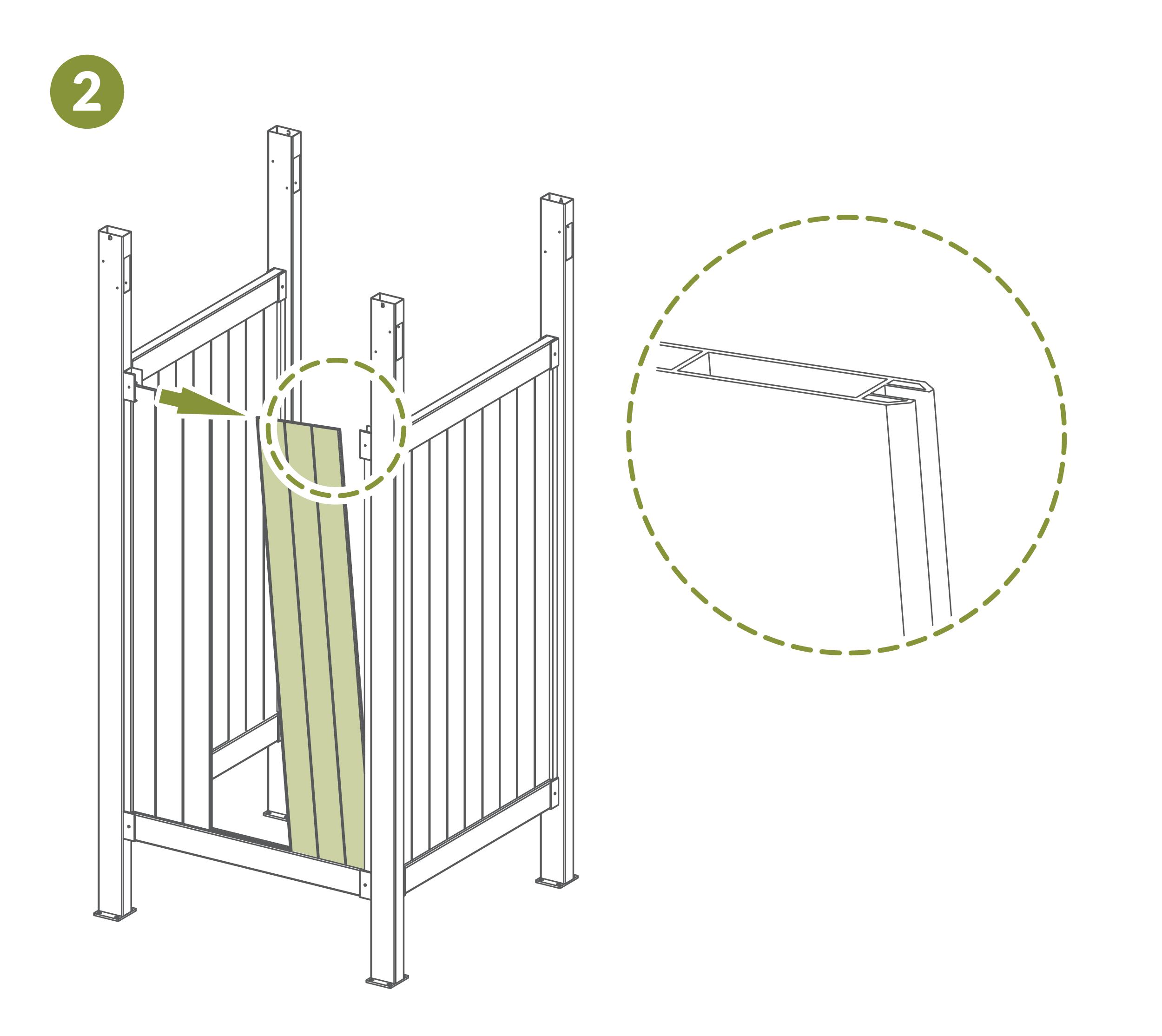

Step 6.2

• Insert (1) Privacy Board (I) into the bottom rail.
• Angling the board, insert it into the U-channel as shown.

• Insert (1) Privacy Board (I) on the other end of the rail as shown.

• Slide (1) Privacy Board (I) down the middle of the boards vertically as shown.

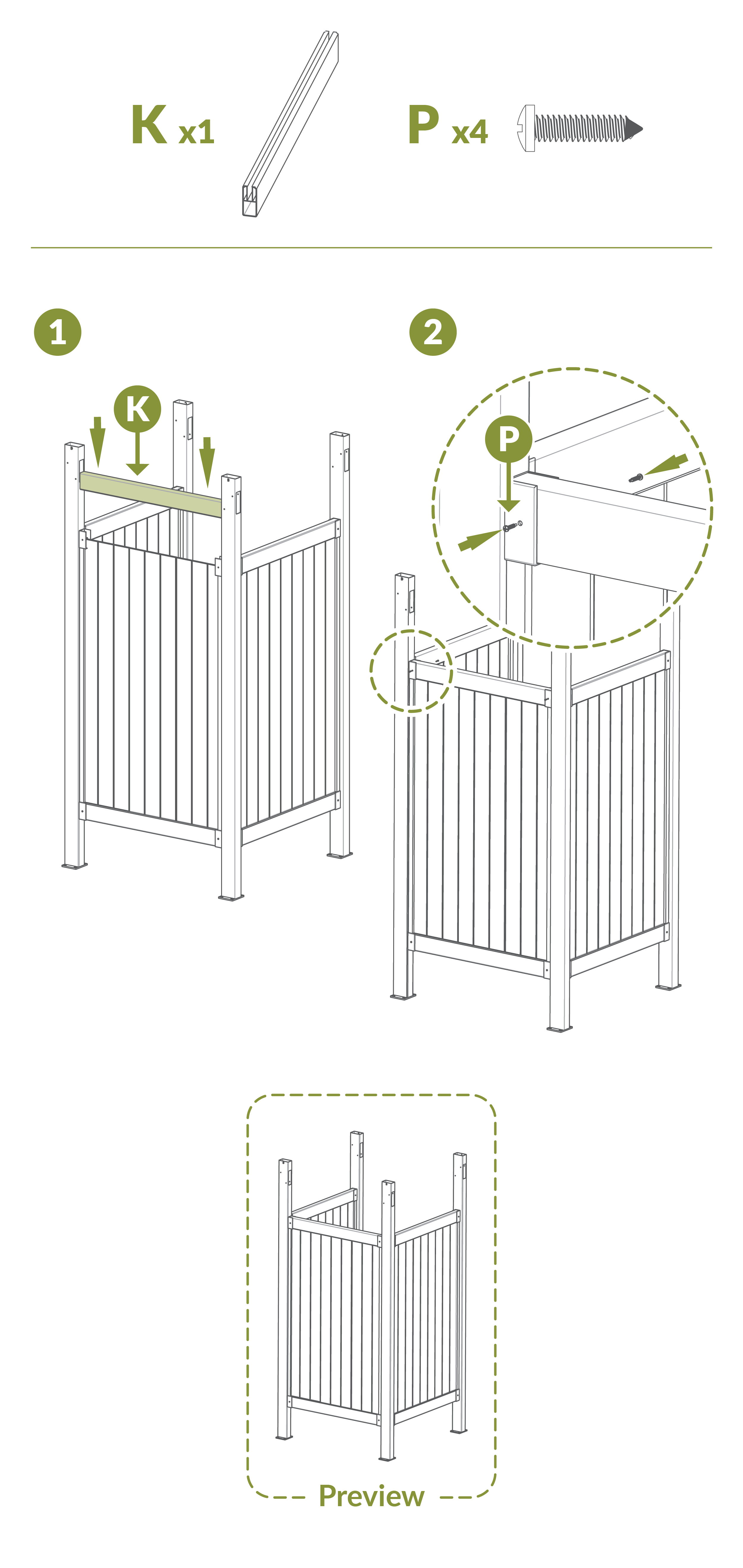

Step 6.3

• Slide (1) Horizontal Rail (K) into the upper Rail Brackets (M).
• Drive (4) ¾" Self-Drilling Stainless Steel Screws (P) into the upper Rail Brackets (M).

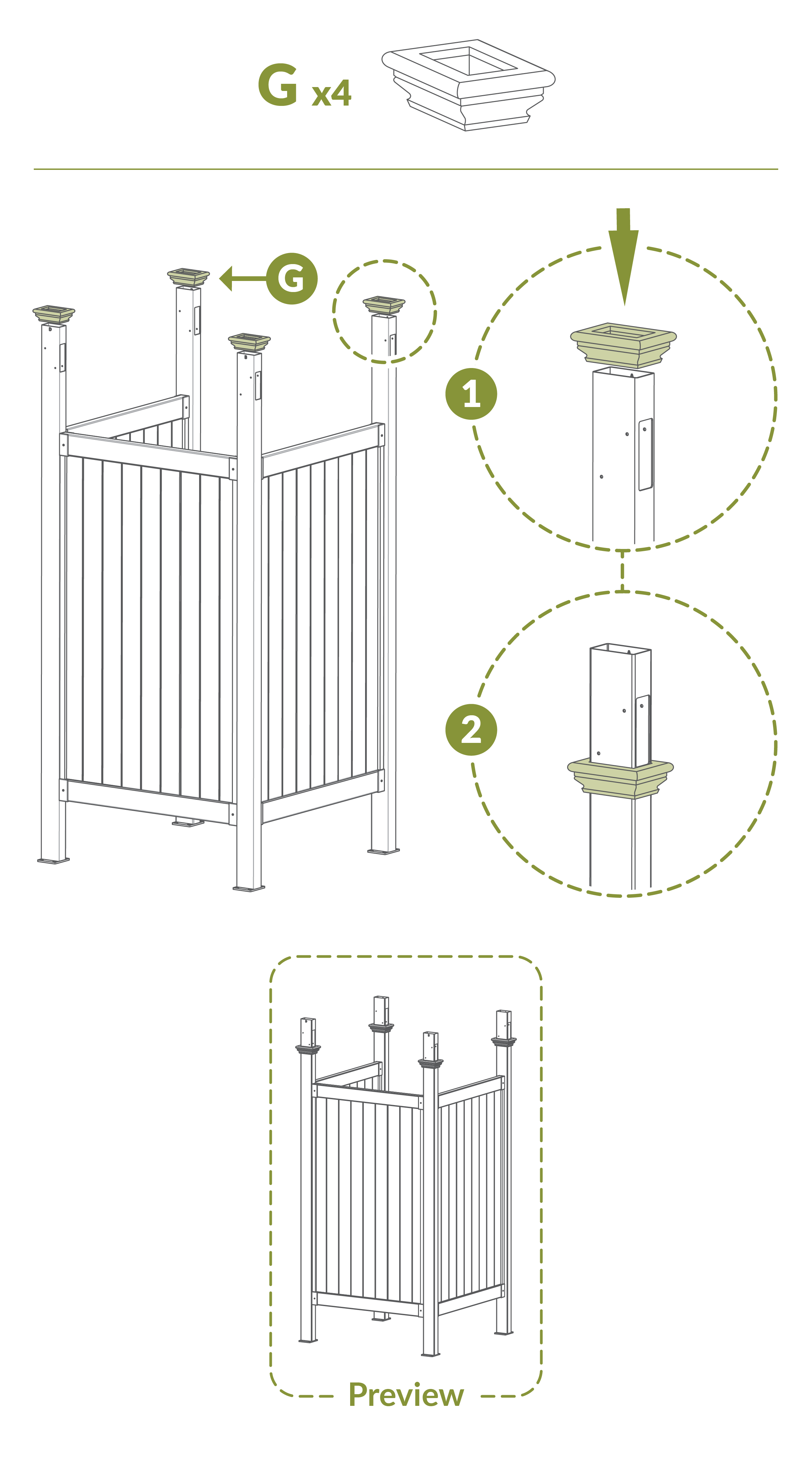

Step 7.1

• Slide (4) Post Trim Caps (G) over the top of the posts.
• Slide the trim caps until they are just below the routed holes in the posts as shown.

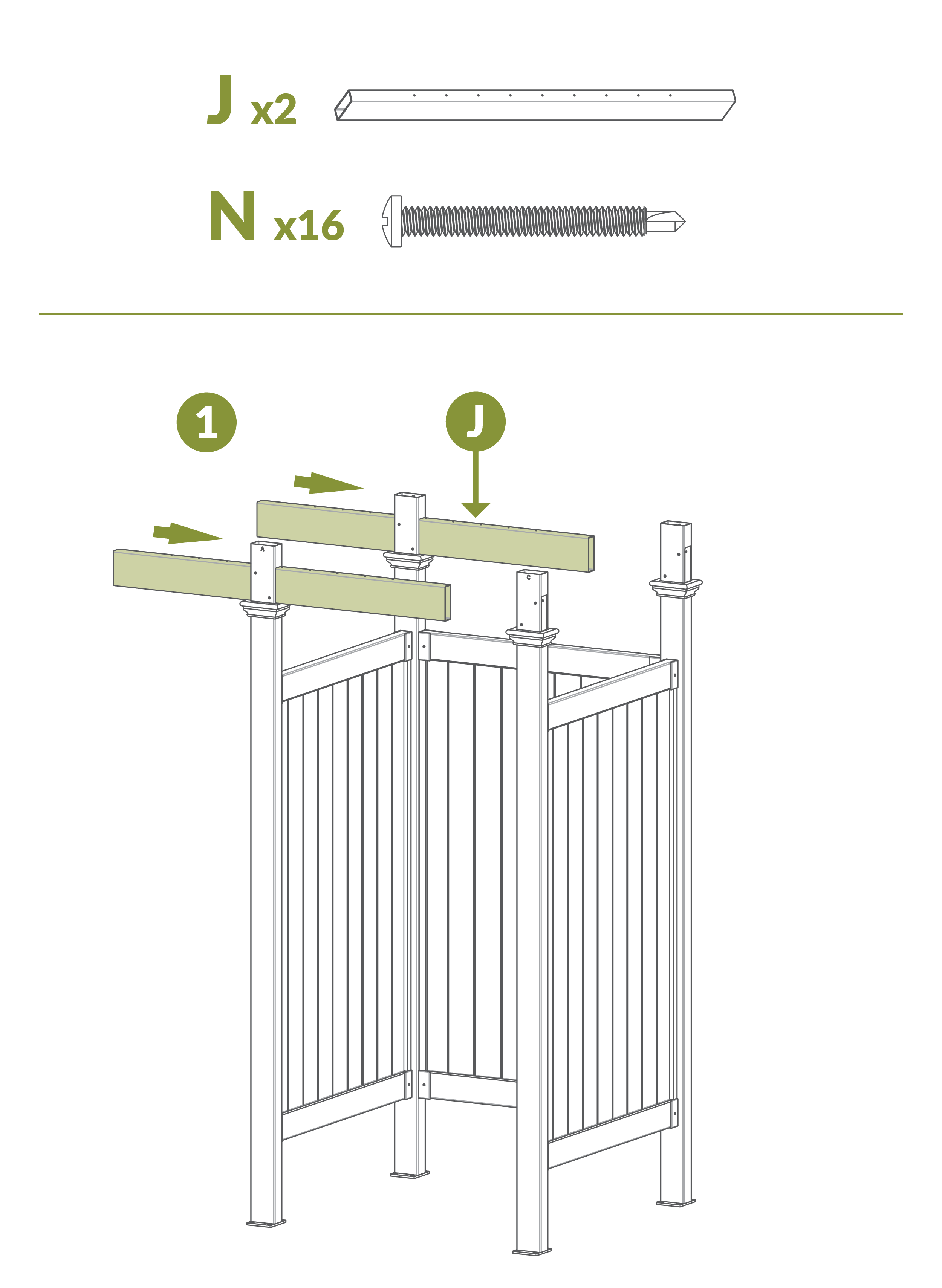

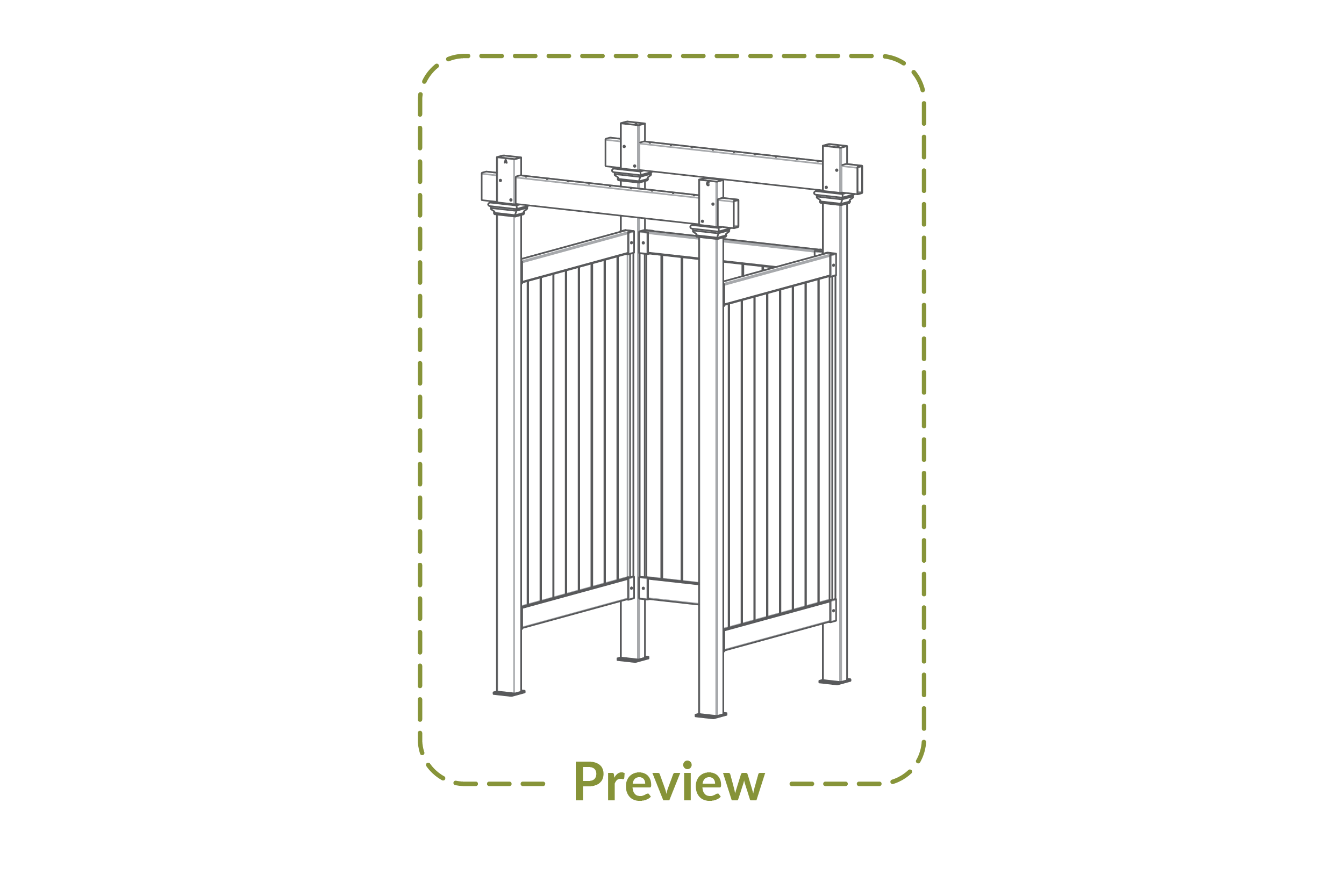

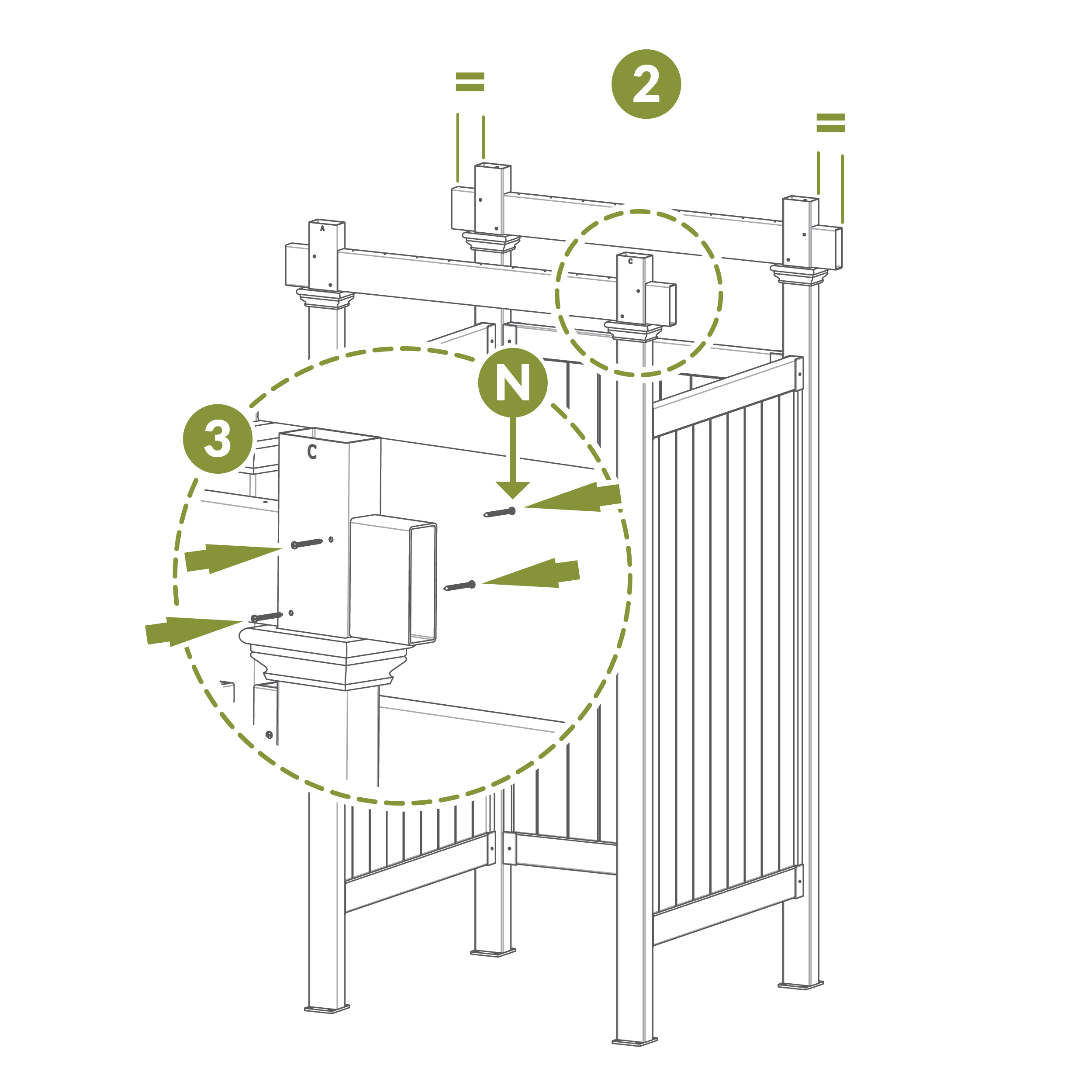

Step 7.2

• Slide the Beams (J) into the routed holes in the posts.

• Ensure that there is equal length of beam on each side of the shower.
• Secure the beams with (16) 1¼" White Self-Drilling Stainless Steel Screws (N).

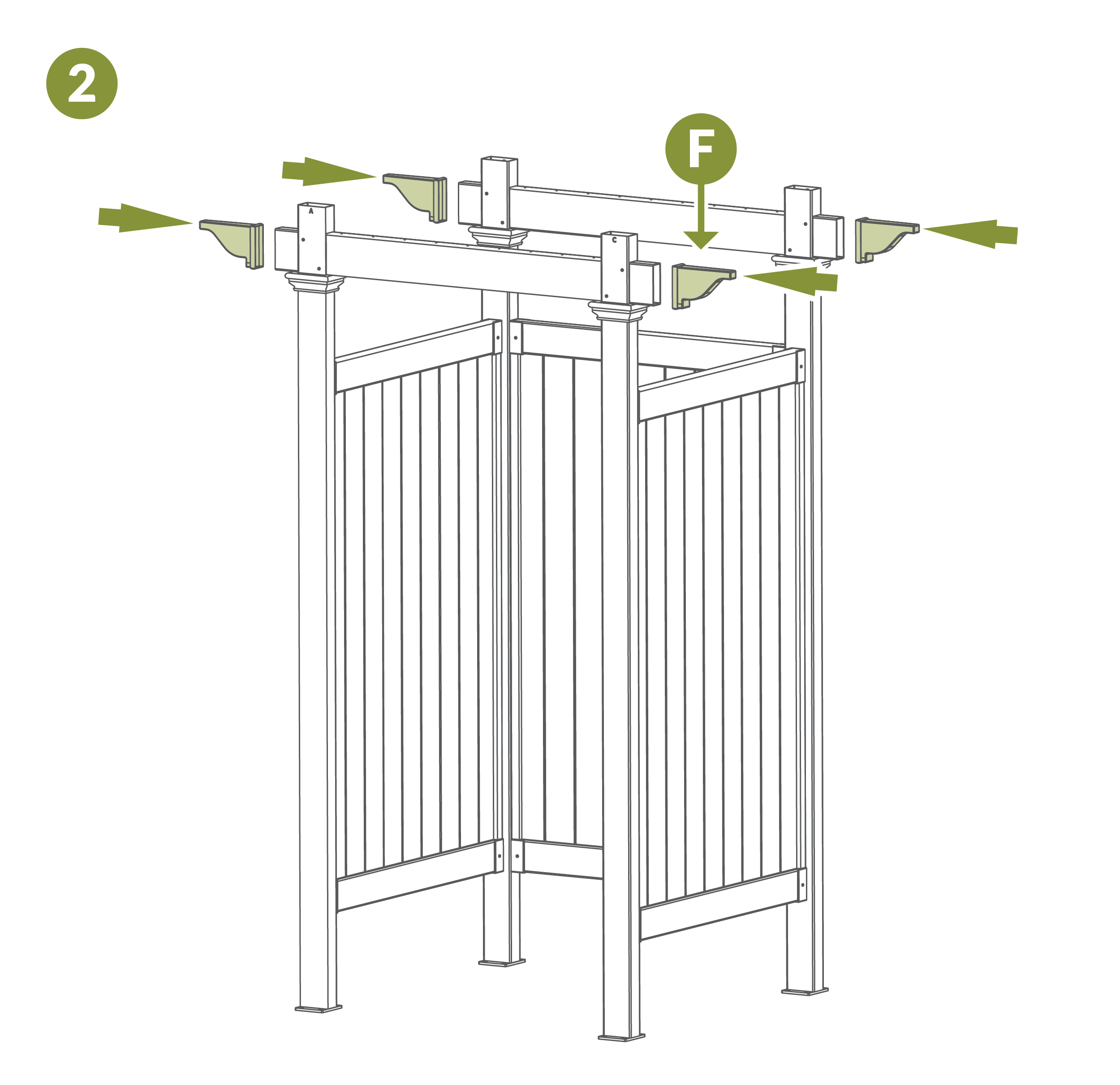

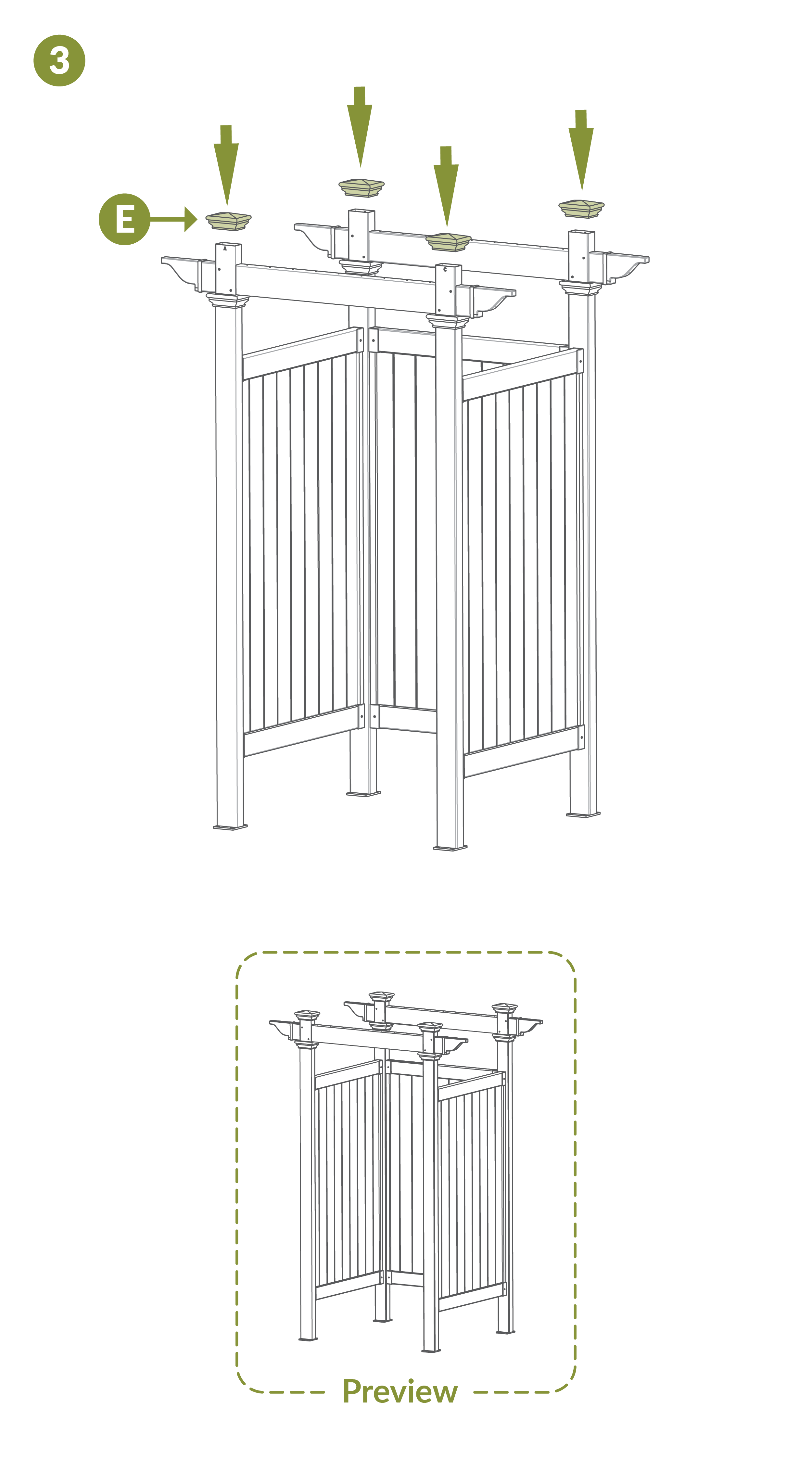

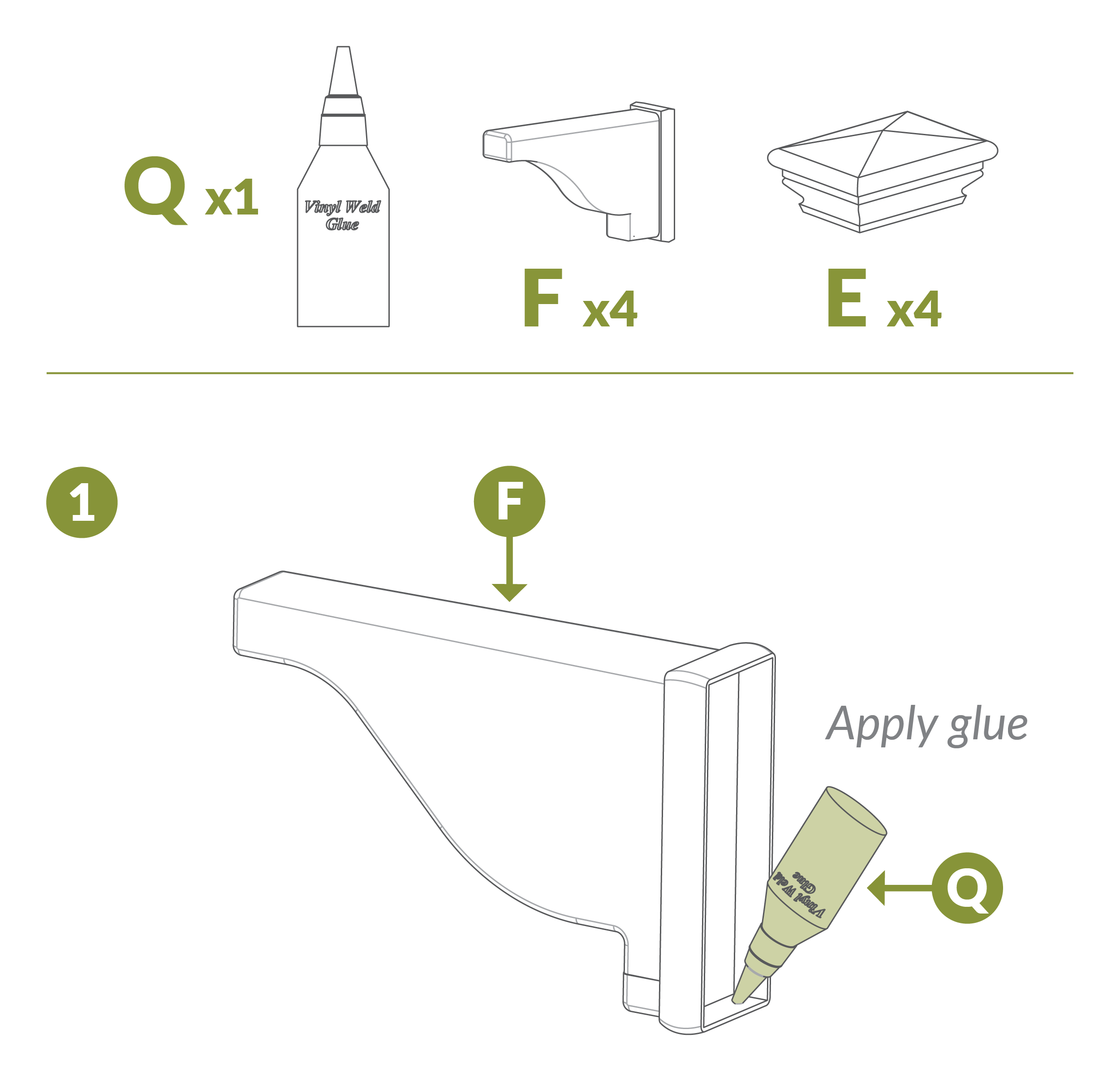

Step 7.3

• Apply a small amount of Vinyl Glue (Q) to the inside rim of the Decorative End Caps (F).

• Attach the decorative end caps to the ends of the Beams (J).

• Pressure fit (4) Post Caps (E) over the posts.

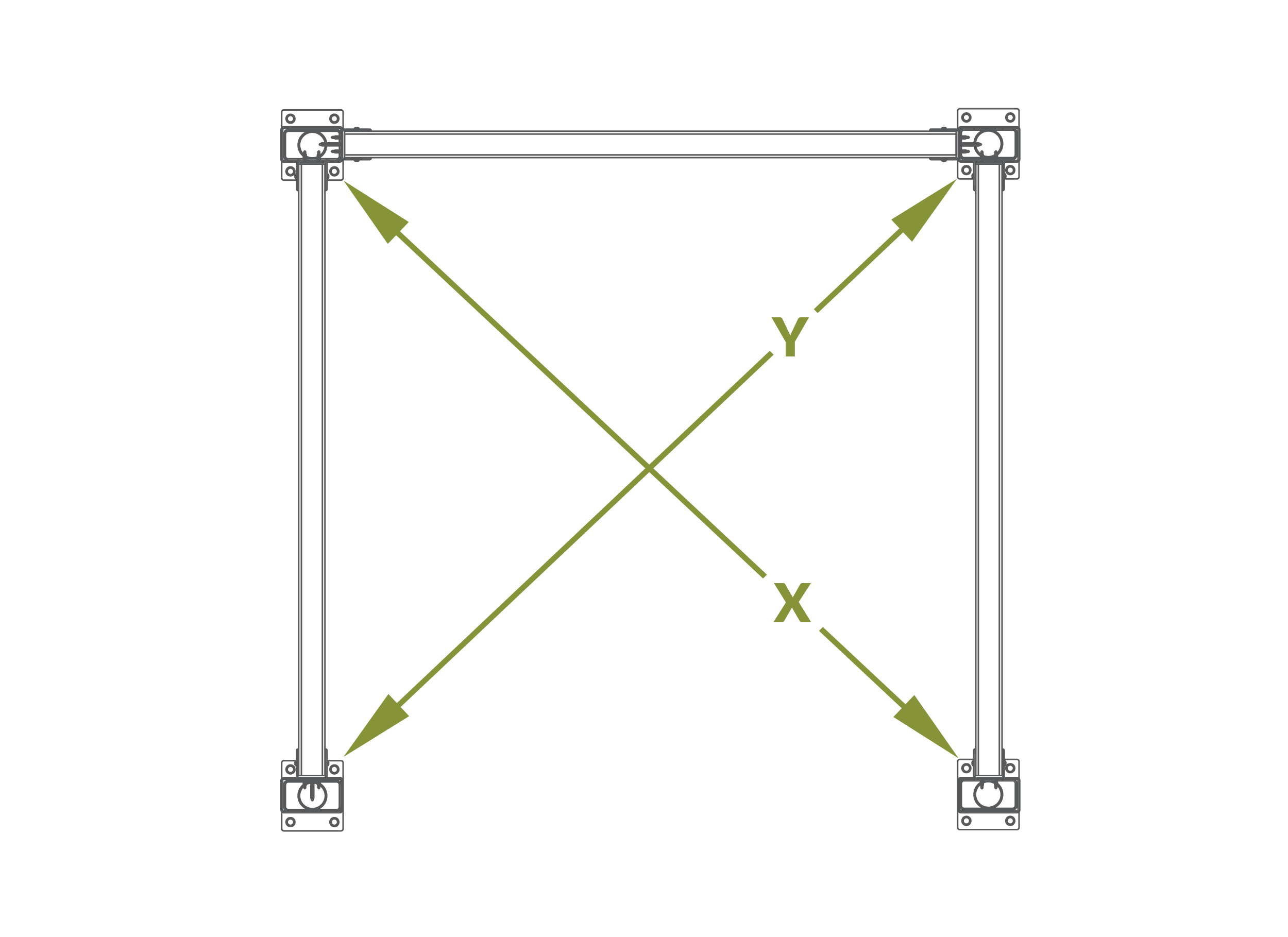

Step 8.1

• Visually square the unit in the space where you plan to install your shower.
• The diagonal distance between your posts must be equal for your unit to be square.

Step 8.2a

Surface Mount Install:

• Mark the hole locations for all 4 surface mounts.
• Use ¼" x 3" concrete wedge anchors (not included) to secure the surface mounts or similar size lag screw if mounting on wood.

Note: If your concrete is not level, insert galvanized steel washers under the lower side of the surface mount until it is level. Next, secure the surface mounts with wedge anchors. A hammer drill will be needed for this step.

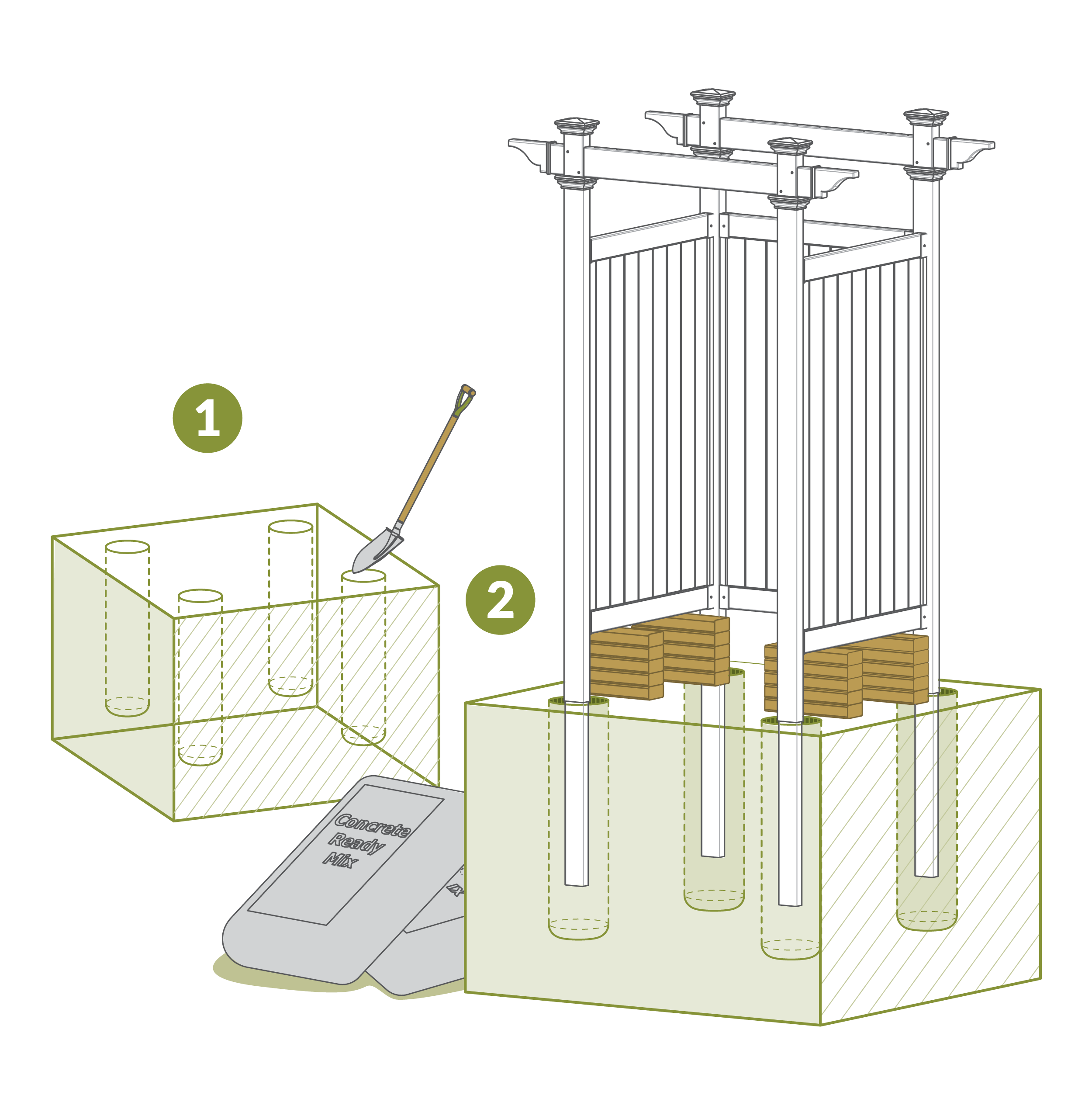

Step 8.2b

Post Extension Install:

• Mark the post locations and temporarily set the unit aside. Dig (4) 9" diameter holes, 36" deep, at the post locations.
• Lower the unit into the ground and fill the holes with concrete (not included).
• Use support blocks to support the unit while the concrete cures.

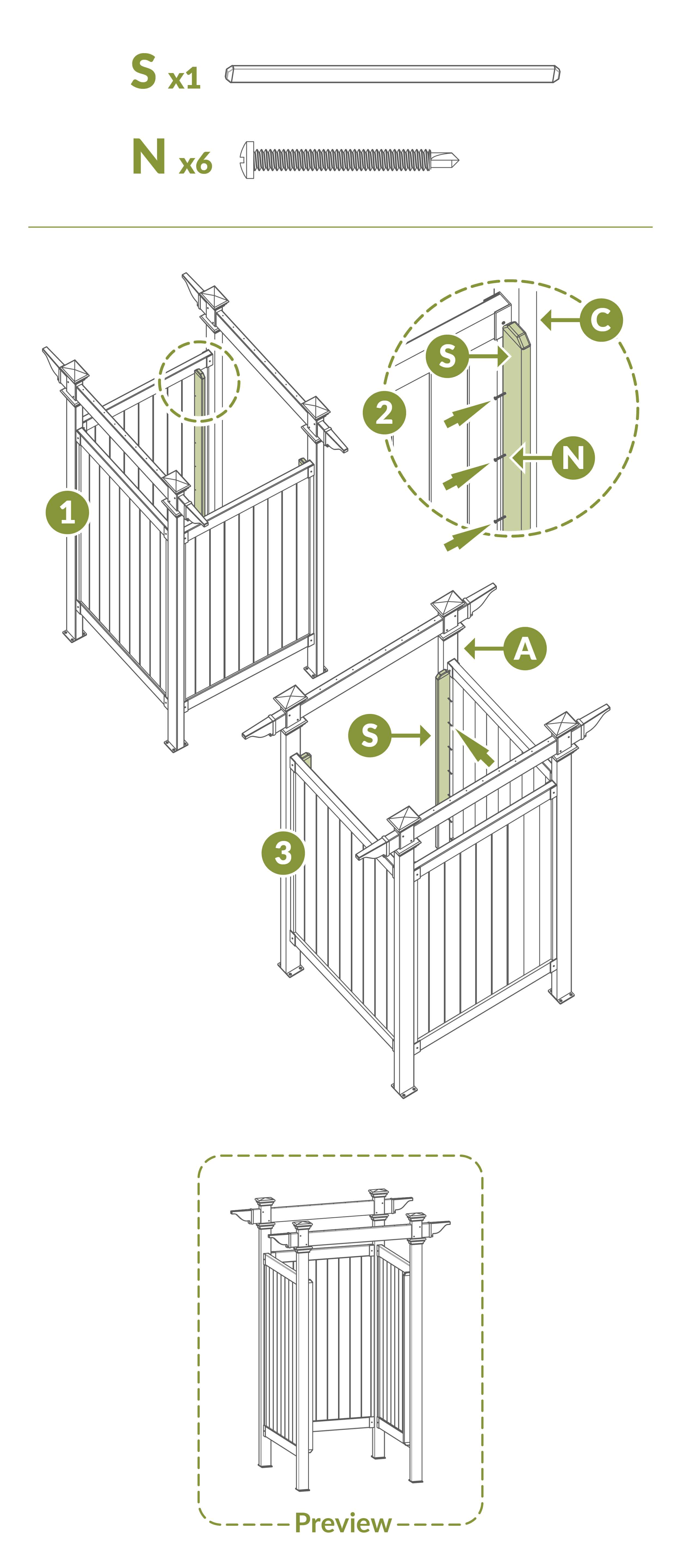

Step 9.1

• Place (1) Privacy Strip (S) against the inside of Post C C as shown. The top of the privacy strip should be roughly 1½" below the Horizontal Rail (K).
• Drive (6) 1¼" White Self-Drilling Stainless Steel Screws (N) through the pre-drilled holes in the privacy strip.
• Repeat this process for Post A A.

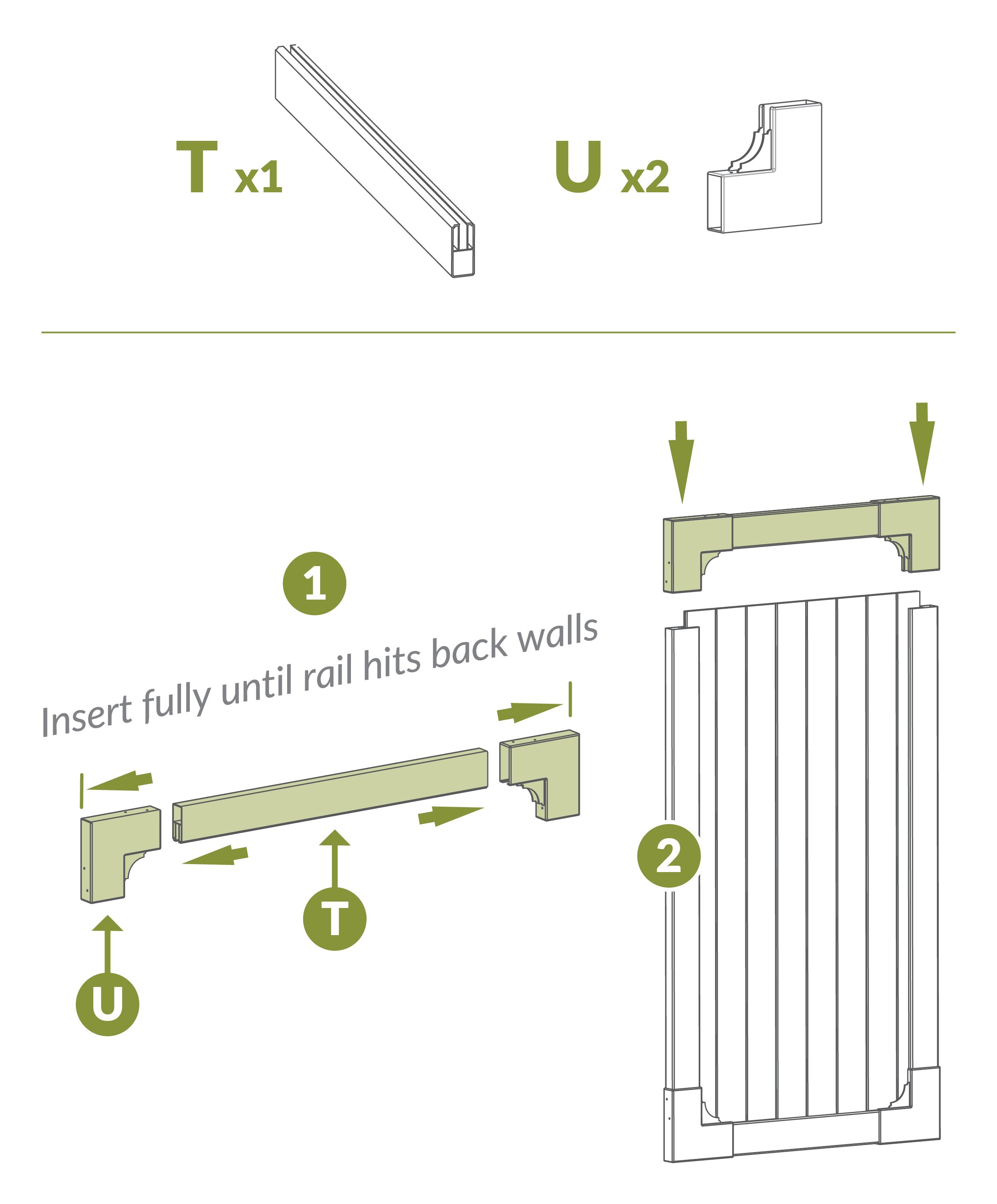

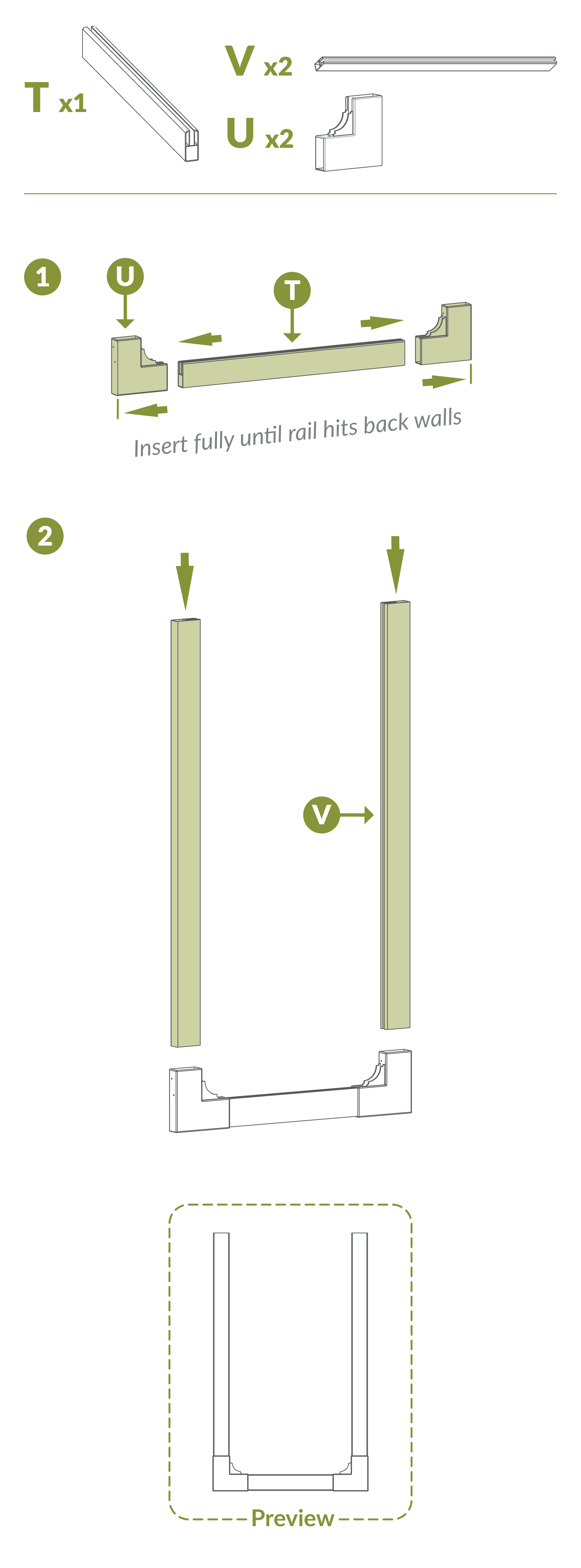

Step 10.1

• Insert (1) Door Horizontal Rail (T) into (2) Corner Brackets (U) until it hits the back wall.
• Insert (2) Vertical Door Rails (V) into the corner brackets until they bottom out against the door horizontal rail.

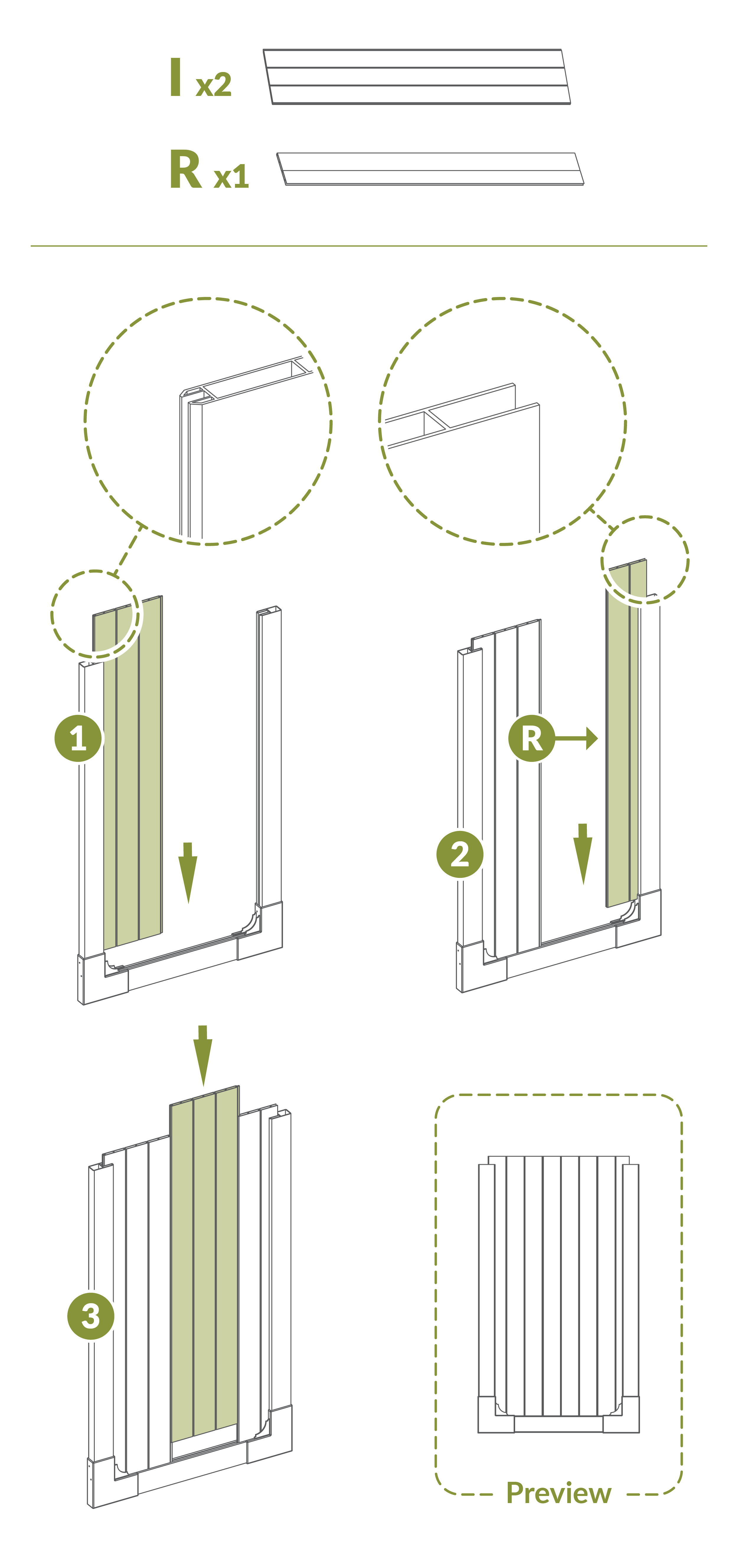

Step 10.2

• Insert (1) Privacy Board (I) into the vertical door rail down into the groove of the Door Horizontal Rail (T).
• Insert the Privacy Board-Narrow (R) into the opposite Vertical Door Rail (V).
• Slide the final Privacy Board (I) between the two boards as shown.

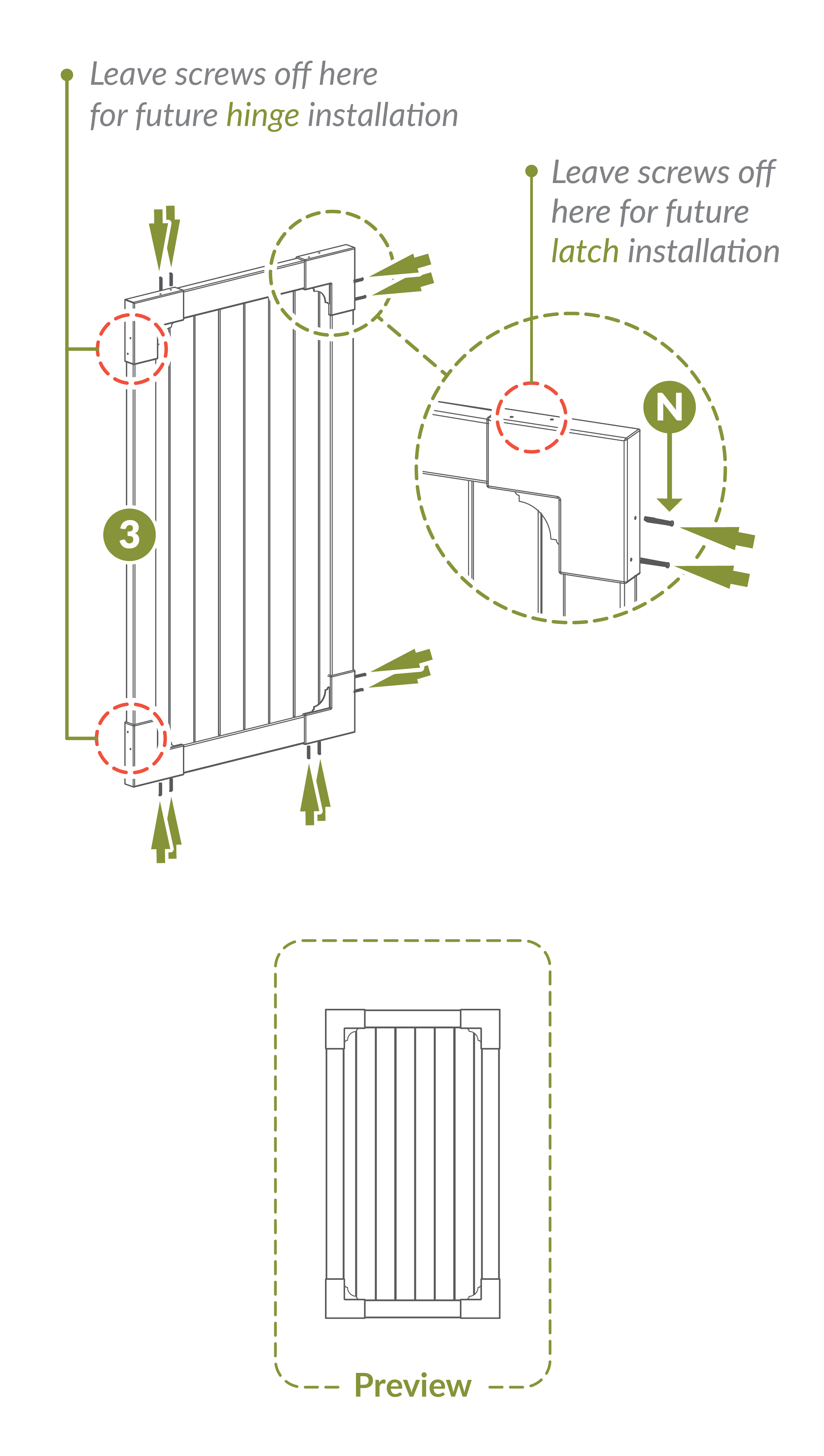

Step 10.3

• Assemble the top of the door frame the same as the bottom of the door frame.
• Slide the top of the door frame over the vertical door rails.

• Secure the corner brackets to the rails using (11) 1¼" White Self-Drilling Stainless Steel Screws (N) as shown.

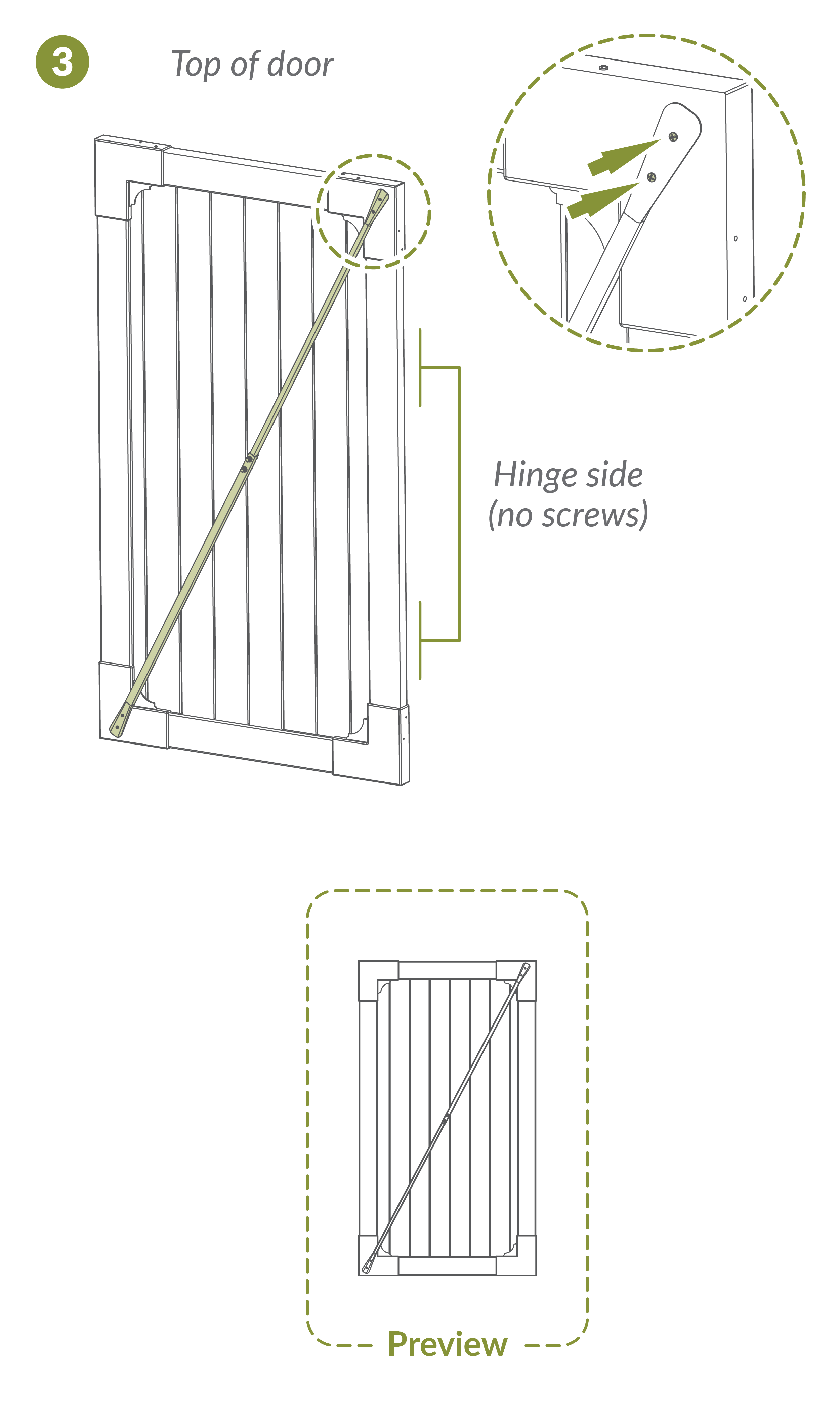

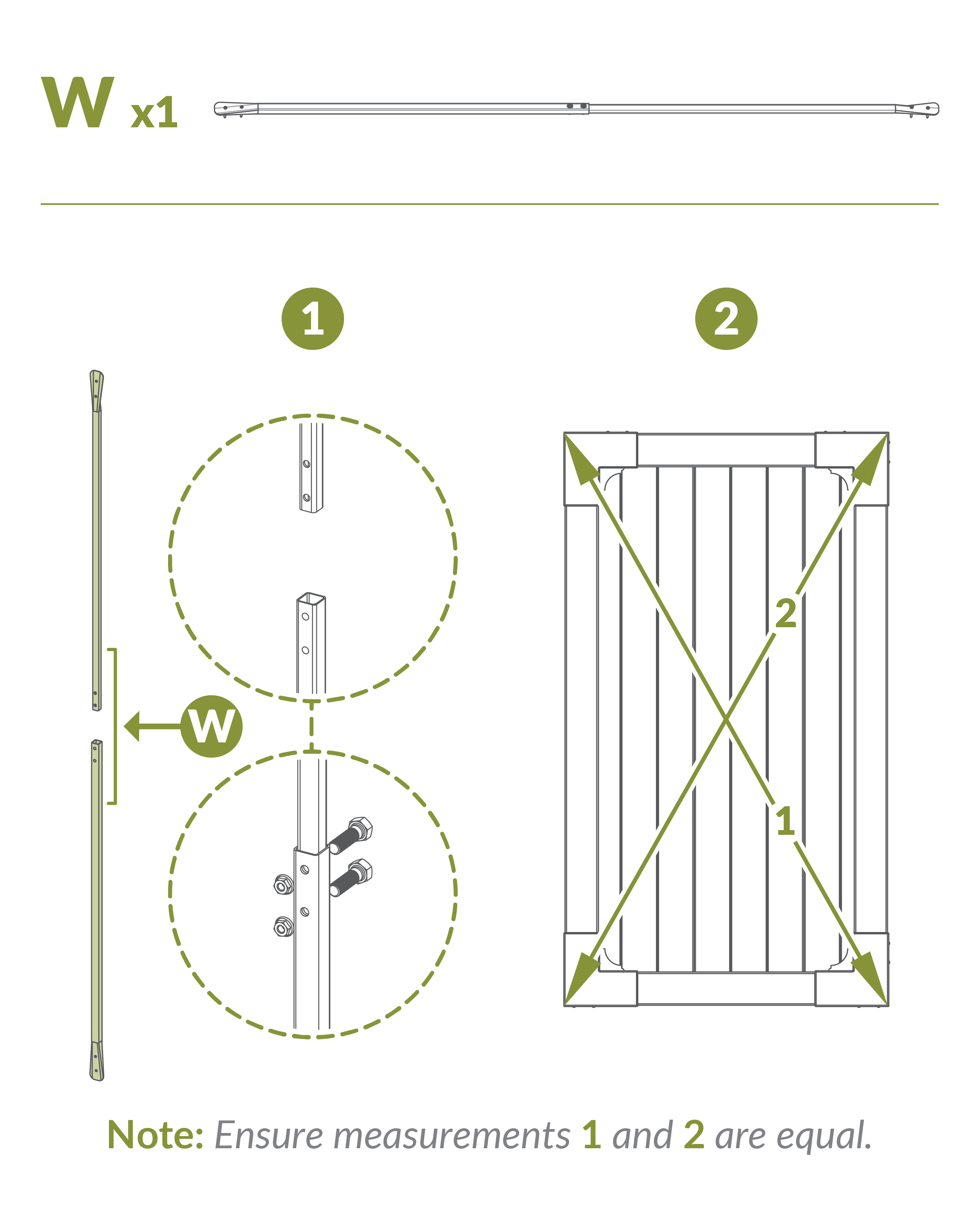

Step 10.4

• Assemble the Door Brace (W) by sliding the smaller door brace part 1 into the larger door brace part 2.
• Align the holes.
• Secure with the ¾" bolts and nuts packaged with the door brace.
• Ensure that the door is square as shown below.

• Screw the door brace (W) into place using the (4) screws packaged with the brace.

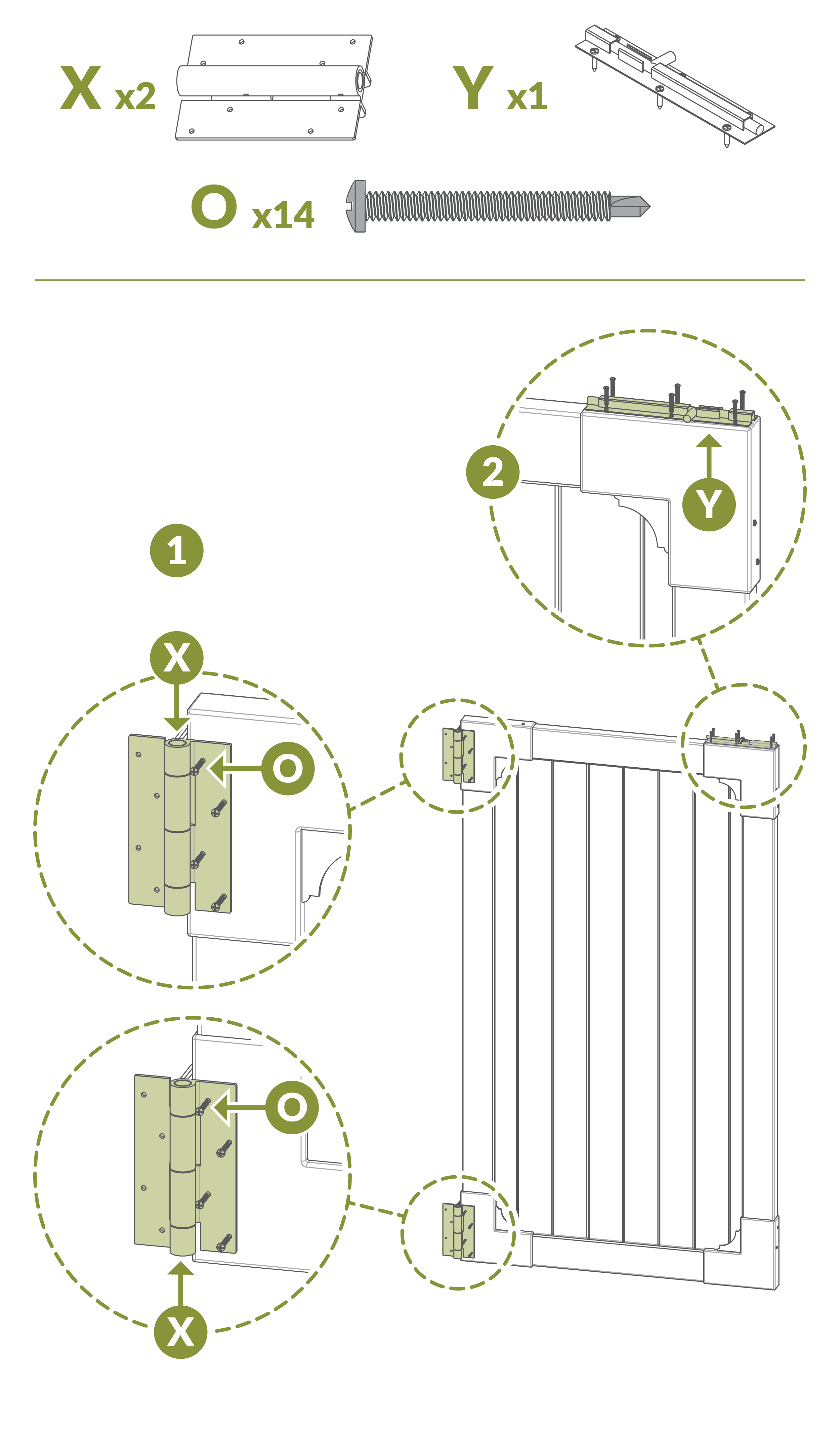

Step 11.1

• Secure the (2) Hinges (X) to the door with (8) 1¼" Black Self-Drilling Stainless Steel Screws (O) included with the hinge.
• Fasten the Latch (Y) to the top of the door with (6) 1¼" Black Self-Drilling Stainless Steel Screws included with the latch.

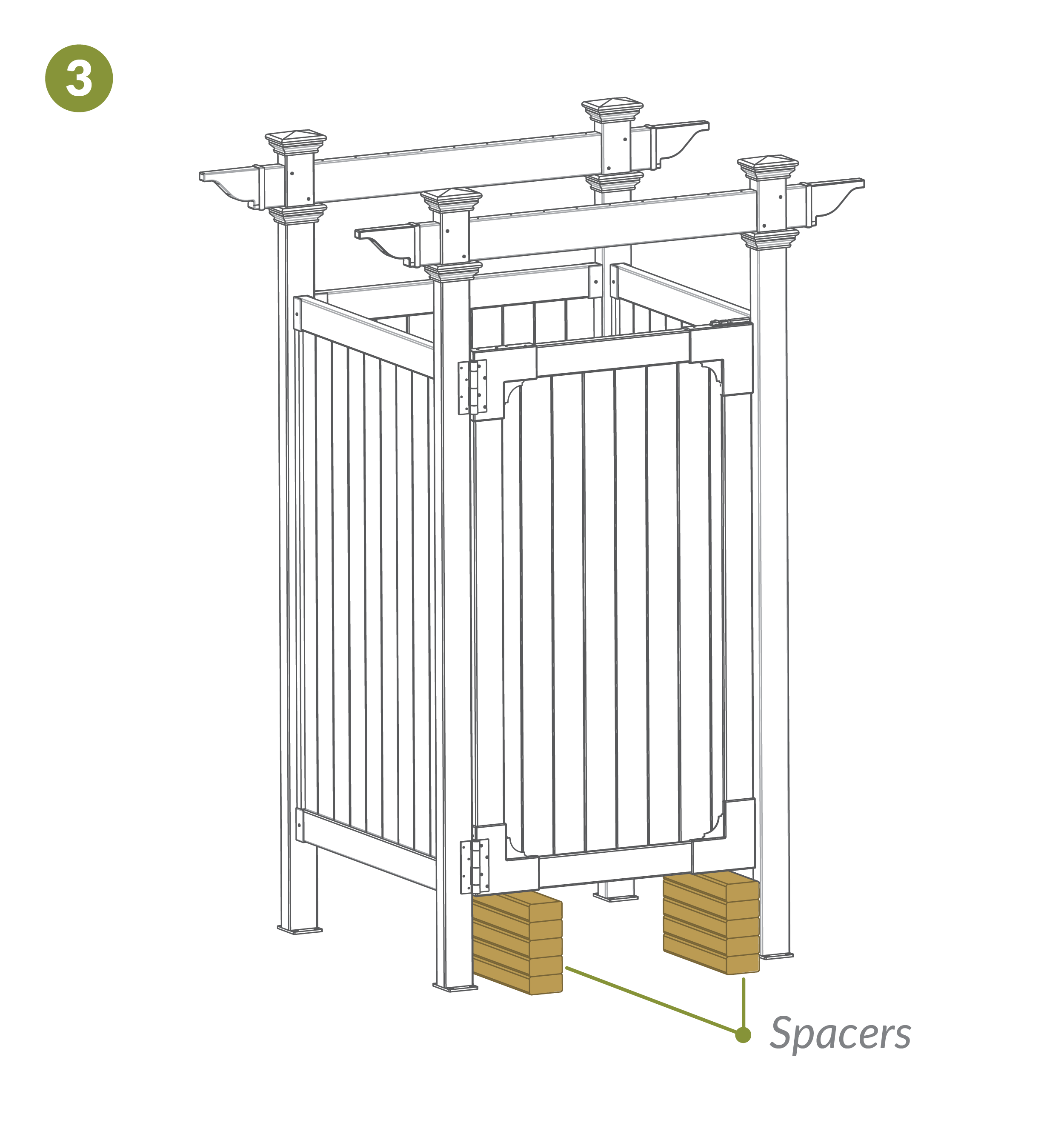

• Use temporary spacers (not included) to hold the door at the correct height during hinge installation in the next step.

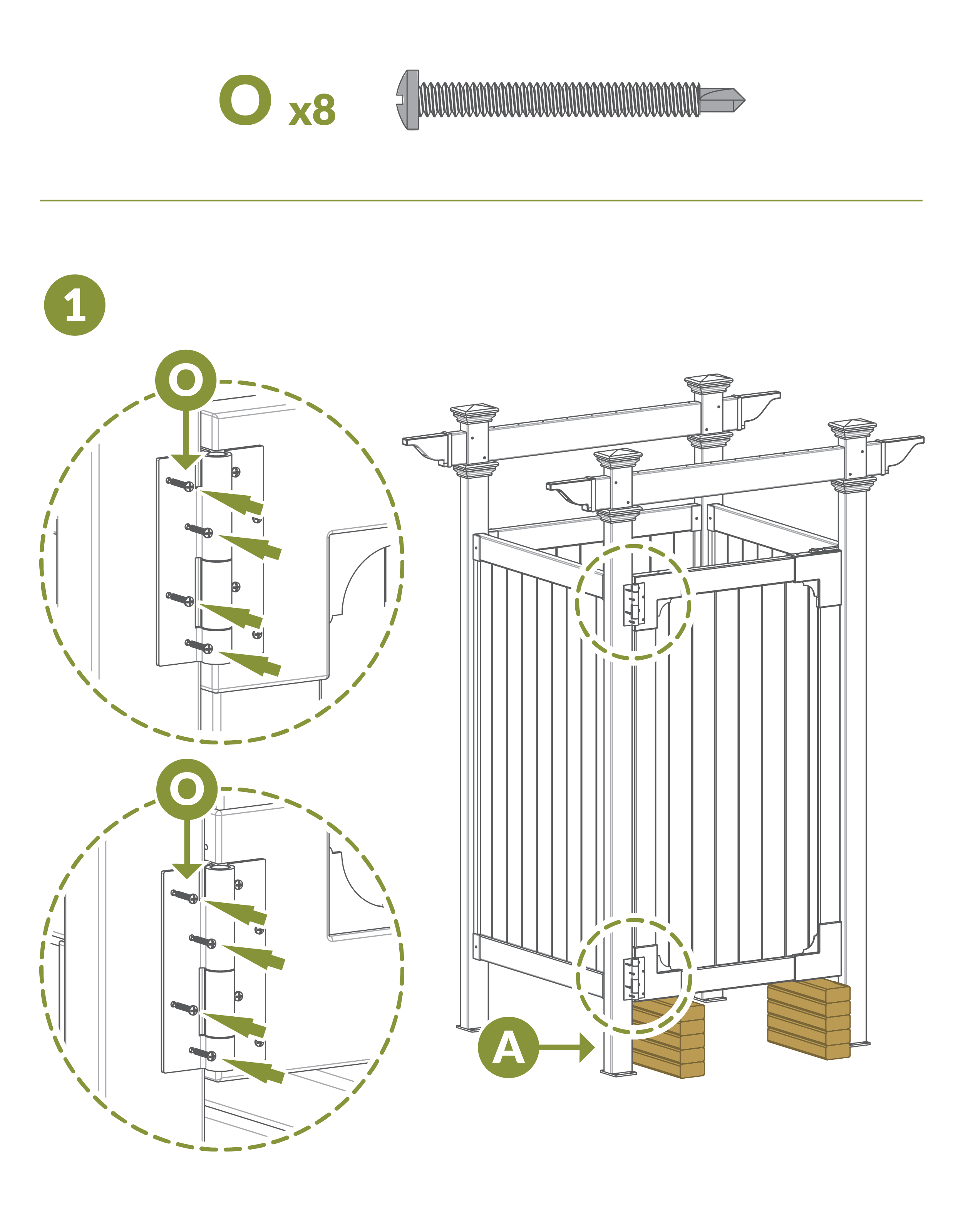

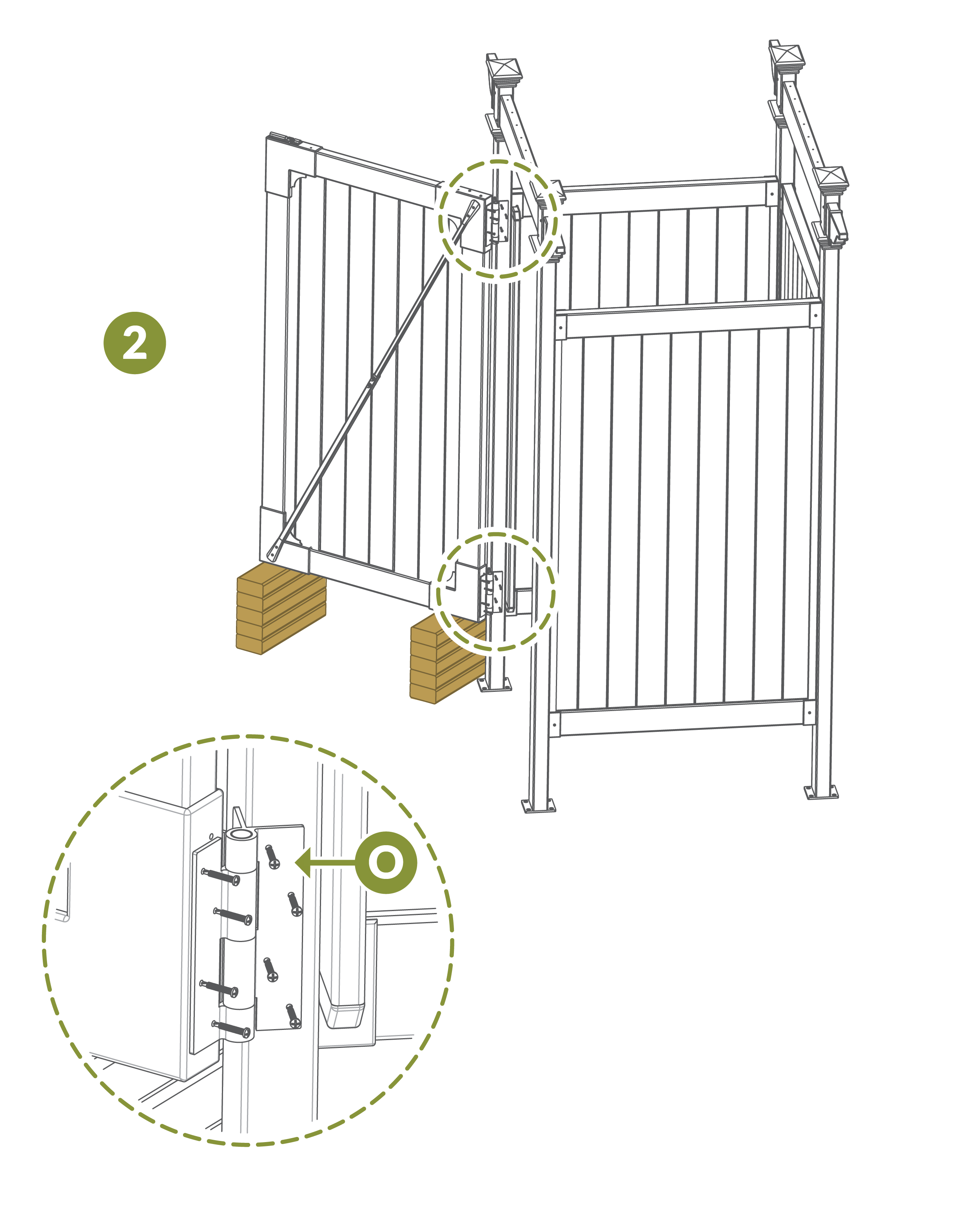

Step 11.2

• Secure the Hinges (X) to the outside of Post A A with (8) 1¼" Black Self-Drilling Stainless Steel Screws (O).

• Open the door and secure (16) 1¼" Black Self-Drilling Stainless Steel Screws (O) through the pre-drilled holes on the inside of the hinges.

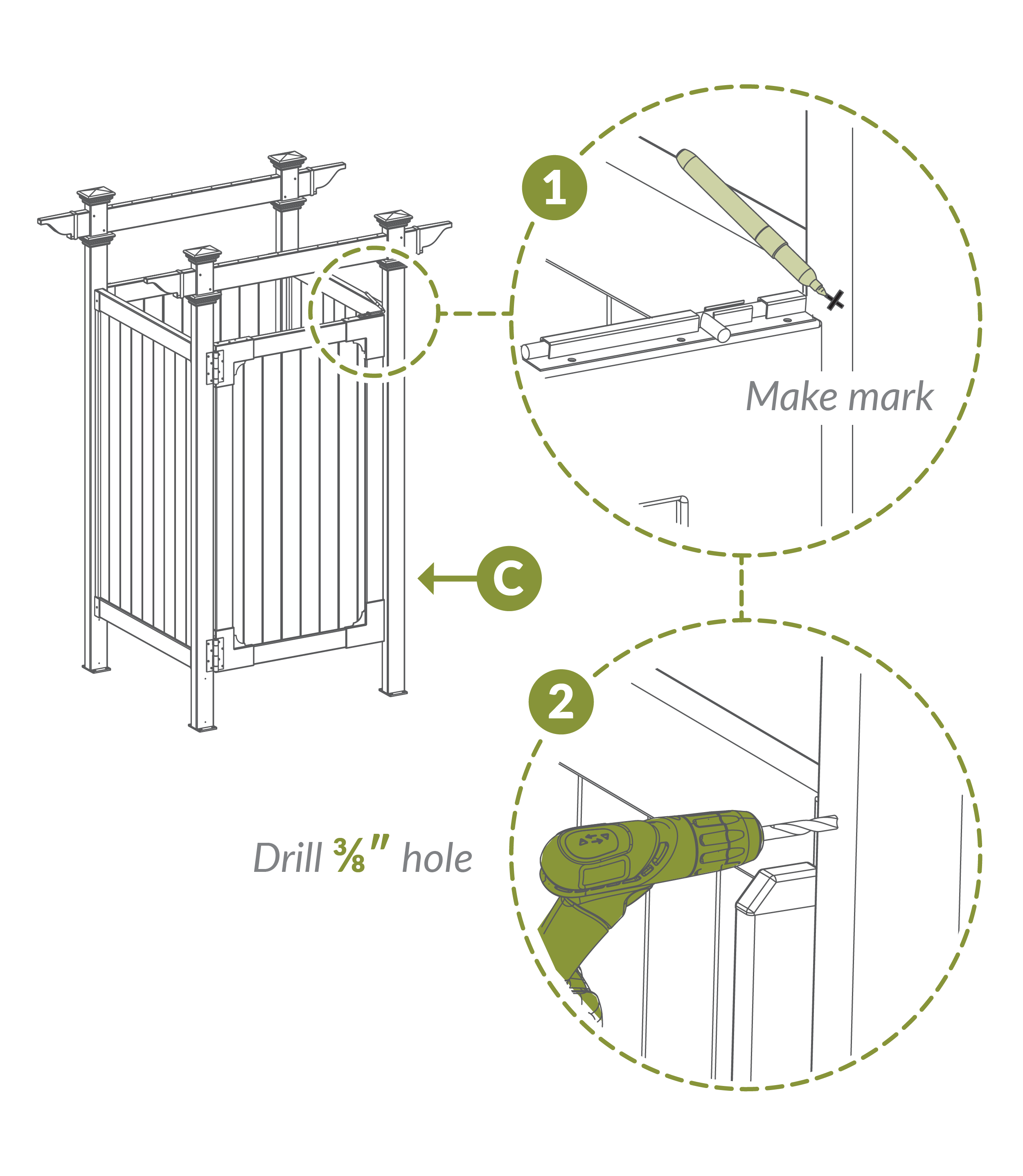

Step 11.3

• Mark where the latch bolt meets the post on post C.
• Drill a ⅜" hole at the marked location to receive the latch bolt.

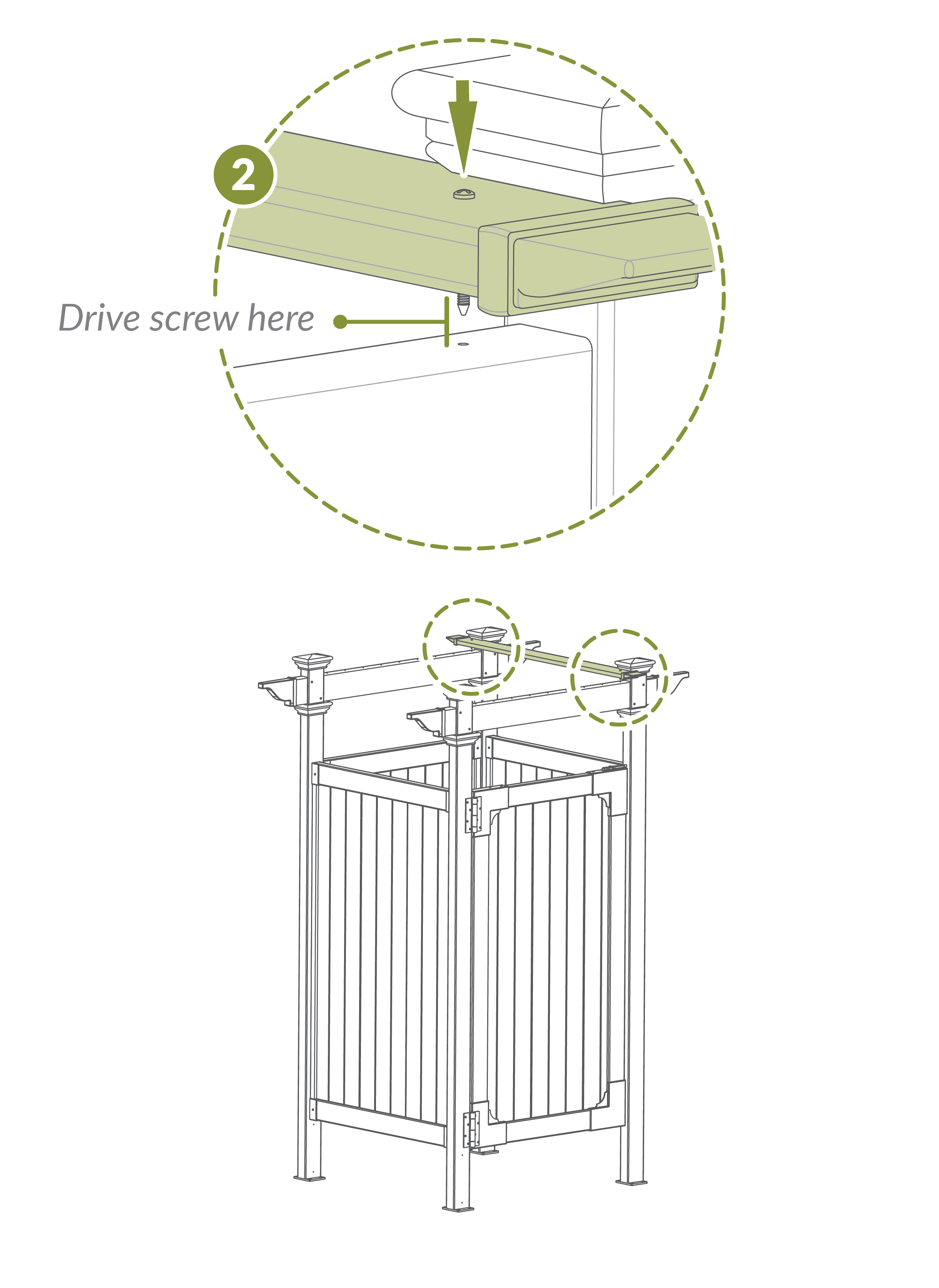

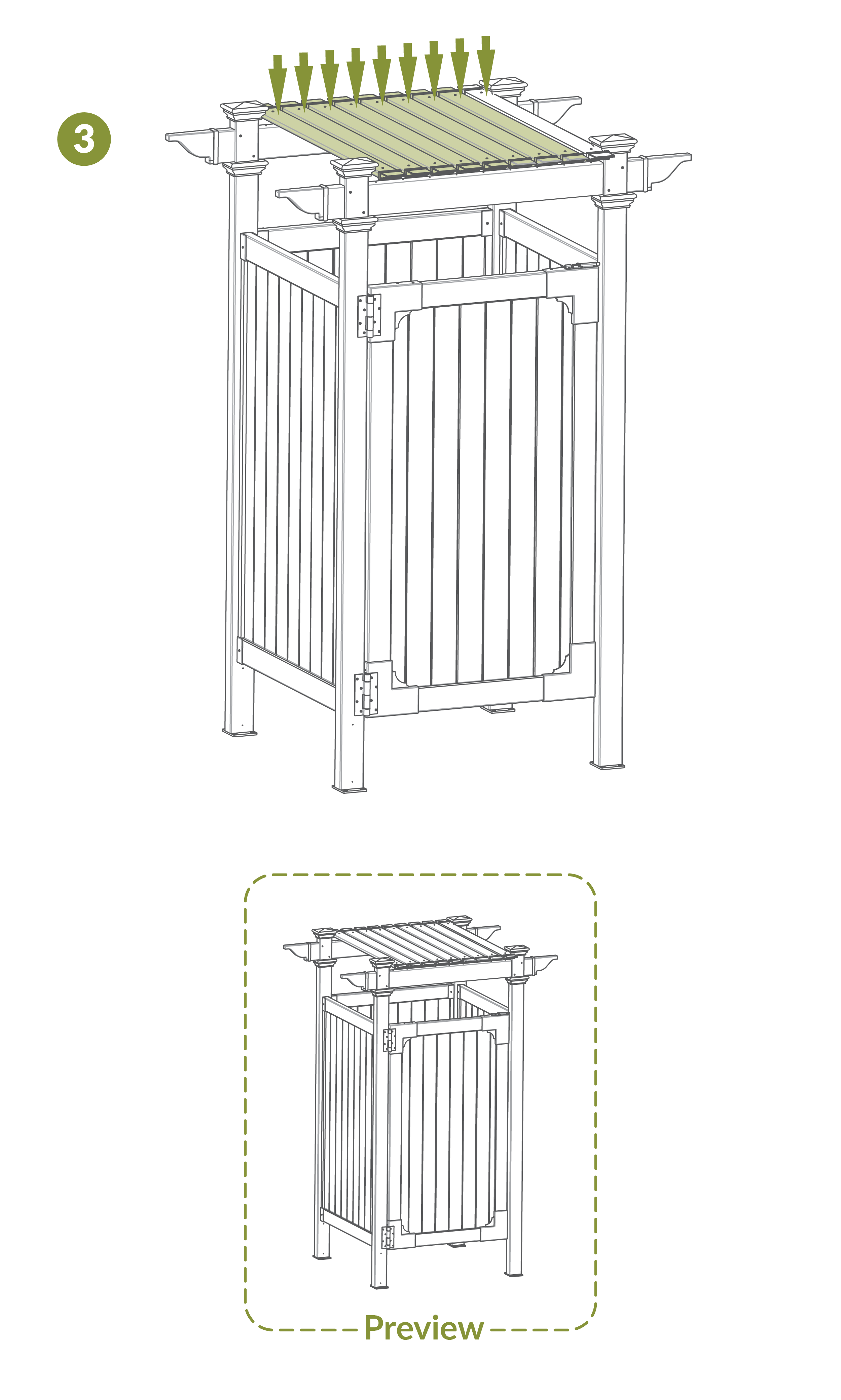

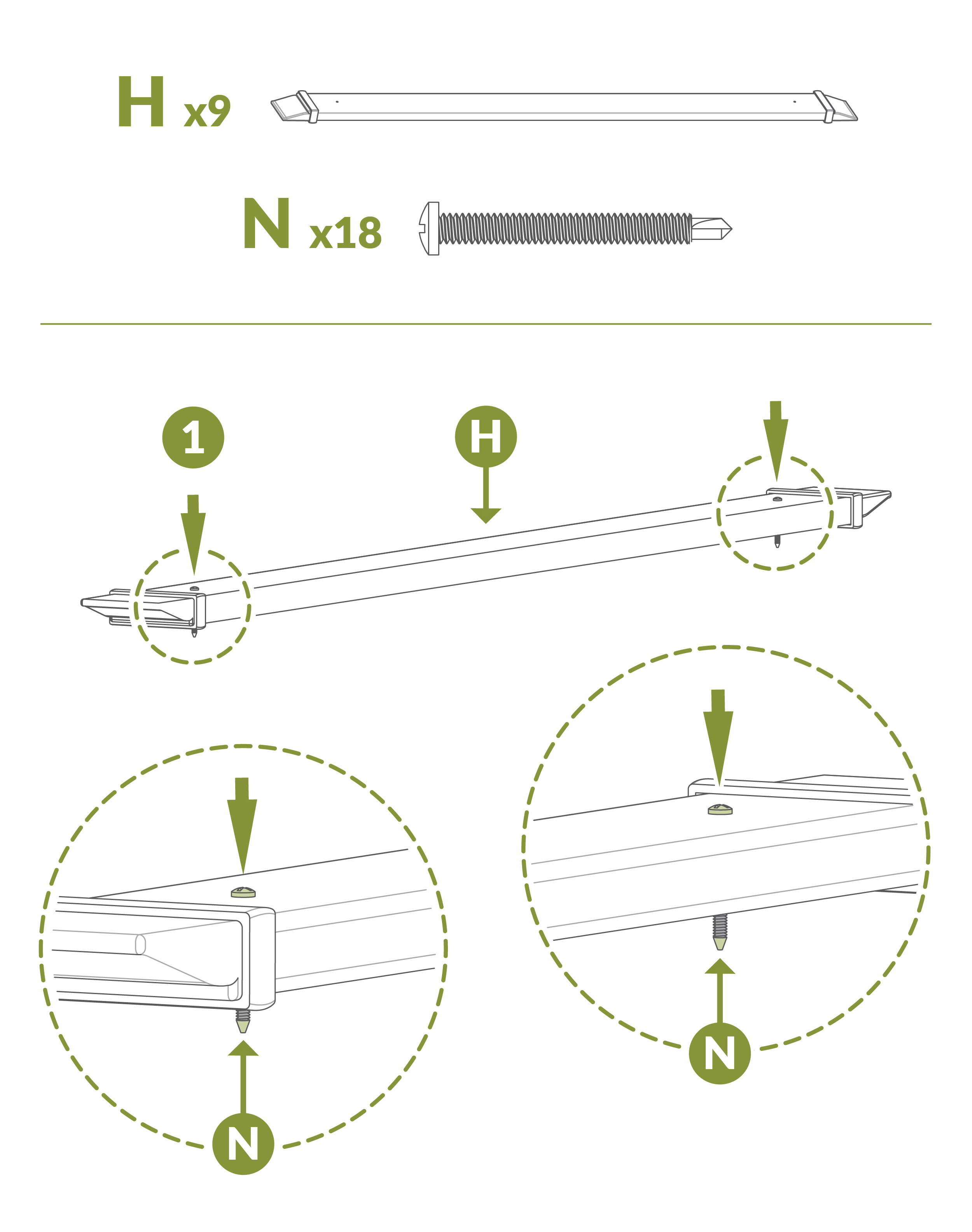

Step 12.1

• Fasten (1) 1¼" White Self-Drilling Stainless Steel Screw (N) through the pre-drilled hole on both ends of the Shade Slat (H).

• Place the screws in the shade slat on top of the beams and fasten them into the pre-drilled holes on top of the Beams (J).

• Repeat this process with the remaining shade slats.
