General Information

Important Safety Notes:

• Check the inside of the larger pieces in your box for other materials packed inside.

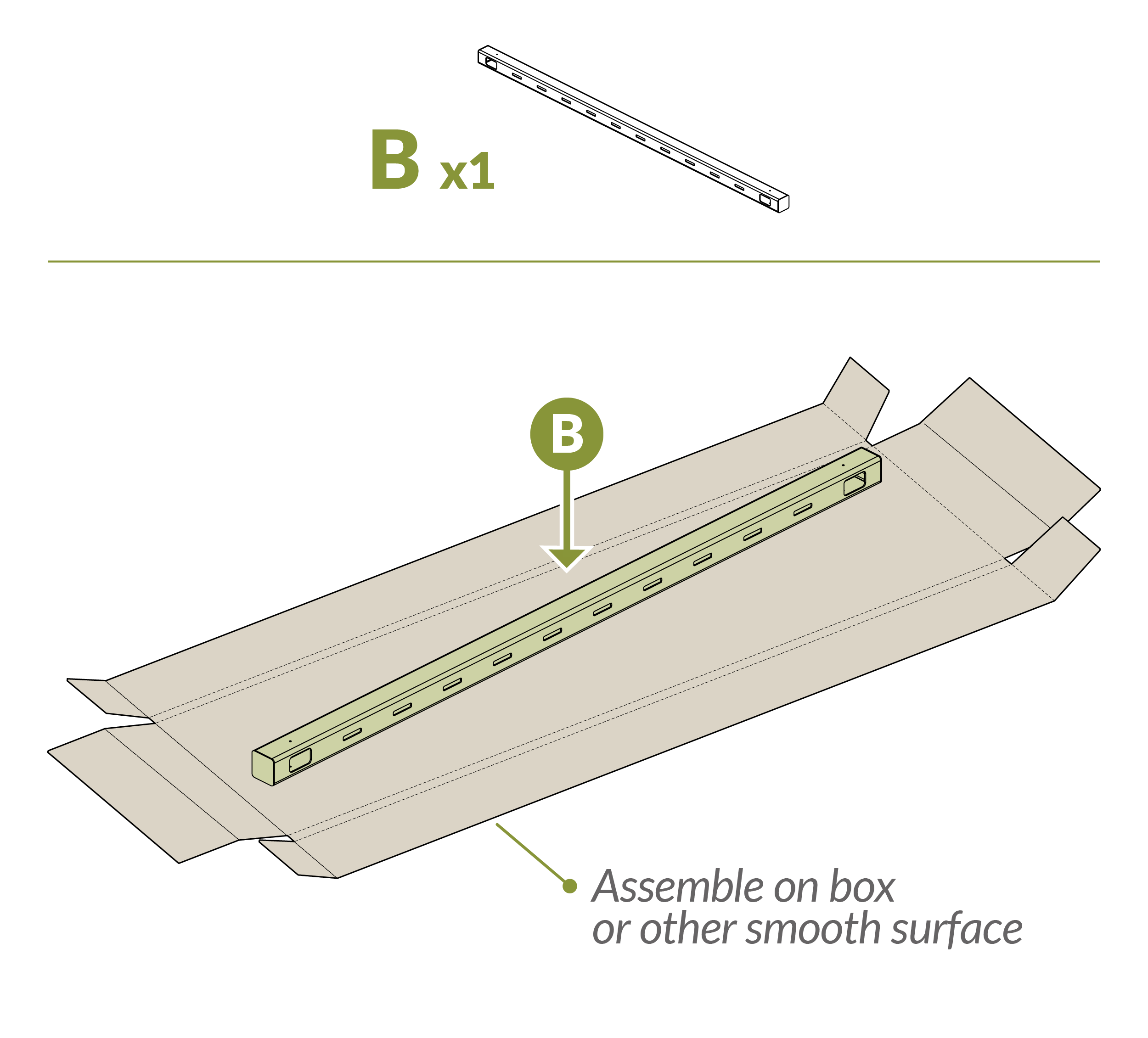

• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approximately 5’ x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is happy to help.

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number ZP19037
• Provide the specific part name
• Include the batch lot number found on the end of the box

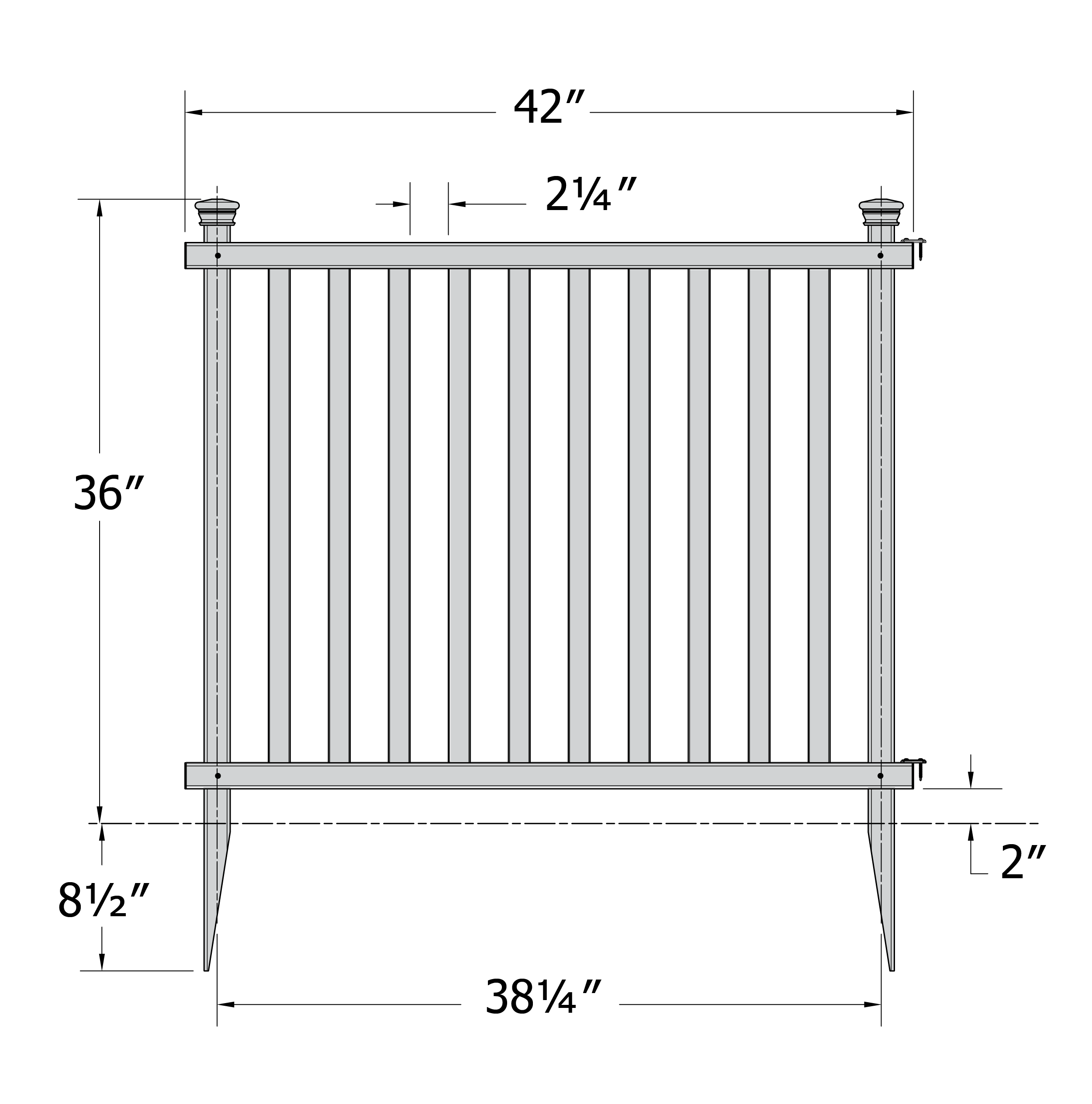

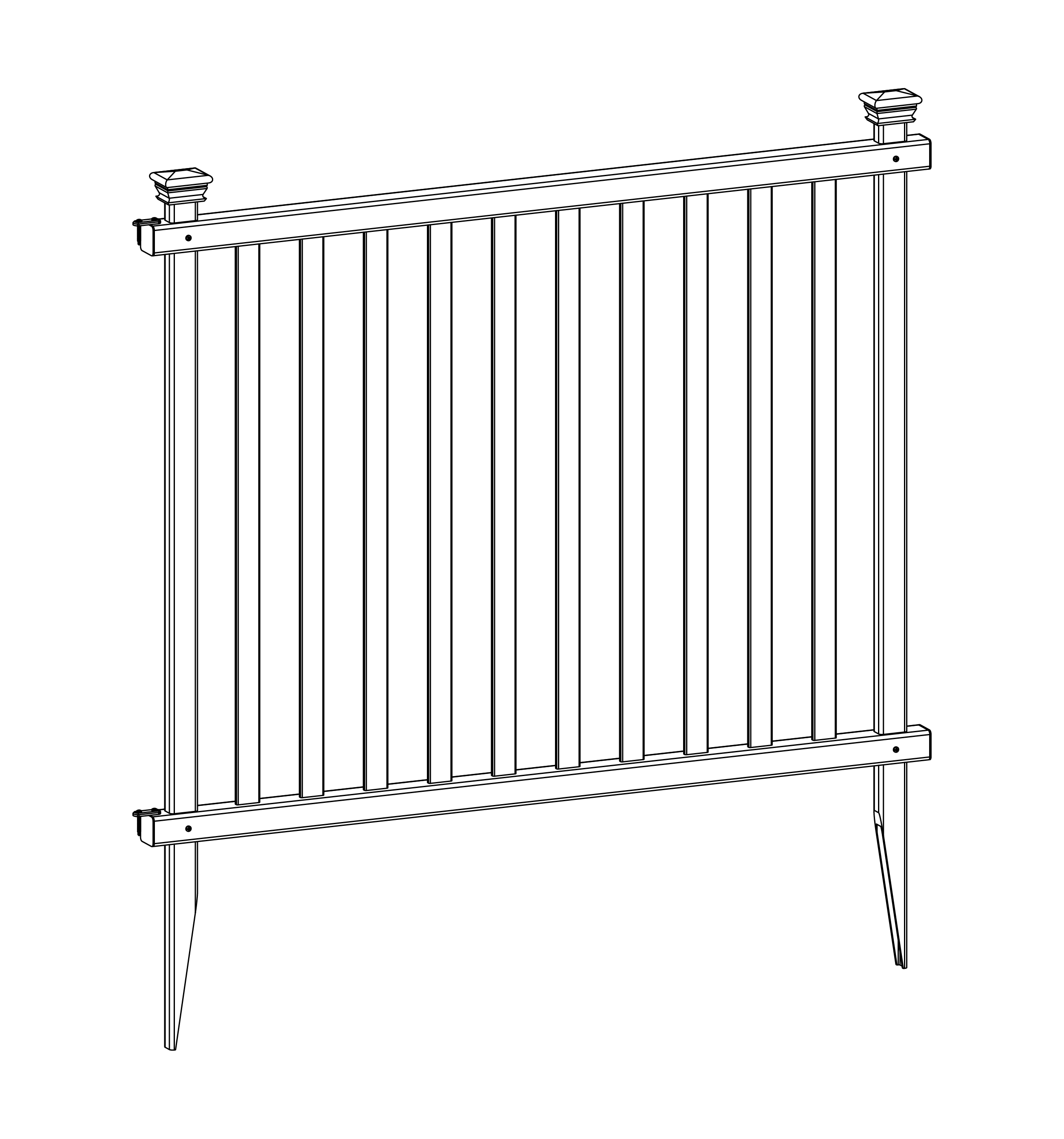

Detailed Dimensions & Specifications

Product Specifications:

• Panel width: 42 in
• Panel height: 36 in
• Post spacing (center-to-center): 38 ¼ in
• Approximate picket spacing: 2 in

Drill

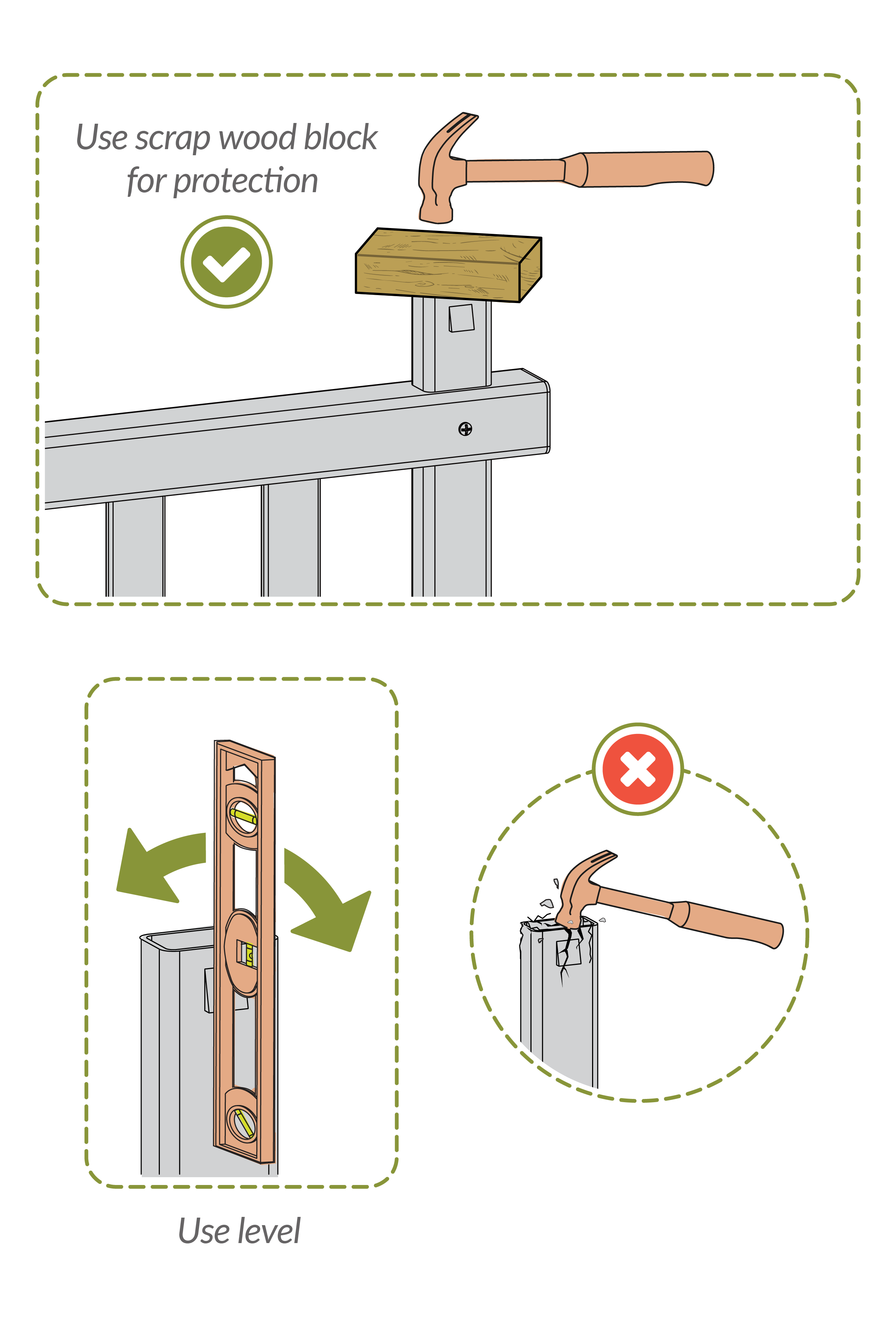

Mallet

Wood Block

Tulip Bulb Auger

Level

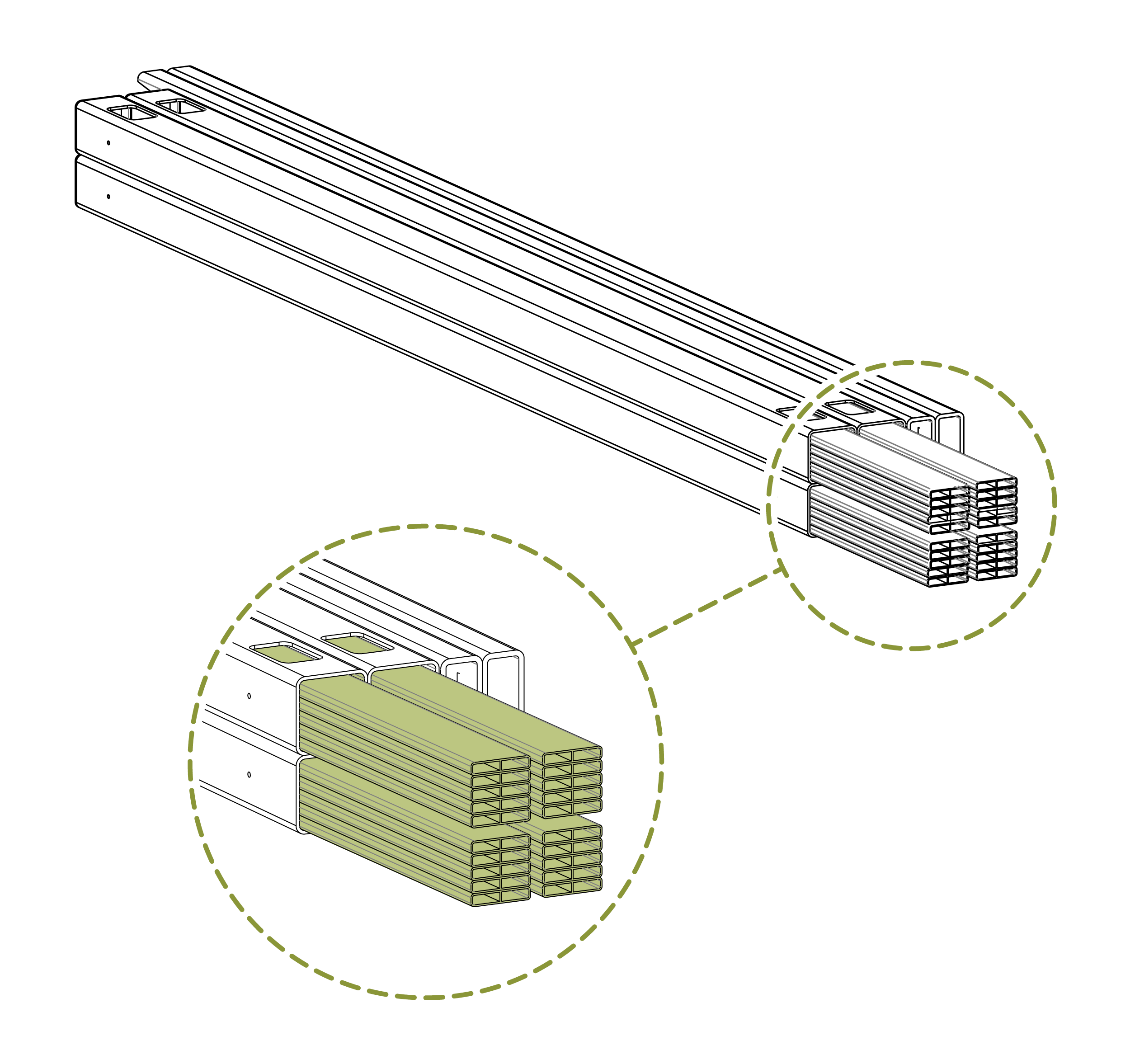

Smaller Pieces are Nested in Larger Pieces For Shipping Efficiency

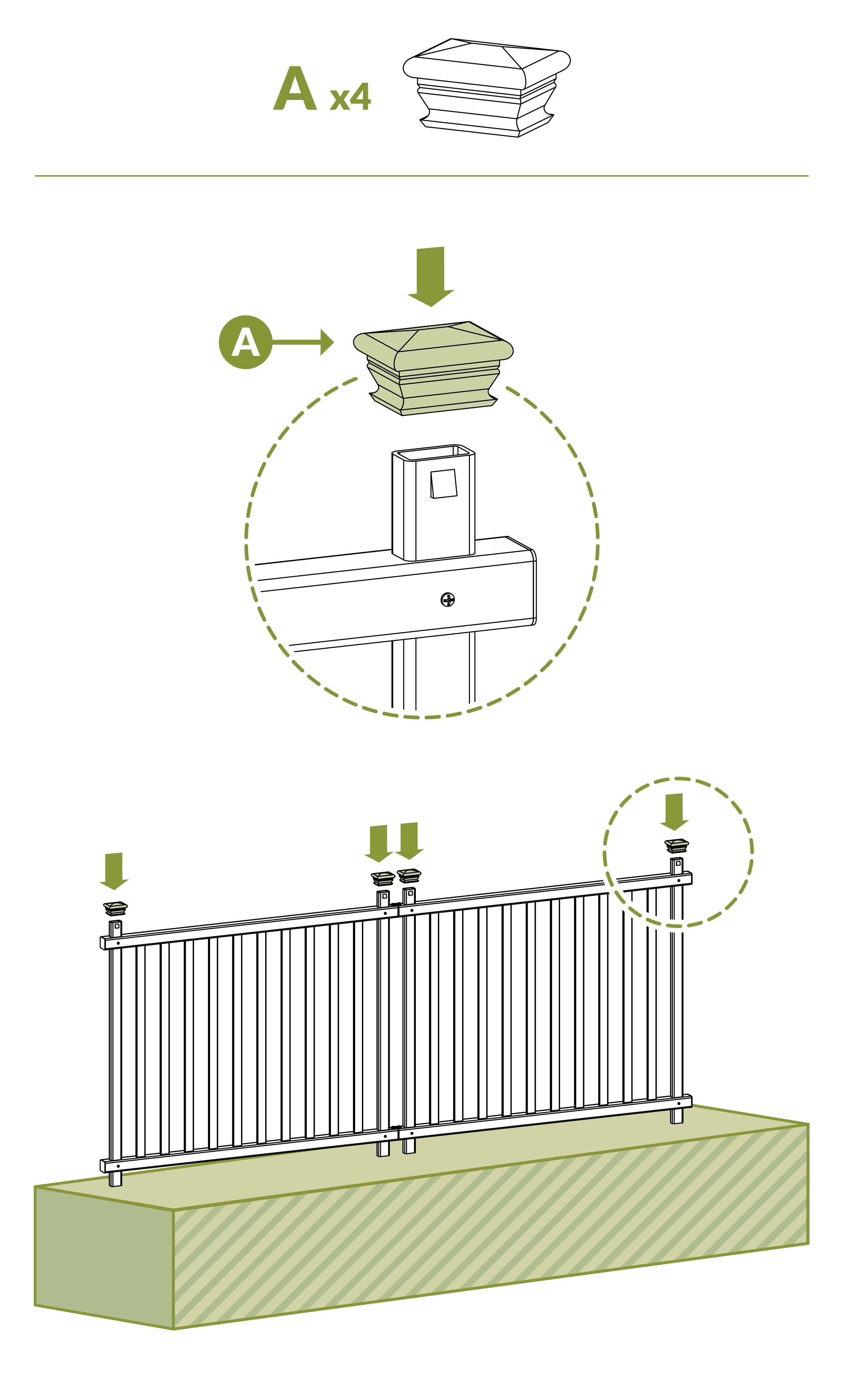

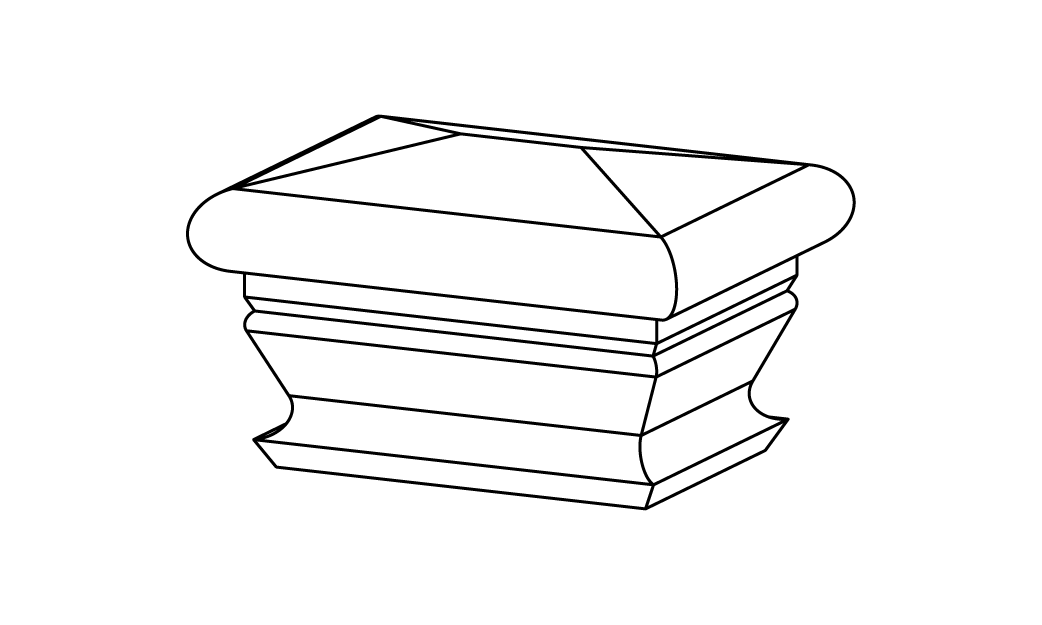

A. Post Cap (4)

B. Rail (4)

1½" x 1½" x 41⅞"

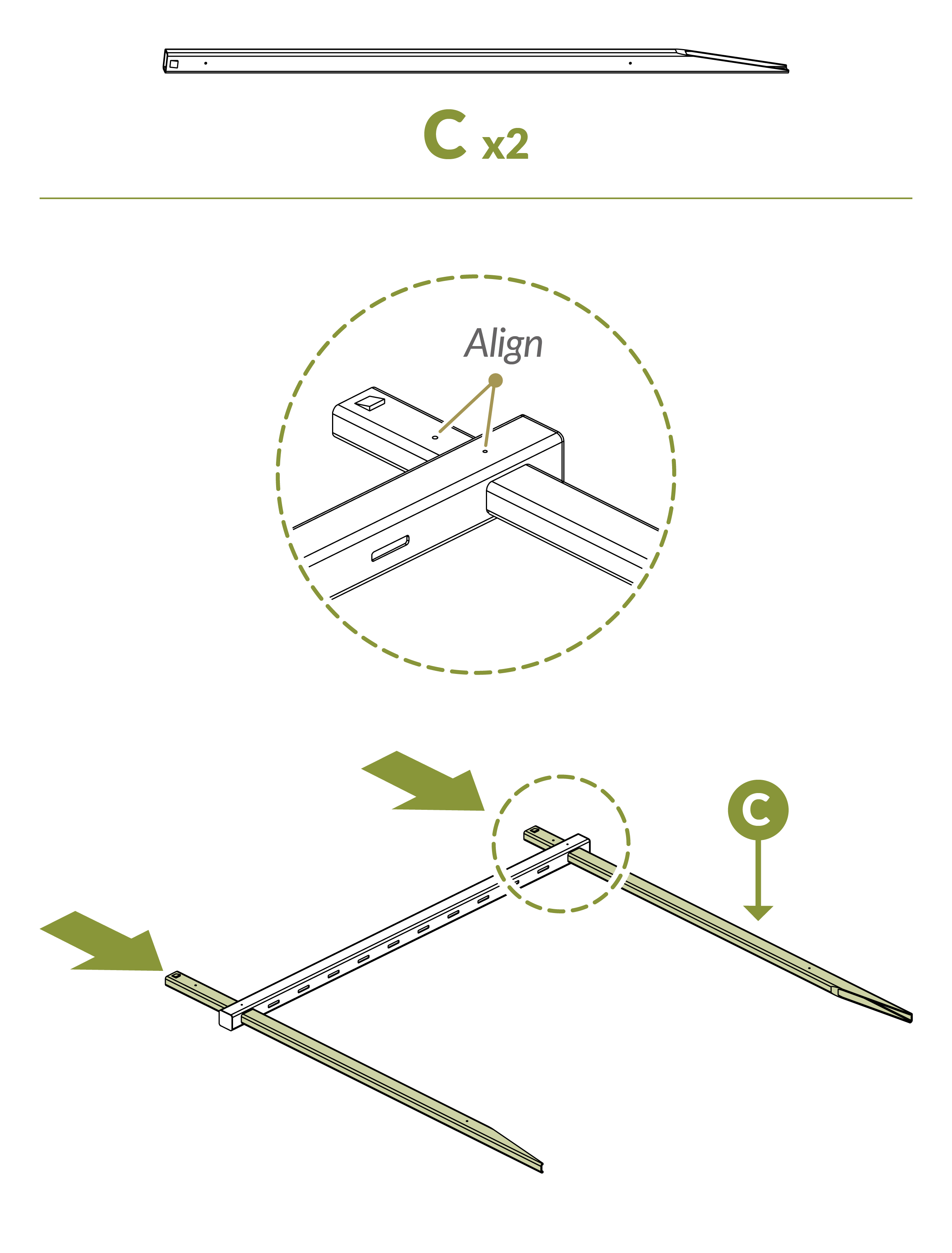

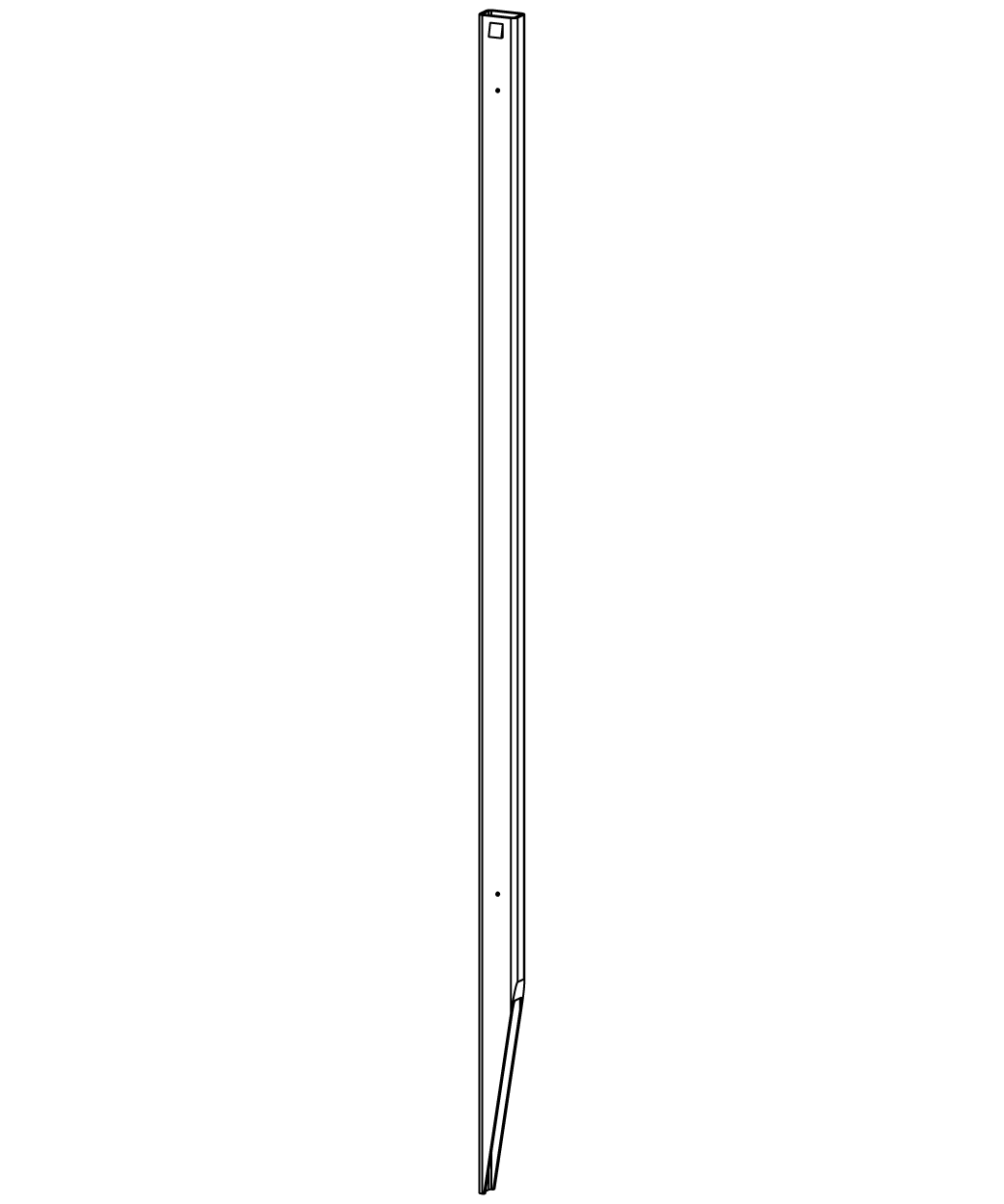

C. Post (4)

⅞" x 1½" x 44"

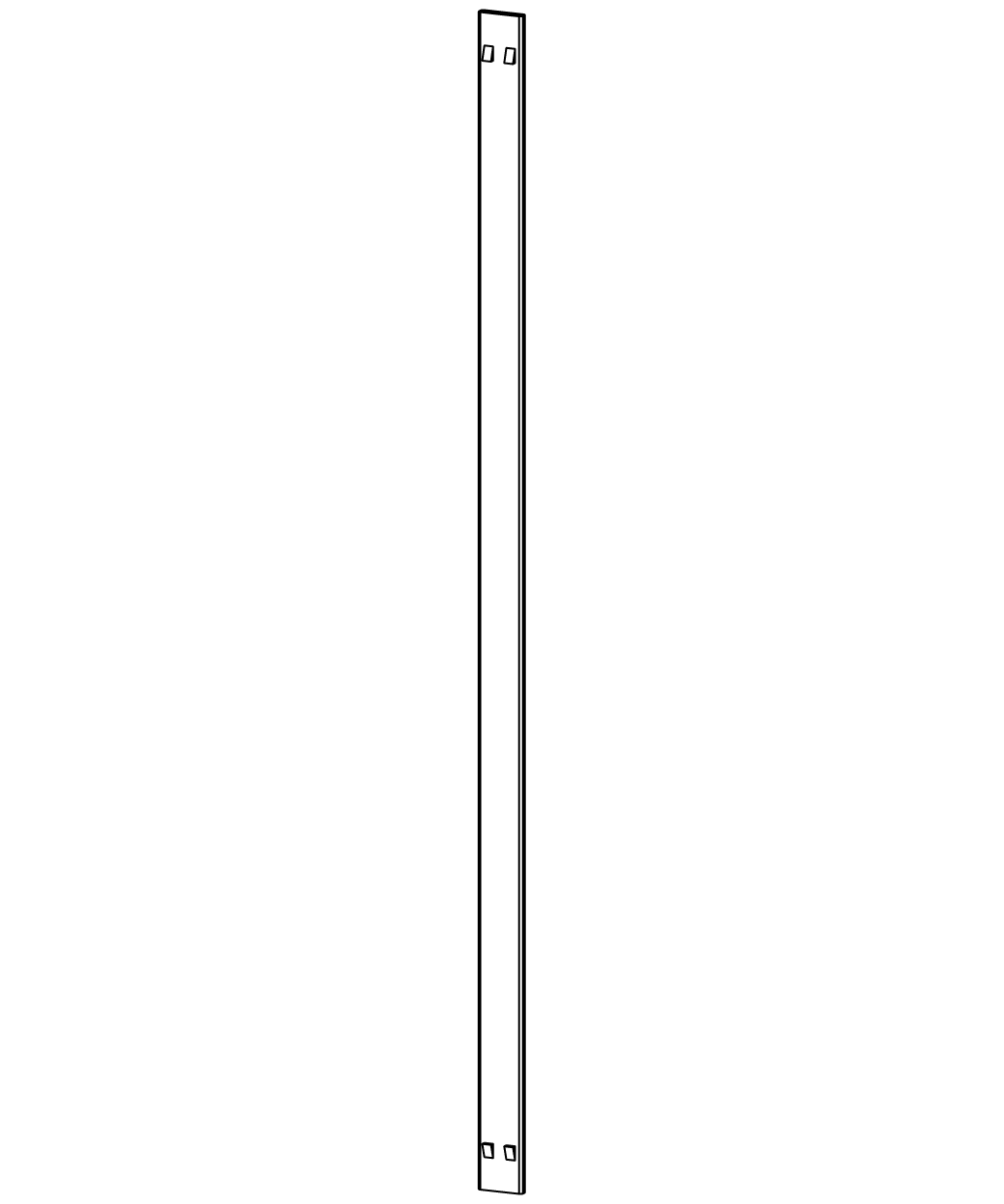

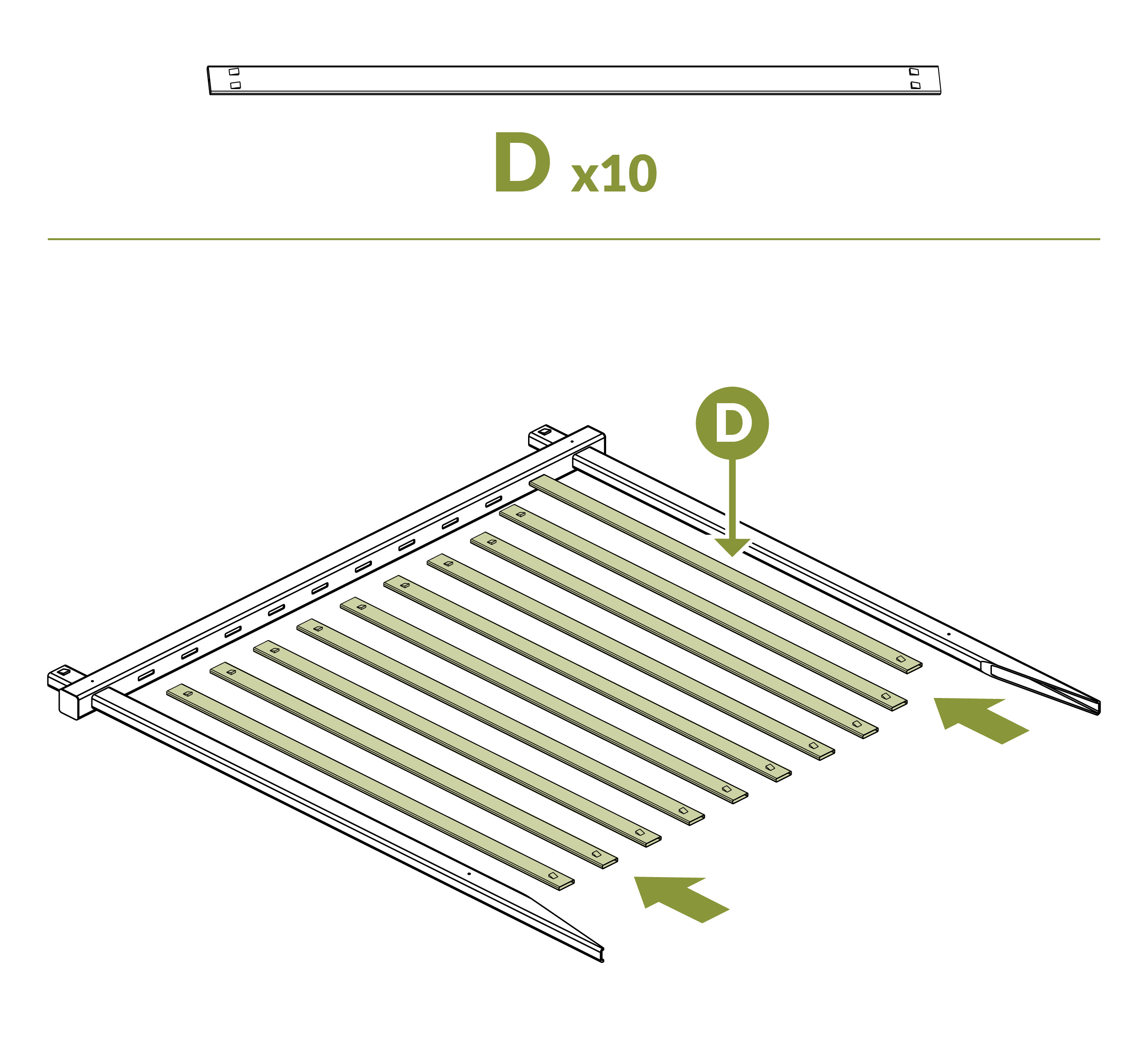

D. Picket (20)

¼" x 1¼" x 31¼"

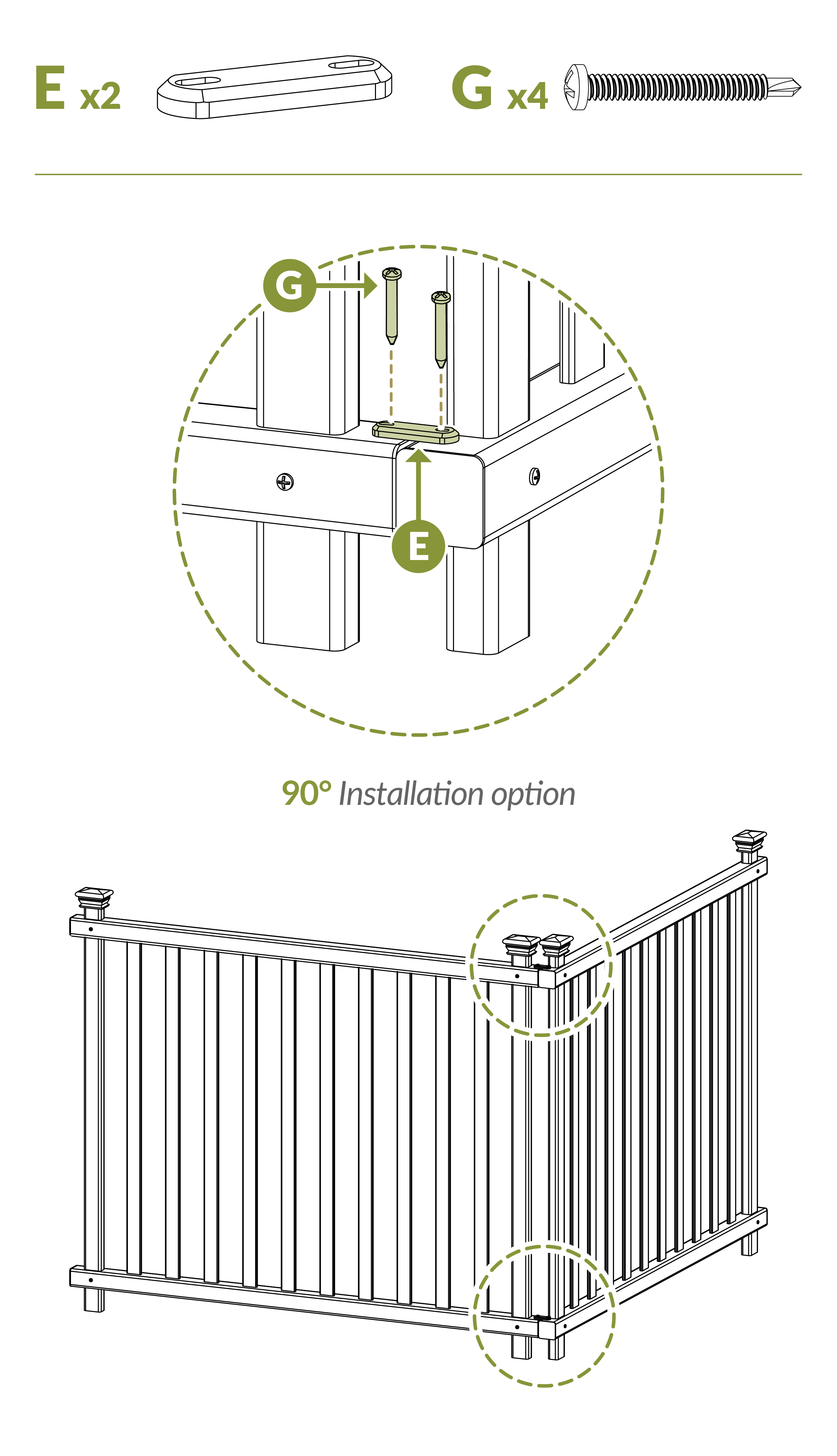

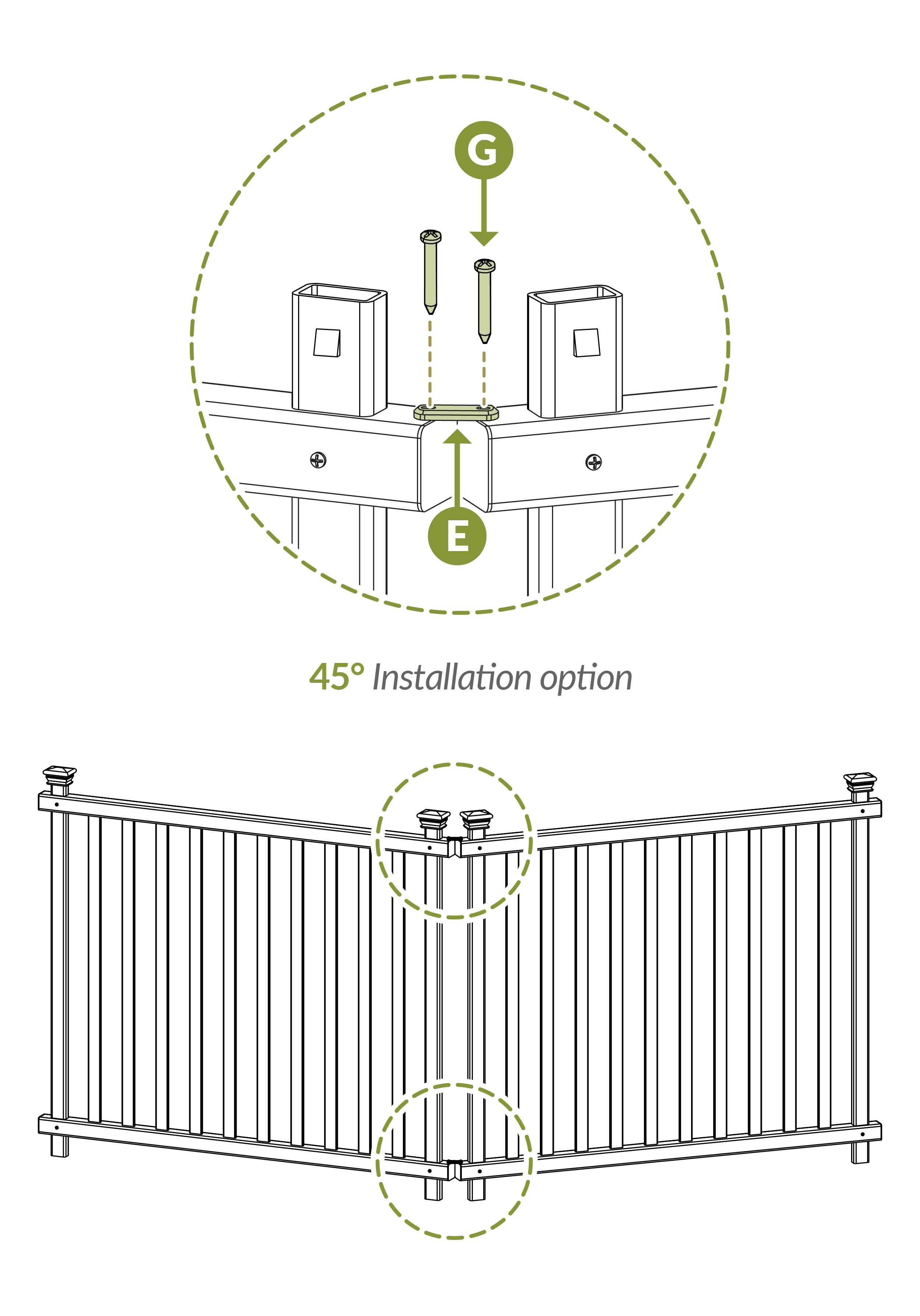

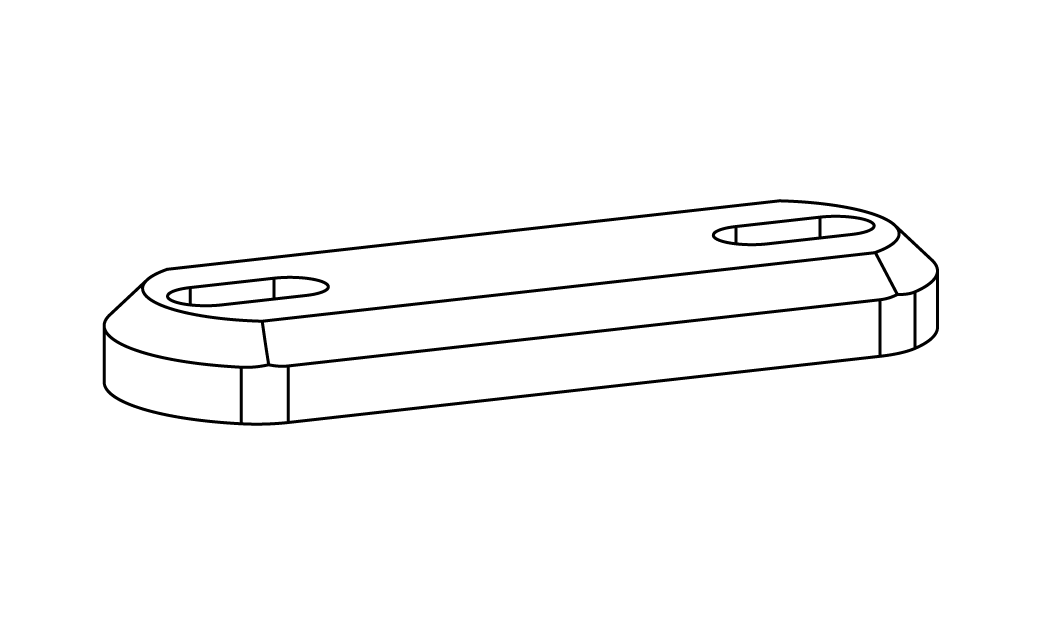

E. Joiner Clip (4)

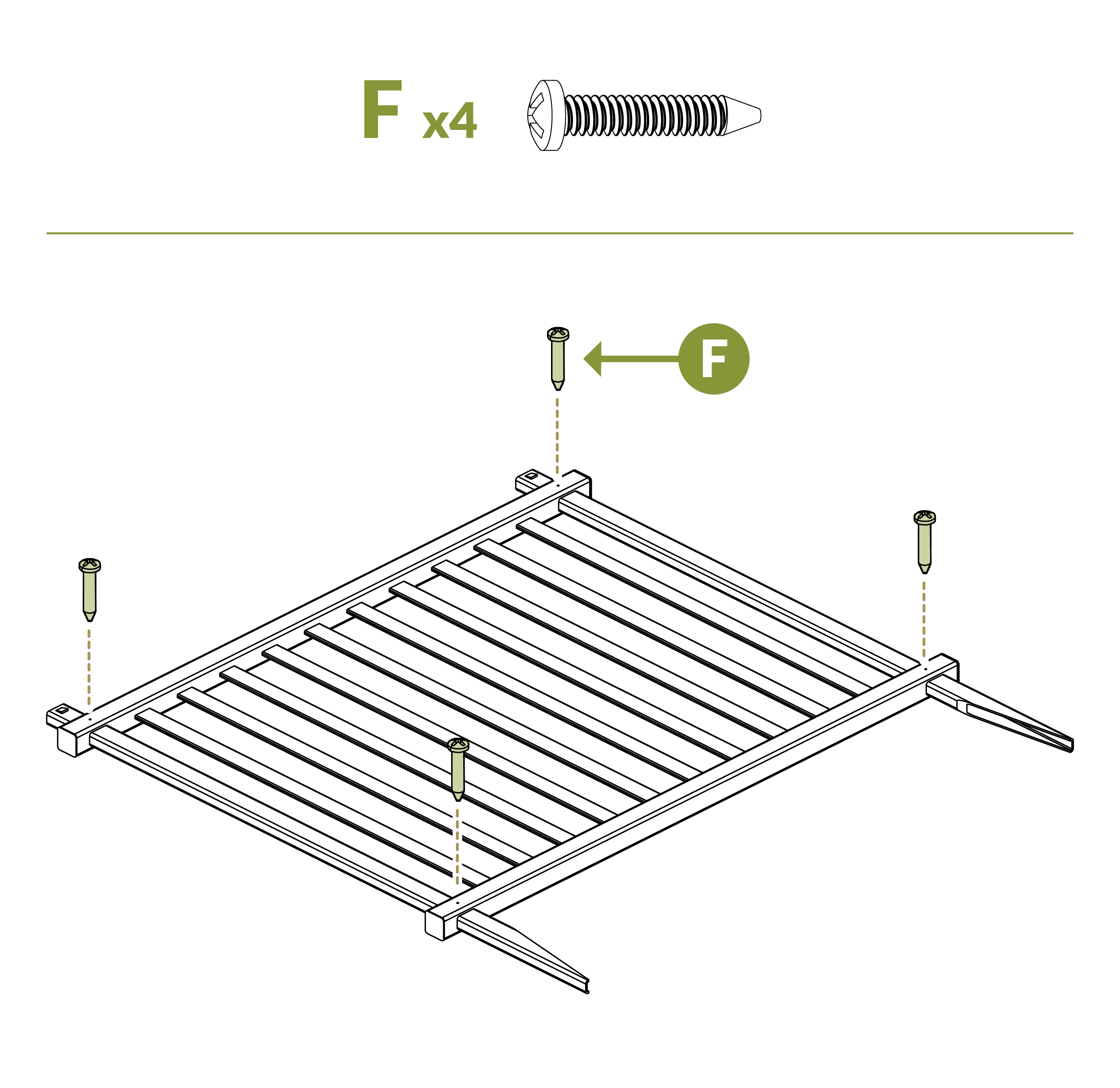

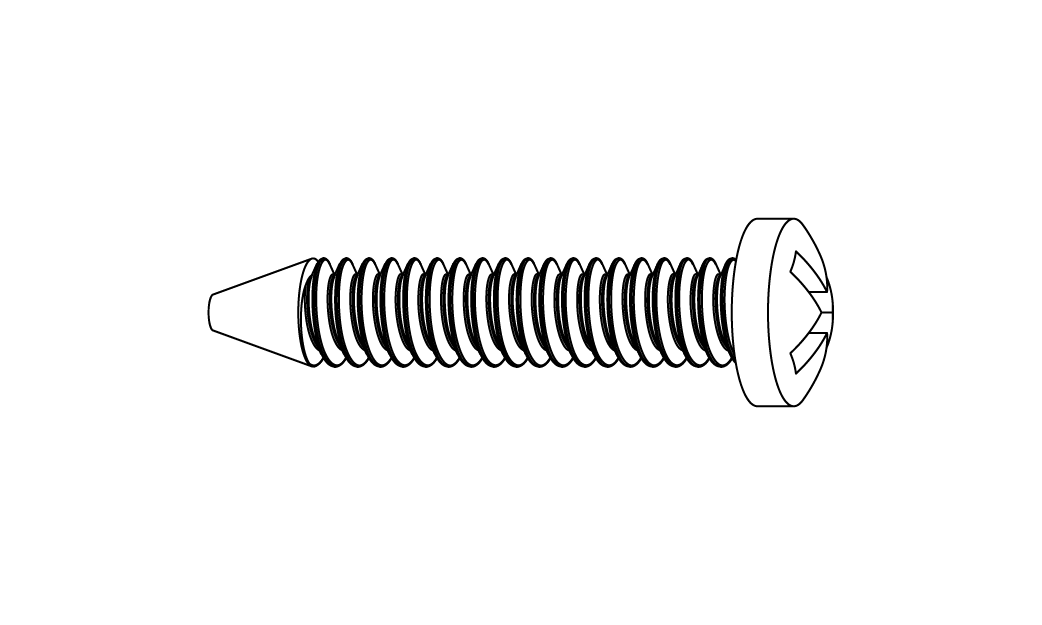

F. ¾" Self-Drilling Stainless Steel Screw (16) (Bag A)

G. 1" Self-Drilling Stainless Steel Screw (8) (Bag B)

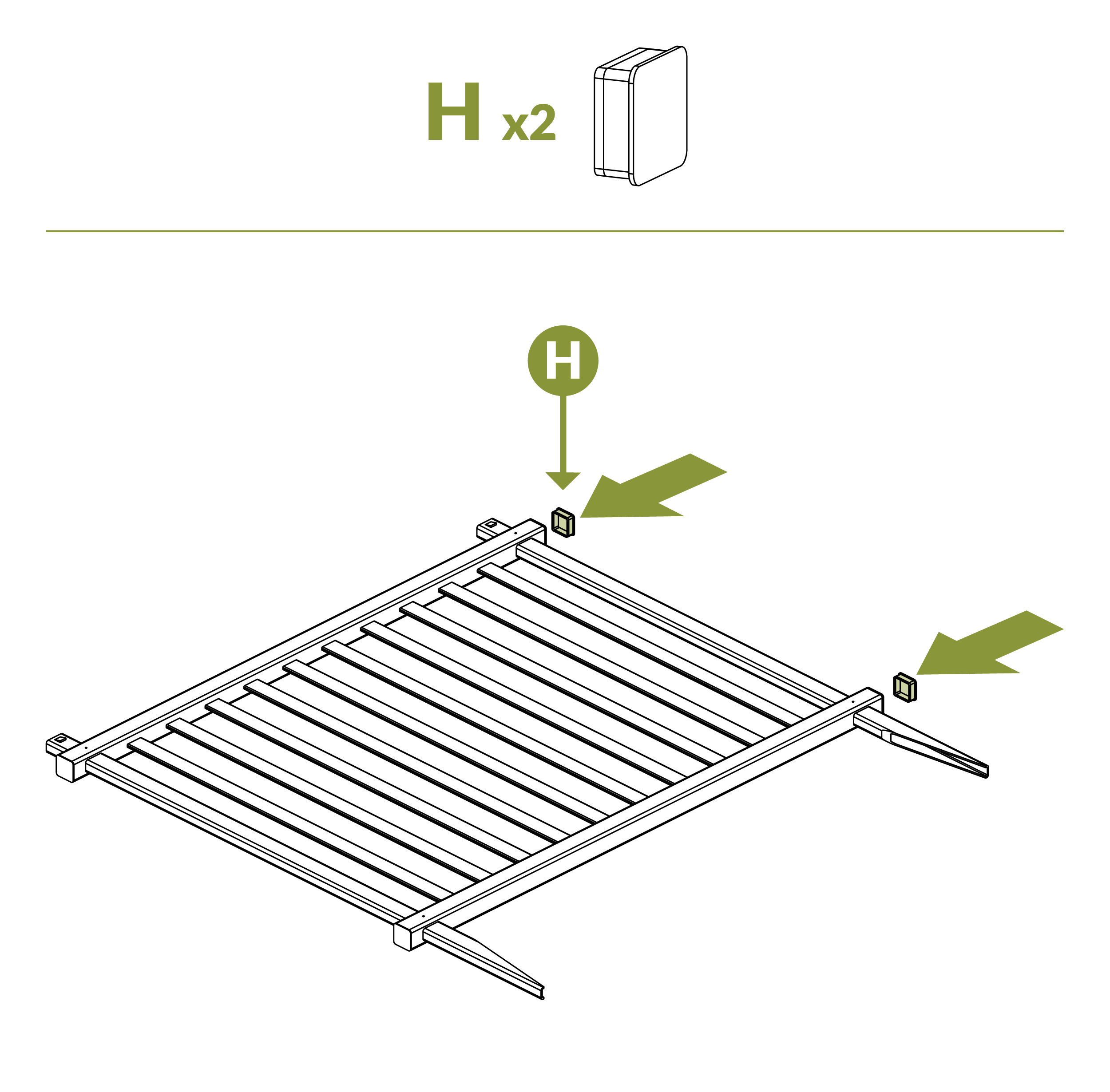

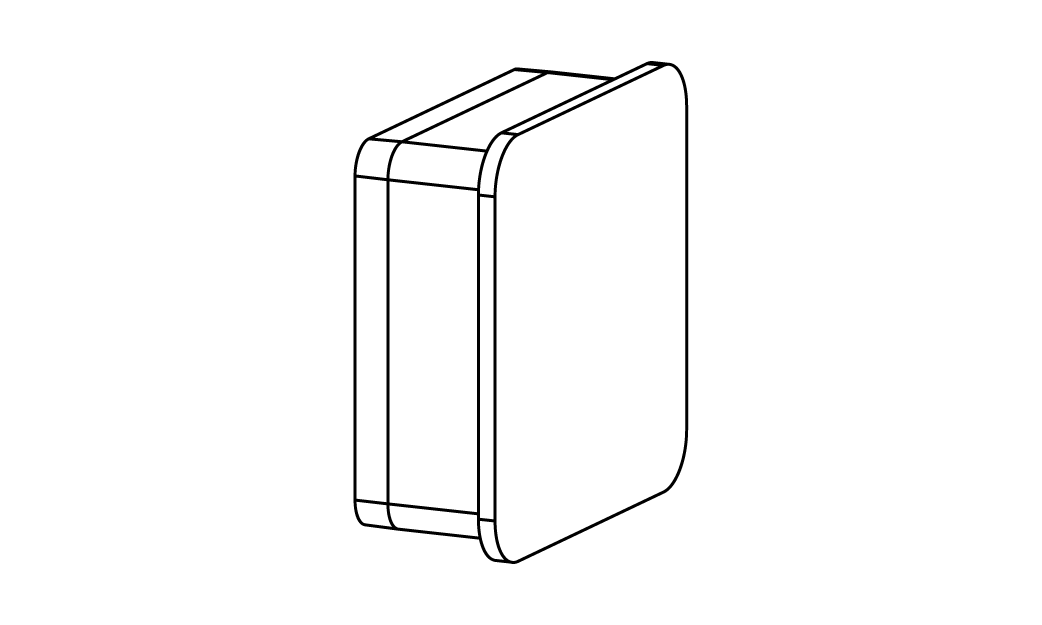

H. End Cap (8)

(4 installed, 4 loose)

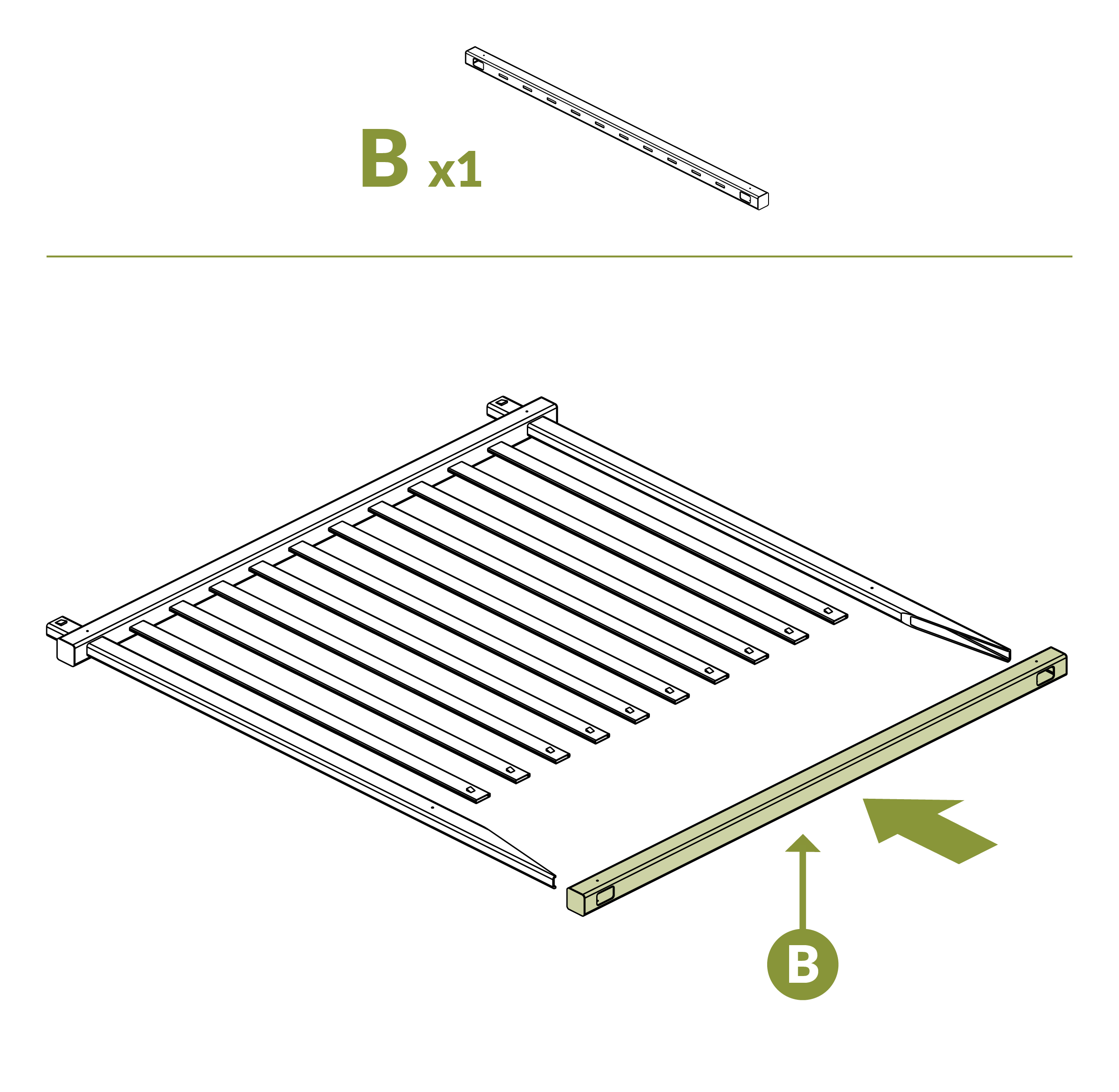

• Slide a second Rail (B) up the Posts (C) until the pickets lock into the routed holes in the rail.

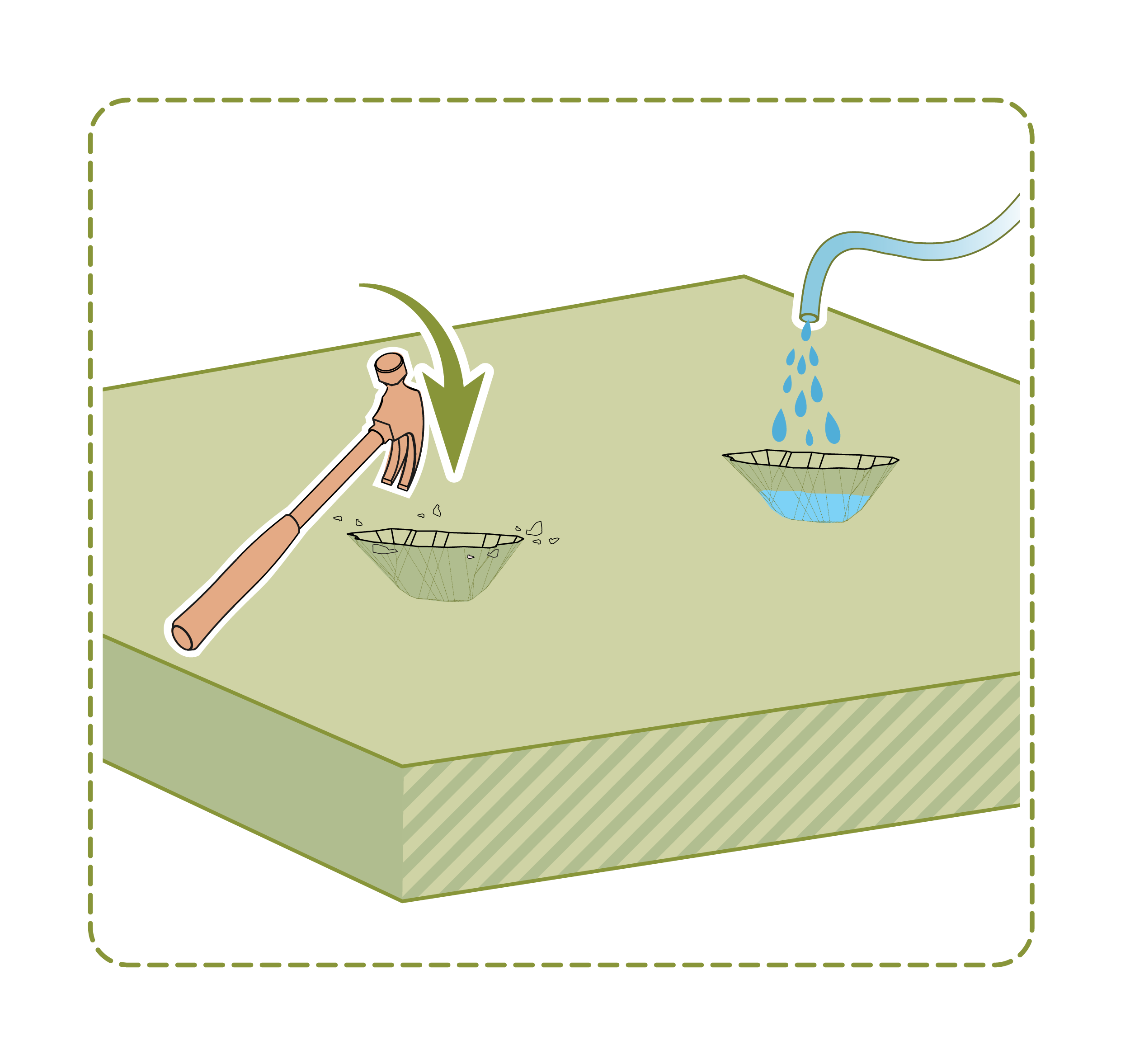

If Ground is Too Hard

• Loosen ground and soak with water

OR

• Use 1.5" tulip auger drill attachment

OR

• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196
• Text: 980-580-6508
