General Information

Important Safety Notes:

• Check inside larger components for smaller parts that may be packed inside.
• When assembling components, place them on a non-abrasive surface (such as the shipping box) to avoid scratching.
• We recommend an area approximately 5' × 8' for unobstructed assembly.
• You should not need to use excessive force when assembling components.

Returns:
If you wish to return your product, please contact us first — we can often help resolve the issue right away.
If a return is still necessary, it must be initiated with the retailer where the product was purchased.

Need Help or Replacement Parts?

Although great care has been taken to ensure proper packaging and handling of this product, occasional issues can occur.

If you need replacement parts, assembly assistance, or have questions about the product, our customer service team is ready to help:

• Website: https://parts.nychbrands.com
• Email: support@zippity-outdoor.com
• Phone: 704-892-5222 or 877-234-6196

Customer service agents are available 9am–5pm EST, Monday–Friday.

For Quick Assistance:

• Have reference item number WF29013
• Provide the specific part name
• Include the batch lot number found on the end of the box

Detailed Dimensions & Specifications

Product Specifications:

• Gate Height: 24 in
• Gate Width: 28½ in
• Fence Panel Height: 25 in
• Fence Panel Width: 29½ in
• Metal Stake Diameter: ½ in
• Metal Stake Length: 38 in
• Recommended in-ground depth: 12⅜ in

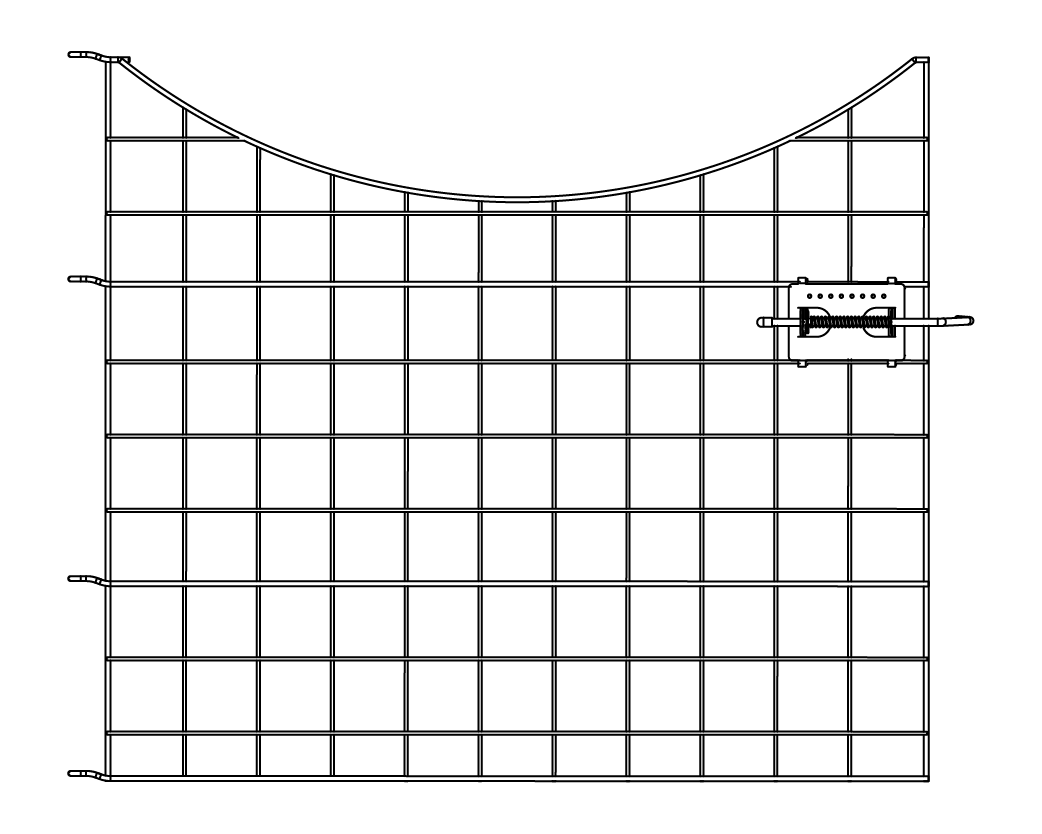

A — Gate Panel (1)

24" H × 28½" W

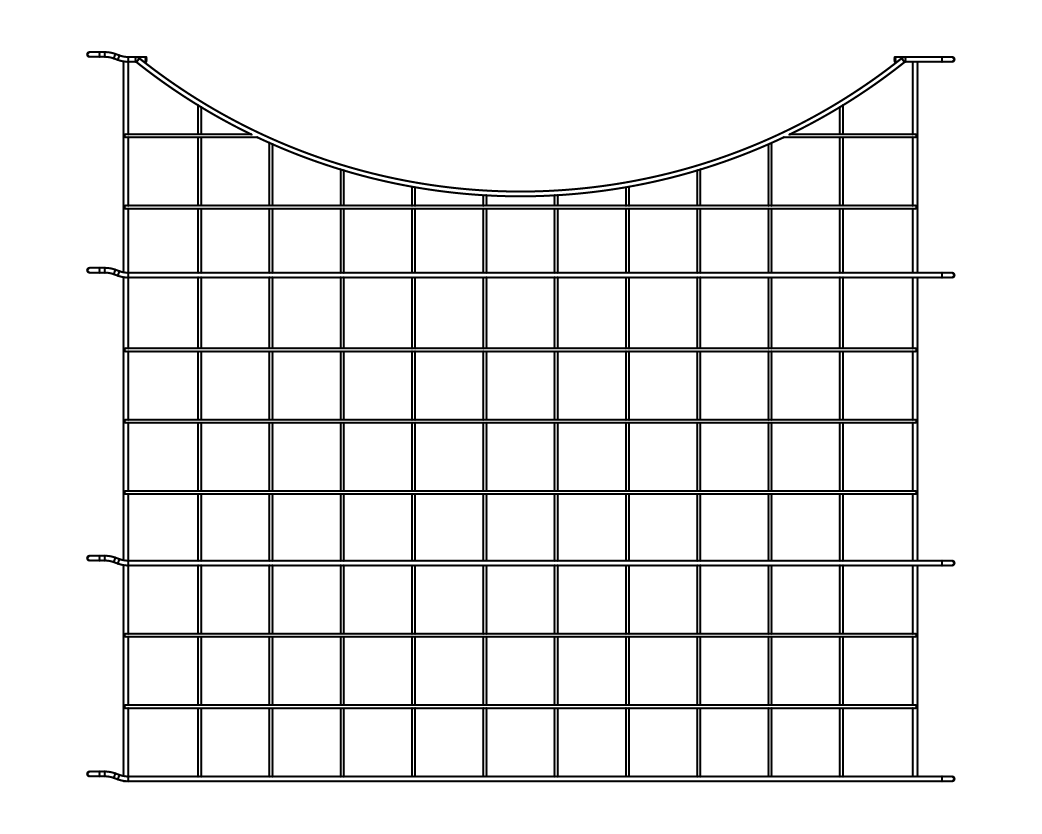

B — Fence Panel (4)

25" H × 29½" W

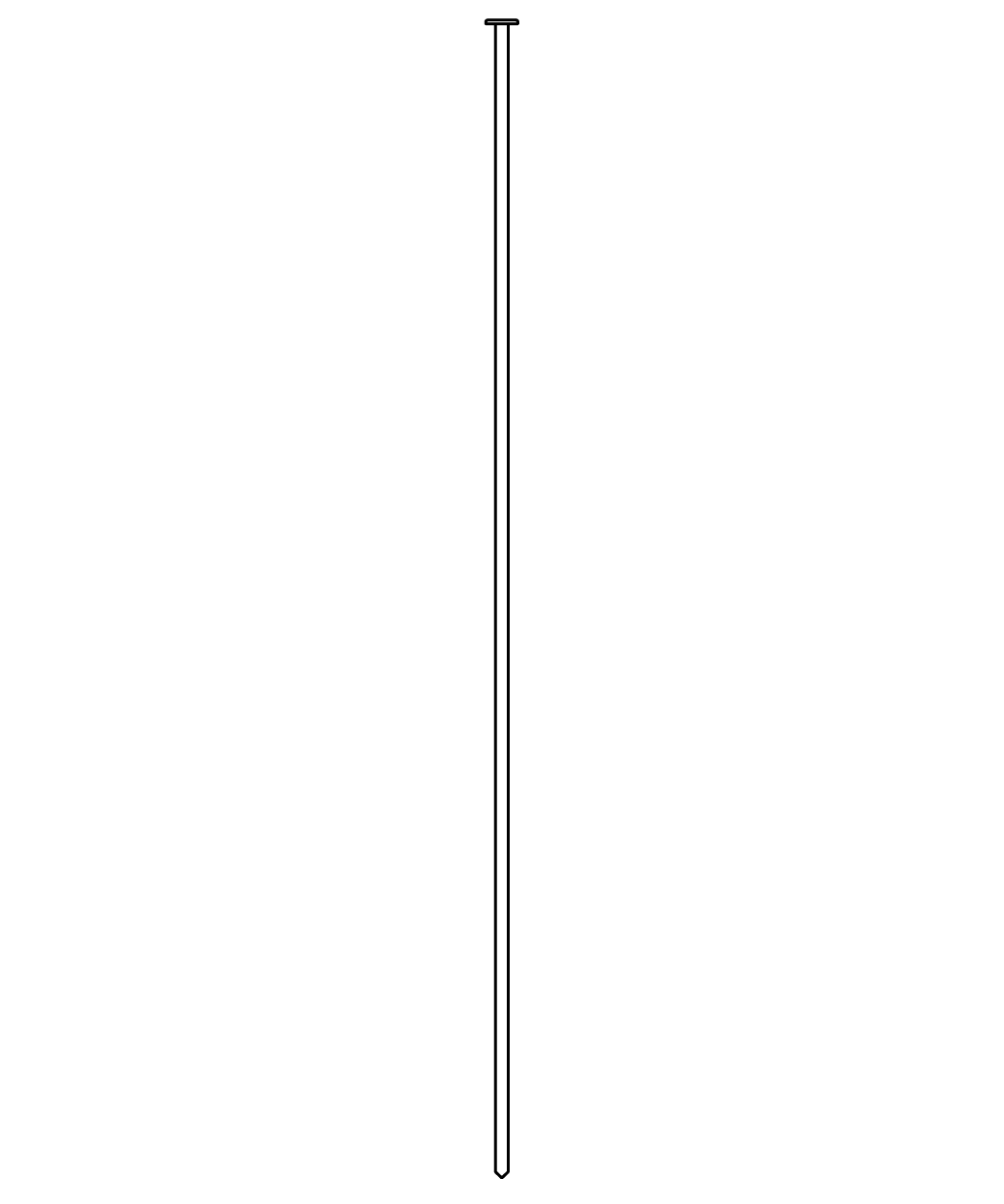

C — Metal Stake (6)

½" Diameter × 38" L

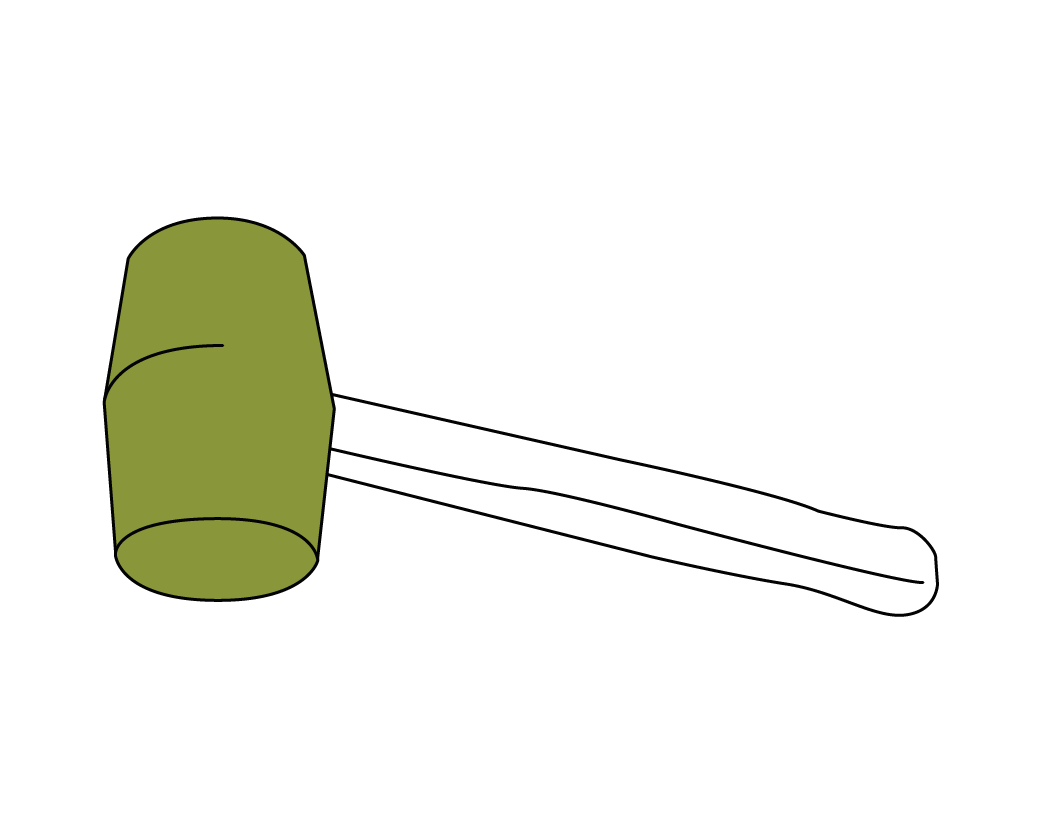

Rubber Mallet

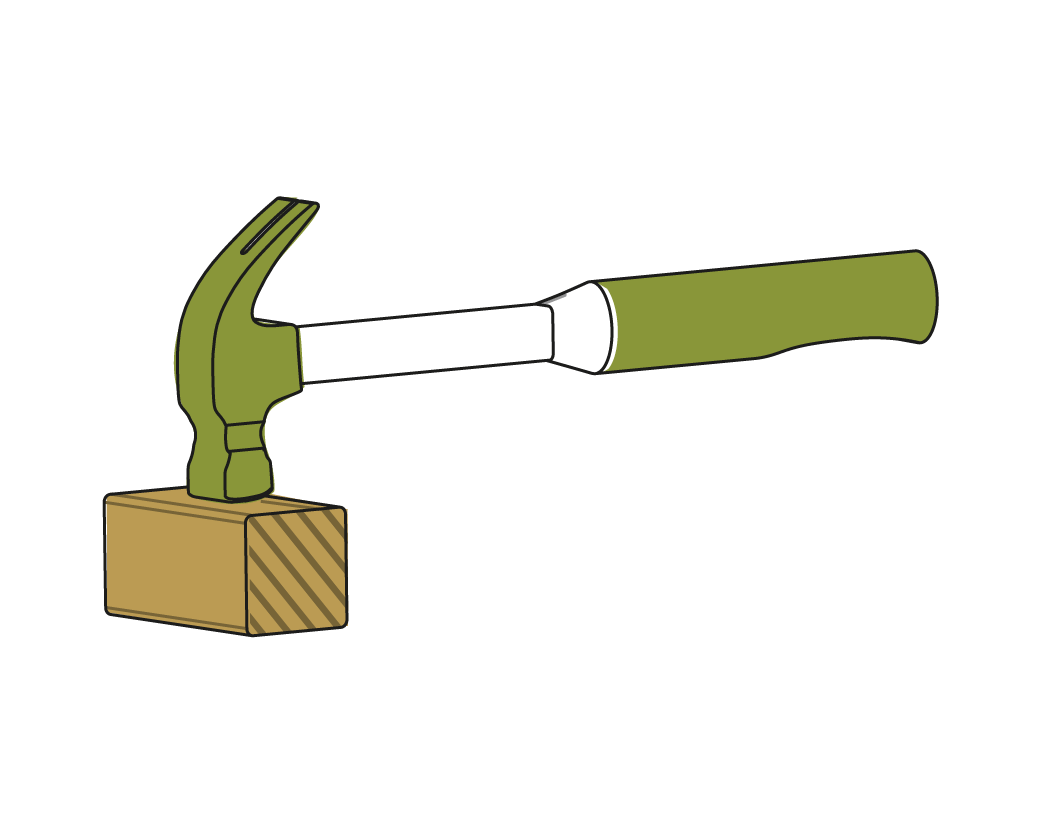

Hammer & Wood Block

Step 2.1

• Insert Metal Stake (C) through the 4 loops on the Fence Panel (B), and use a rubber mallet to drive the metal stake into the ground until it meets the top loop. Alternatively, use a hammer with a block of wood to protect the top of the metal stake.

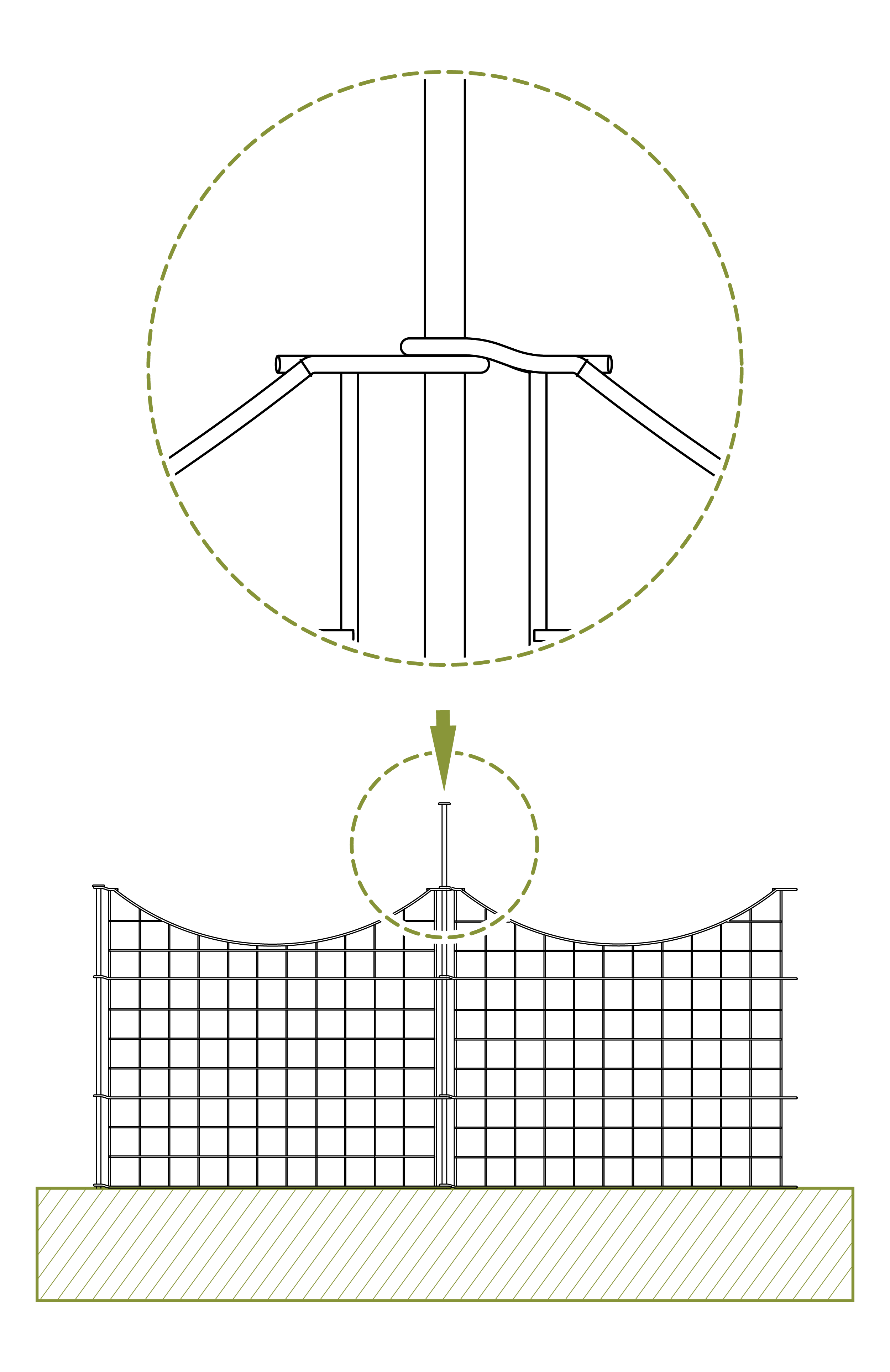

Step 2.2

• Line up the second fence panel as shown, and drive a metal stake through the loops of both fence panels.

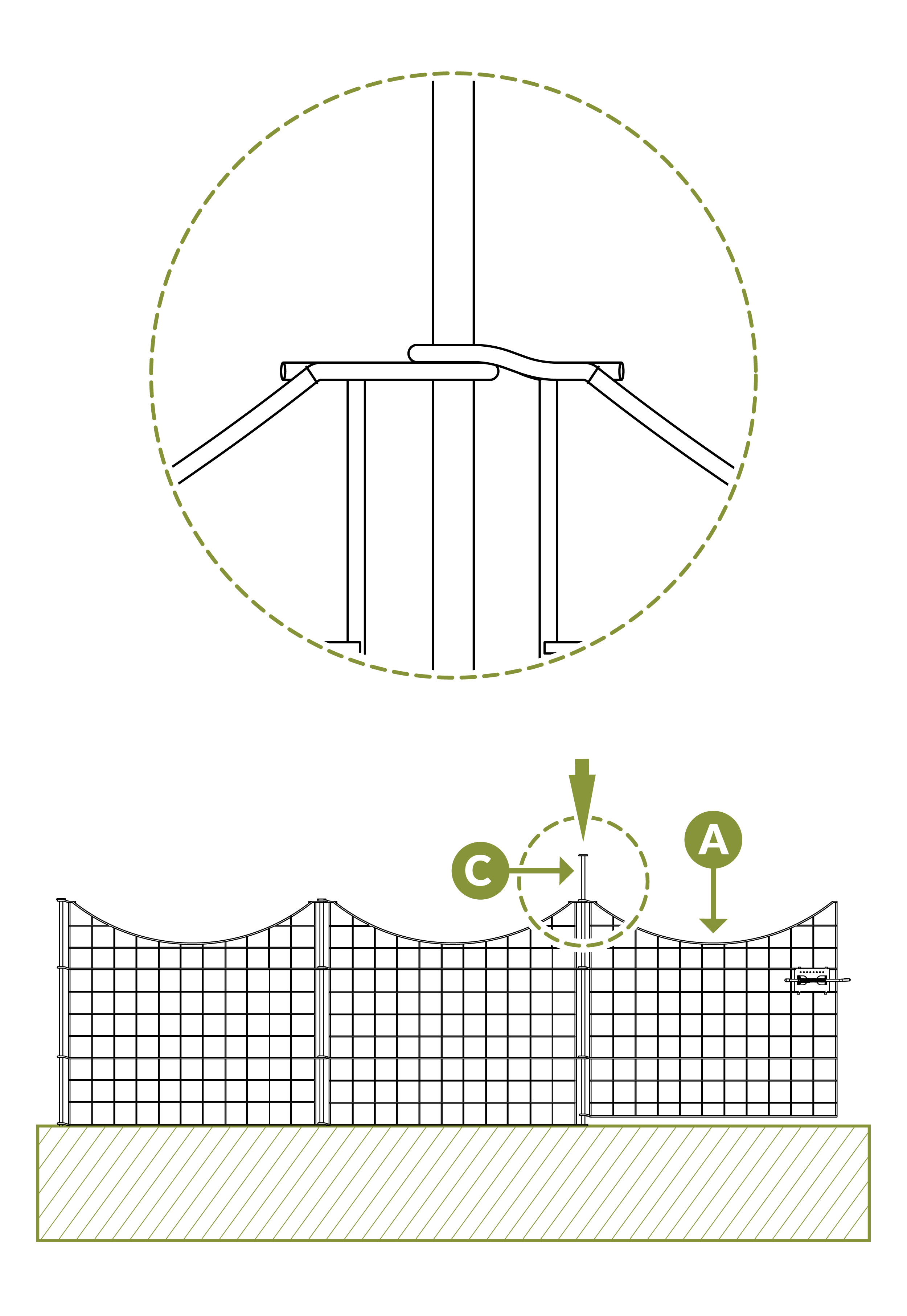

Step 3.1

• Once you get to the spot where you are installing the gate, insert a Metal Stake (C) through loops of the fence panel and the Gate Panel (A). The gate should sit roughly 1” off the ground.

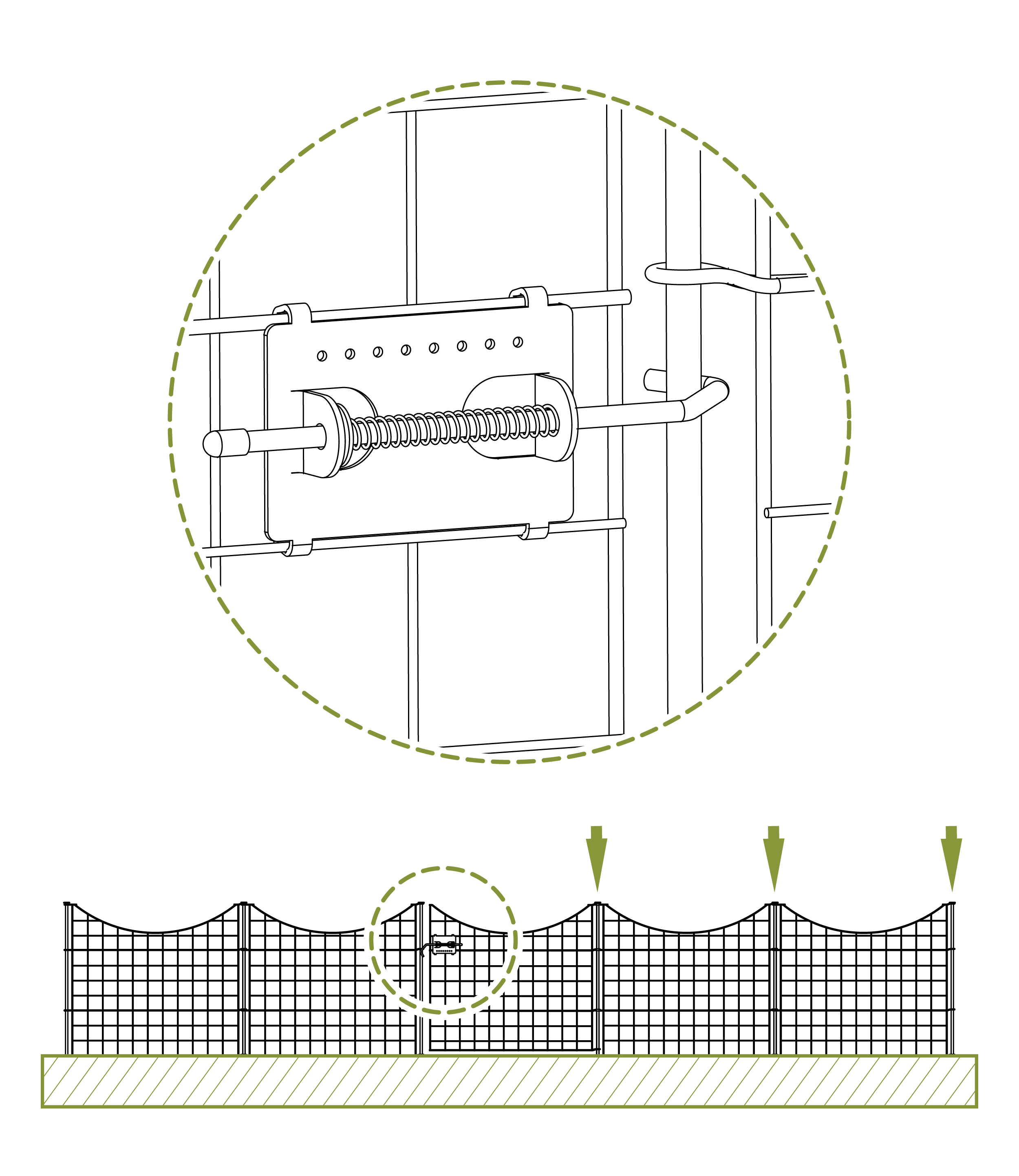

Step 3.2

• Measure 29¾” from the gate metal stake, and install additional fence panels following the same method from Step 2. Pull the gate latch, and hook it around the neighboring metal stake to close the gate.

• Additional fence panels can be purchased under SKU WF29001 to expand your project.
